Ci Instruction Manual
Page 2 of 20
Ci Scanners
Ci24m, Ci24c & Ci24e
Ci40m, Ci40c & Ci40e
P003100 Ci Main Board
Issue 4
©Colortrac Ltd 2015
The product and the contents of this publication may be changed without prior notification.
Colortrac Ltd makes every effort to ensure this publication is free from error. Misprints, errors
or quality observations should be reported to Technical Support, Colortrac Ltd.
Colortrac Ltd shall not be liable for any damages, errors, issues or events that result from the
use of the equipment or this manual.
No part of this product or publication may be reproduced,
copied or transmitted in any form or by any means without
permission from:
Technical Support
Colortrac Ltd.
Units 3 –5 Brunel Court.
Burrel Road.
St Ives,
Huntingdon,
Cambridgeshire,
PE27 3LW.
United Kingdom.
Tel: +44 (0)1480 464618
Fax: +44 (0)1480 464620
www.colortrac.com
Ci Instruction Manual
Page 3 of 20
11
Contents
1. REPLACING MAIN BOARD .................................................................................................... 4
2. CONFIGURING MAIN BOARD TO A Ci24............................................................................ 16
3. RUNNING UTILITIES ............................................................................................................ 17
4. NORMALISATION................................................................................................................. 19
5. AUTO STITCH....................................................................................................................... 20
Ci Instruction Manual
Page 4 of 20

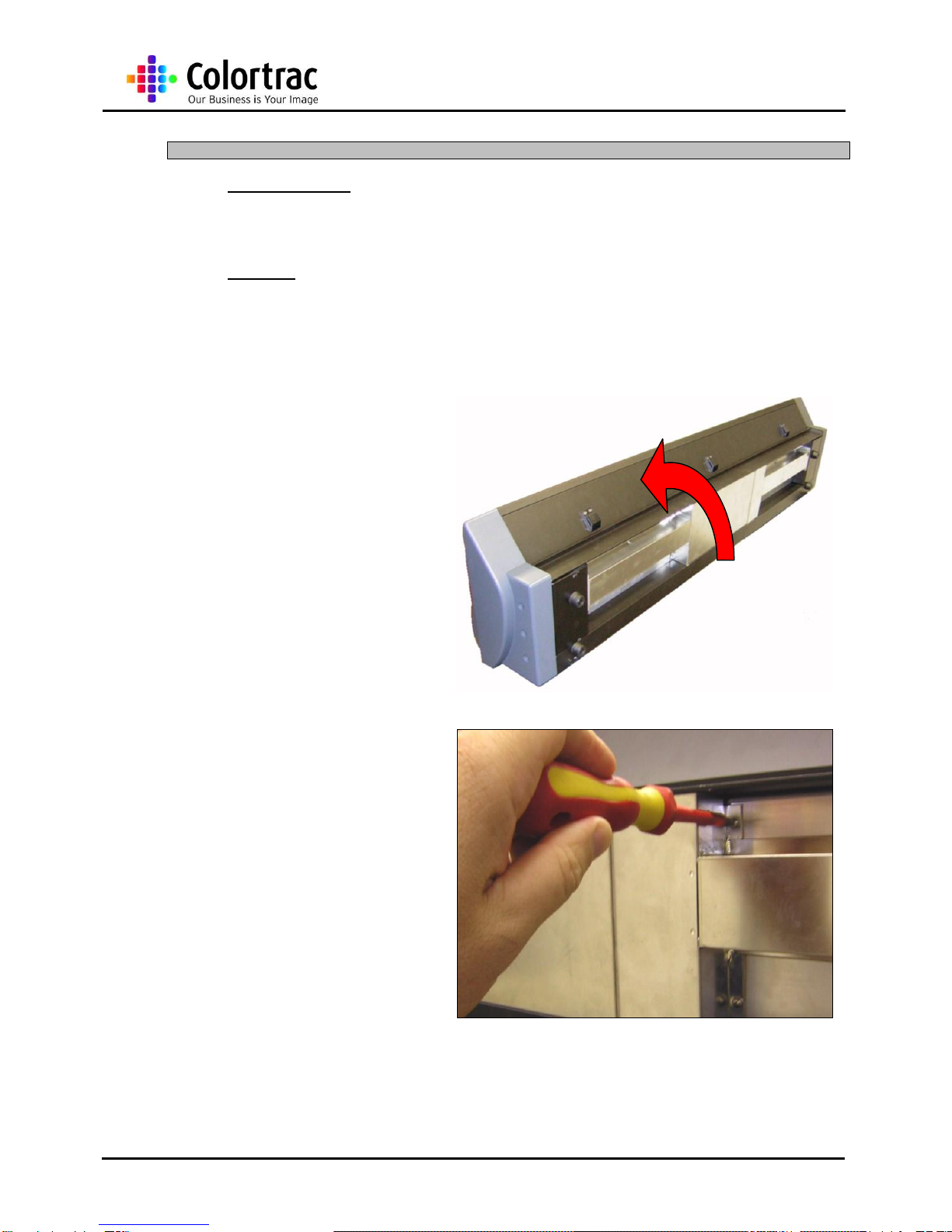

1. REPLACING MAIN BOARD
1.1 Safety Precautions
Ensure the power is completely disconnected from the scanner unit.
Ensure the scanner is positioned on a stable maintenance platform.
Use 2 persons to lift the scanner and rotate the scanner.
1.2 Procedure
1. Before removing any panels, power up the scanner and run the utilities program, and
make a note of the ‘motor speed’ as in Chapter 3 “Running Utilities”.
NOTE: If the board is faulty so you can not run the utilities or the value is ‘9#000’, contact support
2. Disconnect the scanner.
Ensure the scanner is
positioned on its stand in
the maintenance position.
For Ci40
3. Remove 6 x M3 Pan Head
Screws from the Cable
Tray Right Sub-A.
Ci Instruction Manual
Page 5 of 20
4. Pull the Cable Tray Right
Sub-A away from the
chassis.
5. Remove the 4 x M3 pan
head screws from the PCB
Tray covering the Main
Board.
NOTE: The bottom right hand
corner screw acts as an earth
point.
6. Disconnect the Ethernet
connection to the board to
allow the PCB Tray to
come off.
Ci Instruction Manual
Page 6 of 20
7. Disconnect the USB
connection to the board to
allow the PCB Tray to
come off.
8. Disconnect the inline
connector of the mains
cable.
NOTE: These cables go through the
cover with suppressors, the wires are
hard soldered on, and can be easily
broken off, and so great care is needed
when handling this cable. A soldering
iron is required to change the
suppressors, so it is recommended the
PCB Tray is replaced should these
break in the field.
9. Pull out the PCB Tray and
lower enough to be able to
reach the mains connector
to the board without putting
strain on the cable.
Ci Instruction Manual
Page 7 of 20
10. Disconnect the mains plug
from the Main Board and
remove the PCB Tray.
For Ci24
11. For the Ci24 PCB Tray,
remove the 4 x M3 screws
in each corner.
12. Pull the PCB tray out
gently, remembering the
power cable is connected
to the tray.
Ci Instruction Manual
Page 8 of 20
13. Disconnect the inline
connector for the power
cable.
14. Disconnect the Power
cable from the main board.
15. Disconnect all the
remaining cables from the
Main Board.
Ci Instruction Manual
Page 9 of 20
16. Release the locking plates
holding the ribbon cables
in place on all the
connectors.
NOTE: Too much force doing this could
result in breaking the locking plates, so
care is required.
17. Remove the 4 x M3 Pan
Head Screw holding the
Main Board in place.
18. Lift the board away from
the scanner, and remove
the CIS cables by pulling
them away from the board
as you lift it out.
19. Refit the new board using
the 4xM3 Pan Head
screws. Make sure none
of the cables are trapped
behind the board as it is
put in place.
Ci Instruction Manual
Page 10 of 20
20. Using tweezers, push the
CIS cables squarely back
into the appropriate
connectors. These cables
are short to comply with
EMC regulations. Take
care not to damage the
cables during insertion.
Make sure the cable fits
completely into the
connector so that little or
no silver is showing.
21. Close the locking plates to
secure the cable and
prevent it being pulled free.
NOTE: The length of the cables in these pictures are longer than actual for illustration purposes only.
Correct Way Round
In-correct Way Round
22. Refit the Motor cable into
its socket.
