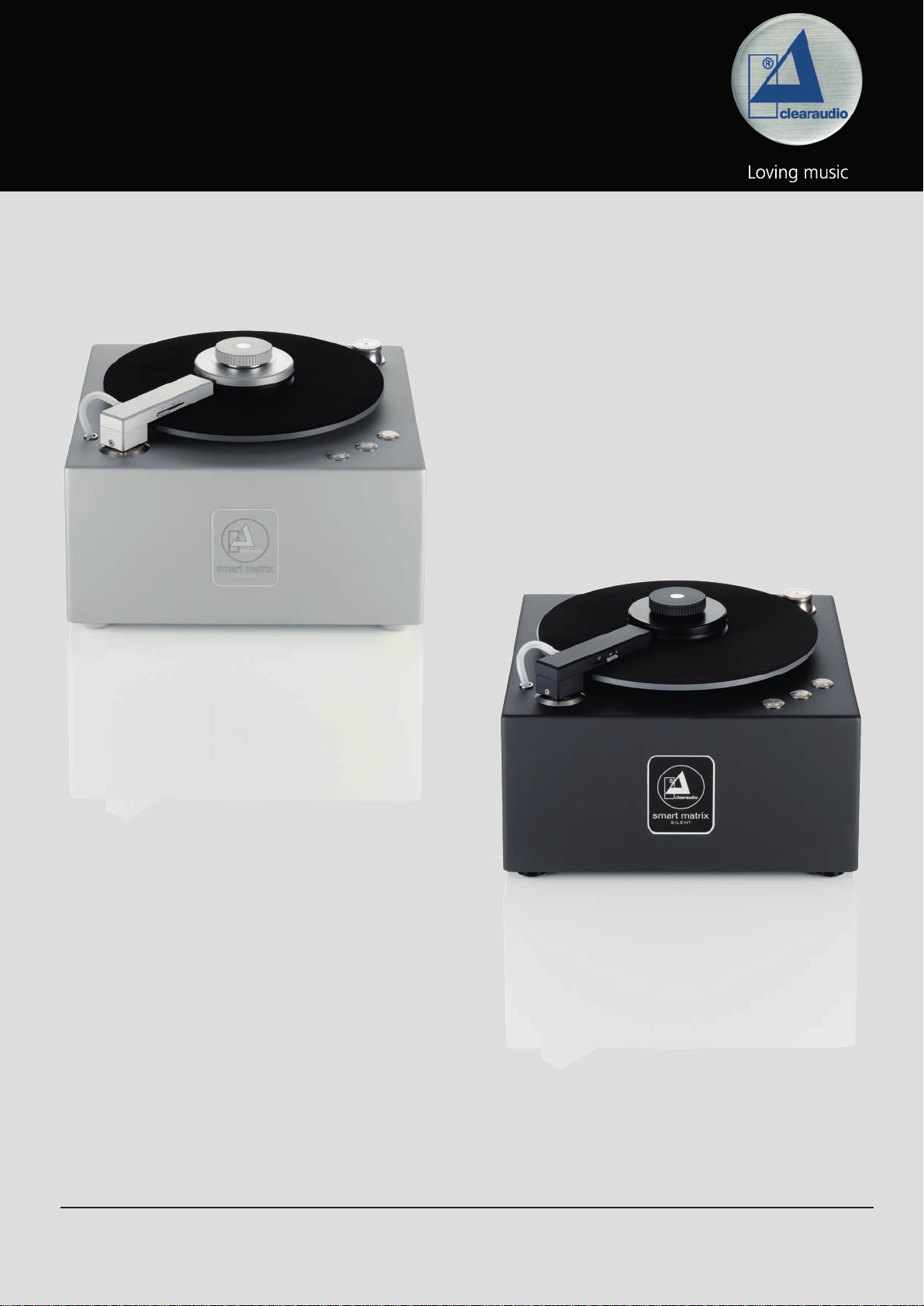

Clearaudio Smart matrix SILENT Manuel utilisateur

User manual

Bedienungsanleitung

smart matrix SILENT

User manual / Bedienungsanleitung

2 © clearaudio electronic GmbH, 2019-06

User manual......................................................2 - 13

Bedienungsanleitung ........................................14 - 25

Dear Clearaudio customer,

Thank you for choosing the

smart matrix SILENT

record cleaning machine, a high quality product

made in Germany by Clearaudio.

A clean vinyl record has so much more to oer: more information, more detail and, let’s face it,

better sound. That’s why audio experts advocate cleaning not only your latest ea market nds

but also your brand-new LPs fresh from the press – to remove those unwanted surface chemical

residues.

To avoid misuse and achieve the best possible cleaning results with your

smart matrix

SILENT

record cleaning machine, please read this user manual carefully.

Components and processing

The Clearaudio

smart matrix SILENT

is built using the highest quality components and is designed

for intensive and continuous use. The chassis, the cleaning, vacuum and antistatic arms, and the

SMS Seal record clamp are all machined from solid aluminium. The design and construction of the

record cleaning machine reduce noise to a minimum.

We wish you much musical enjoyment with your new Clearaudio

smart matrix SILENT

record

cleaning machine.

Clearaudio electronic GmbH

Available accessoires:

Microbre stripes

(Art. No. AC062/SMS): Record cleaning uid

Pure Groove

(Art. No. AC048):

Available in dierent sizes

Dustcover for

smart matrix SILENT

(Art. No. AC162)

Carbon bre brush

(Art.No. AC004):

You can purchase spare parts or accessories either from your Clearaudio dealer or directly from

the Clearaudio analog shop: www.analogshop.de

User manual / Bedienungsanleitung

Made in Germany 3

Contents

1. Package contents .................................................................4

2. Features overview of the

smart matrix SILENT

...................5

3. Set-up and operation............................................................6

4. Operating elements..............................................................7

5. Cleaning process ..................................................................8 - 9

6. Maintenance.........................................................................9 - 11

7. Special instructions..............................................................12

8. Technical data ......................................................................13

Warranty information...............................................................27 - 28

User manual / Bedienungsanleitung

4 © clearaudio electronic GmbH, 2019-06

1. Package contents

The Clearaudio

smart matrix SILENT

record cleaning machine is packed in customised packing.

We highly recommend that you keep the original packing material in case any future transportation

or shipping is necessary.

After opening the shipping box, please take the various accessories out and place them near to the

area where you want to use the machine. Using both hands, lift out the machine and place it onto

a stable and waterproof surface.

Ensure that the packaging has no external damage, such as shipping damage.

IMPORTANT: Never lift the

smart matrix SILENT

by its platter.

Please check the contents included with the machine as listed below:

In the event of an incomplete delivery, please contact the relevant Clearaudio dealer immediately.

1. Fully assembled record cleaning machine

2. Record clamp (mounted on the platter)

3. Filling funnel

4. IEC connector

(according to country specications)

5. Spare microbre stripes (2 pcs.)

6. 500ml Pure Groove cleaning uid

7. Cap for cleaning uid reservoir

(mounted on the lling opening)

8. Tube plug

(mounted on the drain tube)

9. Single adapter

10. Warranty card / Quality control card

User manual / Bedienungsanleitung

Made in Germany 5

2. Features overview of the

smart matrix SILENT

• Cleans 12, 10 and 7-inch records

Thanks to an individually adjustable and multifunctional cleaning/suction arm, it is possible to

clean all record sizes without changing the arm.

• Bi-directional rotation

For enhanced cleaning performance you can change the direction of the rotation.

• Record clamp

Ensures that the record is held rmly during the cleaning process and protects the record label

from uid damage.

• Integrated uid application

Via a pump, by pressing a button.

• Easy controls

Simple and quick handling, using buttons on the top of the cleaning machine.

User manual / Bedienungsanleitung

6 © clearaudio electronic GmbH, 2019-06

3. Set-up and operation

3.1

Place the

smart matrix SILENT

machine on a clean, dry and stable surface.

The surface should be waterproof.

Please make sure that the machine is positioned safely and securely.

TIP: We recommend keeping a towel near the machine to mop up any uid spillage.

3.2

Connect the mains cable to your

smart matrix SILENT

and then to your wall socket.

The

smart matrix SILENT

must always be used with a grounded mains wall socket.

IMPORTANT:

Please read before you connect your

smart matrix SILENT

to any power outlet:

The

smart matrix SILENT

is available in both 230V and 110V versions.

The correct voltage is indicated on the rear of your

smart matrix SILENT

Please make sure that you use the right voltage for your machine.

Use your

smart matrix SILENT

only with the voltage

indicated on the rear of the machine!

To switch o the device completely (to avoid

unnecessary standby consumption if it will not be

used for a long period of time) we recommend setting

the switch on the IEC socket to the position “0”.

3.3 Filling the cleaning uid reservoir

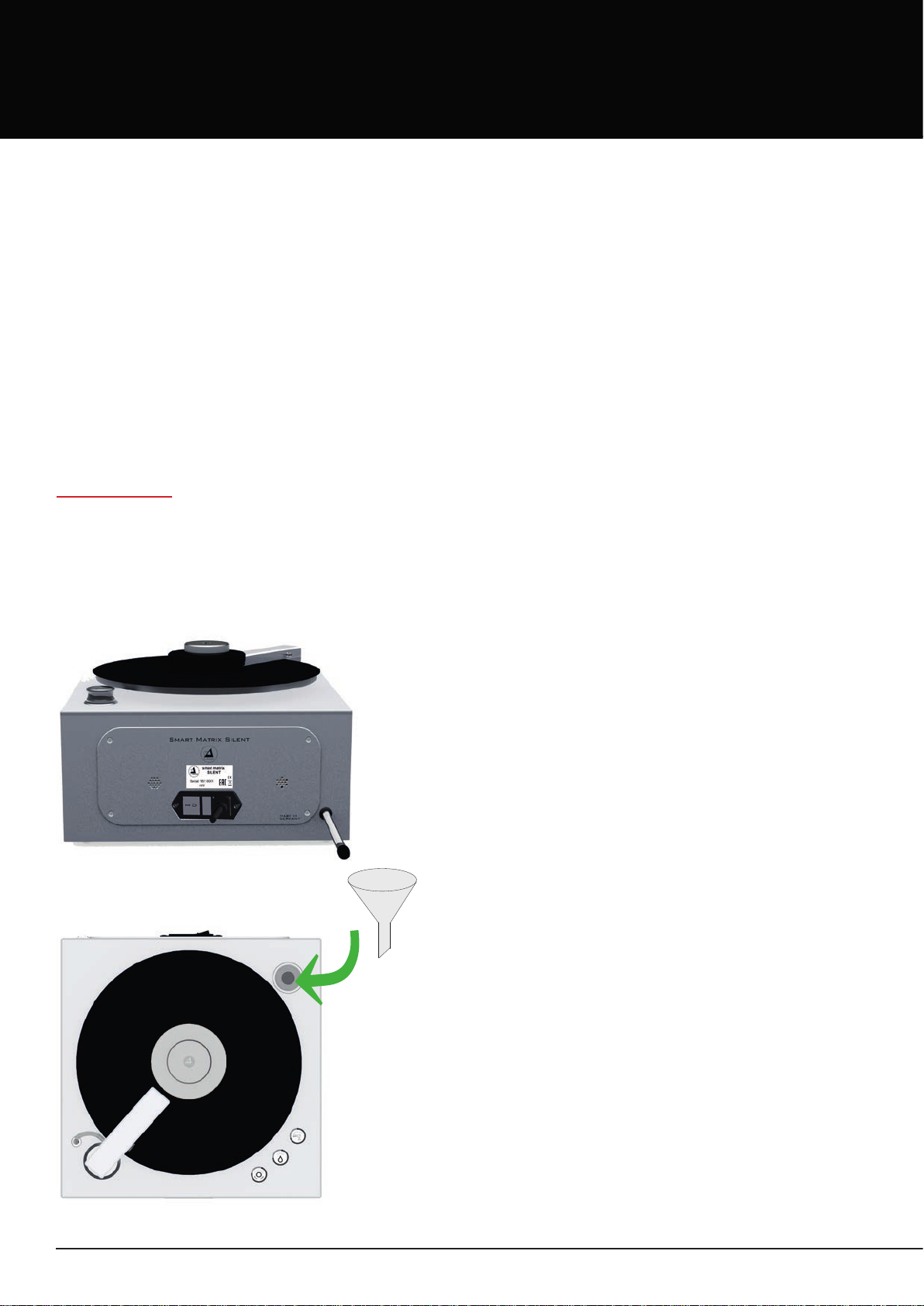

Remove the cap from the cleaning uid reservoir and place the

lling funnel supplied into the hole (Pic. 2). Fill the uid reservoir

with the Pure Groove cleaning uid provided (max. 0.4l).

Then replace the cap.

For eective cleaning we recommend using only Clearaudio

Pure Groove cleaning uid (available at www.analogshop.de).

Pic. 1: IEC socket on the rear side

Pic. 2: Filling the cleaning uid reservoir

User manual / Bedienungsanleitung

Made in Germany 7

4. Operating elements

1Cleaning & vacuum arm 4Vacuum drying on / o

2Rotation direction selector 5Record clamp

3Cleaning uid application 6Cleaning uid reservoir lling cap

Pic. 3: View from above

Please familiarise yourself with each of the operating elements shown above, which are described

in detail on the following pages.

User manual / Bedienungsanleitung

8 © clearaudio electronic GmbH, 2019-06

5. Cleaning process

For simple and eective record cleaning please follow these steps:

(Make sure that there is good ventilation in the room while using the

smart matrix SILENT

machine.)

1. Make sure, that the cleaning-/ vacuum arm is in rest position (not above the platter).

Connect the

smart matrix SILENT

machine to the mains supply as described in point 3.2 and

switch the main switch on the rear panel on.

2. Remove the record clamp and place the record on the

platter,then hand-tightentherecord clamponto thespindle

so the record won‘t move during the suction process.

Now adjust the cleaning/vacuum arm to the correct size

of your record (Pic. 4).

3. Start the machine by swinging the cleaning/vacuum arm

back above the platter and then pressing it down.

Due to its automatic on/o system, the platter will start to

turn and will automatically apply a small dose of cleaning

uid onto the platter (Pic. 5).

4. By pressing and hold the ‘Liquid’ button (Pic. 3, No. 3) you can dose the cleaning uid on the

record. Once the record is equally and completely covered with a small amount of cleaning uid,

we recommend changing the platter direction after 2-3 rotations by pressing the ‘Platter’ switch

(Pic. 3, No. 2).

Please note:

The uid should just cover the whole record playing surface evenly. Too much uid will

spill onto the surface of the

smart matrix SILENT

or onto the record label.

If too much uid is applied, immediately mop up the excess with a towel or similar

material to prevent any damage to the record label or to the machine.

Pic. 4: Adjustment of the cleaning/vacuum arm

Pic. 5: On/o system

User manual / Bedienungsanleitung

Made in Germany 9

TIP: For very dirty records, we recommend allowing the platter to turn more than twice

in each direction and then repeating with a second or even third cleaning and vacuum

process.

5. Press the ‘Vacuum’ button (Pic. 3, No. 4) to start the vacuuming process and wait until the record

surface is completely dry. Press the ‘Vacuum’ button again to stop the vacuuming process.

Please note:

For best cleaning results we recommend selecting anti-clockwise rotation of the platter

for vacuuming.

6. Now you can switch the rotation o, by lifting the cleaning/suction arm and then swinging it back

to the side. Remove the record clamp.

Flip over the record and repeat the cleaning process by following points 1-5 for the other side.

To discharge any static that is generated during the drying process, we recommend using an

antistatic brush (Art. No. AC014, available at www.analogshop.de) before playing the record on

your turntable.

6. Maintenance

Cleaning and draining the waste uid tank

Please empty the waste uid tank after 30 – 40 cleaning procedures.

The waste uid tank has a capacity of approx. 0.5 litres. We recommend regular emptying of the

tank, to avoid any damage.

Please note that with intensive use, waste uid can evaporate nearly completely leaving a residue

within the waste tank which may clump over time and possibly clog the discharge opening.

For prevention we recommend occasional cleaning.

Before you start cleaning, you should rst empty the waste uid tank.

Please make sure that you have switched o the vacuum motor while emptying the

waste uid tank otherwise damage to the machine could occur.

To empty the tank, rst remove the stopper from the uid

release tube (on the rear panel of the

smart matrix SILENT

Place the tube in an appropriate vessel (one deep enough to

capture the uid as it is ows out). Be sure to securely replace

the stopper in the uid release tube.

Warning:

Do not use recycled cleaning uid. This could damage

the machine or your records.

Pic. 6: Emptying the waste uid tank

User manual / Bedienungsanleitung

10 © clearaudio electronic GmbH, 2019-06

Cleaning and changing the microbre stripes

We recommend clean the microbre strips after approx. 30-40 cleaning programs, depending on the

condition of the records cleaned. First, remove the cleaning arm as previously described and remove

the tube which is connected to it.

Now you can rinse the microbre strips under running water. Before using the unit again, press

the microbre strips back on again. Microbre strip lifespan is dependent on use. We recommend

changing the microbre strips after approx. 100 cleaning procedures, though this will depend on the

condition of the records cleaned. If the microbre strips look worn out, it is recommended

that you change them.

To change the microbre strips, peel them o the

vacuum arm and carefully clean the tube with an

alcohol-based cleaning uid. Remove the protective

backing from the spare microbre strips to expose

the glue and stick them alongside the suction slot of

the vacuum arm. Please take care not to obstruct the

suction slot with the microbre strips.

The

smart matrix SILENT

should not be used for 24

hours after changing the microbre strips. The adhesive

takes 24 hours to fully dry. If used too soon the strips

may not hold properly to the vacuum arm and could

damage your records.

For cleaning: Remove the cleaning arm by removing the tube and pivoting it back as far as it will

go and pulling it upwards. Using the lling funnel supplied to ll 250ml of warm water through the

stainless steel tube. Leave the warm water in the waste tank for approximately 20 minutes, then

drain it by removing the sealing plug from the drain hose and putting the end of the drain hose into a

bowl (or similar). Repeat this process until the water drains clean and does not contain any residue.

Please use fresh water for every ushing process.

Please note:

When returning the machine to operation after maintenance, the drain tube must

always be closed using the stopper, so that the vacuum pump can generate the required

vacuum for suction. This is essential to ensure the full functionality and longevity of

your cleaning machine.

Pic. 7: Removing the cleaning- / suction arm Pic. 8: Insert the lling funnel

Pic. 9: Removing the microbre stripes

Table des matières

Langues :

Autres manuels Clearaudio Platine

Clearaudio

Clearaudio Charisma V2 MM Manuel utilisateur

Clearaudio

Clearaudio Concept MC Manuel utilisateur

Clearaudio

Clearaudio Verify Manuel utilisateur

Clearaudio

Clearaudio Tracer Manuel utilisateur

Clearaudio

Clearaudio Moving Coil V2 Manuel utilisateur

Clearaudio

Clearaudio Emotion Start Smart Manuel utilisateur

Clearaudio

Clearaudio Master Innovation Manuel utilisateur

Clearaudio

Clearaudio Concept Manuel utilisateur

Clearaudio

Clearaudio Master Solution Manuel utilisateur

Clearaudio

Clearaudio Master Innovation Manuel utilisateur

Clearaudio

Clearaudio Satisfy Manuel utilisateur

Clearaudio

Clearaudio Pulley extractor device Manuel utilisateur

Clearaudio

Clearaudio concept V2 Manuel utilisateur

Clearaudio

Clearaudio Charisma V2 MM Manuel utilisateur

Clearaudio

Clearaudio Stroboscope Testrecord Manuel utilisateur

Clearaudio

Clearaudio CMB-Bearing Manuel utilisateur

Clearaudio

Clearaudio Double Matrix Professional SONI C Manuel utilisateur

Clearaudio

Clearaudio Clarify Manuel utilisateur

Clearaudio

Clearaudio double matrix professional SONIC Manuel utilisateur

Clearaudio

Clearaudio concept wood Manuel utilisateur

Clearaudio

Clearaudio Innovation Compact Manuel utilisateur

Clearaudio

Clearaudio Master Innovation Series Manuel utilisateur

Clearaudio

Clearaudio Performance DC Manuel utilisateur

Clearaudio

Clearaudio Peerformance Manuel utilisateur

Manuels Platine populaires d'autres marques

Gemini

Gemini CDT-05 MKII Manuel utilisateur

Rotel

Rotel RP-820 Manuel utilisateur

Shuman

Shuman MC-250BT Manuel utilisateur

Stanton

Stanton STR8-150 Manuel utilisateur

Audio Technica

Audio Technica AT-LPW40WN Manuel utilisateur

Crosley

Crosley McQueen CR7011-GY Manuel utilisateur

Reloop

Reloop SMP-1 Manuel utilisateur

auna

auna TT-Classic Plus Manuel utilisateur

COMO AUDIO

COMO AUDIO Turntable Analog Manuel utilisateur

Dual

Dual 1009 F Manuel utilisateur

REED

REED Muse3C Manuel utilisateur

AXIOMTEK

AXIOMTEK OPS883-H Series Manuel utilisateur

Pioneer

Pioneer PL-71 Manuel utilisateur

Vestax

Vestax PDX-a1 Manuel utilisateur

Denon

Denon DP-400 Manuel utilisateur

Dual

Dual 504 Manuel utilisateur

Audio-Techica

Audio-Techica AT-LP60XBT Manuel utilisateur

Goldring

Goldring G99 Manuel utilisateur

Clearaudio smart matrix SILENT Manuel utilisateur

Manuels Platine populaires d'autres marques
