OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0819 ISS 1

ELECTRIC BOOSTER SURFACE PUMP

MODEL NO: EBP1100

PART NO: 7239200

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE 1100W surface booster pump.

This non-submersible centrifugal pump is designed to pump clean water in

gardens for spraying and irrigation purposes and for pumping water to

greenhouses. It can also be used for boosting running water feed pressure (not

drinking water) or for pumping out wells or ponds. Do not operating with

contaminated or salt water.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully.

Please keep these instructions in a safe place for future reference.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SPECIFICATION

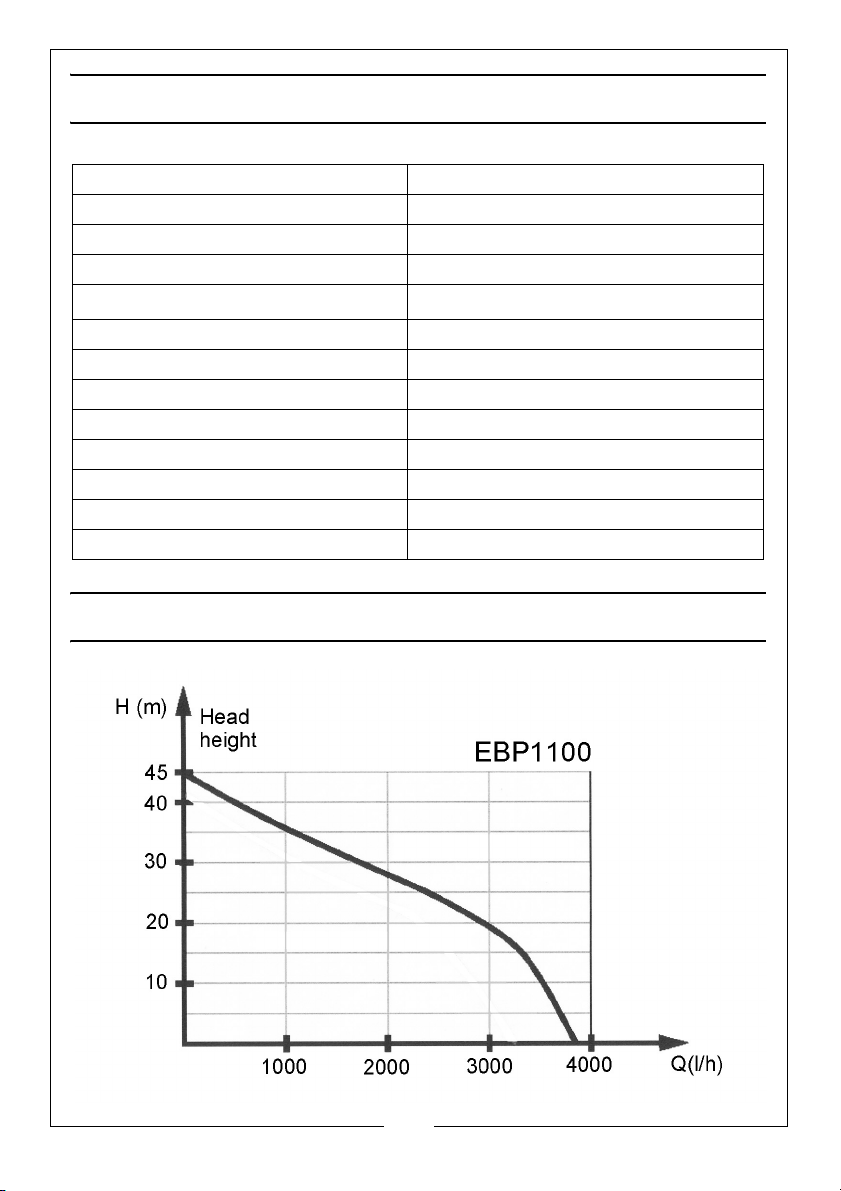

PUMP PERFORMANCE CURVE

Water Classification Clean

Maximum Delivery 62.5 l/min

Maximum Head 45 m

Maximum Suction Lift 8 m

Operating Temperature 0-35oC

Ingress Protection Rating IPx4

Supply 230V ~ 50Hz

Rated Power 1100 W

Input Current@ Maximum Head 4.2 A

Outlet Thread Size 1” BSP

Weight 10.5 kg

Length x Width x Height 496 x 232 x 340 mm

Sound Pressure Level 85 dB LpA

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY PRECAUTIONS

Before using this equipment it is in your own interest to read and pay attention

to the following safety rules.

1. ALWAYS keep the working area clean and well lit. Floors should always be

kept clear. Cluttered or dark areas invite accidents.

2. NEVER over-reach. Keep your proper footing and balance at all times

when installing or maintaining the pump.

3. NEVER direct any water discharge towards electrical wiring or equipment.

4. ALWAYS thoroughly familiarise yourself with this pump & its operation, and

follow all instructions in this manual. Never allow persons unfamiliar with

these instructions to instal or operate the pump.

5. ALWAYS ensure that the pump is properly installed to prevent it from moving

during operation, and that the immediate area surrounding the pump is

kept clear.

6. ALWAYS maintain the pump with care and keep it clean for best / safest

performance.

7. NEVER modify this pump in any way. Use it ONLY for the purpose for which it

is designed.

8. NEVER use for pumping flammable liquids or corrosive chemicals. This

pump is designed to pump clean water only.

9. ALWAYS have the pump serviced by your local CLARKE dealer, using only

identical replacement parts. This will ensure the safety of the pump is

maintained. The use of non standard parts could be hazardous.

10. NEVER use this product if any part is damaged. Have it inspected and

repaired by your local Clarke dealer. Always turn the pump off before

carrying out any maintenance.

11. NEVER allow the pump to run dry.

WARNING: ALWAYS CONNECT THE PUMP TO AN EARTHED POWER SUPPLY

VIA AN RCD.

CAUTION: THIS PUMP IS NOT A SUBMERSIBLE PUMP. ON NO ACCOUNT

SHOULD IT EVER BE IMMERSED IN WATER.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

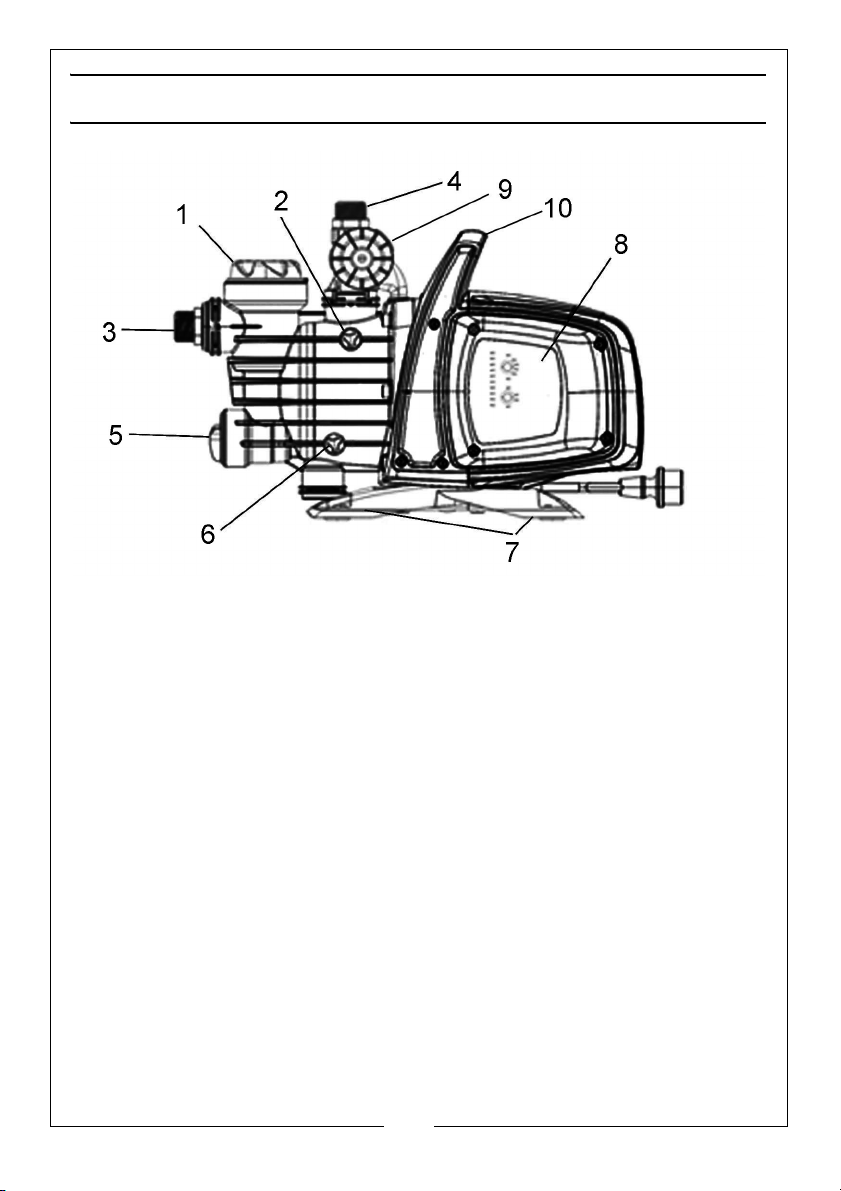

OVERVIEW

1. Inlet filter

2. Vent plug

3. Inlet connection

4. Outlet connection

5. Non-return valve

6. Drainage plug

7. Vibration-damping rubber feet

8. Digital control panel

9. Flow meter

10. Handle

Because of the number of possible installations, no accessories are supplied

with your pump but a selection is available from your CLARKE dealer. See

page 21.

NOTE: It is recommended that the end user should consult a qualified

CLARKE installer if there are any doubts as to the suitability of this

product for a particular installation.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INSTALLATION OF THE PUMP

IMPORTANT: The pump MUST NOT be connected to the mains power supply

until all hose/pipe installations are completed.

LOCATION

Install the pump in a horizontal position i.e. with the outlet connection facing

vertically upwards. Mount the pump on blocks or a purpose built platform to

protect it from flooding.

Ensure there is adequate air circulation around the motor. The pump should

be installed in a dry, well ventilated enclosure, sheltered from rain and with an

environment temperature not higher than 40°C.

The pump is provided with rubber feet (7), and the plastic covers must be

prised off to insert the holding down bolts for fixed installations.

Always place the pump as close as possible to the water to be pumped but

be positioned so as to avoid the possibility of immersion. The power supply

should also be a safe distance away. If in doubt, please contact your

electrician and refer to national regulations.

Avoid locating the pump where it could become drenched with water as it is

not designed to be totally waterproof.

Ensure the pump & its power cable do not create a safety hazard for people

walking past it. The length of the power cable on the pump limits the distance

from the power source. If an extension cable is required, ensure it is

compatable with the cable supplied.

CONNECTIONS AND HOSES

To prevent unnecessary strain ensure that adequate support is provided to the

hoses and pipes. They will be considerably heavier when filled with water.

Always use a pipe diameter at least equal to, or greater than, the diameter of

the pump connections.

For suction depths of over four metres or with long horizontal stretches. Use an

intake hose with a diameter larger than that of the intake aperture of the

pump.

To prevent the formation of air pockets, the inlet hose must slope slightly

upwards towards the pump.

If the suction pipe is made of a flexible material always check that it is of the

reinforced vacuum-resistant type to avoid collapse due to suction.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

In case of a fixed installation, it is

recommended that you fit a non-

return valve on both sides of the

pump. This allows closure of the line

upstream and/or downstream from

the pump, useful for service and

cleaning operations or for periods in

which the pump is not in use.

To capture small particles in

suspension an inlet filter should be

fitted on the suction pipe to protect

the integrated filter (1).

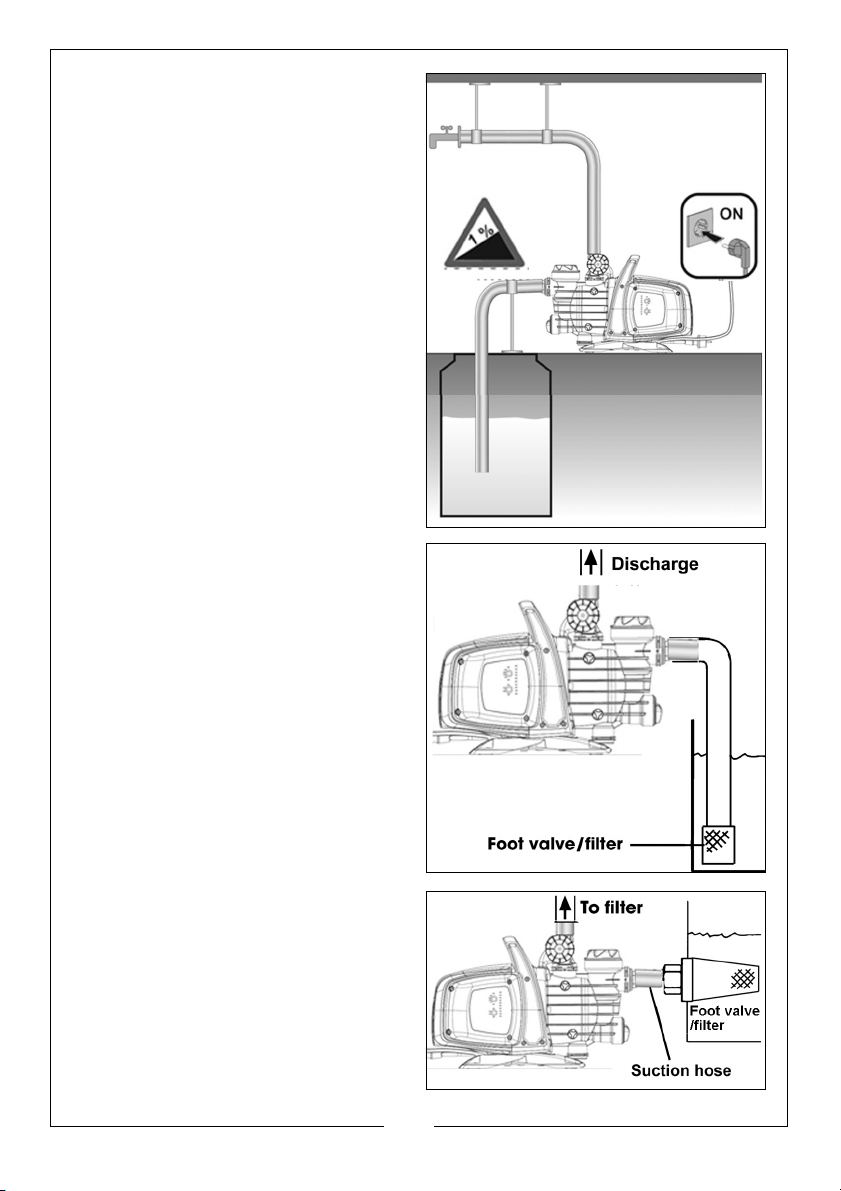

SUCTION LIFT OR GRAVITY FEED

SUCTION LIFT

It is possible to draw water up from a

sunken pool or well.

• The vertical distance between

the foot valve and the pump

should not exceed 8 metres.

It is essential that all connections and

hoses are completely air tight,

otherwise the system will not work.

GRAVITY FEED

The pump can draw water from an

above ground tank.

A foot valve/filter should be fitted to

the end of the suction hose, (as

illustrated), to help retain water in the

suction system.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL INSTALLATION

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

The colours of the wires in

the power cable must

agree with the markings on

the plug.

• Connect the BLUE wire

to the terminal

marked N.

• Connect the BROWN

wire to the terminal

marked L.

• Connect the YELLOW

AND GREEN wire to the terminal marked E or .

AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING

CURRENT OF LESS THAN 30 mA MUST BE USED.

If you are not sure, consult a qualified electrician.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRONIC CONTROL INTERFACE

The EBP1100 electronic system incorporates the following controls:

(A) PRESSURE INDICATOR LEDS

10 LEDs are used for indicating pressure from 0 to 6 bar.

(B) MODE SELECTION BUTTON

Selectable modes include:

1. AUTO_MODE;

2. MANUAL_MODE;

3. ANTI-LEAKAGE;

4. CUT_IN;

5. CUT_OUT,

6. MAX_PUMP_ON;

Selectable modes include:

•ON

•PUMPON

•ALARM

•OFF

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING THE MODE SELECTION BUTTON (B)

1. To unlock the choice of functions press “MODE” button for 5 seconds.

2. Press “MODE” to scroll through the various operating modes or parameters

to be modified or to enable certain functions.

• While scrolling through the modes, the LED of the function selected

will flash.

• On returning to AUTO_MODE the active functions will be highlighted

by the relative LED lighting up.

THE OPTIONS ARE AS FOLLOWS:

1) AUTO MODE: the pump will run in automatic mode see page 12.

2) MANUAL MODE: the pump works in manual mode see page 12, and the

user can decide when to switch it on or off by using the “SET” button. SET-ON

switched On / SET-OFF switched Off.

3) ANTI-LEAKAGE: This function is for protection against leakage and can be

enabled or disabled. The factory setting is disabled.

When enabled, if the pump is started up more than 6 times in 2 minutes, it will

be stopped and the error will be indicated by means of the red LED flashing

slowly on “ALARM”.

To enable ANTI-LEAKAGE, press “MODE” until the LED flashes, then press SET

until the “ON” LED is lit up. To disable ANTI-LEAKAGE press SET until the LED

indicates OFF.

Once the leak is repaired, reset the alarm, if still present, see alarm reset on

page 12.

4) CUT-IN: This is the pressure setting (always enabled) at which the pump is

activated. It can be set between 1.5 and 3.0 bar, (factory setting 1.8 bar). The

pump is activated even if the flow is less than a minimum value of 1.5 l/min,

(factory-setting).

5) CUT-OUT: This is the pressure setting (disabled) above which the pump stops.

This is a factory setting for “CUT-IN” + 1 LED, but can be increased to 6 bar.

To enable CUT OUT press “MODE” until the LED corresponding to CUT-OUT

flashes then press SET to select the required value. Exit the setting by pressing

“MODE”. To disable the function, press “SET” until the LED indicates OFF.

Table des matières

Autres manuels Clarke Pompe à eau

Clarke

Clarke TAM101 Manuel d'installation et d'exploitation

Clarke

Clarke CDDFTP Manuel utilisateur

Clarke

Clarke PSP105 Mode d’emploi

Clarke

Clarke HSE120 Manuel d'installation et d'exploitation

Clarke

Clarke CBM250SS Mode d’emploi

Clarke

Clarke CHHDP830 Mode d’emploi

Clarke

Clarke HSE Series Manuel d'installation et d'exploitation

Clarke

Clarke Hippo 2A Manuel

Clarke

Clarke MSP12 Manuel utilisateur

Clarke

Clarke PW50A Mode d’emploi

Clarke

Clarke CPRP560 Mode d’emploi

Clarke

Clarke CSD4 Mode d’emploi

Clarke

Clarke CPCDP500 Mode d’emploi

Clarke

Clarke LEP1A 7260060 Mode d’emploi

Clarke

Clarke STP12 Mode d’emploi

Clarke

Clarke FP150 Manuel utilisateur

Clarke

Clarke ECP20A3 Mode d’emploi

Clarke

Clarke DWP210A Mode d’emploi

Clarke

Clarke PW50 Mode d’emploi

Clarke

Clarke CSE400A Manuel d'installation et d'exploitation

Clarke

Clarke BIP1500 Mode d’emploi

Clarke

Clarke HIPPO 2 Mode d’emploi

Clarke

Clarke DFT230 Mode d’emploi

Clarke

Clarke CBT1300SS Mode d’emploi

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
