Clarke DWP100A Mode d’emploi

OPERATION & MAINTENANCE

INSTRUCTIONS

GC1220 - ISS 3

ORIGINAL INSTRUCTIONS

SUBMERSIBLE DIRTY WATER PUMP

MODEL NO: DWP100A, DWP150A, DWP200A

PART NO: 7230098, 7230099, 7230100

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Submersible Dirty Water Pump.

This pump is NOT designed for pumping slurry, sludge, mud or heavily polluted

water, or any water containing chemicals or other acidic contaminants

including salt water.

The DWP100A and DWP150A have the ability to pump solids in suspension as

large as 6.8 mm.

The DWP200A has the ability to pump solids in suspension as large as 7 mm.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY INSTRUCTIONS

GENERAL

1. Read all instructions before use

and save these instructions for

future use.

2. An approved residual current

device (RCD) which has a

tripping current of less than 30mA

must be used for all operations.

3. The electrical supply must be the

same as that on the rating plate.

4. Always make sure that your

hands are dry when connecting

or disconnecting from the mains

supply.

5. Never pull the mains lead to

disconnect the pump from the

mains socket.

6. The mains plug must be kept

away from the water at all times.

7. Do not allow children or

unauthorised people to touch the

pump, cables or connections.

8. Disconnect the pump from the

mains supply when not in use.

9. If necessary have the pump

repaired by a qualified person.

10. Keep the mains lead away from

heat, oil and sharp edges.

11. If you have to use an extension

lead with this product, it must be

designed for outdoor use and

incorporate a cable suitable for

use with Class I appliances.

12. Disconnect the pump from the

electrical supply and wear gloves

during servicing or maintenance.

PUMP SPECIFIC

1. Do not pump explosive /

flammable liquids or chemicals.

2. Never allow the pump to run dry

or operate out of the water.

3. Submersible pumps should always

be submerged and stored

vertically.

4. Disconnect the pump from the

mains supply before placing it

into or removing it from the water.

5. Always check the plug, mains

cable and float switch cable for

damage before use.

6. Do not use the pump if

damaged. Refer to qualified

service personnel for repair.

7. Never carry the pump by the

power cable or float switch

always use the handle or a rope

tied securely to the handle.

8. Never insert your fingers into the

pump whilst it is connected to the

mains.

9. Never use the submersible pump

in a swimming pool when there

are people or animals in the pool.

10. Keep the pump clear of any

sediment by standing it on a

platform or brick or suspending it

at a suitable height.

11. Do not use the pump if the water

is liable to freeze, as this can

cause damage to the pump.

Remove the pump from the

water and store it in a frost free

location.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PART IDENTIFICATION

Remove all packaging and make sure that the unit shows no visible damage.

Dispose of all packaging appropriately.

1 WATER INLET 4 WATER OUTLET

2 FLOAT SWITCH 5 HANDLE

3 PLUG AND CABLE 6 CABLE CLAMP

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug.

• The BLUE wire must be

connected to the

terminal which is

marked N or coloured

black.

• The BROWN wire must

be connected to the

terminal which is

marked L or coloured

red.

• The YELLOW AND

GREEN wire must be

connected to the terminal which is marked E or or coloured green.

An approved Residual Current Device (RCD) which has a tripping current of

less than 30mA must be used.

If you are not sure, consult a qualified electrician. DO NOT try to do any

repairs.

OVERLOAD SWITCH

These pumps are fitted with a thermal overload switch. If the pump overheats

for any reason, it will automatically switch the pump OFF. Once the pump has

cooled (at least 5-10 minutes), the pump will automatically restart.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

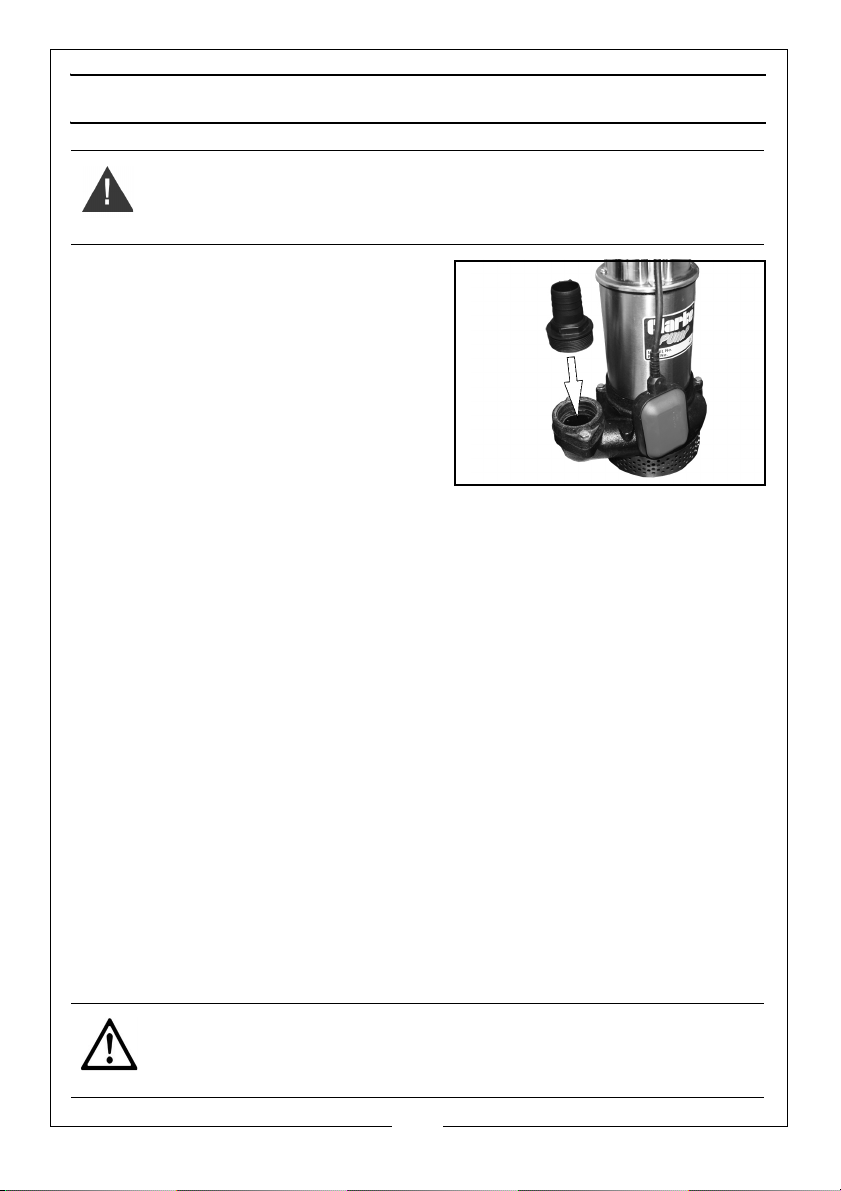

USING THE PUMP

1. Using the adaptor if required,

connect a suitable hose (not

supplied) to the pump outlet.

• Suitable hoses are available from

your local Clarke dealer.

2. Place the pump on a flat surface in

the area that you want to drain.

• If there is sediment in the operating

area, the pump should be placed

vertically on house bricks, or similar.

• Ensure the pump is positioned with adequate space so that the

movement of the float switch is not restricted - recommended minimum

area of 50 x 50 cm.

• ALWAYS raise and lower the pump using a rope attached to the lifting

handle.

• Take all necessary precautions as described on page 3.

• The pump inlet must be fully submerged before the pump is switched on.

3. Connect the mains plug to a high sensitivity residual current device (RCD)

which has a tripping current of less then 30mA.

4. Switch the mains power supply on.

• The pump will begin to drain water.

• As the water level falls, so will the float switch, until it stops the pump.

• You can adjust the position at which the float switch lead clips to the

side of the pump, If the length of the float switch lead is short the pump

will turn on and off earlier.

5. When the pumping is finished, disconnect the pump from the mains power

supply.

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE

PUMP IF IT IS DAMAGED IN ANY WAY.

CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

This pump should require no maintenance other than regular cleaning.

If the pump starts to show signs of wear or damage, contact your CLARKE

dealer for advice.

CLEANING

1. Check the pump installation regularly to ensure the water inlet is clear of

leaves or other debris.

2. Take extra care to remove any debris from around the impeller.

NOTE: Do not attempt to repair the pump yourself. Repairs must be carried

out by your CLARKE dealer, or contact the CLARKE Service

Department.

STORAGE

When the pump is not being used for extended periods, clean and dry it

thoroughly and store it indoors. If the pump is left in water, it must be run at

least once a week to prevent it from seizing up.

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT

IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,

ENSURE THE CIRCUIT BREAKER IS OPEN.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

If this does not solve your problem, please contact the Clarke service

department.

PROBLEM SOLUTION

PUMP WILL

NOT START

1. Make sure that the power is switched on.

2. Check fuse (consult an electrician if in doubt).

3. If extension lead is fitted, check connections (consult an

electrician if in doubt).

4. Internal thermal cut-out has not re-set. Leave for 5-10

minutes and try again.

5. The impeller may be jammed. Disconnect from the mains

supply and remove any objects that may be obstructing

the impeller.

6. Float switch may be jammed against side wall, or

prevented from moving.

7. Water level too low - float switch in OFF position - lift float

to check switch.

8. If the pump still fails to start, consult your CLARKE dealer

for advice.

PUMP WILL

START BUT NOT

PUMP

1. Check that the inlet is not blocked.

2. Check that the discharge tube is not clogged or

obstructed.

3. The head may be too great, i.e. you are trying to lift the

water too great a distance for the pump to cope with.

(“Specifications” on page 7).

4. Air bubble in the pump, produced during the plunge.

Plunge the pump again, at an angle, and shake it whilst

lowering to remove any air trapped in the system.

5. Impeller may be damaged - Consult your CLARKE dealer.

PUMP WILL

NOT STOP

1. Float switch may be prevented from moving to the fully

down position.

2. Float switch may be faulty. Consult your CLARKE dealer

for advice.

PUMP STOPS

RUNNING

1. Thermal overload has operated. Leave for 5-10 minutes

and try again.

2. Pump has run dry, or float switch has cut in.

3. A foreign object has jammed the impeller.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

DECLARATION OF CONFORMITY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS LIST & DIAGRAM

1 Screw 18 Lower Bearing Seal Cover 35 Cable Gland Cover

2 Strainer 19 Washer 36 Screw

3 Lower Casing 20 Oil Plug Screw 37 Power Cable

4 O Ring 21 O Ring 38 Spring Washer

5 Bolt 22 Spring Washer 39 Bolt

6 Spring Washer 23 Bolt 40 Handle

7 Washer 24 O Ring 41 Oil Plug Screw

8 Impeller 25 Rotor 42 O Ring

9Casing 26Bearing 43Screw

10 Bolt 27 Insulation Paper 44 Spring Washer

11 Outer Connector 28 Bottom Bearing Chuck 45 Capacitor Seal Cover

12 Sealing Flange 29 Mechanical Seal 46 Capacitor

13 Spring Washer 30 Control Set 47 Corrugated Sheet

14 Nut 31 Lip Seal 48 Stator

15 Spring Washer 32 Upper Bearing Chuck 49 Motor Frame

16 Bolt 33 Long Screw

17 Bolt 34 Capacitor Seal Ring

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Pompe à eau

Clarke

Clarke LEP1A 7260060 Mode d’emploi

Clarke

Clarke ISP10A Manuel d'installation et d'exploitation

Clarke

Clarke PTP100 Mode d’emploi

Clarke

Clarke PW2 Manuel d'installation et d'exploitation

Clarke

Clarke CBM100SS Manuel d'installation et d'exploitation

Clarke

Clarke ECP20A1 Mode d’emploi

Clarke

Clarke CWP200 Mode d’emploi

Clarke

Clarke TAM101 Manuel d'installation et d'exploitation

Clarke

Clarke CSP1530 Mode d’emploi

Clarke

Clarke CSD4 Mode d’emploi

Clarke

Clarke LVP1A Mode d’emploi

Clarke

Clarke HSE120 Manuel d'installation et d'exploitation

Clarke

Clarke PSP105 Mode d’emploi

Clarke

Clarke HSE Series Manuel d'installation et d'exploitation

Clarke

Clarke SUBMERSIBLE PUMP Mode d’emploi

Clarke

Clarke CBP900 Mode d’emploi

Clarke

Clarke PSV5A Mode d’emploi

Clarke

Clarke PSE1A Mode d’emploi

Clarke

Clarke ECP15A1 Mode d’emploi

Clarke

Clarke CDDFTP Manuel utilisateur

Clarke

Clarke Hippo4A Mode d’emploi

Clarke

Clarke DW50 Mode d’emploi

Clarke

Clarke DWP400A Mode d’emploi

Clarke

Clarke CPE30A1 Mode d’emploi

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
