15 DEGREE COIL NAILER

Model CON15

Part No: 3110295

INTRODUCTION

Thank you for purchasing this CLARKE Coil Nailer

Before attempting to operate the machine, it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All tools,

accessories and packaging should be sorted, taken to a recycling

centre and disposed of appropriately.

PARTS & SERVICE

For parts & Servicing, please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: 020 8988 7400

PARTS & SERVICE FAX: 020 8558 3622

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

OVERVIEW

The CON15 Coil Nailer is suitable for use on softwood, hardwood, plywood,

hardboard, fibreboard or MDF, and will penetrate flexible plastics, leather,

fabrics, PVC & rubber sheet materials. It is not suitable for piercing hard

laminates, brittle plastics or metals (other than light foil).

Unpack and lay out the components, checking against the following list. Any

damage or deficiency should be reported to your Clarke dealer immediately.

• Coil Nailer

• Oil Bottle

• 4 x Hexagonal Keys (3 ,4, 5 & 6mm)

• 1 x Nail Roll

• Black Moulded Case

• Operators Manual (this document)

Your Coil Nailer has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local Clarke dealer.

TECHNICAL SPECIFICATION

erutaeF noitacificepS

thgieWgk4

mm)hxwxl(snoisnemiD553x031x033

erusserPriAgnitarepO)rab9.6-8.4(isp001-07

erusserPriA

xaM)rab2.8(isp021

deepSevirDnim/slian003

noitpmusnoCriAdesserpmoCmfc5.6

noitcennoCenilriAelamPSB"4/1

yticapaC

enizagaMslian003

Please note that the details and specifications contained herein, are correct at the

time of going to print. However, CLARKE International reserve the right to change

specifications at any time without prior notice.

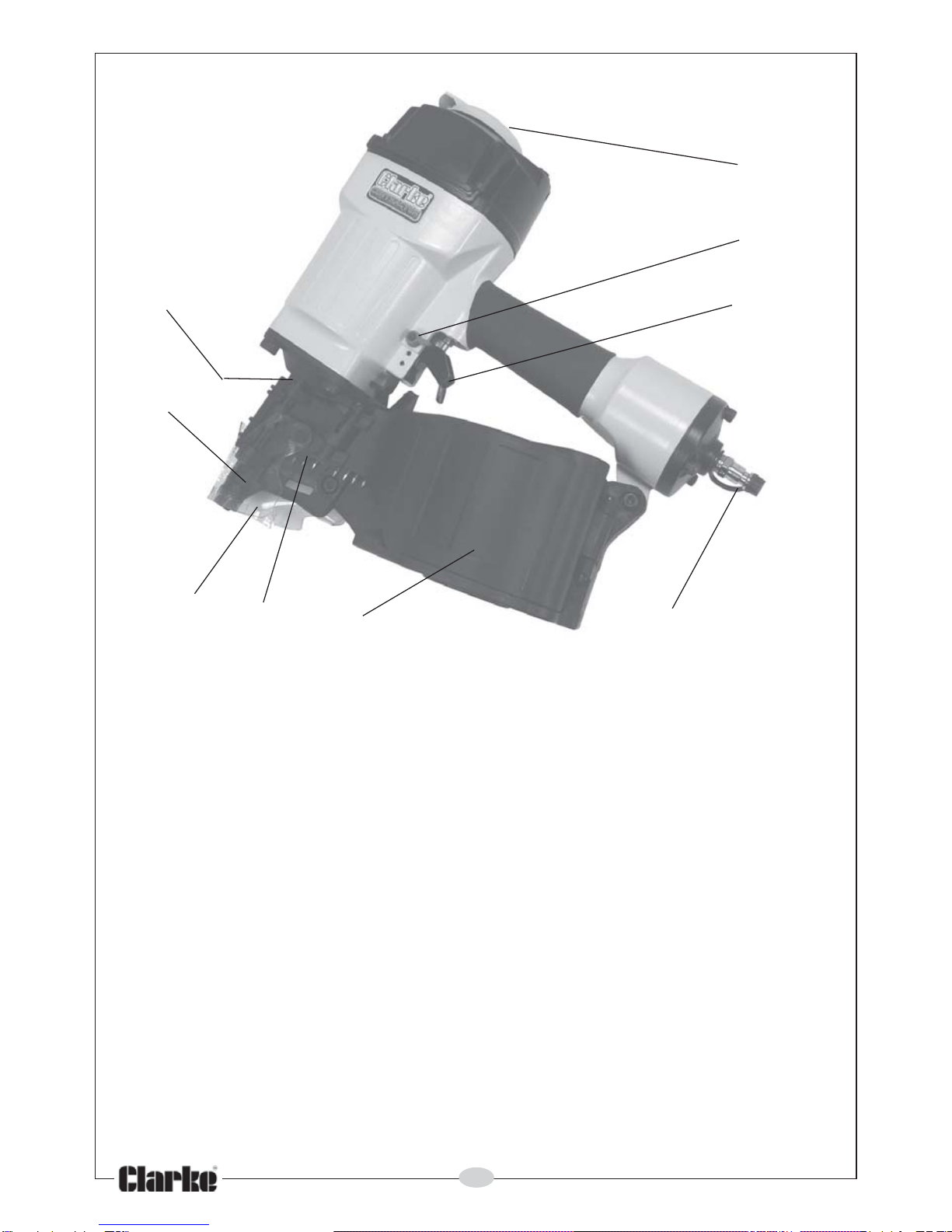

1. Nail Magazine

2. Drive Pawl

3. Protective Screen

4. Safety Yoke (muzzle)

5. Mode Switch (single/full contact sequential actuation)

6. Trigger

7. Pressure Adjuster

8. Compressed Air Hose Connector

9. Exhaust Deflector

GENERAL SAFETY PRECAUTIONS

WORK AREA

1. ALWAYS Keep the work area clean and well lit. Floors should always be

kept clear. Cluttered or dark areas invite accidents.

2. ALWAYS keep children and bystanders away while operating a power tool.

Distractions can cause loss of control.

PERSONAL SAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense

when operating a power tool. Do not use a power tool while you are tired

or under the influence of medication, drugs or alcohol. A moment of

inattention can result in personal injury.

2. ALWAYS use safety equipment when operating this tool. Always wear

suitable protective clothing and eye protection including industrial gloves,

ear defenders and approved impact resistant safety glasses. (Eye glasses

are NOT safety glasses)

3. NEVER over-reach. Keep your proper footing and balance at all times to

enable better control of the machine in unexpected situations.

4. NEVER point the tool at anyone or any part of your own body. Keep all

parts of your limbs behind the safety guard at all times.

5. ALWAYS keep a safe distance between yourself and others when using

the tool.

6. NEVER attempt any repairs yourself. If you have a problem with the

machine contact your local Clarke dealer.

7. ALWAYS store power tools out of reach of children.

8. ALWAYS dress properly. Never wear loose clothing or jewellery which could

be caught on moving parts.

GENERAL POWER TOOL USE AND CARE

1. NEVER force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

2. ALWAYS maintain the tool with care and keep it clean for best / safest

performance.

3. NEVER use this tool if any part is damaged. Have it inspected and repaired

by a competent technician.

4. NEVER modify this tool in any way. Use it ONLY for the purpose for which it

is designed.

5. NEVER carry the tool with your finger on the trigger. The nailer is fitted with

a safety yoke mechanism to prevent accidental firing.

6. ALWAYS disconnect the tool from the air supply when not in use, and

before carrying out any maintenance or re-loading with fresh nails.

7. ALWAYS Store the tool out of reach of children.

8. NEVER allow persons unfamiliar with these instructions to operate this tool.

SERVICING

1. ALWAYS have power tools serviced by your Clarke dealer, using only

identical replacement parts. This will ensure the safety of the power tool is

maintained.

COIL NAILER SAFETY INSTRUCTIONS

1. Although the Coil Nailer is water resistant and may be used outdoors, DO

NOT leave it exposed to the elements. Avoid direct sunlight, direct heat,

rain/moisture etc.

2. ALWAYS keep the air hose away from the nailer and ensure that the

operator is not restricted by the length of the hose.

3. ALWAYS take care when a long air hose is required in the work area as it

presents a trip hazard. Coil the hose away as soon as the job is finished.

4. NEVER abuse hoses or connectors. NEVER carry a tool by the hose, or yank

it to disconnect from the air supply. Keep hoses away from heat, oil and

sharp edges. Check hoses for leaks or worn condition before use, and

ensure that all connections are secure.

5. NEVER use with an air supply greater than 8.2 bar (120 PSI).

6. NEVER use any other type of gas such as bottled oxygen or other bottled

gas as a power source to operate this tool. Use compressed air ONLY.

7. NEVER load the tool with the trigger depressed in case of accidental firing.

8. NEVER fire tool at an incline. It must be perpendicular to the work surface.

9. NEVER drive in nails at the edge of a work surface, as the edge could fail

and fly off, endangering yourself or others in the vicinity.

10. ALWAYS take care not to fire a nail into an existing metal fastening in case

the nail should ricochet causing personal injury.

11. NEVER operate the tool unless the safety nose is in contact with the

workpiece, or without any nails or damage to the tool could result.

12. ALWAYS keep hands away from the nose of the tool when connecting to

the compressed air supply.

13. ALWAYS ensure only the correct nails are used, as specified for this tool.

THE COMPRESSED AIR SUPPLY

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE THOROUGHLY FAMILIAR WITH SAFETY PROCEDURES RELATING TO

THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLIES.

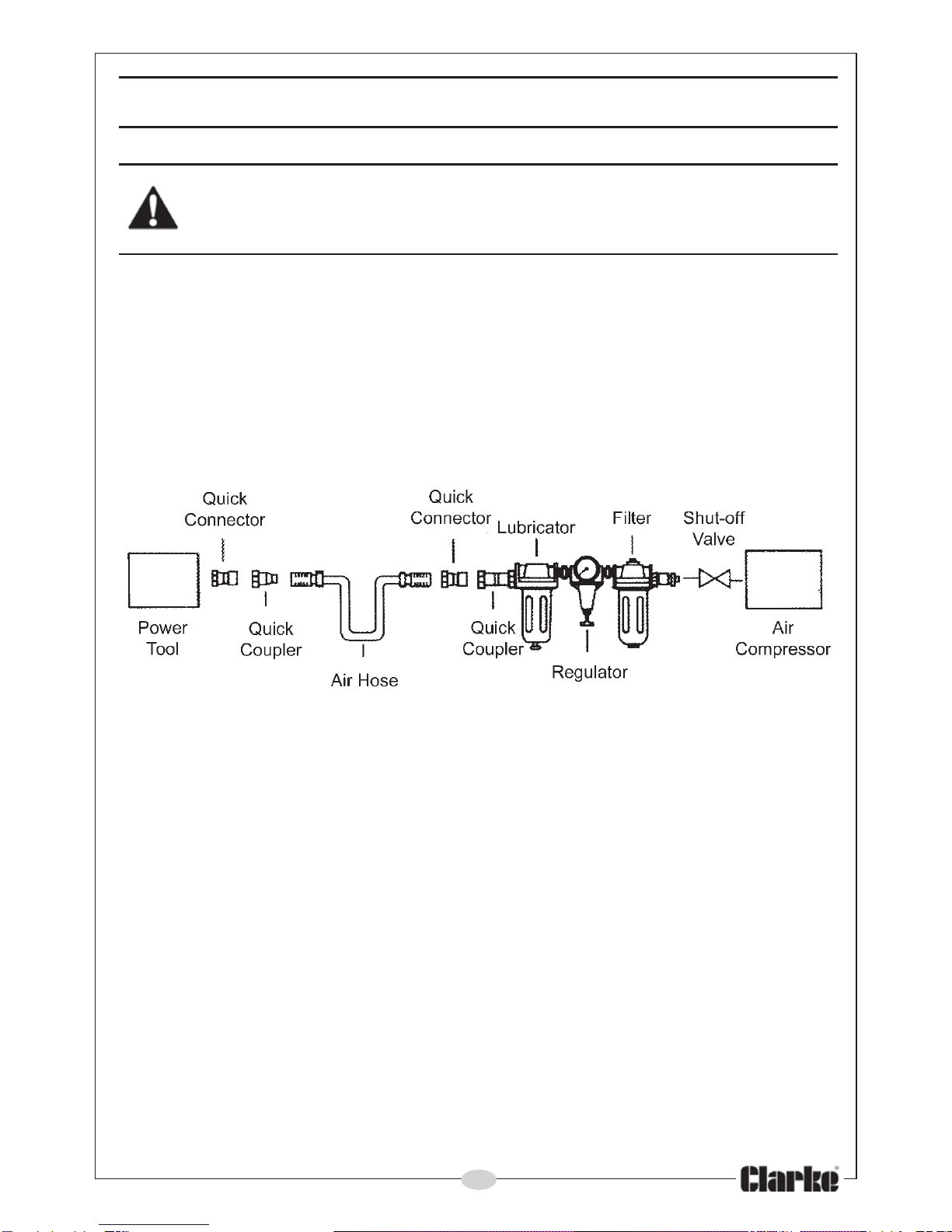

A filtered, lubricated and regulated air supply will be required as shown in the

layout below.

Ensure the pressure available is within the range of 70-100 psi. Higher pressure

or contaminated air will shorten the tool’s life because of increased wear,

and could be a safety hazard. Higher pressure will also increase the noise

level.

The air inlet used for connecting the air supply has a standard ¼” BSP thread.

For best performance, a quick-fit connector can be used at each end of the

line.

Line pressure, or hose internal diameter should be increased to compensate

for unusually long air hoses (over 10m). Minimum hose diameter should be

6mm (¼”) ID, and fittings should have the same internal dimensions.

Check the quality of the compressed air supply before starting work. Water in

the air line will cause damage to the tool, and a dirty filter will reduce the

available air pressure.

Ensure there are no leaks in any of the connections.

LOADING THE COIL NAILER

WARNING: ENSURE THE COMPRESSED AIR SUPPLY IS DISCONNECTED

BEFORE ATTEMPTING TO LOAD THE COIL NAILER. DO NOT HOLD THE

TRIGGER WHILE LOADING THE NAILER.

The machine is loaded with nails as follows:

1. Press the latch (1) open

and pull the magazine

cover (2) back.

2. Knowing the nail size to be

used, raise and twist the

adjuster 90 degrees for the

chosen nail size as

required.

3. Insert a strip of nails into

the magazine, (pointed

end downwards), taking

care that the strip is wound evenly around the centre spigot (3) of the

height adjuster (4). Note that 3 different nail sizes can be used, as indi-

cated by the markings on

the inside of the maga-

zine. The sizes available

are listed on page 12.

4. Take care when handling

the nails, that they do not

become bound together.

1 2

3 4

5. Offer the end of the strip of

nails into the gun, taking

care that the nail heads lay

flat in the groove (5) closest

to the machine body and

that the first nail in the strip is

resting in the drive pawl (6).

6. Close the magazine cover

and close the latch.

• This will not be possible if the

nails are not positioned

correctly. The machine is

now ready to use.

6 5

OPERATION

1. Connect the nailer to the air

supply. With the air supply

turned OFF, connect the air

line to the ¼” BSP connector.

(A Whip Hose with quick-fit

coupling is available from

your Clarke dealer).

2. Turn ON the air supply.

• Check for air leaks. If any are

apparent, rectify before

proceeding.

3. Ensure the operating pressure

is set to between 70-100psi .

This may be adjusted,

dependant upon the density of the workpiece. The harder the target

material, the higher the air pressure required. e.g. When nailing into

softwoods, a pressure of only 70psi may be all that is required.

Quick release Airline Connection

NEVER OPERATE THE TOOL UNLESS THE SAFETY YOKE IS IN CONTACT

WITH THE WORKPIECE, OR WITHOUT ANY NAILS OR DAMAGE TO THE

TOOL COULD RESULT.

4. Before starting work, test the

nailer on a piece of scrap

wood to check that the driving

depth is correct. If the nails are

being driven too far or not

deep enough into the timber,

adjust the air pressure adjuster

located on the side of the nose

section accordingly.

(Remember; whatever pressure

adjustment is to be carried out

on the tool is dependant upon

the pressure received from the

airline).

5. Hold the tool so that it is at

right angles to the workpiece.

Lower it so that the yoke

contacts the work surface

and with a slight downwards

pressure, pull the trigger to

drive in the nail.

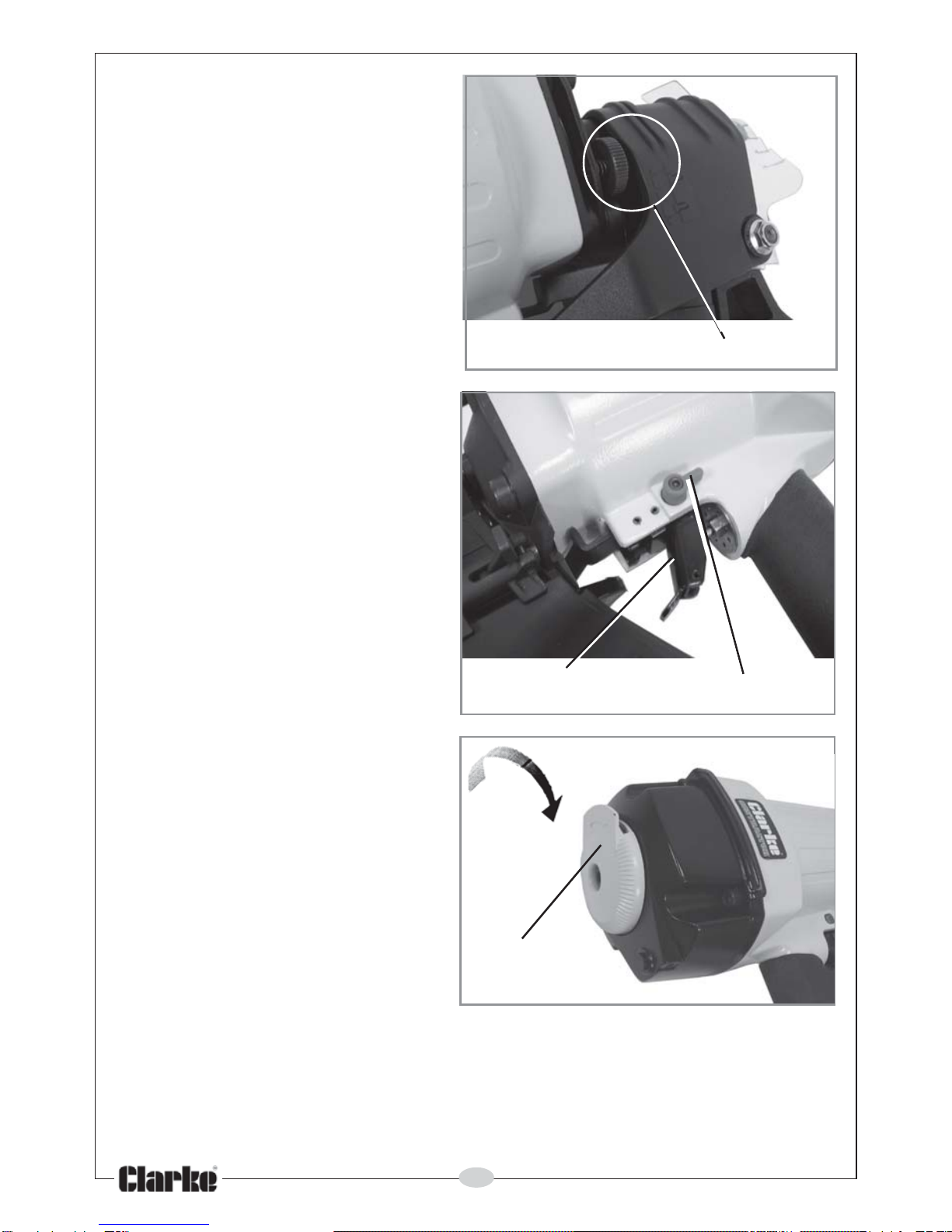

6. The machine is equipped with

a switch that can change the

operating mode from single

shot to sequential shots. When

the red switch is pointing

towards the operator, the coil

nailer will fire a single nail only.

To fire the next nail the trigger

must be released. When the

switch is pointing away from the

operator, the nailer can fire

sequentially.

7. An adjustable exhaust deflector

is fitted. Turn the deflector into

any chosen position to avoid

the blast from the exhaust.

CLEARING A JAM

Should the coil nailer jam; for example, with the last nail of a batch,

disconnect the air supply and pull the trigger to ensure the air line is not under

pressure. Open the magazine and latch and clear the jam before re-loading.

Deflector

Pressure adjuster

Trigger Mode Switch

Table des matières

Autres manuels Clarke Outils électriques

Clarke

Clarke Air CAT147 Manuel d'installation et d'exploitation

Clarke

Clarke CHT 459 Manuel utilisateur

Clarke

Clarke X-Pro CAT205 Manuel d'installation et d'exploitation

Clarke

Clarke DHC-2 Mode d’emploi

Clarke

Clarke CCT48 Mode d’emploi

Clarke

Clarke CAT50 Manuel d'installation et d'exploitation

Clarke

Clarke CHT141 Manuel utilisateur

Clarke

Clarke CSB10 Mode d’emploi

Clarke

Clarke Metalworker CDP101B Manuel d'installation et d'exploitation

Clarke

Clarke 6505512 Mode d’emploi

Clarke

Clarke Strong-Arm AP500B Manuel utilisateur

Clarke

Clarke CBS16 Mode d’emploi

Clarke

Clarke METALWORKER CDP401B Manuel d'installation et d'exploitation

Clarke

Clarke CPSB1 Mode d’emploi

Clarke

Clarke Contractor CON750 Mode d’emploi

Clarke

Clarke Strong-Arm CSA15F Manuel d'installation et d'exploitation

Clarke

Clarke CHG2000B Manuel utilisateur

Clarke

Clarke Strong-Arm AHP 26 Mode d’emploi

Clarke

Clarke CHG1600 Manuel utilisateur

Clarke

Clarke BJ300 Manuel utilisateur

Clarke

Clarke STRONG-ARM CS4BRK Mode d’emploi

Clarke

Clarke STRONG-ARM CSA50FP Guide de dépannage

Clarke

Clarke Strong-Arm CSA30FPB Mode d’emploi

Clarke

Clarke Woodworker CJS2 Manuel d'installation et d'exploitation

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
