Clarke BANDIT Mode d’emploi

OPERATION & MAINTENANCE

INSTRUCTIONS 1004

BANDIT

AIR COMPRESSOR

BANDIT

AIR COMPRESSOR

- 2 -

Accessories

A range of accessories, for inflating tyres, air brushing, stapling, blowing, paint

spraying etc., is available from your Clarke dealer. Also available in kit form, as

illustrated below...Model KIT1000.

NOTE:

If this compressor is supplied with an Air Nailer/Stapler as part of a kit, then a 4.5

metre Recoil Hose is also provided. Part No. 3110458

Contents Page

Thank you for purchasing this Clarke Air Compressor set. Before attempting to operate the

machine, please read this instruction manual thoroughly and carefully follow all directions

given. This is for your own safety and that of others around you, and also to help you achieve

long and trouble free service from your compressor.

Your Air Compressor can be used for a variety of applications including spraying paint and

other liquids, powering tools, inflating and cleaning where the average air consumption of

the tool being used does not exceed approximately 5 cubic feet per minute (5CFM).

Guarantee

This product is guaranteed against faults in manufacture for 12

months from purchase date. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product has been abused or tampered

with in any way, or not used for the purpose for which it is intended.

The reason for return must be clearly stated.

This guarantee does not affect your statutory rights.

Declaration of Conformity .................................................. 2

Parts and Service Contacts ................................................. 2

Accessories ............................................................................ 2

Safety Precautions ................................................................ 4

Electrical Connections ......................................................... 5

Pre-Operation Checks ......................................................... 6

Operation .............................................................................. 7

Maintenance ........................................................................ 8

Shutting down the compressor ........................................... 8

Fault finding ........................................................................... 9

Technical data ...................................................................... 9

Parts List & Diagrams ................................................. 10 & 11

- 3 -

Safety Precautions

WARNING

As with all machinery, there are certain hazards involved with their operation and use.

Exercising respect and caution will considerably lessen the risk of personal injury.

However, if normal safety precautions are overlooked, or ignored, personal injury to the

operator, or damage to property may result.

It is in your own interest to read and pay attention to the following rules:

✔ALWAYS ensure that all individuals using the compressor have read and fully understand

the Operating Instructions supplied.

✔ALWAYS ensure that any equipment or tool used in conjunction with your compressor,

has a safety working pressure exceeding that of the machine.

✔ALWAYS adjust the pressure regulator to the recommended setting for the particular

tool being used.

✔ALWAYS protect yourself. Think carefully about any potential hazards which may be

created by using the air compressor and use the appropriate protection. ALWAYS use

Goggles when operating a nailer or similar tool. Face masks will protect you against

paint spray and/or fumes.

✔If spraying inflammable materials e.g. cellulose paint, ALWAYS ensure that there is

adequate ventilation and keep clear of any possible source of ignition.

✔ALWAYS make sure that children and animals are kept well away from the compressor

and any equipment attached to it.

✔.ALWAYS, before spraying any material, consult paint manufacturers instructions

for safety and usage.

✔ALWAYS, when disconnecting air hoses or other equipment from your compressor ensure

that air is shut off at the outlet and ALL pressurised air is expelled from the air line and

other equipment attached to it. (see ‘Operation’)

✔ALWAYS expel air from the receiver and disconnect from the mains supply BEFORE

carrying out any maintenance.

✘NEVER direct a jet of air at people or animals, and NEVER discharge compressed air

against the skin. COMPRESSED AIR CAN BE DANGEROUS,

✘NEVER adjust, or tamper with the safety valves. The maximum pressure is factory set,

and clearly marked on the machine.

✘NEVER leave pressure in the receiver overnight, or when transporting.

✘NEVER operate your compressor with any covers removed.

✘NEVER exert any strain on electrical cables and ensure that air hoses are not tangled

or wrapped around machinery etc.

✘NEVER operate in wet or damp conditions. Keep the machine dry at all times. Similarly,

a clean atmosphere will ensure efficient operation. Do not use in dusty or otherwise

dirty locations.

✘NEVER touch metal parts of the machine as these can become quite hot during

operation. Wait until the machine has cooled down.

✘NEVER attempt to modify your compressor - in any way.

!Electrical or mechanical repairs should only be carried out by a qualified engineer. If

problems occur, contact your Clarke dealer.

- 4 -

Electrical Connections

This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for

connection to a standard, 13 amp domestic electrical supply. Should the plug need

changing at any time, ensure that a plug of identical specification is used.

WARNING! THIS APPLIANCE MUST BE EARTHED

Should the plug need changing at any time, ensure that a plug of identical

specification is used. IMPORTANT: The wires in the mains lead should be wired up in

accordance with the following colour code:

Green & Yellow ..................... Earth

Blue ......................................... Neutral

Brown ..................................... Live

•Connect the Green & Yellow coloured cord to the plug terminal marked a

letter “ E ”or marked with the symbol “ ”

•

Connect the BLUE coloured cord to the plug terminal marked a letter “N”

• Connect the BROWN coloured cord to the plug terminal marked a letter “L”

FUSE RATING

The fuse in the plug must be replaced with one of the same rating (13amps) and this

replacement must be ASTA approved to BS1362.

We recommend that this machine is connected to the mains supply via a Residual Current

Device (RCD)

If in doubt, consult a qualified electrician. Do not attempt any electrical repairs yourself.

CABLE EXTENSION.

Always use an approved cable extension where the conductor size is at least the same size

as that on the machine, or larger. When using a cable reel, always unwind the cable

completely.

If this appliance is fitted with a plug which is

moulded on to the electric cable (i.e. non-

rewireable) please note:

1. The plug must be thrown away if it is cut

from the electric cable. There is a danger

of electric shock if it is subsequently inserted

into a socket outlet.

2. Never use the plug without the fuse cover

fitted.

3. Should you wish to replace a detachable

- 5 -

fuse carrier, ensure that the correct replacement is used (as indicated by marking or

colour code).

4. Replacement fuse covers can be obtained from most DIY or electrical stores.

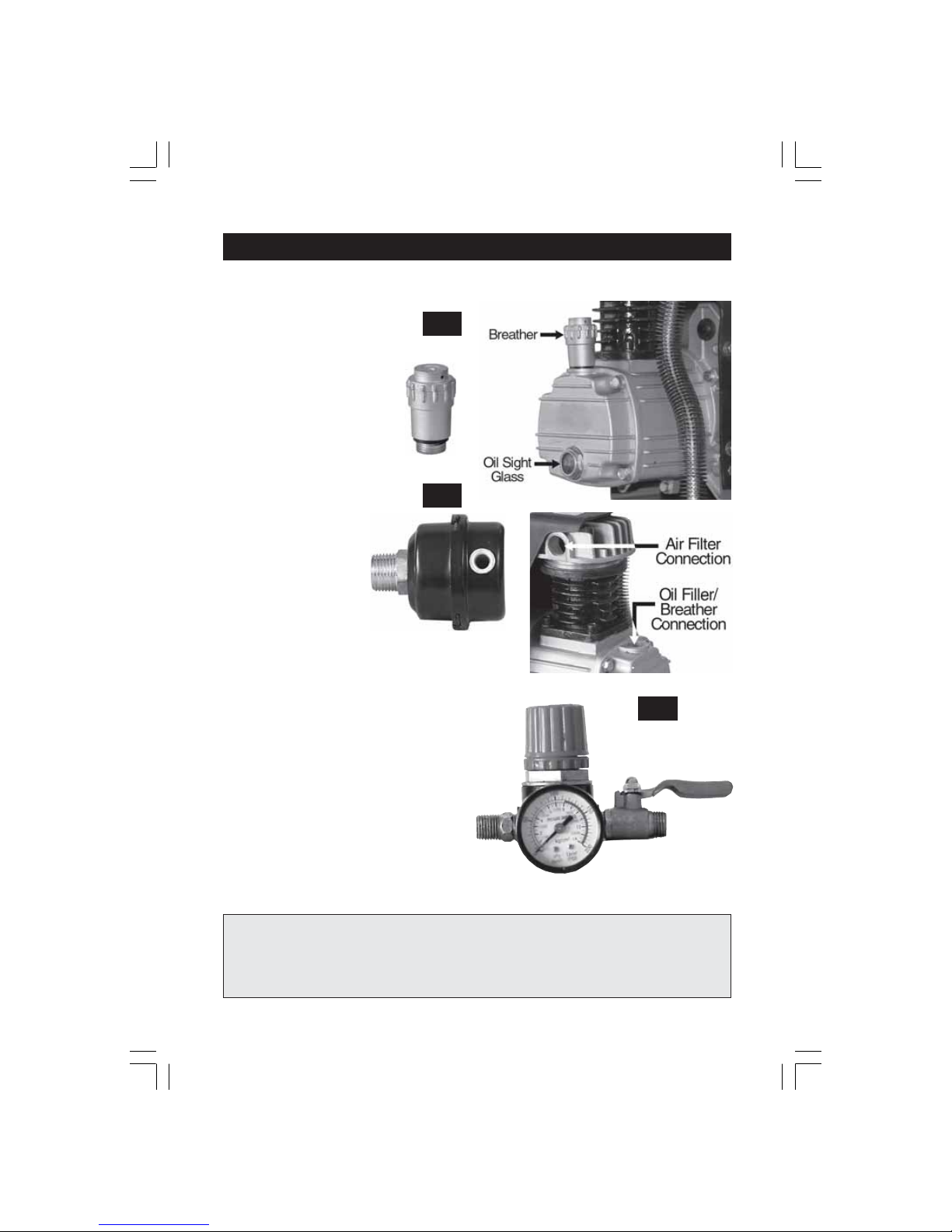

Pre-Operation Checks

- 6 -

1. Remove the Oil Filler Travel

plug and fill with the SAE 30

oil supplied, to the centre of

the red dot on the oil sight

glass.

2. Screw in the Breather

3. Screw the air filter,

supplied, into the

cylinder head, fully.

Before using your compressor it is necessary to perform the following operations, ensuring

the unit is NOT plugged into the mains supply.

4. Screw in the Tap and Regulator sub assembly

tightly, (see Figs 3 & 4), noting that PTFE tape is

already in place. Ensure the tap is uppermost.

5. The pressure regulator should be set to its lowest

setting e.g. turned fully anti clockwise.

6. Check that the air receiver drain valve at the

base of the receiver is fully CLOSED.

IMPORTANT: When using the compressor for the first time, open the drain cock and run the

compressor for at least 10 minutes, off load, in order for full lubrication to take place (see

operation which follows).

Once this is done, allow the compressor to sit for a minute or two, then recheck the oil level.

Remove the breather and top up to the middle of the dot in the oil sight glass if necessary.

7. Ensure the machine is located on a

level surface in a clean dry

environment with adequate ventilation

and plenty of air flow around the unit.

DO NOT place any materials

whatsoever on the unit.

8. Now connect the air hose to the air outlet, and at the other end to the air tool -

screwed on directly.

Tap and Regulator

sub-assembly

Fig.1

Fig.2

Fig.3

DRAIN VALVE

After a period of use, especially if the weather has been warm and humid, it is quite possible

that water (condensate), will have accumulated in the receiver.

To remove this condensate, first switch OFF the machine after ensuring that there is at least

some compressed air in the receiver.

Simply loosen the drain valve for a few moments allowing the air and any water to escape

- tip the machine over slightly so that the drain is the lowest point, to ensure all condensate

is drained. REMEMBER to ALWAYS Re-tighten the drain valve before storage.

- 7 -

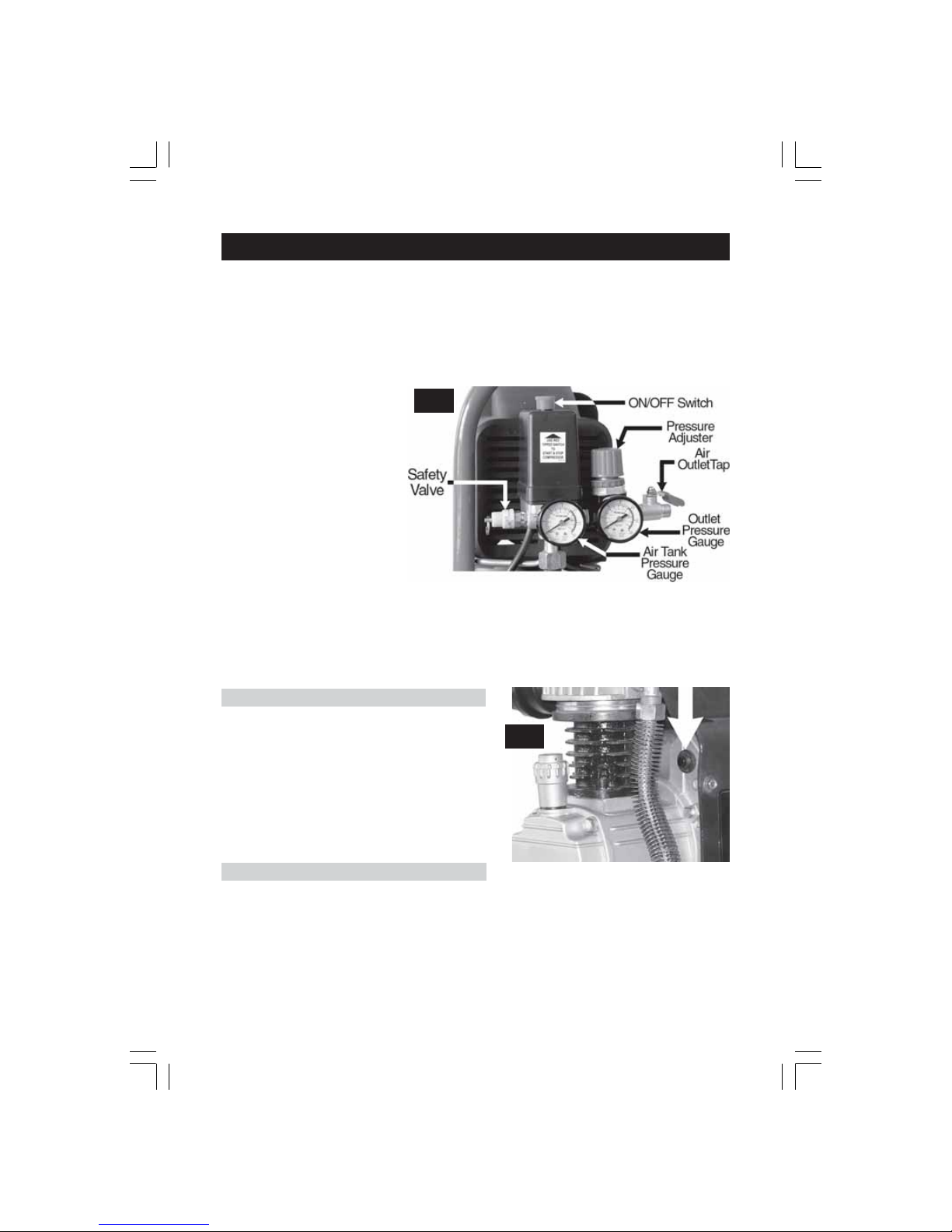

THERMAL OVERLOAD

If the machine should overheat, the Thermal

Overload will intervene and shut down the

compressor. Should this happen, switch OFF the

machine by pushing the STOP/START switch

downwards, and wait for at least 5 minutes

before pressing the RESET button (arrowed in

illustration opposite) and trying to start again.

NOTE: It may take longer for the overload to

reset, depending upon conditions.

Once the hose connections are complete, plug in to the mains supply and start the compressor

by pulling the STOP/START switch upwards. Pressure will build up in the receiver, as indicated on the

gauge, to a predetermined maximum 116 PSI/8bar, when it will then stop.

At this point, slowly turn the pressure regulator clockwise to reach the desired setting for the

air tool to be used, as indicated on the Air Outlet Gauge.

Open the Air Outlet Tap and check to ensure there are no air leaks. Should leaks be apparent,

they should be rectified before proceeding.

Operate the air tool in the

normal way. (Refer to the Air

Tool manual). The air

compressor will restart when the

pressure has fallen by

approximately 20 PSI and this

automatic STOP/START process

will then continue as necessary

to replenish the receiver.

When you have finished with the

compressor, always switch OFF

at the STOP/START switch on the

machine, NEVER by switching

OFF at the mains.

Operation

ALWAYS close the outlet tap and turn the pressure regulator fully anti-clockwise, then operate

the trigger on the air tool BEFORE disconnecting the tool or air hose. NEVER attempt to

disconnect the tool or air hose before checking to ensure there is no air in the hose.

When using at an output of 8bar, DO NOT allow the motor to run for longer than 2 minutes

continuously. See ‘DUTY CYCLE’ on page 9.

Fig.4

Fig.5

- 8 -

MONTHLY

Start the compressor, and pressurise the system. Inspect all joints for leaks using soapy

water, and rectify as necessary.

EVERY 250 HOURS OR 6 MONTHS

(Whichever occurs first)

Change the compressor oil. Drain oil by removing the breather and turning the compressor

on to its end. Support it in this position and leave for a period to ensure all oil is drained.

Caution

Do not attempt any repairs or adjustments if you are uncertain as how it should be done. If

you have any queries, please contact your nearest CLARKE dealer, or otherwise telephone

CLARKE International, Service Department, on: 020 8988 7400).

1. Push the STOP/START switch down to the OFF position.

NEVER USE THE MAINS SWITCH TO STOP THE MOTOR.

2. Depress the tool’s trigger to release air from the hose and compressor before

disconnecting from the machine.

3. Switch OFF at the mains and remove plug.

Shutting Down The Compressor

Maintenance

IMPORTANT! Before carrying out any service work, ALWAYS disconnect the compressor

from the mains supply and release any air in the receiver. If necessary allow the

machine to cool down before proceeding.

It is most important to keep the Air Compressor clean, this can be carried out using a small

soft brush and a vacuum cleaner. In particular the air filter should be inspected periodically,

so that it is always kept clean. If this instruction is not adhered to, a loss of performance

could occur, even worse, any dirt passing through the filter could make its way into the

cylinder head and adversely affect the valves. This could lead to more extensive damage

necessitating its dismantling and replacement parts etc.

BEFORE EACH USE

Drain any condensate which may be present in the receiver, Undo the drain cock and tilt

the machine so that the drain valve is at the lowest point in order to do so.

WEEKLY

1. Unclip the air filter cover, remove the filter and blow away any loose dirt. If damaged or

badly contaminated, it must be replaced.

2. Clean the fins of the compressor cylinder and the cylinder head to receiver pipe. A

clean compressor will work more efficiently.

3. With the machine on a flat level surface, check the oil level, It should be in the centre

of the oil sight glass, at the red spot. If necessary, top up with SAE20 or SAE30 non

detergent oil, by unscrewing the breather and using a small funnel to top up. Ensure

the hole in the breather is completely clear before screwing back in place.

4. Check to ensure all nuts and bolts are tight. Check cylinder head bolts which should

be tightened to 13.6 Nm (10lbf ft).

- 9 -

Please note that the details and specifications contained herein are correct at the time of going to

print. However CLARKE International reserve the right to change specifications at any time without

prior notice. Always consult the machines data plate

Technical Data

Model.................................................................. BANDIT

Maximum Air Pressure ....................................... 8 BAR - 116 PSI

Air Displacement ............................................... 4.5 CFM

Motor .................................................................. 1.25 HP

Voltage ............................................................... 230 VAC 50hZ 1pH

Motor Speed ...................................................... 2850RPM

Sound Power Level ............................................ 87dBLWA

Weight................................................................. 15 kg (unpacked)

Part Number ....................................................... 3110243

Dimensions (mm) ............................................... 425x325x460mm

Duty Cycle ......................................................... 2 min ON, 2 min OFF**

**Duty Cycle...This is in respect of the compressor motor ONLY. If the motor runs

CONTINUOUSLY for more than 2 minutes, there is a danger of damage occuring.

Under these circumstances, it must be switched OFF for at least a 2 minute period.

Fault Finding

With considerate use, your CLARKE Air Compressor should provide you with long and

trouble free service. Routine checks should be made on both the electrical supply as well

as the compressed air lines and connections. If any fault appears, the reason for which is

not immediately obvious, please contact your local CLARKE Dealer.

PROBLEM PROBABLE CAUSE REMEDY

Motor windings burnt out. Contact your local dealer for a

replacement motor.

Switch off and wait at least 5

minutes before trying to restart

Thermal Overload has

intervened.

The compressor

stops and will not

start again.

Bad connections. Check electrical connections.

Clean and tighten as necessary.

The compressor does

not reach the set

pressure and

overheats easily.

Compressor head gasket

blown or valve broken.

Broken piston

Contact your CLARKE dealer.

Replace Piston (contact your

CLARKE dealer)

Low Pressure Air Leak - safety Valve

Restricted air filter

Defective Check Valve

Blip safety valve by pulling the pull ring. If

condition persists See your Clarke dealer

Clean air filter, or replace

See your Clarke dealer

- 10 -

Parts & Service Contacts

For Spare Parts and Service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: 020 8988 7400

PARTS & SERVICE FAX: 020 8558 3622

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

Parts List

No. Description Part No No. Description Part No

1 Head Bolt HTBAN01

2 Spring Washer HTBAN02

3 Cylinder Head HTBAN03

4 Air Filter HTBAN04

5 Elbow HTBAN05

6 Piston set compl. HTBAN06

7 Valve Assy. compl. HTBAN07

8 Con-Rod HTBAN08

9 Crankshaft HTBAN09

10 Screw HTBAN10

11 Cylinder HTBAN11

12 Crankcase Bolt HTBAN12

13 Spring Washer HTBAN13

14 Gasket HTBAN14

15 Oil Sight Glass HTBAN15

16 Washer HTBAN16

17 End Cover HTBAN17

18 Bolt HTBAN18

19 Breather HTBAN19

20 Gasket HTBAN20

21 Casing HTBAN21

22 Nut HTBAN22

23 Washer HTBAN23

24 Screw n/a

25 Screw n/a

26 Oil Seal HTBAN26

Bearing

HTBAN27

28 Rotor HTBAN28

29 Bearing HTBAN27

30 Stator HTBAN30

31 Fan HTBAN31

32 End Cover HTBAN32

33 Thermal Overload HTBAN33

34 Plastic Cover HTBAN34

35 Capacitor HTBAN35

36 Capacitor HTBAN36

37 Screw n/a

38 Washer n/a

40 Pressure Adjuster Block HTBAN40

41 Connector HTBAN41

42 Air Tap HTBAN42

43 Safety Valve HTBAN43

44 Outlet Pressure Gauge HTBAN44

45 Tank Pressure Gauge HTBAN45

46 Connector HTBAN46

47 Pressure Relief Valve HTBAN47

48 Air Pipe HTBAN48

49 HP Air Pipe complete HTBAN49

50 Air Tank HTBAN50

51 Handle HTBAN51

52 Foot HTBAN52

53 Washer n/a

54 Nut n/a

55 Drain Valve HTBAN55

56 Bolt n/a

57 Washer n/a

Table des matières

Autres manuels Clarke Compresseur d'air

Clarke

Clarke SHHHAIR 100/24 Mode d’emploi

Clarke

Clarke PP10ND Manuel d'installation et d'exploitation

Clarke

Clarke SE Ranges Manuel d'installation et d'exploitation

Clarke

Clarke PIONEER 220 Manuel d'installation et d'exploitation

Clarke

Clarke CHAMP 265 Mode d’emploi

Clarke

Clarke SHHH 2 Manuel d'installation et d'exploitation

Clarke

Clarke RANGER 64 Mode d’emploi

Clarke

Clarke CHAMP Manuel d'installation et d'exploitation

Clarke

Clarke BOXER 14/150 Mode d’emploi

Clarke

Clarke airmaster TIGER 9/54 Mode d’emploi

Clarke

Clarke REBEL 30 Manuel d'installation et d'exploitation

Clarke

Clarke RANGER 24 Mode d’emploi

Clarke

Clarke Air SP15ND Manuel d'installation et d'exploitation

Clarke

Clarke INDY OIL FREE Guide de dépannage

Clarke

Clarke Boxer 14/100P Mode d’emploi

Clarke

Clarke PP10ND Manuel d'installation et d'exploitation

Clarke

Clarke BOXER II 14/50P Mode d’emploi

Clarke

Clarke WIZ - MINI Manuel

Clarke

Clarke SHHHAIR 50/9 Mode d’emploi

Clarke

Clarke AIRMASTER 14/50P Mode d’emploi

Clarke

Clarke RANGER 54 Mode d’emploi

Clarke

Clarke air Ranger 25 Manuel

Clarke

Clarke JUMBO Mode d’emploi

Clarke

Clarke RACER 55 Mode d’emploi

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
