CITROEN C3 2002 Manuel utilisateur

2002

CAR 050010

AC/QCAV/MTD

Méthodes Techniques Documentation



’’The intellectual property rights relating to the technical information contained in this document belong

exclusively to the manufacturer. Reproduction, translation or distribution in whole or in part without

prior written authorisation from the manufacturer is forbidden.‘‘

PRIVATE CARS

«The technical information contained in this document is intended for the exclusive use of the trained personnel of the

motor vehicle repair trade. In some instances, this information could concern the security and safety of the vehicle. The

information is to be used by the professional vehicle repairers for whom it is intended and they alone would assume full

responsibility to the exclusion of that of the manufacturer».

«The technical information appearing in this brochure is subject to updating as the characteristics of each model in the

range evolve. Motor vehicle repairers are invited to contact the ITROËN network periodically for further information and

to obtain any possible updates».

PRESENTATION

THIS HANDBOOK summarises the specifications, adjustments, checks and special features of the CITROEN C3.

The handbook is divided into the following sections representing the main functions :

GENERA - ENGINE - INJECTION - IGNITION - C UTCH - GEARBOX - DRIVESHAFTS - AX ES - SUSPENSION - STEERING - BRAKES -

HYDRAU ICS - E ECTRICA - AIR CONDITIONING.

GENERAL

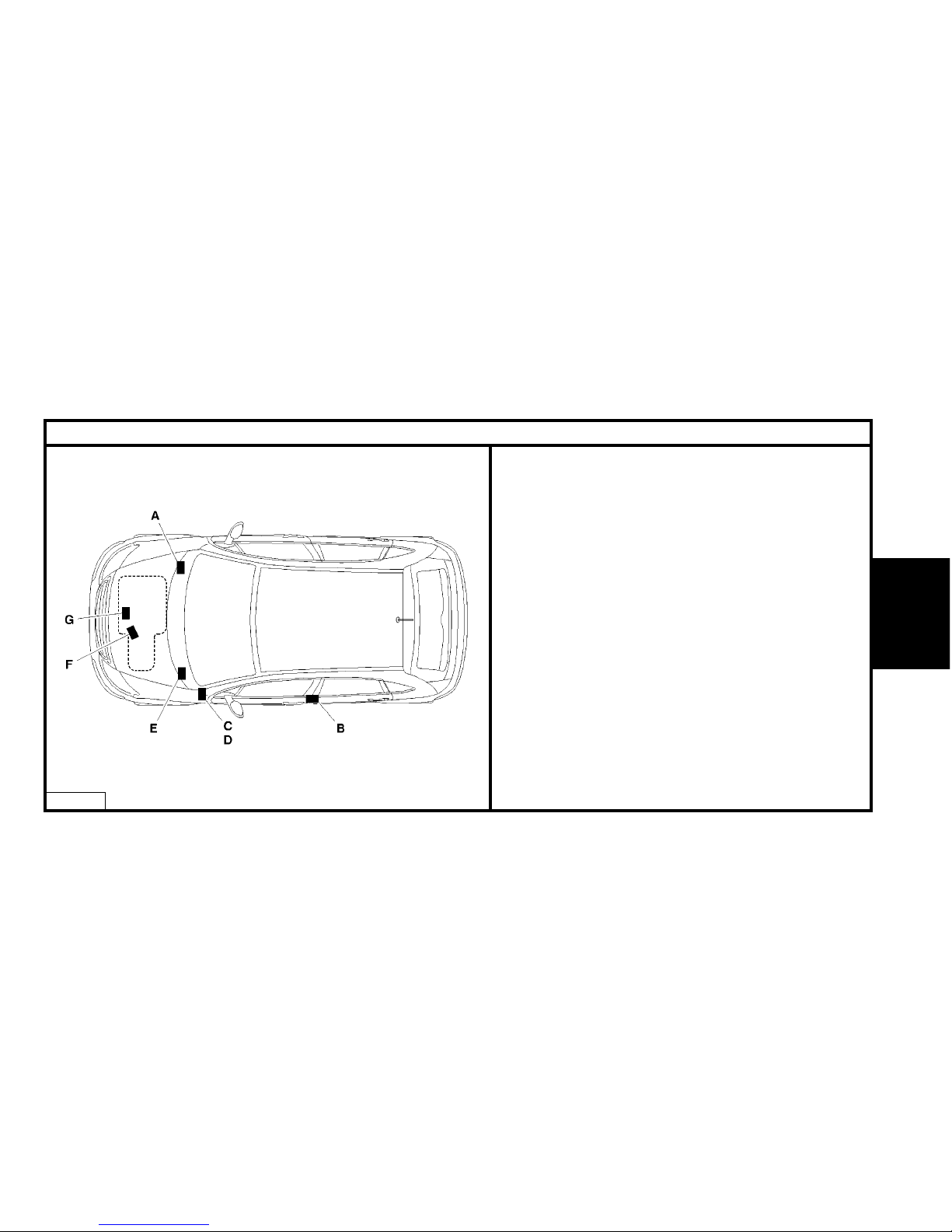

IDENTIFICATION OF VEHICLES

E1AP09HD

A: Chassis stamp

(cold stamp on bodywork).

B : Manufacturer’s data plate.

(on the LH centre pillar)

C : A S / RP No. and RP paint code

(label on front pillar close to driver’s door).

D : Inflation pressures and tyre references.

(label on front pillar close to driver’s door)

E : Serial no. on bodywork.

F : Gearbox reference – Factory serial no.

G : Engine legislation type – Factory serial no.

GENERAL

Emission standard L IFL5 L /INF K’

Type code FC HFXB/T FR HFXB FN HFXB FC HFXB FN HFXC FC HFXC FC HFXB FC HFX5

/IF /IF /D

Engine type HFX

Cubic capacity (cc) 1124

Fiscal rating (hp) 4

Gearbox type MA/5N

Gearbox ident. plate 20 CF 14

IDENTIFICATION OF VEHICLES

PETROL

1.1i

X-SX X

GENERAL

IDENTIFICATION OF VEHICLES

(*) = Export.

PETROL

1. i

SX – Exclusive

Auto.

Auto. Auto.

Emission standard L IFL5

Type code FC KFVE FN KFVB FN KFVE FC KFVC/IF FC KFVF/IF FN KFVC/IF

Engine type KFV

Cubic capacity (cc) 1360

Fiscal rating (hp) 5

Gearbox type AL4 MA/5N AL4 MA/5N AL4 MA/5N

Gearbox ident. plate 20 TP 75 20 CF 15 20 TP 75 20 CF 15 20 TP 75 20 CF 15

20 CF 16 (*) 20 CF 16 (*) 20 CF 16 (*)

GENERAL

IDENTIFICATION OF VEHICLES

(*) = Export.

PETROL

1.6i 16V

1. i

SX – Exclusive

Auto.

Emission standard IFL5 L L /INF L

Type code FN KFVF/IF FC KFVB FC KFVB/D FC KFVE/D FN NFUB FC NFUB

Engine type KFV NFU

Cubic capacity (cc) 1360 1587

Fiscal rating (hp) 56

Gearbox type AL4 MA/5N MA/5S

Gearbox ident. plate 20 TP 75 20 CF 15 20 CF 16 (*) 20 CN 40

GENERAL

(*) = Export.

IDENTIFICATION OF VEHICLES

DIESEL

1. HDi

X - SX

Emission standard L

Type code FC 8HBXB/T FN 8HXB FC 8HXB FC 8HXB/MOD FC 8HXK FR 8HXB

Engine type 8HX

Cubic capacity (cc) 1398

Fiscal rating (hp) 4

Gearbox type MA/5O

Gearbox ident. plate 20 CN 33 20 CN 36 (*)

GENERAL

Emission standard L

Type code FN 8HWK FC 8HWB FN 8HVB FC 8HVB

Engine type 8HW 8HV

Cubic capacity (cc) 1398

Fiscal rating (hp) 45

Gearbox type MA/50 BE4/5

Gearbox ident. plate 20 CN 33 20 CN 36 (*) 20 DM 25 20 DM 26

IDENTIFICATION OF VEHICLES

DIESEL

1. HDi 1. HDi 16V

S - SX SX - Exclusive

TED

(*) = Export.

GENERAL

IDENTIFICATION OF VEHICLES

DIESEL

TED

1. HDi 16V

SX - Exclusive SX SX - Exclusive

Emission standard L

Type code FN 8HYB FC 8HYC FC 8HYB/MOD FC 8HYB/T FC 8HYK FR 8HYB

Engine type 8HY

Cubic capacity (cc) 1398

Fiscal rating (hp) 5

Gearbox type BE4/5

Gearbox ident. plate 20 DM 25 20 DM 26

GENERAL

IDENTIFICATION OF VEHICLES

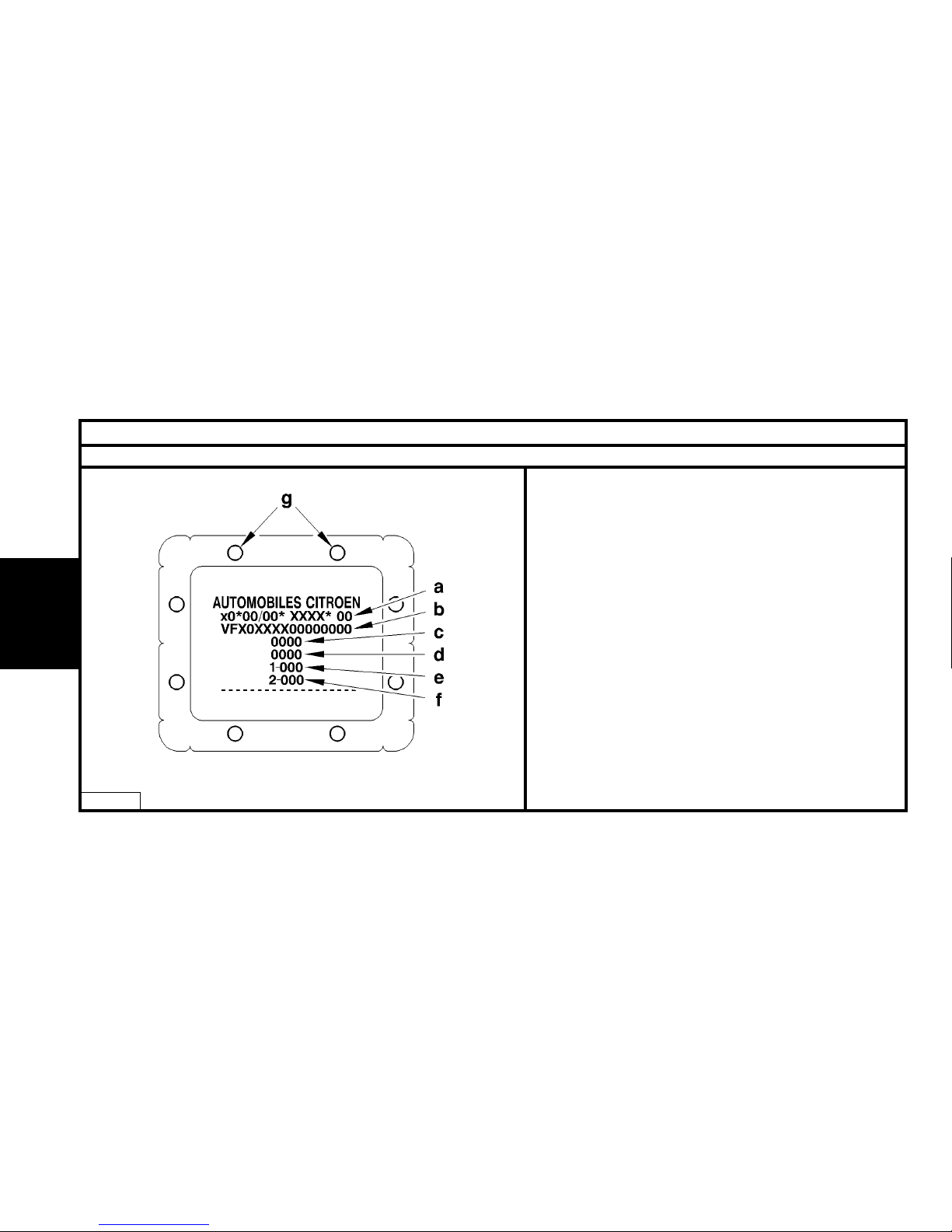

Manufacturer’s plate.

E1AP09JC

The manufacturer’s plate carries the following information :

(a) Type approval number (*).

(b) Type serial number.

(d) Gross vehicle weight (*).

(e) Maximum weight on front axle (*).

(f) Maximum weight on rear axle (*).

(g) Manufacturer identification.

(*) = According to marketing country.
