CITROEN RELAY Manuel utilisateur

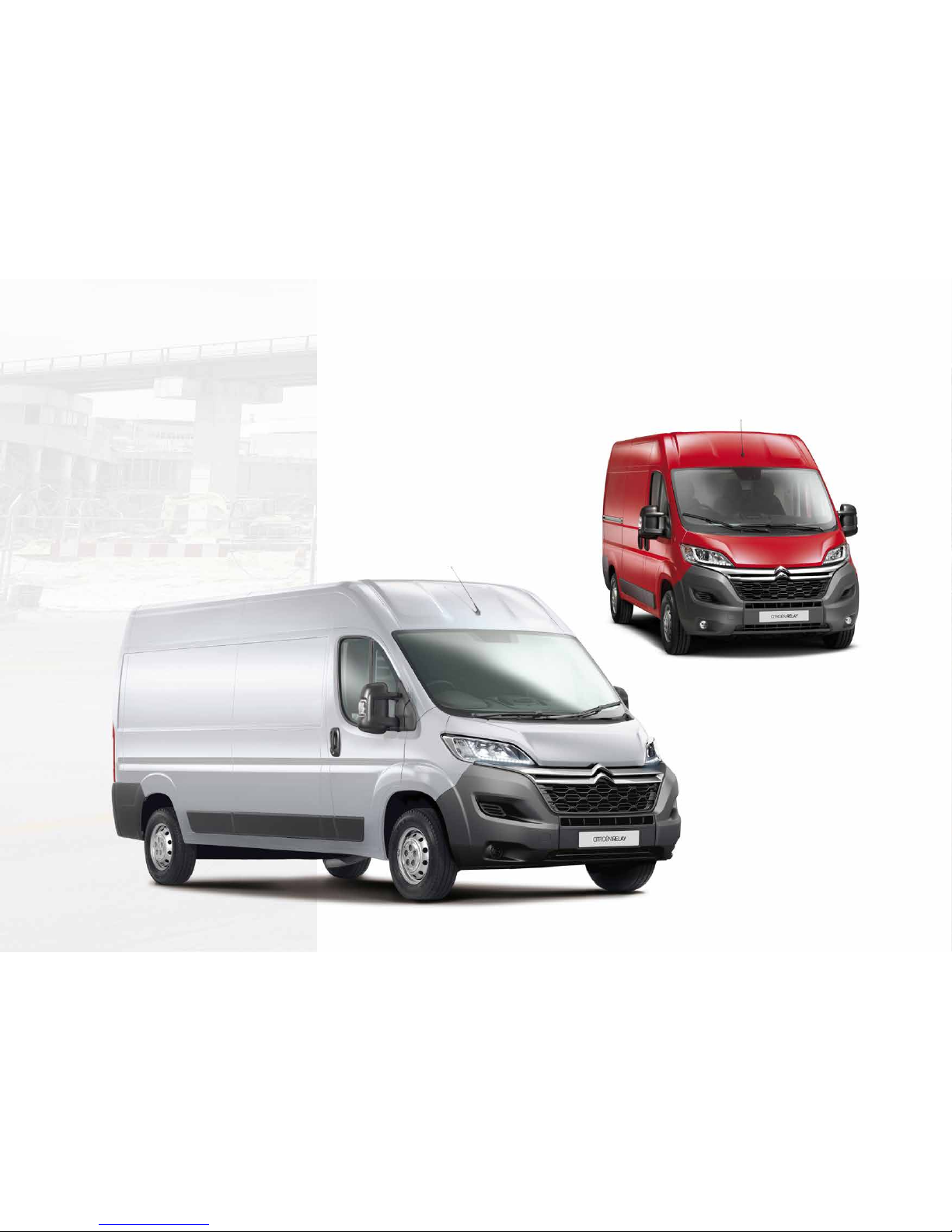

NEW CITROËN RELAY

CONTENTS: 4LOAD CHAMPION 6READY FOR ANYTHING 8ENTERPRISING SOLUTIONS

9COLOUR, WHEELS & TRIM 10 RANGE OVERVIEW 12 OPTIONS 13 WEIGHTS & PAYLOADS 14 EQUIPMENT SPECIFICATION

15 TECHNICAL SPECIFICATION 16 DIMENSIONS 18 ENVIRONMENTAL COMMITMENT 19 FINANCE, CARE & INSURANCE

THE AMAZING CHOICE OF SIZES AND PAYLOADS MEANS THAT ALL BASES ARE COMPREHENSIVELY COVERED.

BRAND NEW CLEAR GLASS HEADLIGHTS, EDGED IN CHROME AND EQUIPPED WITH DAYTIME RUNNING LIGHTS,

ARE POSITIONED HIGH AND SEND A BOLD MESSAGE AT A GLANCE – THIS DEFINITIVE VAN RANGE WITH A

PEERLESS HERITAGE HAS MOVED ON.

READY FOR ANYTHING. WHATEVER YOU

THROW AT IT, NEW CITROËN RELAY IS UP TO

THE JOB, AND MORE.

AN EXTENSIVE CHOICE. THE NEW CITROËN

RELAY OFFERS AN IMPRESSIVE RANGE OF

EQUIPMENT IN OVER 40 CONFIGURATIONS.

THE NEW CITROËN RELAY HAS A GROSS VEHICLE WEIGHT OF UP TO FOUR TONNES, WITH PAYLOADS OF ALMOST

TWO TONNES. THE NEW RELAY IS AVAILABLE IN FOUR LENGTHS, THREE WHEELBASES AND THREE HEIGHTS,

ENCOMPASSING USABLE LOAD SPACES FROM 8M3TO 17M3.

It is available in Panel Van, Enterprise, Chassis Cab and Crew Cab variants. With such a diverse and comprehensive range, the New

Citroën Relay can be tailored to meet the needs of even the most specialist customer. Powering the New Relay are three diesel

engines. HDi 110 optimised for low emissions and low fuel consumption, HDi 130 and HDi 150, all with exceptional pulling power.

Each model now has ESC as standard and optional Intelligent Traction Control can be tted, which features Hill Descent Control to

retain grip and stability on slippery slopes up to 20mph.

PNEUMATIC SUSPENSION

FOR EASY LOADING

Optional rear pneumatic suspension gives even

greater ride comfort. The load sill – already very

low even with standard suspension – can be

lowered by another 7cm, giving the New Citroën

Relay one of the lowest load heights in its class.

INTERIOR COMFORT

The New Citroën Relay has been

designed to be a true extension of the

ofce: three generous seats (driver’s seat

with height and lumbar adjustment and

dual passenger bench seat), a quiet,

well-insulated cabin, and a dashboard

with multiple storage areas and clever

features. A document clipboard

integrated into the top of the dashboard

keeps paperwork tidy, while a panel

integrated into the back of the front

dual passenger seat unfolds to become

a work surface. Once you’ve nished

working, your laptop can be stowed

safely in the central one of two lockable

glove compartments, specially designed

to accommodate a laptop computer.

WELL CONNECTED

New Citroën Relay’s audio technology

has progressed – like everything

else. Now there are new levels of

functionality and connectivity that

include DAB digital radio as standard

across the range. On panel vans the

Audio System with Connecting Box

offers a host of features such as an LCD

screen, Bluetooth®handsfree, USB

2.0 socket, Apple device interface and

steering-mounted controls. Enterprise

panel vans also benet from a 5 inch

colour Touch Screen, MP3 CD player

and Bluetooth®handsfree with audio

streaming and SMS functions.

777

EVERYTHING. AND MORE. INCREDIBLY

VERSATILE, SPACIOUS AND COMFORTABLE,

THE NEW CITROËN RELAY IS READY FOR

ANY PROFESSIONAL CHALLENGE.

AVAILABLE WITH A HUGE VARIETY OF EQUIPMENT INCLUDING A FULL STEEL BULKHEAD, STANDARD ACROSS

THE RANGE, AND REAR PARKING SENSORS STANDARD ON ENTERPRISE MODELS AND OPTIONAL ON PANEL VANS.

THE NEW CITROËN RELAY HARNESSES CITROËN INNOVATIONS, INTELLIGENT DESIGN, DURABLE ENGINEERING

AND THOUGHTFUL DETAILS TO CREATE THE COMPLETE WORKING PARTNER. ALWAYS VIGILANT, THE OPTIONAL TYRE

PRESSURE SENSORS WARN YOU WHICH WHEEL IS AFFECTED WITH A CLEAR ON-SCREEN MESSAGE, WHILE ALL

NEW RELAY ENTERPRISE MODELS GAIN AN ALARM, FOR COMPLETE PEACE OF MIND.

ALL KINDS OF CONTROL

Cruise control with programmable

speed limiter makes it easy to maintain

or limit speed in all conditions without

using the accelerator pedal. The

programmed speed can be changed

instantly using the left hand stalk, or

via the accelerator. Functions of the

new system include acceleration and

deceleration, vehicle speed memory,

stored speed recall and automatic

deactivation when the handbrake is

engaged. This useful technology is

standard on New Citroën Relay Enterprise

and optional on other versions.

CONTROL IN FULL COLOUR

Available for the rst time in New

Citroën Relay, the optional colour

reversing camera works with rear parking

sensors, transmitting bright clear images

to the 5 inch colour LCD audio system

screen. Engaging automatically when

reverse gear is selected, the camera

adds useful guide lines to the image you

see to make the trickiest manoeuvres

much easier – and bump free.

RELAX, YOU’RE ON COURSE

With its camera mounted above the rear

view mirror, the Lane Departure Warning

System senses when New Relay drifts

across lane markings without indicating

and sends you an audible and visual

warning. This innovative and reassuring

technology activates at speeds above

37mph (60 km/h) and is standard on

New Relay 40 Heavy models or an

option for all other versions.

SECURITY

Trafcmaster Smartnav on Panel Vans and Enterprise models

guides you to your destination via a colour touchscreen

displaying the route ahead. GPS Stolen Vehicle Tracking

means that once you have arrived you can park and leave your

vehicle in complete peace of mind. Includes 3 years’ Smartnav

Touchscreen routes, up to 100 routes per month, 3 years’

Stolen Vehicle Tracking, 3 years’ automatically downloaded live

trafc information, 10 Personal Assistant Smartnav routes and

3 months’ Safe Speed safety camera alerts.

Arctic Steel (M)

Lake Blue (M)

Deep Red (P)

BODY COLOURS WHEELS

Tiziano Red

Polar White Pacic Blue

Imperial Blue

Golden White (M)

Graphito Grey (M)

COLOURS, WHEELS & TRIM

TRIM

Carioca Yellow

‘Magnet’ trim – dark grey cloth

with black and red twill

All versions

(P) Pearlescent

(M) Metallic

1225/70 R15 C if pneumatic rear suspension specied.

Please note: Colours and pictures shown are for illustration purposes only.

Please consult your Dealer for denitive colour and trim/upholstery details.

35 Heavy & 40 Heavy Panel

Vans & Chassis Cabs

16 INCH ALLOY WHEELS

Tyres: 225/75 R16 C

35 Heavy & 40 Heavy Panel

Vans & Chassis Cabs

16 INCH WHEEL TRIMS

Tyres: 225/75 R16 C

30, 33, 35 Panel Vans

& Chassis Cabs

15 INCH ALLOY WHEELS

Tyres: 215/70 R15 C1

30, 33, 35 Panel Vans

& Chassis Cabs

15 INCH WHEEL TRIMS

Tyres: 215/70 R15 C1

30, 33, 35 Panel Vans

& Chassis Cabs

STANDARD STEEL

WHEELS

Tyres: 215/70 R15 C1

35 Heavy & 40 Heavy

Panel Vans & Chassis Cabs

STANDARD STEEL

WHEELS

Tyres: 225/75 R16 C

READY FOR ANYTHING. WHATEVER

FORMAT AND EQUIPMENT LEVEL YOUR

WORK DEMANDS, THE NEW CITROËN

RELAY RANGE WILL DELIVER A TOUGH

PROFESSIONAL PARTNER.

EVERY MODEL IN THE NEW CITROËN RELAY RANGE HAS A SUPERB SPECIFICATION, UNMISTAKABLE

INTERIOR COMFORT AND HUGE LOAD VOLUMES AND PAYLOADS. IT’S TIME TO CHOOSE THE PERFECT

FIT FOR YOUR BUSINESS...
