A Division of Cisco Systems, Inc.

Model No.

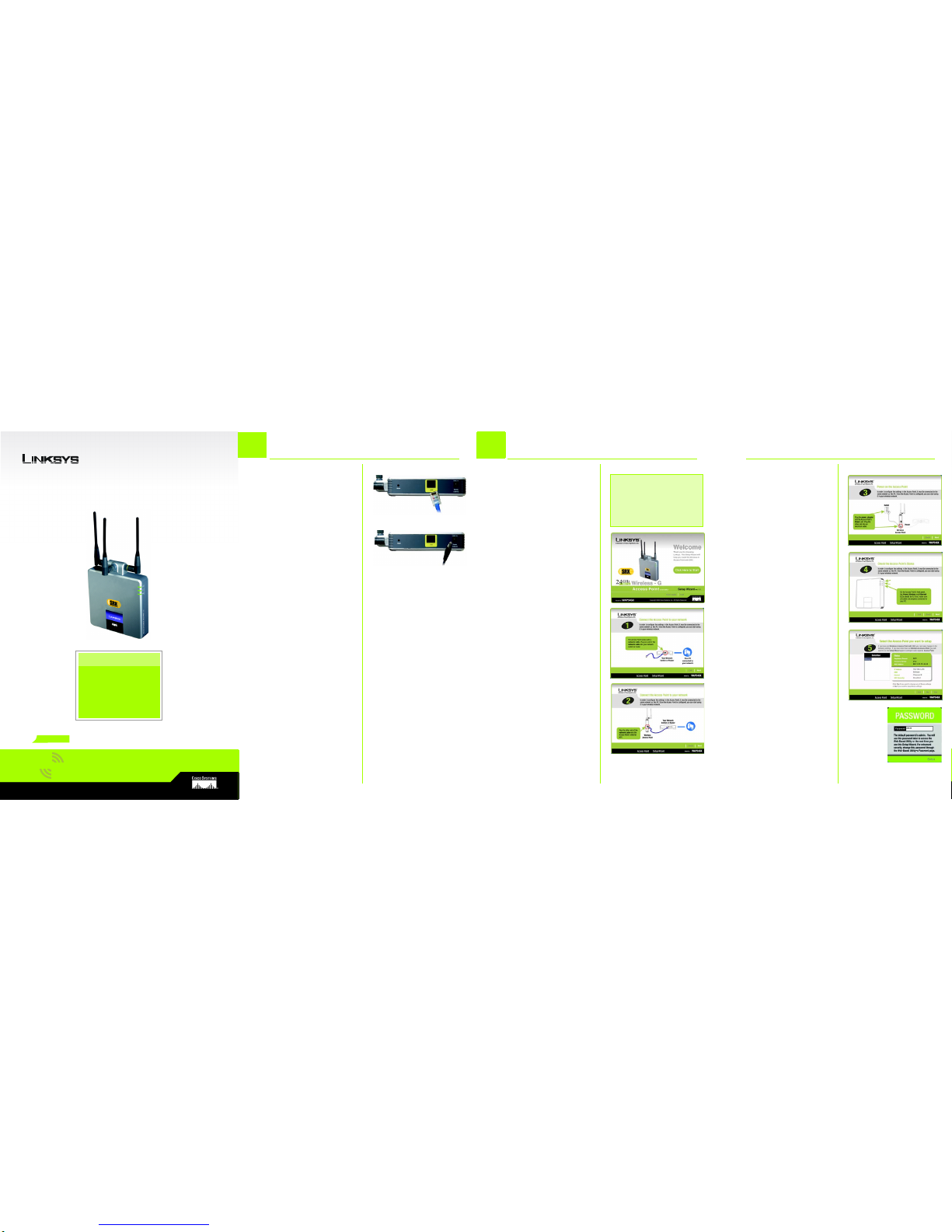

Quick Installation

Model No.

Wireless

WAP54GX (EU/LA/UK)

Access Point with SRX

Wireless-G

Package Contents

• Wireless-G Access Point with SRX

• Power Adapter

• Setup CD with User Guide

(English only)

• Ethernet Network Cable

AConnect your Ethernet network

cable to your network router or

switch. Then connect the other

end of the network cable to

the Access Point’s Ethernet

network port.

BConnect the included power

adapter to the Access Point’s

Power port. Then plug the

power adapter into an

electrical outlet. The LEDs on

the front panel will light up as

soon as the Access Point

powers on.

EMake sure the Access Point is

powered on. Click Next.

FMake sure the Access Point’s

Power, Act, and Link LEDs are lit.

If they are not, check the

cable connections. Click Next.

GThe Setup Wizard will search for

the Access Point within your

network and display a list of all

access points. If more than

one are displayed, select the

Access Point by clicking on it.

Then click Yes to change its

settings.

HYou will be asked to sign onto

the Access Point you have

selected. Enter the default

password, admin. Then click

Enter.

AInsert the Setup CD into your

PC's CD-ROM drive. The Setup

Wizard should run

automatically, and the

Welcome screen should

appear. If it does not, click

Start and select Run. Enter

D:\setup.exe (if “D” is the letter

of your PC's CD-ROM drive).

BOn the Welcome screen, click

Click Here to Start.

CThe following screens display

how the Access Point should

be connected during this

Setup Wizard. Optimally, you

should set up the Access Point

using a PC on your wired

network. Click Next.

DCheck the cable connecting

the Access Point to your

network router or switch. Click

Next.

Configure the Access Point

Connect the Access Point

GHz

802.11g

NOTE: If your computer does not

run Windows 2000 or XP, use the

Web-basedUtilitytoconfigurethe

Access Point. Refer to the Quick

InstallationGuide ontheSetup CD

for more information.

KSelect the level of security you

want to use: WEP or WPA/WPA2

Personal. Click Next.

LFollow the appropriate

instructions.

WEP - Select the level of

encryption you want to use,

WEP (64-bit) or WEP (128-bit).

Enter a passphrase to

automatically generate a WEP

key, or manually enter the WEP

key in the Key 1 field.

The WEP key can consist of the

letters “A” through “F” and the

numbers “0” through “9”. It

should be 10 characters in

length for 64-bit encryption or

26 characters in length for 128-

bit encryption.

Then click Next.

WPA Personal - Select WPA

Personal. Select TKIP or AES for

your encryption method. Enter

a passphrase of 8 to 32

characters.

Then click Next.

IEnter a descriptive name in the

Device Name field and then

create a new password.

If your network router will

automatically assign an IP

address to the Access Point,

then select Automatic-DHCP.

If you want to assign a fixed IP

address to the Access Point,

then select Static IP. Enter an

IP Address, Subnet Mask, and

the IP address of your network

gateway (usually your router).

Then click Next.

JOn the Configure Wireless

Settings screen, enter the SSID

or name of your wireless

network. Then select the

operating channel for your

network.

Select the mode for your

network. If you have 802.11g

devices only, select G-Only. If

you have 802.11g and

802.11b devices, keep the

default, Mixed Mode.

Click Next.

NClick Online Registration to

click Exit to end the Setup

Wizard.

Congratulations! The installation of

the Wireless-G Access Point with

SRX is complete.

For additional information or troubleshooting

help, refer to the User Guide on the CD-ROM

or the Technical Support Insert. You can also

e-mail for further support.

Website

http://www.linksys.com/international

Product Registration

http://www.linksys.com/registration

WPA2 Personal - Select WPA2

Personal. AES is automatically

selected as your encryption

method. Enter a passphrase of

8 to 32 characters.

Then click Next.

WPA2 Mixed Mode - Select

WPA2 Mixed Mode. TKIP + AES

is automatically selected as

your encryption method. Enter

a passphrase of 8 to 32

characters.

Then click Next.

MReview the new settings, and

click Yes to save them.

WAP54GX-EU-LA-UK-QI-50629NC JL

Linksys is a registered trademark or trademark of

Cisco Systems, Inc. and/or its affiliates in the U.S.

WEP

WPA Personal

WPA2 Personal

WPA2 Mixed Mode

NOTE: For advanced configuration, use

the Access Point’s Web-based Utility.

Refer to the User Guide on the CD-ROM

for more information.

NOTE: If you want to use WPA-

Enterprise security, refer to the

User Guide (English only) on the

Setup CD for more information.
