Cisco Aironet 521 Manuel utilisateur
DRAFT—CISCO CONFIDENTIAL
Read This First 1
Radio and IP Address Configuration 1
How to Open the Top Cover 2
Safety Information 5
Warnings 5
Overview 7
Unpacking the Access Point 7
Installation Summary 10
Mounting the Access Point 11
Connecting Power 12
Obtaining an IP Address 12
Configuring Power 13
Configuring Basic Settings 13
Configuring Security Settings 14
Understanding Express Security Settings 14
a521qsg.fmb Page 1 Monday, March 12, 2007 10:40 AM
DRAFT—CISCO CONFIDENTIAL
Express Security Limitations 14
SSID Configuration 14
In Case of Difficulty 15
Checking the Access Point LEDs 16
Checking Basic Settings 17
Resetting to Default Configuration 18
Using the MODE Button 18
Using the Web Browser Interface 19
Compliance Information 19
Cisco 90-Day Limited Hardware Warranty Terms 20
a521qsg.fmb Page 2 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
1
Quick Start Guide Cisco Aironet 521 Access Points
Read This First
You should review this table and the instructions for opening the top cover.
The table contains important information you need to know so you can
successfully configure your access point.
Radio and IP Address Configuration
The access point ships with its radio disabled.You must enable them when
you configure the access point for the first time. Also, the access point no
longer is assigned an IP address. It is configured to obtain an IP address using
Setting Default
Login
Password
IP address
Service Set Identifier (SSID)
Status LED Status Description
a521qsg.fmb Page 1 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
2
78-18092-01
a DHCP server. If your network does not use a DHCP server, you must
connect to the access point’s console port and assign a static IP address (See
the “Assigning an IP Address Using the CLI” section on page 17.
How to Open the Top Cover
The top cover provides access to the cable and power connections.
Caution Do not open the access point top cover as you would a hatch or
door. You could damage the cover by doing so. An instruction
label is attached to the access point. Take time to read the label
before you open the access point cover.
When you have familiarized yourself with the opening procedure, we
recommend that you remove the label, putting it in a safe place, such as inside
the cover of this guide.
Note Status LED indications are not visible when the top cover is open.
Follow these steps to open the top cover:
1. Put the access point on a flat surface, and grasp it with both hands, as
shown in this illustration.
a521qsg.fmb Page 2 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
3
Quick Start Guide Cisco Aironet 521 Access Points
121061
Cable access notch
and arrow
a521qsg.fmb Page 3 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
4
78-18092-01

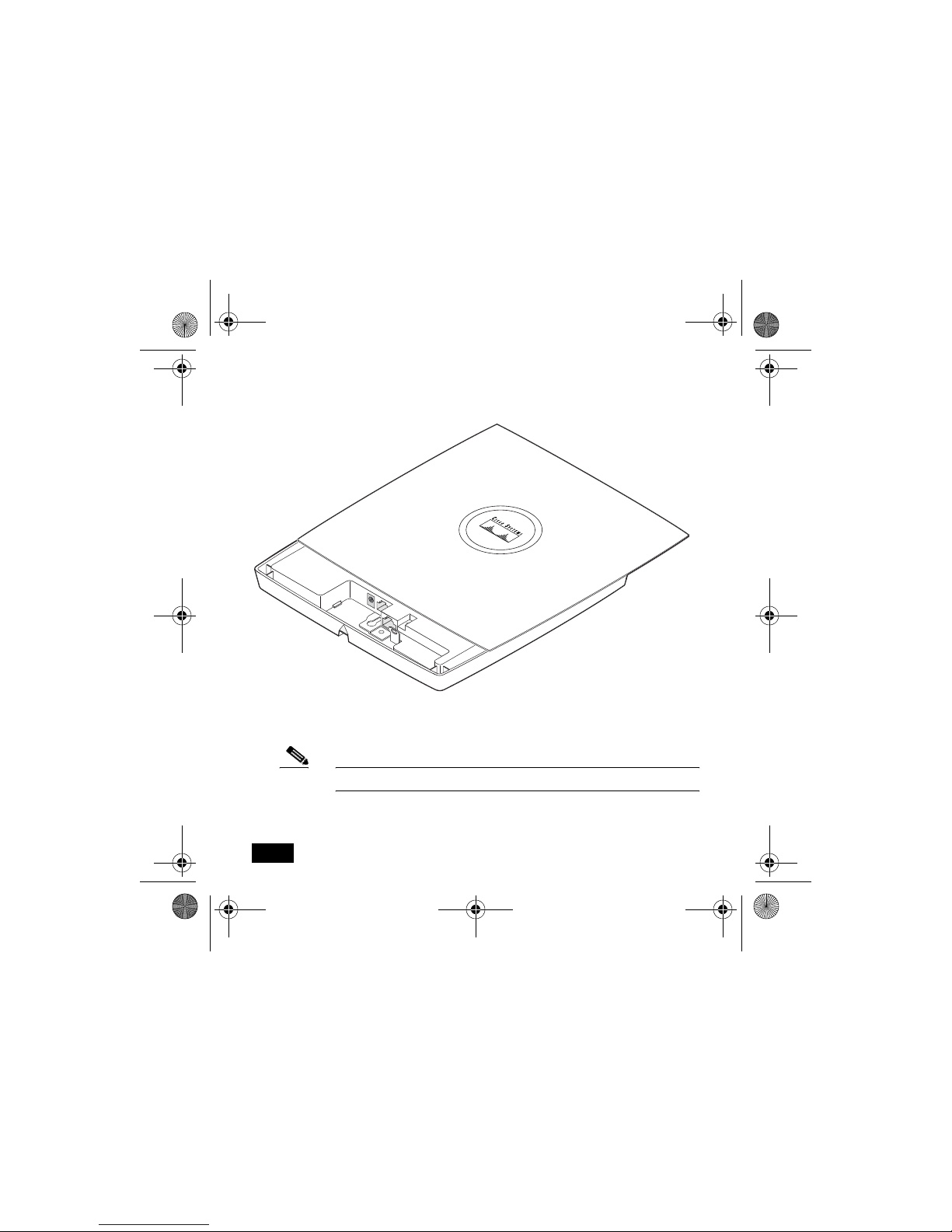

2. Gently push the cover away from you until it stops, as shown in this
illustration.
3. Remove the opening instruction label from the top cover.
Note We recommend that you save the label for reference.
121423
a521qsg.fmb Page 4 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
5
Quick Start Guide Cisco Aironet 521 Access Points
Safety Information
The FCC, with its action in ET Docket 96-8, has adopted a safety standard for
human exposure to RF electromagnetic energy emitted by FCC-certified
equipment. When used with approved Cisco Aironet antennas, Cisco Aironet
products meet the uncontrolled environmental limits found in OET-65 and
ANSI C95.1, 1991. Proper operation of this radio device according to the
instructions in this document and the installation and configuration guide will
result in user exposure substantially below the FCC recommended limits.
•Do not hold any component containing a radio such that the antenna is
very close to or touching any exposed parts of the body, especially the
face or eyes, while transmitting.
•The use of wireless devices in hazardous locations is limited to the
constraints posed by the safety directors of such environments.
Warnings
Warning
This product must be connected to a Power-over-Ethernet
(PoE) IEEE 802.3af compliant power source or an IEC60950
compliant limited power source.
a521qsg.fmb Page 5 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
6
78-18092-01
Warning
In order to comply with FCC radio frequency (RF) exposure
limits, antennas should be located a minimum of 7.9 in. (20 cm)
or more from the body of all persons.
Warning
Do not operate your wireless network device near unshielded
blasting caps or in an explosive environment unless the
device has been modified to be especially qualified for such
use.
Warning
Do not work on the system or connect or disconnect cables
during periods of lightning activity.
Warning
Read the installation instructions before you connect the
system to its power source.
a521qsg.fmb Page 6 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
7
Quick Start Guide Cisco Aironet 521 Access Points
Warning
This product relies on the building’s installation for
short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: 20A.
Overview
This guide is designed to help you minimally configure a Cisco Aironet 521
Series Access Point using the access point graphical user interface (GUI)
through your web browser. The GUI is the primary-configuration tool. This
guide provides an overview of the access point and provides instructions for
mounting it.
Do not attempt to connect a cable with a protective boot to the access point
Ethernet or console port. Because of limited space in the connection area,
booted connectors will not fit.
Unpacking the Access Point
Each access point package contains the following items:
•TBD
•Mounting hardware kit - TBD
a521qsg.fmb Page 7 Monday, March 12, 2007 10:40 AM
DRAFT - CISCO CONFIDENTIAL
8
78-18092-01
•This guide
Complete these steps to prepare for installation.
1. Carefully unpack and remove the access point and hardware kit from the
shipping box.
2. Return all packing material to the shipping container, and save it.
3. Verify all the package contents, and inspect each item for damage. If any
item is missing or damaged, contact your Cisco representative for
support.
4. Become familiar with the access point and its features, which are
identified in this illustration.
Caution Be careful when handling the access point; the bottom plate
might be hot.
a521qsg.fmb Page 8 Monday, March 12, 2007 10:40 AM
