Cisco Internet Router Cisco 12404 Manuel utilisateur

Corporate Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco 12404 Internet Router

Unpacking Instructions

Product Number: GSR4-PKG=

This document gives you instructions for unpacking and repackaging the

Cisco 12404 Internet Router. It includes:

•Tools and Equipment, page 2

•Unpacking the Cisco 12404 Internet Router, page 3

•Repackaging the Cisco 12404 Internet Router, page 9

•Transporting a Cisco 12000 Series Router, page 11

•Obtaining Documentation, page 11

•Documentation Feedback, page 13

•Obtaining Technical Assistance, page 13

•Obtaining Additional Publications and Information, page 16

The Cisco 12404 Internet Router weighs 103 pounds (46.7 kg) fully configured

and 73 pounds (33.1 kg) without line cards. For lifting guidelines, see online

documentation Cisco 12404 Internet Router Installation and Configuration

Guide, Chapter 2, “Lifting Guidelines.”

Tools and Equipment

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Tools and Equipment

You will need some of the following items and tools.

•3/16–inch flat-blade screwdriver

•1/4–inch flat-blade screwdriver

•9/16–inch (14-mm) wrench

•10–mm wrench (open-end or socket)

•ESD–preventive strap

•Tape—High performance, pressure sensitive, plastic, carton sealing tape

•Plastic banding

•Antistatic mat

•Wire cutters

•Pliers

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Unpacking the Cisco 12404 Internet Router

This section explains how to unpack the router from the shipping pallet. Figure 1

shows the main packing material and accessory kit container.

Figure 1 Unpacking the Cisco 12404 Internet Router (Enhanced model

shown)

CONSOLIDA

TEDSWITCHF

ABRIC

CRITICAL

MAJOR

MINOR

MBUS

FAIL

ENABLE

ALARM FABRIC

40C48/POS-SR-SC

ACTIVE

CARRIER

RXPKT

CLASS1LASERPRODUCT

LASERPRODUKTDERKLASSE 1

PRODUITLASERDECLASSE1

PRODUCTOLASER DE CLASSE 1

CLEAN

CONNECTOR

WITHALCOHOL

WIPESBEFORE

CONNECTING

SLOT

-0

GIGABITROUTEPROCESSOR

SLOT

-1

COLL

LINK

RJ-45

MII

RESET

AUX

EJECT

CONSOLE

149546

Unpacking the Cisco 12404 Internet Router

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

After you have unpacked the router, check the contents of the shipping container

and verify that the following are included with your shipment.

•One Cisco 12404 Internet router, fully assembled

•Two AC power entry modules (PEMs) installed if ordered as an AC powered

unit

•Two DC power distribution units (PDUs) and two DC PEMs installed if

ordered as a DC powered unit

•One Accessories kit container

If you do not receive the items you ordered, contact your customer service

representative for assistance (see the “Obtaining Technical Assistance” section on

page 13 for additional information).

Use the following procedure to unpack the Cisco 12404 Internet router from the

shipping container.

Step 1 Use the wire cutters to cut the plastic bans that secure the corrugated shipping box

to the pallet.

Step 2 Remove the tape that seals the carton and open the top of the corrugated box.

Step 3 Use the handles on the accessory kit to remove it from the carton.

Step 4 Set aside the accessory kit.

Step 5 Remove the corner cushions and the plastic bag covering the router.

Step 6 Remove the master shipper and set it aside.

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Unpacking the Cisco 12404 Internet Router

Step 7 Remove the bolts that secure the bracket to the back of the router (Figure 2).

Note Save the bolts and brackets. You will use them if you need to repackage

the router.

Figure 2 Cisco 12404 Internet Router Secured to Pallet (Rear View)

INPUT

OUTPUT

FAIL

INPUT

100-240V

12A

50/80HZ

OUTPUT

INPUT

OUTPUT

FAIL

INPUT

100-240V

12A

50/80HZ

OUTPUT

66401

Unpacking the Cisco 12404 Internet Router

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Step 8 Remove the bolts that secure the brackets to the side of the router (Figure 3).

Note Save the bolt and brackets. You will use them if you need to repackage the

router.

Figure 3 Cisco 12404 Internet Router Secured to Pallet (Front View)

–

If you are installing the enhanced version of the 12404 Internet router, go

to Step 9. For all other models, go to Step 11.

CONSOLIDA

TEDSWITCHF

ABRIC

CRITICAL

MAJOR

MINOR

MBUS

FAIL

ENABLE

ALARMFABRIC

023

40C48/POS-SR-SC

ACTIVE

CARRIER

RXPKT

CLASS1 LASER PRODUCT

LASERPRODUKTDERKLASSE1

PRODUITLASERDECLASSE1

PRODUCTOLASERDECLASSE1

CLEAN

CONNECTOR

WITHALCOHOL

WIPESBEFORE

CONNECTING

SLOT

-0

GIGABIT ROUTEPROCESSOR

SLOT

-1

COLL

LINK

RJ-45

MII

RESET

AUX

EJECT

CONSOLE

149561

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Unpacking the Cisco 12404 Internet Router

Step 9 Cut the plastic tie-wrap and remove it from the upper left hinge bracket (Figure 4).

Note The plastic tie-wrap secures the front door to the chassis during shipment.

Figure 4 Removing the Tie-Wrap and Label

149690

REMOVE

TIE WRAP

Unpacking the Cisco 12404 Internet Router

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

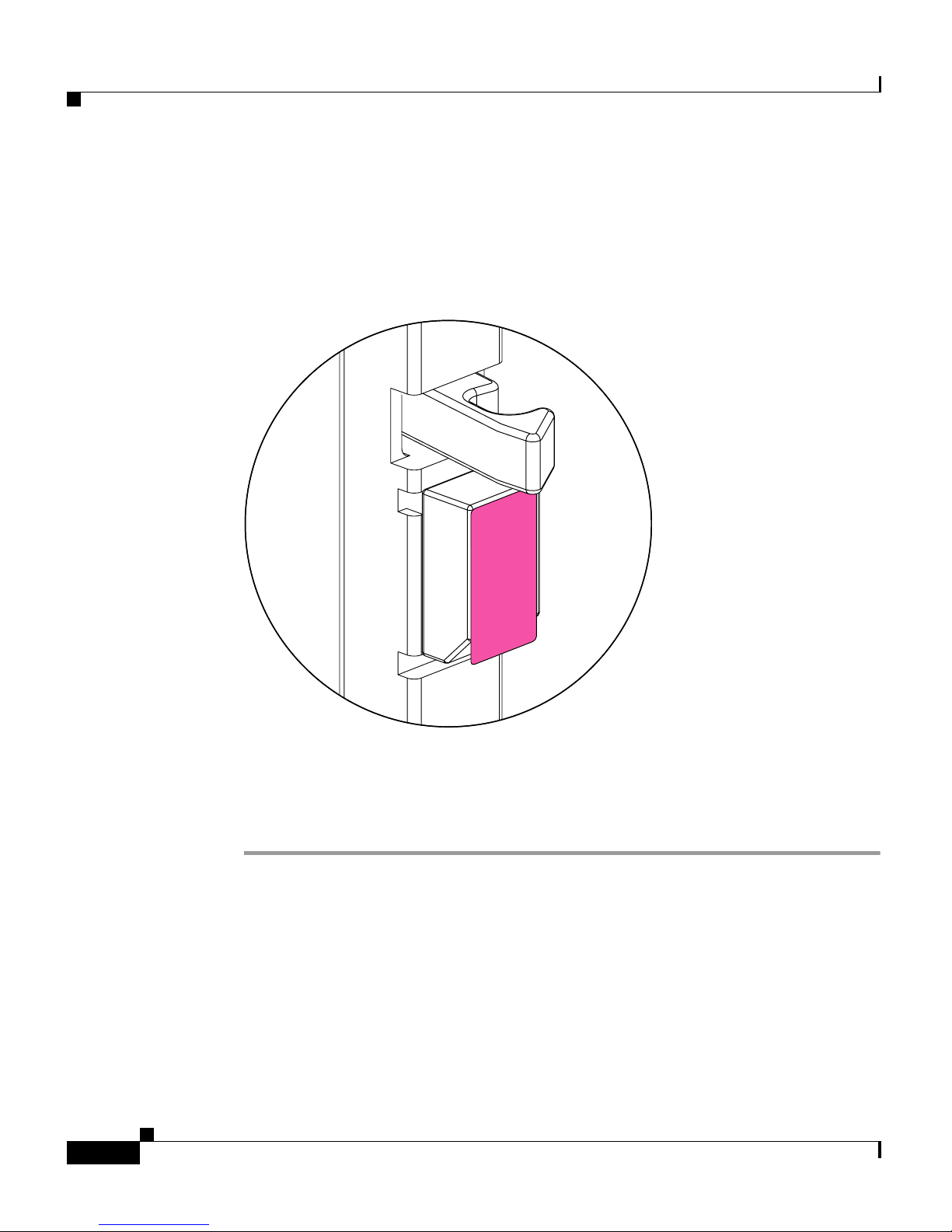

Step 10 Open the front door and remove the labels (labeled REMOVE) that protect the

rubber bumpers during shipment (Figure 5).

–

Close the front door.

Figure 5 Removing the Rubber Bumper Shipping Label

Step 11 Your Cisco 12404 Internet router is ready for installation. For installation

instructions, see the Cisco 12404 Internet Router Installation and Configuration

Guide online documentation, Chapter 3, “Installing the

Cisco 12404 Internet Router” part number 78-13511-xx.

REMOVE

149691

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Repackaging the Cisco 12404 Internet Router

To repackage your Cisco 12404 Internet router for shipment, use these repacking

instructions. If packing material is lost or damaged, the

Cisco 12404 Internet router packing materials are available as an orderable item.

Use Product Number: GSR4-PKG=.

Tools and Equipment

You need the following items and tools.

•3/16–inch flat-blade screwdriver

•1/4–inch flat-blade screwdriver

•9/16–inch (14-mm) wrench

•10–mm wrench (open-end or socket)

•ESD-preventive strap

•Antistatic mat

•Wire cutters

•Pliers

•Bolts, screws, carton, and brackets removed when the chassis was unpacked

Repackaging the Cisco 12404 Internet Router

Cisco 12404 Internet Router Unpacking Instructions

78-13618-02

Repacking the Router

Repacking the Cisco 12404 Internet router into the shipping container is

presented in the following procedure. This procedure assumes you have

repackaged the accessory kit and have the bolts, screws, carton and brackets

removed when the chassis was unpacked.

Step 1 Place the router on a Cisco 12404 Internet router shipping pallet.

Step 2 Secure the side and rear brackets to the pallet with the bolts you saved when the

chassis was unpacked (see Figure 2 and Figure 3).

Step 3 Tighten all the captive screws on the power entry modules, power distribution

units, and line cards so that they are secure.

Step 4 Place the plastic bag cover over the router.

Step 5 Refer to Figure 1 and:

a. Place the front and rear foam cushions on top of the bagged router.

b. Place the accessory kit on top of the router.

c. Place the cardboard carton over the accessory kit and router.

Note If the master shipper tape closure was removed, replace it before you

secure the bands to your package.

Step 6 Secure the cardboard carton to the pallet with straps similar to the ones used to

ship the router to you.

Your Cisco 12404 Internet router is ready for shipment.
