Cisco 7513 Series Manuel utilisateur

INSTALL THE HARDWARE

CONNECT THE RSP

START AND CONFIGURE THE SYSTEM

INSTALL FIELD REPLACEABLE UNITS (FRUS)

Quick Start Guide

IsCiscodocumentationhelpful?Clickhereorgotohttp://www.cisco.com/warp/public/732/docsurvey/rtg/togive

us your feedback.

CISCO 7513 AND 7576 ROUTERS

POWER

B NORMAL

Install the Hardware

EJECT

SLOT0

SLOT1

NORMAL

CPUHALT

RESET

AUX.

CONSOLE

ROUTESWITCH PROCESSOR 2

SLAVE

MASTER

SLAVE/MASTER

ENABLE

EJECT

SLOT0

SLOT1

NORMAL

CPUHALT

RESET

AUX.

CONSOLE

ROUTESWITCH PROCESSOR 2

SLAVE

MASTER

SLAVE/MASTER

OK FAN

OK OUTPUT

FAIL

OK FAN

OK OUTPUT

FAIL

POWER

53385

Blower module

Cable-management

bracket

Card cage and

processor

modules

Air intake vent

Power supplies

Chassis

grounding

receptacles

Interface

processor slot

numbering

scheme

The Cisco 7513 has 13 slots: interface processor

slots0through5,RouteSwitchProcessorslots6and

7, and interface processor slots 8 through 12.

The Cisco 7576 router is two Cisco 7500 series

routers conﬁgured on a single split backplane, with

13 slots. Router A uses interface processor slots 0

through 5 with a Route Switch Processor in slot 6.

Router B uses interface processor slots 8 through 12

with a Route Switch Processor in slot 7.

The Cisco 7513 and Cisco 7576 routers have bays

for up to two AC-input or DC-input power supplies.

Each chassis will operate with one power supply, but

a second power supply allows load sharing and

increased system availability.

Note The Cisco 7576 does not support the high

system availability (HSA) feature. The RSP in slot 6

is automatically the system master for router A and

the RSP in slot 7 is automatically the system master

for router B.

Note If you are only conﬁguring one of the two

Cisco 7576 internal routers, conﬁgure router A

instead of router B. Install an RSP in slot 6, and

interface processors in slots 0 through 5.

Packing List

• 1 Cisco 7513 or 7576 router

• 1 Route Switch Processor (RSP)

• Y-adapter cables, 1 auxiliary and 1 console

• 1 AC power supply

• 1 AC power supply cable

• 1 Power cord

• 1 Anti-static wrist strap and documentation

Prepare to Install the Router

Install the Hardware

Note For detailed hardware installation

instructions and safety guidelines, refer to the Cisco

7500 Series Router Installation and Conﬁguration

Guide, Site Preparation and Safety Guide, and the

Cisco 7500 Regulatory Compliance and Safety

Guide.

Warning Only trained and qualiﬁed

personnel should install, replace, or service

this equipment.

Step 1 Lift the router safely out of the packing

container.

Step 2 Ensure the power service at the site is

suitable for the router you are installing.

Step 3 Check the packing slip to ensure that all

the proper components are present.

Step 4 Conﬁrm that you have the required tools

and parts:

For rack-mounting (optional):

• Number 1 and Number 2 Phillips screwdrivers

• 1/4-inch and 3/16-inch ﬂat-blade screwdrivers

• Tape measure

• Level (optional)

• Twomounting brackets (identical),each with an

attached spanner bar

• Two chassis ears with captive grommets

(identical)

• Four M4 x 10-mm Phillips ﬂat-head screws to

secure the ears to the chassis

• Twelve 10-32 x 5/8-inch LG Phillips pan-head

screws with integral square cone washers

For cable-management brackets:

• Number 1 Phillips screwdriver

• Two cable-management brackets

• Six M3 x 8-mm Phillips pan-head screws

For interface modules:

• Number 1 Phillips or 3/16-inch ﬂat-blade

screwdriver

For DC-Input Power Supply:

• Twin-lead, 10-AWG cable terminal block

connection

• Single 8-AWG wire for the ground connection

• 3/16-inch ﬂat-blade screwdriver

• 8-mm nut driver

Install the Router on a Bench or Tabletop

Install the Hardware

POWER

H3118

Note To rack-mount the router, refer to the

“Rack-Mount the Router (Recommended)” section

on page 4.

Caution Two people are required to

perform this step. Avoid sudden twists or

moves to prevent injury.

Step 1 With a person positioned at either side of

the chassis, grasp the bottom edge of the

chassis with one hand near the front and

the other near the back. Slowly lift the

chassis in unison. Place the chassis on a

bench or tabletop where the air intake

vent on the front of the chassis is not

drawing in exhaust air from other

equipment.

Warning When lifting the router, do not

lift by grasping the handle of the blower

module, nor should you grasp the air intake

grill.

Step 2 Ensure that you have at least 2 or 3 feet

(0.6to.09m)ofclearancearoundtherear

ofthechassistoinstallpowersupplies and

perform maintenance on the chassis.

Step 3 Proceed to the “Install Interface

Processors, Fillers, VIPs, or RSPs” section

on page 9.

Rack-Mount the Router (Recommended)

Install the Hardware

H3172

POWER

APOWER

10-32 x 5/8 in. long

Phillips pan-head screws

with integral square cone

washers (for mounting

brackets and chassis

ears to rack posts)

Chassis ear (cutaway of frame post

to enable view of chassis ear)

M4 x 10-mm long

Phillips flat-head

screws (to attach

ears to chassis)

Bracket (2)

To rack-mount the Cisco 7513 or Cisco 7576 router,

you will perform the following steps:

Step 1 Mount the brackets to the rack posts.

Step 2 Secure the spanner bars.

Step 3 Attach the chassis ears.

Step 4 Mount the chassis.

Mount Brackets to the Rack Posts

Install the Hardware

53382

Rack post

Flange

Shielded side

Note The distance between the inner edges of the

left and right rack-mounting posts must be at least

17.72 inches (45.088 cm), and the distance between

theholes in the mounting posts must be 18.31 inches

(46.5 cm) (+ .063 inches or .16 cm).

Step 1 Place the bracket on the inner side of the

rack post, with the ﬂanged front edge of

the bracket in front of the rack post.

Step 2 Align the mounting holes in the bracket

with those in the rack post.

Step 3 Support the bracket with one hand, and

use the other hand to insert a 10-32 x

5/8-inch LG Phillips pan-head screw

through the bottom mounting hole on the

front of the bracket and into the rack post.

Step 4 Secure the top of the bracket to the rack

with two pan-head screws. Finger-tighten

the screws.

Step 5 Push the brackets as far apart as possible

before using a Number 2 Phillips

screwdriver to tighten the screws.

Step 6 Adjust the brackets if the distance

between them is less than 17.5 inches

(45.45 cm).

Step 7 Repeat Step 3 through Step 6 for the

remaining bracket. Use a level or tape

measure to ensure that the two brackets

are level in the rack.

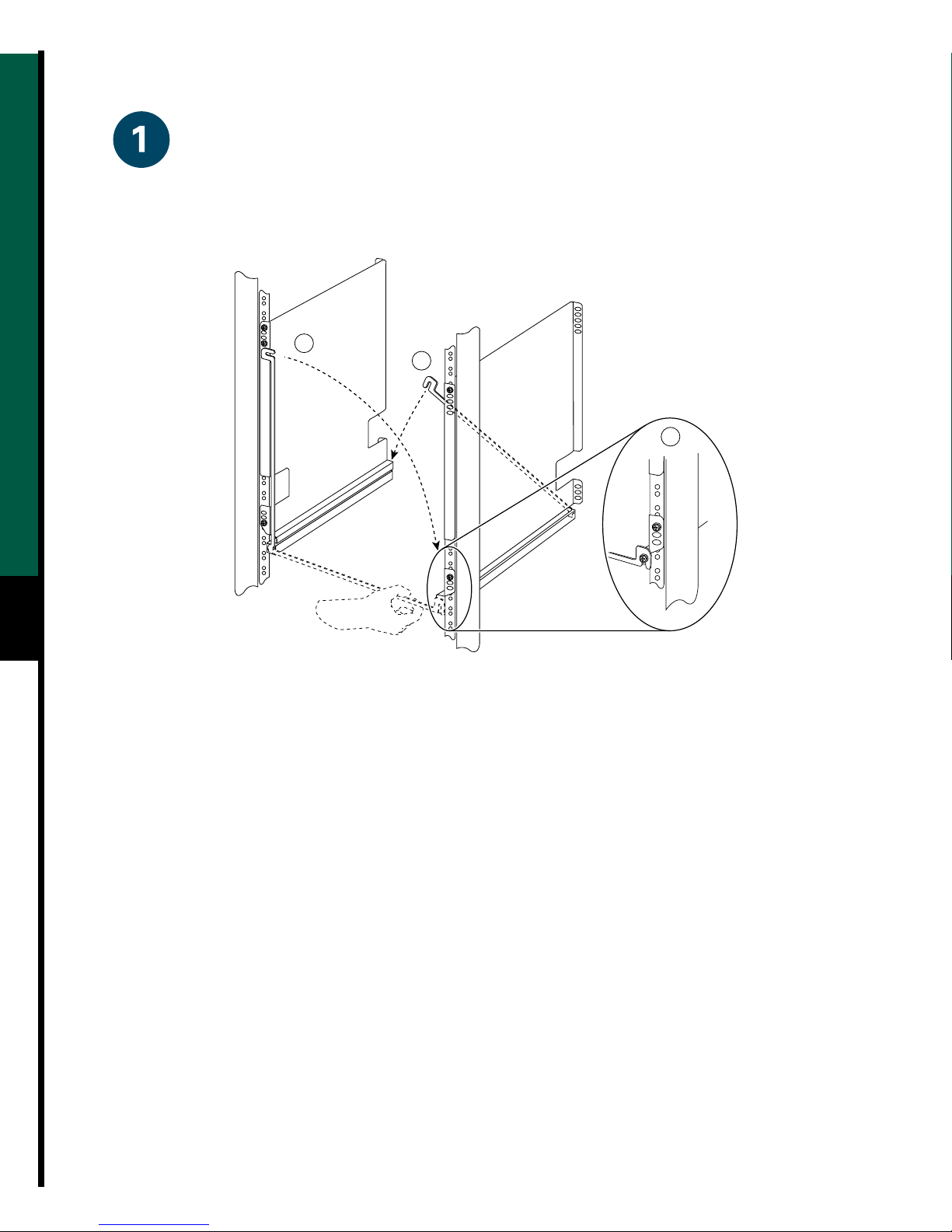

Secure the Spacers

Install the Hardware

53425

Step 1 Loosen the 10-32 x 5/8-inch LG Phillips

pan-head screw at the end of the ledge of

the right-side bracket. This screw is the

anchor for the spanner bar.

Step 2 Remove the tape that secures the spanner

bar on the left bracket, and swing the bar

down(seeA) over the anchor screw on the

opposite bracket (see B).

Step 3 If the spanner bar does not reach the

opposite bracket, loosen the pan-head

screws to allow more play between the

brackets, and adjust brackets as needed.

Step 4 RepeatStep 1 through Step 3 tofasten the

remainingspannerbartoitsanchorscrew.

(See C.)

Step 5 Push the brackets as far apart as possible

before tightening the screws.

Step 6 Use a Number 2 Phillips screwdriver to

tighten the six pan-head screws that

secure the brackets to the rack-mounting

posts, and the two anchor screws that

secure the spanner bars.

Step 7 Adjust the brackets if the distance

between them is less than 17.5 inches

(44.45 cm).

Attach the Chassis Ears

Install the Hardware

H3174

POWER

Center-mount position

Flush-mount position

Step 1 Position the ears on the chassis as follows:

• To ﬂush-mount the chassis, place each ear so

thatthemountingstrips are ﬂush withtheendof

the chassis, and align the mounting holes in the

ear with those in the chassis.

• To center-mount the chassis, place each ear with

the mounting strips away from the end of the

chassis, and align the mounting holes in the ear

with those in the chassis.

Step 2 Use two M4 x 10-mm LG Phillips

ﬂat-head screws to secure each ear to the

chassis.

Mount the Chassis in the Rack

Install the Hardware

53487

POWER

APOWER

Caution Two people are required to

perform this step.

Step 1 With a person positioned at either side of

the chassis, grasp the bottom edge of the

chassis with one hand near the front and

the other near the back.

Step 2 Slowly lift the chassis in unison. Avoid

sudden twists or moves to prevent injury.

Step 3 With the chassis positioned so the front is

closest to the rack, insert the front of the

chassisintotherackbetweenthebrackets,

and then slowly lower the chassis until it

rests on the two bracket ledges.

Step 4 Slide the chassis back into the rack along

the ledges until the ears meet the front

mounting posts on both sides of the rack.

Step 5 Secure each ear to the rack-mounting post

with two 10-32 x 5/8-inch LG Phillips

pan-head screws.
