CHAPTER
1-1
Cisco 12000/10720 v3.2 Router Manager User Guide
OL-6690-01
1
Overview
This chapter provides an overview of the Cisco 12000/10720 Routers and the
Cisco 12000/10720 Router Manager application.
The Cisco 12000 Series Routers are part of Cisco’s premier routing product
family and play an integral part in the network architecture. The Cisco 12000
Series Routers were designed and developed for the core of service provider and
enterprise IP backbones.
The Cisco 10720 Router provides IP services to users at optical speeds at the edge
of their networks. The Cisco 10720 Router provides network access using
Ethernet and Dynamic Packet Transport (DPT) technology for optical
connectivity. Each router is equipped with one uplink card and one Ethernet
access card.
Figure 1-1 shows a typical Cisco 12000 Series Routers deployment. The Cisco
12000/10720 Router Manager application supports the entire range of the Cisco
12000 Series Routers like: Cisco 12008, Cisco 12012, Cisco 12016, Cisco 12404,
Cisco 12406, Cisco 12410, Cisco 12416 and the Cisco 10720 Router.
Chapter 1 Overview
1-2
Cisco 12000/10720 v3.2 Router Manager User Guide OL-6690-01

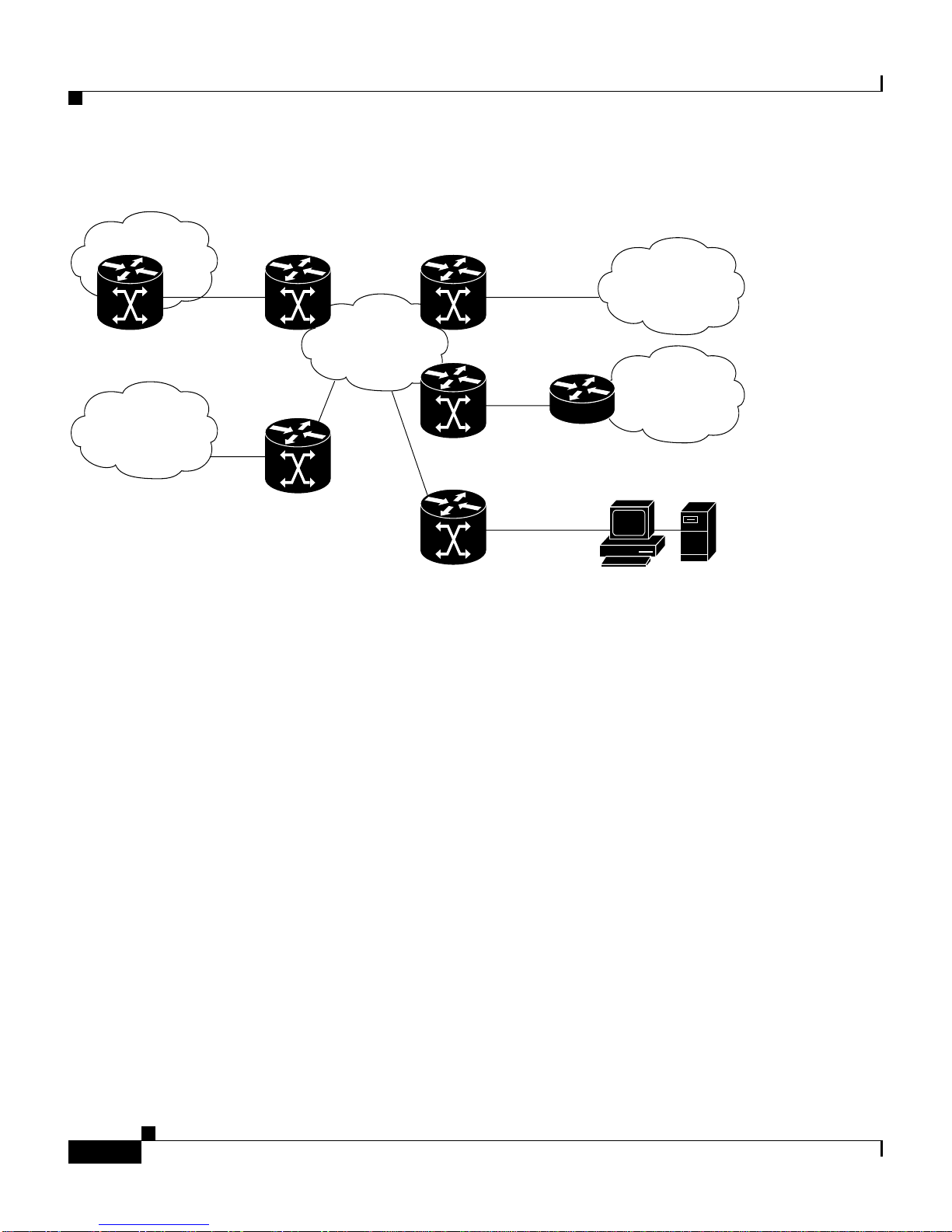

Figure 1-1 Typical Cisco 12000 Series Router Deployment
The Cisco 12000/10720 Router Manager application works in conjunction with
the Cisco Element Management Framework (Cisco EMF) application to provide
element management for the Cisco 12000 Series and Cisco 10720 Routers. The
Element Manager includes FCAP management.
This chapter describes:
•Cisco Element Manager Framework (Cisco EMF)
•Cisco 12000/10720 Router Manager
•Key Features of Cisco 12000/10720 Router Manager
•Accessing Online Help
ISP
Gig Eth
Cisco 12000 series
internet router
SONET(SDH)
VATM/GE
ATM/MPLS
Frame Relay
ATM
Ethernet
Cisco EMF and
C12kM server
Leased line
Telco
switch
PoS
PoS
56584
1-3
Cisco 12000/10720 v3.2 Router Manager User Guide
OL-6690-01
Chapter 1 Overview Cisco Element Manager Framework (Cisco EMF)
Cisco Element Manager Framework (Cisco EMF)
Cisco EMF is an open carrier class management system, designed to integrate
with third party products and proprietary operational support systems.
Many different management protocols, both standards-based and proprietary, are
supported by Cisco EMF in a transparent manner. New network devices are
managed instantly and new management applications can be quickly developed to
meet new requirements.
Cisco EMF systems architecture provides a distributed network management
solution designed to manage large-scale networks. Cisco EMF provides the
performance required within the logical and physical architecture and provides
user interfaces that support the need to perform mass operations to large domains
within the overall network.
In addition, because of the distributed nature of Cisco EMF, administration tools
are provided to “manage” the management system. Refer to the Cisco Element
Management Framework User Guide Release 3.2 (78-12536-01) for further
details.
Map Viewer is the primary entry point into the Cisco 12000/10720 Router
Manager software. When Map Viewer is launched, the application is displayed
corresponding to the highlighted map icon in the hierarchy pane.
You can easily monitor the status of all network elements or abstractions of
elements contained within the network and you can launch any additional
applications available. See “Map Viewer(Viewer)” section on page 3-7 for further
details.
Chapter 1 Overview
Cisco 12000/10720 Router Manager
1-4
Cisco 12000/10720 v3.2 Router Manager User Guide OL-6690-01
Cisco 12000/10720 Router Manager
The Cisco 12000/10720 Router Manager application is a carrier class Element
Manager (EM) that allows you to manage Cisco 12000/10720 Routers. Cisco
12000/10720 Router Manager adds custom windows and modeling behavior to
the standard Cisco EMF to allow the management of the Cisco 12000 Series and
Cisco 10720 Routers.
Note This Guide describes the concepts and operating instructions for the Cisco
12000/10720 Router Manager. Refer to the Cisco Element Management
Framework User Guide Release 3.2 (78-12536-01) for further details on
Cisco EMF.
Key Features of Cisco 12000/10720 Router Manager
Cisco 12000/10720 Router Manager features include the following:
•Maps for Chassis representation of Cisco 12000/10720 Router objects
•Cisco 12000/10720 Router Manager windows and wizards—Eliminate the
need for operators to have detailed Cisco IOS software and SNMP-based
knowledge for individual interface or system parameter commands
•Cisco12000/10720 RouterManager deployment—Easesdeploymentof large
networks by enabling template-based element configuration, operations,
administration, and maintenance
–
Pre-deployment of chassis, GRP and line cards
–
AutoDiscovery—Automatically discovers existing Cisco 12000/10720
routers
•Comprehensive fault management system—For chassis, line cards and
interfaces
•Configuration Backup/Restore using RME—Uses Resource Manager
Essentials to back up and save the running configuration of a device and its
modules so that if a hardware failure occurs, you can restore configuration
•Configuration Editor—Uploads and saves the running configuration on a
device after editing
1-5
Cisco 12000/10720 v3.2 Router Manager User Guide
OL-6690-01
Chapter 1 Overview Key Features of Cisco 12000/10720 Router Manager
•Configuration operations—Performs in bulk to numerous Cisco 12000/10720
routers
•Cisco 12000/10720 Router Manager Management—Fault, Configuration,
Accounting and Performance (FCAP) Element Management of Cisco 12000
Series Routers using Cisco EMF windows
•Interface profiles—Enables you to apply the same parameters to a large
number of objects at one time
•Layer 3 QoS support—Includes Committed Access Rate (CAR), Weighted
Random Early Detection (WRED), WRED ToFab and Modified Deficit Round
Robin (MDRR)
•Line cards and interfaces—Supports various line cards and interfaces, such
as packet-over-SONET (POS), Asynchronous Transfer Mode (ATM), Digital
Signal 3 (DS3), Dynamic Packet Transport (DPT), Spatial Reuse Protocol
(SRP) and Gigabit and Fast Ethernet
•Cisco IOS releases—Easily downloads new software releases from Cisco
12000/10720 Router Manager onto devices using RME
•ATM Connections Management—Uploads existing PVCs and associated
QoS profiles from any device into the Cisco 12000/10720 Router Manager
and also manual deployment and management of PVCs and SVCs
•Subchassis discovery—Determines the physical chassis contents, such as line
cards and interfaces
•Rediscover Line Cards after online insertion or removal (OIR)
•BGP and OSPF Protocols Management—Configuration and Fault
Management for BGP and OSPF routing protocols and uploading BGP
Address Family configurations
•Route Processor Redundancy (GRP and PRP) support for chassis
management
•Complete support for IP Routing, TCP and UDP Status Management
•MPLS Management—Fault Management and Performance Management for
MPLS Interfaces and Sub-Interfaces, Fault Management for LDP Entities and
MPLS Tunnels, Configuring MPLS and VRF Traps
•VRF Management—Configuration of VRFs in the EM. Creation of VRFs in
the device through EM and Association of VRFs to Interfaces. Fault
Management for VRFs
Chapter 1 Overview
Accessing Online Help
1-6
Cisco 12000/10720 v3.2 Router Manager User Guide OL-6690-01
•VLAN Management—Configuration and performance monitoring of the
VLAN sub-interfaces
•VLAN Synchronization—Uploads the existing VLAN information from the
network into Cisco 12000/10720 Router Manager
Accessing Online Help
Each window has the option to click the Help icon, or to select Help from the
menu bar. A list of help topics is displayed.
