Product Overview

This chapter provides an overview of the features available for the Cisco 809 Integrated Services Routers

(ISRs).

For compliance and safety information, see Regulatory Compliance and Safety Information for Cisco 800

Series

Note

•General Description, on page 1

•SKU Information, on page 7

•Hardware Features, on page 8

•Supported Cisco Antennas and Cables, on page 9

•Power Supply, on page 16

•RJ45 Ports, on page 17

•Accessories, on page 18

General Description

The Cisco 809 Integrated Services Router (IR809), part of the Cisco Integrated Services Routers Generation

2 (ISR G2) Family, is designed as a next generation ruggedized ﬁxed form factor router. It is a small-form

factor router with LTE, for use in ATM, POS, Telemetry, Billboards, Enterprise Fleet markets, Utilities and

other SCADA (Supervisory Control and Data Acquisition) environments.

The documentation set for this product strives to use bias-free language. For purposes of this documentation

set, bias-free is deﬁned as language that does not imply discrimination based on age, disability, gender, racial

identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be

present in the documentation due to language that is hardcoded in the user interfaces of the product software,

language used based on RFP documentation, or language that is used by a referenced third-party product.

Note

The following ﬁgure shows the IR809.

Product Overview

Figure 1: Cisco IR809 Integrated Services Router

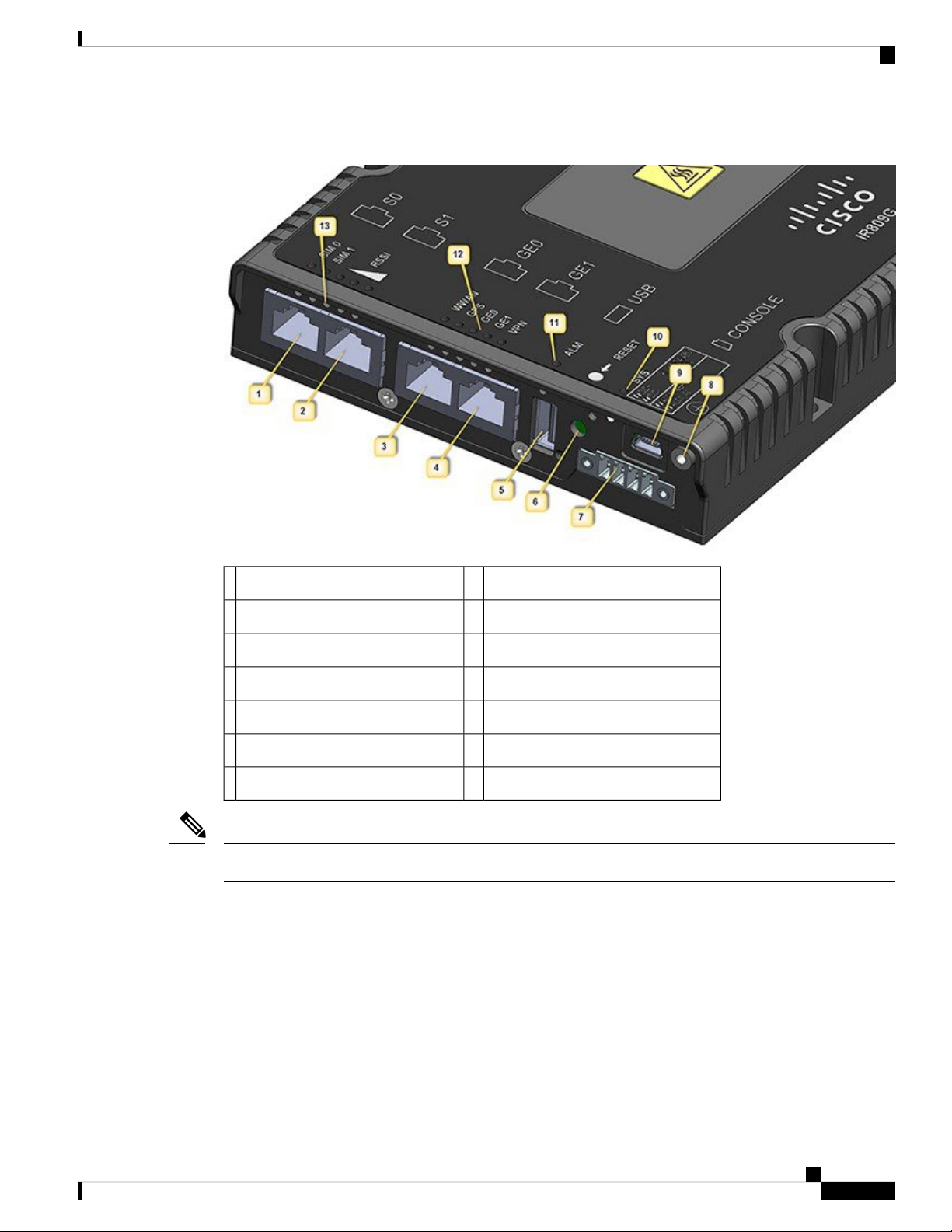

The following ﬁgure shows the front panel details of the Cisco IR809.

Product Overview

General Description

Figure 2: Cisco IR809 Front Panel

Grounding Point8S0 RS232 DCE/RS485 Combo Port1

Mini type-B USB console/debug port9S1 RS232 DTE only2

SYS LED10GE0 (10/100/1000)3

Alarm LED11GE1 (10/100/1000)4

WAN/WWAN LEDs12USB 2.0 (Type-A Host Port)5

SIM Card LEDs13RESET Button6

DC Power/Alarm Connector7

LEDs are viewable from the top and from the front of the IR809.

Note

The following ﬁgure shows the back panel details of the Cisco IR809.

Product Overview

General Description

Figure 3: Cisco IR809 Back Panel

DIV TNC connector for 4G Modem1

SMA connector for GPS2

SIM0 and SIM1 Card Slots3

MAINTNCconnectorfor4GModem4

The following ﬁgure shows the top cover details of the Cisco IR809.

Product Overview

General Description

Figure 4: Cisco IR809 Top Cover

LEDs

The following table describes the LEDs for the Cisco 809 ISR.

Product Overview

LEDs

Table 1: LED Descriptions

DescriptionActivityLED

Innormaloperating mode, after system boots.(typicallyabout

2 minutes)

Off — No power

Green Steady on — Router is reachable, and all interfaces are up

and functioning properly

Green Flashing — Router is reachable, and no interface is in a

failed state

Amber Steady on — Router is unreachable (An external interface

of the router, that prevents the router from being remotely managed,

is in a critical failed state)

Amber Flashing — Router is reachable, but at least one of the

interfaces is in a non-critical failed state (functionality of that

interface is affected)

In bootup mode (during the ﬁrst 60 seconds after powerup)

Green Steady on — Router is bootingy

Amber Steady on — Router has a system hardware failure

Power and System

Status

SYS

Off — Normal operation

Red - Alarm State on the Alarm Input

Alarm Input StatusALM

Off — No VPN tunnel

Steady Green — At least one VPN tunnel is up

VPNVPN_OK

Off — No link

Steady Green — Link is up

Flashing — Transmitting and Receiving data

Link StatusGE0

(10/100/1000)WAN

GE0

(10/100/1000)WAN

Off — GPS not conﬁgured

On — GPS conﬁgured

Slow Flash — GPS Acquiring in Standalone GPS

Fast Flash — GPS Acquiring in Assisted GPS

Slow Flash is deﬁned as the LED will be on for 0.25

seconds and off for 0.75 seconds.Fast Flash is deﬁned

as the LED will be on for 0.25 seconds and off for 0.25

seconds.

Note

GPS StatusGPS

Product Overview

LEDs

DescriptionActivityLED

Off — Modem not powered on On — Modem is powered on and

connected but not transmitting or receiving Slow Blink — Modem

is powered on and searching for connection

Fast Blink — Modem is transmitting or receiving.

Wireless WAN

Activity

WWAN

The RSSI LEDs are a 3 LED bar graph to indicate signal strength.

Their functionality is described in the RSSI LEDs table below.

Received Signal

Strength Indication

RSSI

Off — No USIM

Green — USIM installed and active

SIM cardsSIM0/SIM1

Table 2: RSSI LEDs

RSSI (0)RSSI (1)RSSI (2)RSSI

Green/AmberGreenGreen

OffOffOff< -110dBm

On - AmberOffOff-110 to

-90dBm

On - GreenOffOff-90 to -75dBm

On - GreenOn -

Green

Off-75 to -60dBm

On - GreenOn -

Green

On -

Green

> -60dBm

SKU Information

The following table lists the different SKUs available for the Cisco 809 Integrated Services Router. All SKUs

support external antenna.

Table 3: Supported SKUs for Cisco IR809s

DescriptionSKU ID

Multimode 4G/3G/2G connectivity to cellular networks operating in LTE 1900 MHz (band 2 PCS), 1700/2100

MHz (band 4 AWS), 850 MHz (band 5), 700 MHz (band 17) and 1900 MHz (band 25 extended PCS)

frequencies; backward-compatible with UMTS and HSPA+: 850 MHz (band 5), 900 MHz (band 8), 1900

MHz (band 2 PCS), and 1700/2100 MHz (band 4 AWS).

IR809G-LTE-NA-K9

Multimode 4G/3G/2G connectivity to cellular networks operating in LTE 700 MHz (band 13), 1700/2100

MHz (band 4 AWS), or 1900 MHz (band 25 extended PCS) frequencies; backward-compatible with EVDO

Rev A/CDMA 1x BC0, BC1, BC10.

IR809G-LTE-VZ-K9

Product Overview

SKU Information

DescriptionSKU ID

Multimode 4G/3G/2G connectivity to cellular networks operating in LTE 800 MHz (band 20), 900 MHz

(band 8), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7) frequencies; backward-compatible

with UMTS and HSPA+: 850 MHz (band 5), 900 MHz (band 8),1900 MHz (band 2), and 2100 MHz (band

1).

IR809G-LTE-GA-K9

Multimode 4G/3G connectivity to cellular networks operating in FDD LTE 2100 MHz (band 1), 1800 MHz

(band 3), 850 MHz (band 5), 2600 (band 7), 900 (band 8), 850 (band18, band19), 1500 (band 21), 700 (band

28)andTDD LTE 2600 (band 38), 1900 (band 39), 2300(band40)and2500(band41);backward-compatible

with WCDMA 2100 MHz (band 1), 850 MHz (band 5), 800 MHz (band 6, band 19), 900 MHz (band 8),

1700 MHz (band 9) and TD-SCDMA 1900 MHz (band 39).

IR809G-LTE-LA-K9

Memory

The Cisco IR809 uses ﬂash memory and main memory. The ﬂash memory contains the Cisco IOS software

image and the boot ﬂash contains the ROMMON boot code. All memory components are factory default and

not upgradeable by the end user.

The following table shows the memory allocation.

Table 4: Cisco IR809 Memory

SpecificationMemory

2GBDefault and maximum DRAM

8 GB eMMC (4GB usable)Default and maximum ﬂash memory

16MBBoot Flash

Hardware Features

This section provides an overview of hardware features for the Cisco 809 ISR.

Platform Features for Cisco IR809

The following lists the hardware platform features for the Cisco IR809.

• Mechanical/Environmental

• Form-factor, Width X Length X Height: 5.05" x 6.27" x 1.15" (12.8 x 15.9 x 2.9 cm)

• Mounting Options: Wall, ﬂoor, cabinet, shelf, and DIN Rail mounting

• -40C to +60C operating temperature (outside ambient)

• 5Kft altitude

• External Power Entry

• 9.6V to 60VDC; Nominal: 12 to 48VDC

Product Overview

Memory

• 4-pin 3.8 mm EURO power connector

• External Reset/Recovery Push Button

• WWAN Modem

• 1x internal Mini PCIe slot for Single multi-band 2G/3G/4G/LTE cellular modem

• Dual USIM Card slots (2 external SIM card slots). Provides Redundancy and multi-homing

capabilities over LTE and HSPA-based networks.

• WAN Ports

• 2x RJ45 10/100/1000 Gigabit Ethernet

• Serial Ports

• 1 x RJ45 RS232 DTE Port

• 1 x RJ45 RS232/RS485 DCE Port (SW-conﬁgurable)

• USB Ports

• 1x USB2.0 Type A External Host Port

• 1x USB2.0 Type Mini-B External Debug/Console Device Port

• Compliance

• Telcordia GR-3108 Class 2 deployment

• Class A EMC or better

• RoHS6

• IP30 compliant when vertical, IP40 compliant when mounted ﬂat on a horizontal surface

Reset Button

The Reset button resets the router conﬁguration to the default conﬁguration set by the factory. To restore the

router conﬁguration to the default conﬁguration set by the factory, use a standard size #1 paper clip with wire

gauge 0.033 inch or smaller and simultaneously press the reset button while applying power to the router.

The reset button works in two different manners:

•With the reset button pressed for less than 10 seconds, the IR809 will load with saved start-up conﬁguration

at that time.

• With the reset button pressed longer than 10 seconds, the NVRAM ﬁle system is erased and the IR809

boots up with Initial Conﬁguration.

Supported Cisco Antennas and Cables

The Cisco IR809 ships without antennas. All antennas are options that can be ordered separately.

Product Overview

Supported Cisco Antennas and Cables

There are two TNC connectors on the backside of the device. The TNC connectors are used to connect to the

4G modem. The SMA connector is for the GPS antenna.

Before choosing your antenna type and installation scenario, read through the following information.

Note

This section lists the supported Antennas and Cables for the Cisco IR809. For detailed information about

Cisco Antennas, please refer to the following guides:

• Connected Grid Antennas Installation Guide:

http://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing/cg_antenna_install_guide.html

• Antennas for the Cisco 800 Series Routers:

http://www.cisco.com/c/en/us/support/routers/800-series-routers/products-installation-guides-list.html

An antenna lighting arrestor must be used when an antenna is installed outdoors. Install per the country’s

national electrical code requirements for lightning protection. The Lightning Arrestor for LTE antenna’s is

CGR-LA-NF-NF or CGR-LA-NM-NF.

Note

The following antennas and cables are available:

ANT-3-4G2G1-O

Description: Cisco Quinta 3 element 3-in-1 transportation antenna

• 2x 4G cellular, 1xGPS

• Color: Black radome

• RoHS compliant

• Environment: Outdoor

ANT-4G-OMNI-OUT-N

Description: Cisco outdoor omnidirectional antenna for 2G, 3G, and 4G LTE cellular

• UV-stable radome

• Mast-mounting bracket

• Applicable for both 2G and 3G solutions

• Domestic LTE 700 band and global LTE 2600 band

• Domestic cellular and global GSM

• WiMAX 2300 and 2500

Electrical Speciﬁcations:

Product Overview

ANT-3-4G2G1-O
