PA-T3 Serial Port Adapter Installation

and Configuration

Product Number: PA-T3(=) and PA-2T3(=)

Platforms Supported: Cisco 7500 Series, Cisco 7000 Series,

Cisco 7100 Series, Cisco 7200 Series, Cisco uBR7200

Series, Catalyst 5000 Series Switches

Access Registrar, AccessPath, Any to Any, AtmDirector, CCDA, CCDE, CCDP, CCIE, CCNA, CCNP, CCSI, CD-PAC, the Cisco logo, Cisco Certified Internetwork Expert logo,

CiscoLink, the Cisco Management Connection logo, the Cisco NetWorks logo, the Cisco Powered Network logo, Cisco Systems Capital, the Cisco Systems Capital logo, Cisco Systems

Networking Academy, the Cisco Technologies logo, ConnectWay, ControlStream, Fast Step, FireRunner, GigaStack, IGX, JumpStart, Kernel Proxy, MGX, Natural Network Viewer,

NetSonar, Network Registrar, Packet, PIX, Point and Click Internetworking, Policy Builder, Precept, RouteStream, Secure Script, ServiceWay, SlideCast, SMARTnet, StreamView, The

Cell, TrafficDirector, TransPath, ViewRunner, VirtualStream, VisionWay, VlanDirector, Workgroup Director, and Workgroup Stack are trademarks; Changing the Way We Work, Live,

Play, and Learn, Empowering the Internet Generation, The Internet Economy, and The New Internet Economy are service marks; and Asist, BPX, Catalyst, Cisco, Cisco IOS, the Cisco

IOS logo, Cisco Systems, the Cisco Systems logo, the Cisco Systems Cisco Press logo, Enterprise/Solver, EtherChannel, EtherSwitch, FastHub, FastLink, FastPAD, FastSwitch, IOS,

IP/TV, IPX, LightStream, LightSwitch, MICA, NetRanger, Registrar, StrataView Plus, Stratm, TeleRouter, and VCO are registered trademarks of Cisco Systems, Inc. in the U.S. and certain

other countries. All other trademarks mentioned in this document are the property of their respective owners. (9905R)

PA-T3 Serial Port Adapter Installation and Configuration

Text Part Number: 78-4721-07

Preface v

Preface

This preface describes how to ﬁnd additional information on the PA-T3 and PA-2T3 serial port

adapters and other Cisco products, services, and documentation. This preface contains the following

sections:

•Objectives, page v

•Organization, page v

•Related Documentation, page vi

•Cisco Connection Online, page vii

•Cisco Documentation CD-ROM, page viii

Objectives This document describes how to install and conﬁgure the PA-T3 serial port adapter (PA-T3[=] and

PA-2T3[=]) in the following platforms:

•Cisco 7200 series routers—which consist of the two-slot Cisco 7202, four-slot Cisco 7204 and

Cisco 7204VXR, and six-slot Cisco 7206 and Cisco 7206VXR

•Cisco uBR7200 series universal broadband routers

•Second-generation Versatile Interface Processor (VIP2) in Cisco 7500 series routers and

Cisco 7000 series routers with the Cisco 7000 Series Route Switch Processor (RSP7000) and

Cisco 7000 Series Chassis Interface (RSP7000CI)

•Cisco 7100 series routers—which consist of the Cisco 7120 and Cisco 7140

•Catalyst Route Switch Module (RSM)/VIP2 in Catalyst 5000 series switches

Organization

This document is organized into the following chapters:

Section Title Description

Chapter 1 Overview Describes the PA-T3 port adapter and

describes its LED displays, cables,

and receptacles.

Chapter 2 Preparing for Installation Describessafetyconsiderations,tools

required, and procedures you should

perform before the actual

installation.

Related Documentation

Your router and the Cisco IOS software running on it contain extensive features and functionality,

which are documented in the following resources:

•For Cisco IOS software conﬁguration information and support, refer to the modular

conﬁguration and modular command reference publications in the Cisco IOS software

conﬁguration documentation set that corresponds to the software release installed on your

Cisco hardware.

Note You can access Cisco IOS software conﬁguration and hardware installation and

maintenance documentation on the World Wide Web at http://www.cisco.com,

http://www-china.cisco.com, or http://www-europe.cisco.com.

•For hardware installation and maintenance information on Cisco 7000 series and Cisco 7500

series routers, and the VIP2, refer to the following publications:

—The installation and conﬁguration guide that shipped with your Cisco 7000 series or

Cisco 7500 series router

—Second-Generation Versatile Interface Processor (VIP2) Installation and Conﬁguration (for

VIP2 users only)

•For hardware installation and maintenance information on the Catalyst 5000 series switches and

the Catalyst RSM/VIP2, refer to the following publications:

—The installation and conﬁguration guide that shipped with your Catalyst 5000 series switches

Chapter 3 VIP2 and the PA-T3 Port Adapter Provides instructions for installing

the PA-T3 port adapter on a VIP2

interface processor installed in

Cisco 7500 or Cisco 7000 series

routers.

Chapter 4 Catalyst RSM/VIP2 and the PA-T3

Port Adapter Provides instructions for installing

the PA-T3 port adapter on a

Catalyst RSM/VIP2 installed in

Catalyst 5000 series switches.

Chapter 5 Cisco 7200 Series and the

PA-T3 Port Adapter Provides instructions for installing

the PA-T3 port adapter in a Cisco

7200 series router.

Chapter 6 Cisco uBR7200 Series and the

PA-T3 Port Adapter Provides instructions for installing

the PA-T3 port adapter in the

Cisco uBR7200 series universal

broadband router.

Chapter 7 Cisco 7100 Series and the PA-T3

Port Adapter Provides information on the PA-T3

and its use in Cisco 7100 series

routers.

Chapter 8 Conﬁguring the PA-T3 Interfaces Provides instructions for conﬁguring

your port adapter on the supported

platforms. The instructions given in

this chapter apply to all supported

platforms described in this document.

Section Title Description

Preface vii

Cisco Connection Online

—Route Switch Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note

(Document Number 78-4780-01) which shipped with your Catalyst RSM/VIP2

•For hardware installation and maintenance information on Cisco 7100 series routers, refer to the

Cisco 7100 Series VPN Router Installation and Conﬁguration Guide publication that shipped

with your Cisco 7100 series router.

•For information on setting up a Virtual Private Network, see the Cisco 7100 Series VPN

Conﬁguration Guide.

•For hardware installation and maintenance information on the Cisco 7200 VXR routers, refer to

the Cisco 7200 VXR Installation and Conﬁguration Guide publication that shipped with your

Cisco 7200 VXR router.

•For hardware installation and maintenance information on the Cisco 7200 routers, refer to the

following publications that shipped with your router:

—Cisco 7202 Installation and Conﬁguration Guide

—Cisco 7204 Installation and Conﬁguration Guide

—Cisco 7206 Installation and Conﬁguration Guide

•For hardware installation and maintenance information on the Cisco uBR7200 series routers,

refer to the Cisco uBR72xx Universal Broadband Router Installation and Conﬁguration Guide

that shipped with your Cisco uBR7200 series router.

•For international agency compliance, safety, and statutory information for WAN interfaces for

Cisco 7500 series, Cisco 7000 series, Cisco 7200 series, Cisco 7100 series, and Cisco uBR7200

series routers, refer to the following publications:

—Regulatory Compliance and Safety Information for the Cisco 7500 Series Routers

—Regulatory Compliance and Safety Information for the Cisco 7000 Series Routers

—Regulatory Compliance and Safety Information for the Cisco 7200 Series Routers

—Regulatory Compliance and Safety Information for the Cisco 7100 Series Routers

—Regulatory Compliance and Safety Information for the Cisco ubr72xx Universal Broadband

Router

Note The regulatory compliance and safety information documentation listed above applies to the

Catalyst 5000 series switches and the Catalyst RSM/VIP2.

•For port adapter hardware and memory conﬁguration guidelines for Cisco 7200 series routers,

refer to the document Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines.

•To view Cisco documentation or obtain general information about the documentation, refer to the

Documentation CD-ROM, see the “Cisco Connection Online” section, or call customer service

at 800 553-6387 or 408 526-7208. Customer service hours are 5:00 a.m. to 6:00 p.m. Paciﬁc

time, Monday through Friday (excluding Cisco-observed holidays). You can also send e-mail to

[email protected].

Cisco Connection Online

CiscoConnection Online (CCO) isCisco Systems’ primary, real-time supportchannel. Maintenance

customers and partners can self-register on CCO to obtain additional information and services.

Cisco Documentation CD-ROM

viii PA-T3 Serial Port Adapter Installation and Configuration

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added

services to Cisco’s customers and business partners. CCO services include product information,

product documentation, software updates, release notes, technical tips, the Bug Navigator,

conﬁguration notes, brochures, descriptions of service offerings, and download access to public and

authorized ﬁles.

CCO serves a wide variety of users through two interfaces that are updated and enhanced

simultaneously: a character-based version and a multimedia version that resides on the World Wide

Web (WWW). The character-based CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet

e-mail, and it is excellent for quick access to information over lower bandwidths. The WWW version

of CCO provides richly formatted documents with photographs, ﬁgures, graphics, and video, as well

as hyperlinks to related information.

You can access CCO in the following ways:

WWW: http://www.cisco.com

WWW: http://www-europe.cisco.com

WWW: http://www-china.cisco.com

Telnet: cco.cisco.com

Modem: From North America, 408 526-8070; from Europe, 33 1 64 46 40 82. Use the following

terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and connection rates up

to 28.8 kbps.

For a copy of CCO’s Frequently Asked Questions (FAQ), contact [email protected]. For

additional information, contact [email protected].

If you are a network administrator and need personal technical assistance with a Cisco product that

isunder warranty orcoveredby a maintenancecontract, contact Cisco’s Technical Assistance Center

(TAC) at 800 553-2447, 408 526-7209, or [email protected]. To obtain general information about

Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or

[email protected].

Cisco Documentation CD-ROM

Cisco documentation and additional literature are available in a CD-ROM package, which ships with

your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated

monthly. Therefore, it might be more current than printed documentation. To order additional copies

of the Documentation CD-ROM, contact your local sales representative or call customer service.

The CD-ROM package is available as a single package or as an annual subscription. You can also

access Cisco documentation on the World Wide Web at http://www.cisco.com,

http://www-china.cisco.com, or http://www-europe.cisco.com.

If you are reading Cisco product documentation on the World Wide Web, you can submit comments

electronically. Click Feedback in the toolbar and select Documentation. After you complete the

form, click Submit to send it to Cisco. We appreciate your comments.

CHAPTER

Overview 1-1

Overview

This chapter describes the one-port PA-T3 and two-port PA-2T3 serial port adapters. This chapter

contains the following sections:

•Port Adapter Overview, page 1-1

•PA-T3 Serial Port Adapter Features, page 1-2

•Management Information Base, page 1-3

Port Adapter Overview

The PA-T3 serial port adapter is a single-width, one-port or two-port module that integrates data

service unit (DSU) functionality into the Cisco router. It provides one or two high-speed serial

PA-T3 interfaces on Cisco 7100 series routers, Cisco 7200 series routers, Cisco uBR7200 series

routers, on the second-generation Versatile Interface Processor (VIP2) in all Cisco 7000 series and

Cisco 7500 series routers, and on the Catalyst RSM/VIP2 in the Catalyst 5000 series switches. (See

Figure 1-1 and Figure 1-2.)

Note Port adapters have a handle attached, but this handle is occasionally not shown in ﬁgures in

this publication to allow a full view of detail on the port adapter’s faceplate.

Figure 1-1 One-Port PA-T3 Serial Port Adapter

H10041

RCLK

XMTR

RCVR

ENABLED

FERF

OOF RL

AIS

DS3 SERIAL

PA-T3 Serial Port Adapter Features

PA-T3 Serial Port Adapter Installation and Configuration

1-2

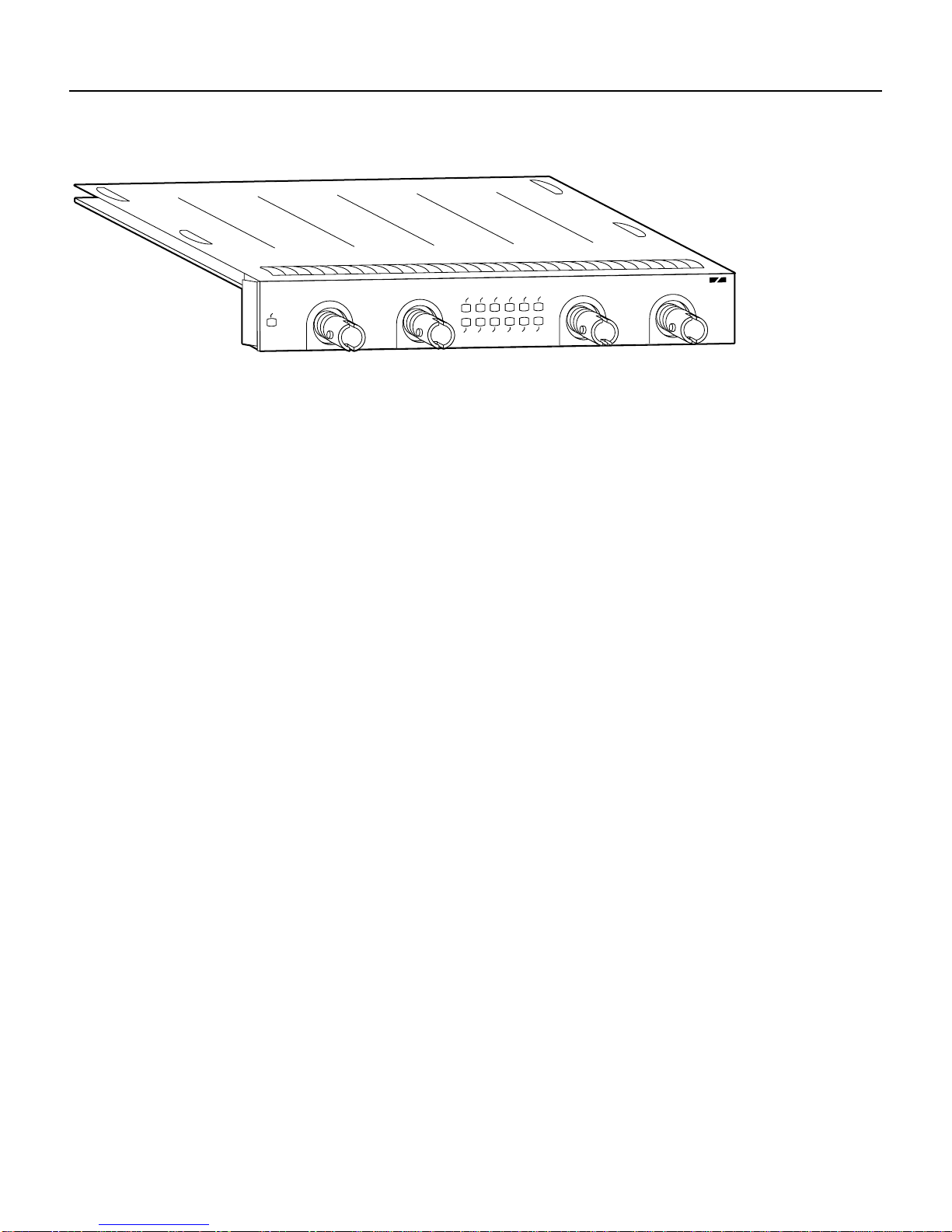

Figure 1-2 Two-Port PA-2T3 Serial Port Adapter

The PA-T3 serial port adapter can be installed in the following slots on the hardware platforms

described in this document:

•VIP2—Port adapter slot 0 and port adapter slot 1

•Catalyst RSM/VIP2—Port adapter slot 0 and port adapter slot 1

•Cisco 7100 series routers—Port adapter slot 3 in the Cisco 7120 series and port adapter slot 4 in

the Cisco 7140 series

•Cisco 7200 series routers—Port adapter slot 1 and slot 2 of the Cisco 7202; port adapter slot 1

through slot 4 of the Cisco 7204 and Cisco 7204VXR; port adapter slot 1 through slot 6 of the

Cisco 7206 and Cisco 7206VXR

•Cisco uBR7200series routers—Port adapterslot 1 and slot 2of the Cisco uBR7246;port adapter

slot 1 of the Cisco uBR7223

The one-port PA-T3 serial port adapter provides two network interfaces per VIP2 for Cisco 7000

series and Cisco 7500 series routers, two network interfaces per Catalyst RSM/VIP2, and one

high-speed interface on the Cisco 7200 series and Cisco uBR7200 series routers. The two-port

PA-2T3 serial port adapter provides four network interfaces per VIP2 for Cisco 7000 series and

Cisco 7500 series routers, four network interfaces for the Catalyst RSM/VIP2, and two high-speed

interfaces on the Cisco 7200 series and Cisco uBR7200 series routers. Serial network interfaces

reside on modular port adapters, which provide a direct connection between the high-speed bus in

the router and the external networks. The PA-T3 serial port adapter provides a full-duplex

synchronous serial PA-T3 interface for transmitting and receiving data at rates of up to 34 megabits

per second (Mbps).

The port adapter supports both 16- and 32-bit cyclic redundancy checks (CRCs). The default is

16-bitCRCs; to enable32-bit CRCs,you use aconﬁguration command.Foradescription ofthe CRC

function, see the “Conﬁguring Cyclic Redundancy Checks” section on page 8-13.

The VIP2 and Catalyst RSM/VIP2 support online insertion and removal (OIR), but individual port

adapters with a VIP2 or Catalyst RSM/VIP2 do not support OIR. To replace port adapters in the

Cisco7000 series andCisco 7500 seriesrouters, and theCatalyst 5000 series switches,you mustﬁrst

remove the VIP2 or Catalyst RSM/VIP2 from the chassis and then replace port adapters as required.

OIR is supported for port adapters in the Cisco 7200 series and Cisco uBR7200 series routers.

PA-T3 Serial Port Adapter Features

The PA-T3 serial port adapter provides the following features:

•Single-width port adapter for the VIP2 in all Cisco 7000 series, Cisco 7100 series, Cisco 7500

series, and Cisco 7200 series routers

H10062

RCLK

XMTR

RCVR

ENABLED

FERF

OOF RL

LL RCLK

FERF

AIS

OOF LL

AIS

DS3 SERIAL

XMTR

RCVR

Overview 1-3

Management Information Base

•Single-width port adapter for the Catalyst RSM/VIP2 in all Catalyst 5000 series switches

•Single- or double-port T3 rate (45 Mbps) connectivity

•Full-duplex synchronous serial DS3 interface

•High-speed High-Level Data Link Control (HDLC) data

•Integrated data service unit (DSU) functionality

•Support for 16- and 32-bit cyclic redundancy checks (CRCs)

•Support for C-bit, M13, and bypass framing

•Support for ATM-Data Exchange Interface (DXI), Frame Relay, HDLC, Switched Multimegabit

Data Service (SMDS), and Point-to-Point Protocol (PPP) serial encapsulations

•Support for DS3 MIB (RFC 1407)

•Support for remote and local loopback

•B3ZS line coding

•Scrambling and bandwidth reduction

•Online insertion and removal (OIR)

Management Information Base

Management Information Base (MIB) attributes are readable and writable across the Integrated

Local Management Interface (ILMI) through use of the Simple Network Management Protocol

(SNMP).

The one-port PA-T3 serial port adapter supports MIB-II (RFC 1213) and the DS3 interface MIB

(RFC 1407).

The two-port PA-2T3 serial port adapter supports MIB-II (RFC 1213) and the DS3 interface MIB

(RFC 1407).

Management Information Base

PA-T3 Serial Port Adapter Installation and Configuration

1-4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Carte réseau

Cisco

Cisco ONS 15310-MA Manuel utilisateur

Cisco

Cisco WPC600N - Ultra RangePlus Wireless-N PC Card Manuel utilisateur

Cisco

Cisco Linksys RangePlus WPC100 Manuel utilisateur

Cisco

Cisco Catalyst 4500 Series Manuel

Cisco

Cisco CompactFlash Adapter Manuel utilisateur

Cisco

Cisco uBR10-MC5X20H Manuel utilisateur

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Manuel d'installation et d'exploitation

Cisco

Cisco VWIC-2MFT-T1 - Multiflex Trunk Voice/WAN Interface Card Expansion... Manuel utilisateur

Cisco

Cisco uBR10-LCP2-MC28C Manuel utilisateur

Cisco

Cisco EHWIC-4SHDSL-EA Feuille d'instructions

Cisco

Cisco HWIC-4ESW - EtherSwitch HWIC Switch Manuel utilisateur

Cisco

Cisco 7304 Series Instructions d'utilisation et d'entretien

Cisco

Cisco DFC3A Manuel d'installation et d'exploitation

Cisco

Cisco WAN Interface Card Cable WIC-1DSU-T1 Manuel utilisateur

Cisco

Cisco Catalyst 4500 Dimensions

Cisco

Cisco Media Gateway Controller Node Manager Manuel utilisateur

Cisco

Cisco WUSB54GSC Manuel utilisateur

Cisco

Cisco Gigabit Switch Router Cisco 12012 Mode d’emploi

Cisco

Cisco LINKSYS WUSB54GR Manuel utilisateur

Cisco

Cisco CE-100T-8 Mode d’emploi

Cisco

Cisco PA-4C-E 1 Manuel de l'opérateur

Cisco

Cisco 12000 - Series Chassis Modular Expansion... Instructions d'utilisation et d'entretien

Cisco

Cisco One-Port Serial WAN Interface Card Cable... Manuel utilisateur

Cisco

Cisco DFC3B Manuel d'installation et d'exploitation

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
