Cisco Linksys WUSB600N Manuel utilisateur

USER GUIDE

Dual-Band Wireless-N USB

Network Adapter

Model: WUSB600N

About This Guide

Dual-Band Wireless-N USB Network Adapter

About This Guide

Icon Descriptions

While reading through the User Guide you may see

various icons that call attention to specific items. Below is

a description of these icons:

NOTE: This check mark indicates that there is

a note of interest and is something that you

should pay special attention to while using the

product.

WARNING: This exclamation point indicates

that there is a caution or warning and it is

something that could damage your property or

product.

WEB: This globe icon indicates a noteworthy

website address or e-mail address.

Online Resources

Website addresses in this document are listed without

http:// in front of the address because most current web

browsers do not require it. If you use an older web browser,

you may have to add http:// in front of the web address.

Resource Website

Linksys www.linksys.com

Linksys International www.linksys.com/international

Glossary www.linksys.com/glossary

Network Security www.linksys.com/security

Linksys is a registered trademark or

trademark of Cisco Systems, Inc. and/

or its affiliates in the U.S. and certain

Other brands and product names are

trademarks or registered trademarks

of their respective holders.

Table of Contents

Dual-Band Wireless-N USB Network Adapter

Chapter 1: Product Overview 1

LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2: Wireless Security Checklist 2

General Network Security Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 3: Advanced Conguration 3

How to Access the Wireless Network Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

How to Use the Wireless Network Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Proles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Appendix A: Troubleshooting 24

Appendix B: Windows Vista Conguration 25

Windows Vista Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

New Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Appendix C: Windows XP Wireless Zero Conguration 28

Windows XP Wireless Zero Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Appendix D: Specications 30

Appendix E: Warranty Information 31

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Exclusions and Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Obtaining Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Appendix F: Regulatory Information 33

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Restrictions in the 5 GHz Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Avis d’Industrie Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Avis de non-responsabilité concernant les appareils sans l . . . . . . . . . . . . . . . . . .34

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste

Electric and Electronic Equipment (WEEE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Chapter 1 Product Overview

Dual-Band Wireless-N USB Network Adapter

Chapter 1:

Product Overview

Thank you for choosing the Linksys Dual-Band Wireless-N

USBNetworkAdapter.Usingthe latestwirelessnetworking

technology, the Adapter adds or upgrades wireless

connectivity on your notebook computer. To help protect

your data and privacy, you can use industrial-strength

WPA2 encryption to protect your wireless connection. The

included Setup Wizard will walk you through configuring

the Adapter to your network’s settings, step by step.

LED

Link (Green) The LED flashes when there is

wireless network activity.

Chapter 2 Wireless Security Checklist

Dual-Band Wireless-N USB Network Adapter

Chapter 2:

Wireless Security Checklist

Wireless networks are convenient and easy to install, so

homes with high-speed Internet access are adopting them

at a rapid pace. Because wireless networking operates by

sending information over radio waves, it can be more

vulnerable to intruders than a traditional wired network.

Like signals from your cellular or cordless phones, signals

from your wireless network can also be intercepted. Since

you cannot physically prevent someone from connecting

to your wireless network, you need to take some additional

steps to keep your network secure.

1. Change the default wireless

network name or SSID

Wireless devices have a default wireless network name

or Service Set Identifier (SSID) set by the factory. This

is the name of your wireless network, and can be up

to 32 characters in length. Linksys wireless products

use linksys as the default wireless network name. You

should change the wireless network name to something

unique to distinguish your wireless network from other

wireless networks that may exist around you, but do not

use personal information (such as your Social Security

number) because this information may be available for

anyone to see when browsing for wireless networks.

2. Change the default password

For wireless products such as access points and routers,

you will be asked for a password when you want to change

their settings. These devices have a default password set

by the factory. The Linksys default password is admin.

Hackers know these defaults and may try to use them

to access your wireless device and change your network

settings. To thwart any unauthorized changes, customize

the device’s password so it will be hard to guess.

3. Enable MAC address filtering

Linksys routers give you the ability to enable Media Access

Control (MAC) address filtering. The MAC address is a

unique series of numbers and letters assigned to every

networking device. With MAC address filtering enabled,

wireless network access is provided solely for wireless

devices with specific MAC addresses. For example, you can

specify the MAC address of each computer in your home

so that only those computers can access your wireless

network.

4. Enable encryption

Encryption protects data transmitted over a wireless

network. Wi-Fi Protected Access (WPA/WPA2) and Wired

Equivalency Privacy (WEP) offer different levels of security

for wireless communication.

A network encrypted with WPA/WPA2 is more secure

than a network encrypted with WEP, because WPA/WPA2

uses dynamic key encryption. To protect the information

as it passes over the airwaves, you should enable the

highest level of encryption supported by your network

equipment.

WEP is an older encryption standard and may be the

only option available on some older devices that do not

support WPA.

General Network Security Guidelines

Wireless network security is useless if the underlying

network is not secure.

Password protect all computers on the network and

individually password protect sensitive files.

Change passwords on a regular basis.

Install anti-virus software and personal firewall

software.

Disable file sharing (peer-to-peer). Some applications

may open file sharing without your consent and/or

knowledge.

Additional Security Tips

Keep wireless routers, access points, or gateways away

from exterior walls and windows.

Turn wireless routers, access points, or gateways

off when they are not being used (at night, during

vacations).

Usestrongpassphrasesthatareatleasteightcharacters

in length. Combine letters and numbers to avoid using

standard words that can be found in the dictionary.

WEB: For more information on wireless

security, visit www.linksys.com/security

•

Chapter 3 Advanced Configuration

Dual-Band Wireless-N USB Network Adapter

Chapter 3:

Advanced Configuration

Advancedconfigurationis performedthroughtheWireless

Network Monitor (the Monitor). Use it to check the status

information, search for available wireless networks, or

create profiles that hold different configuration settings.

Diagnostics is performed through the Diagnostic utility.

Use it to detect the Adapter, test the driver and Monitor,

and troubleshoot if needed.

How to Access the Wireless Network

Monitor

After installing the Adapter, the Monitor icon appears in

the system tray of your computer. If the Monitor is enabled,

the icon is green. If the Monitor is disabled or the Adapter

is not inserted, the icon is gray.

Wireless Network Monitor Icon

Double-click the icon to open the Monitor.

How to Use the Wireless Network Monitor

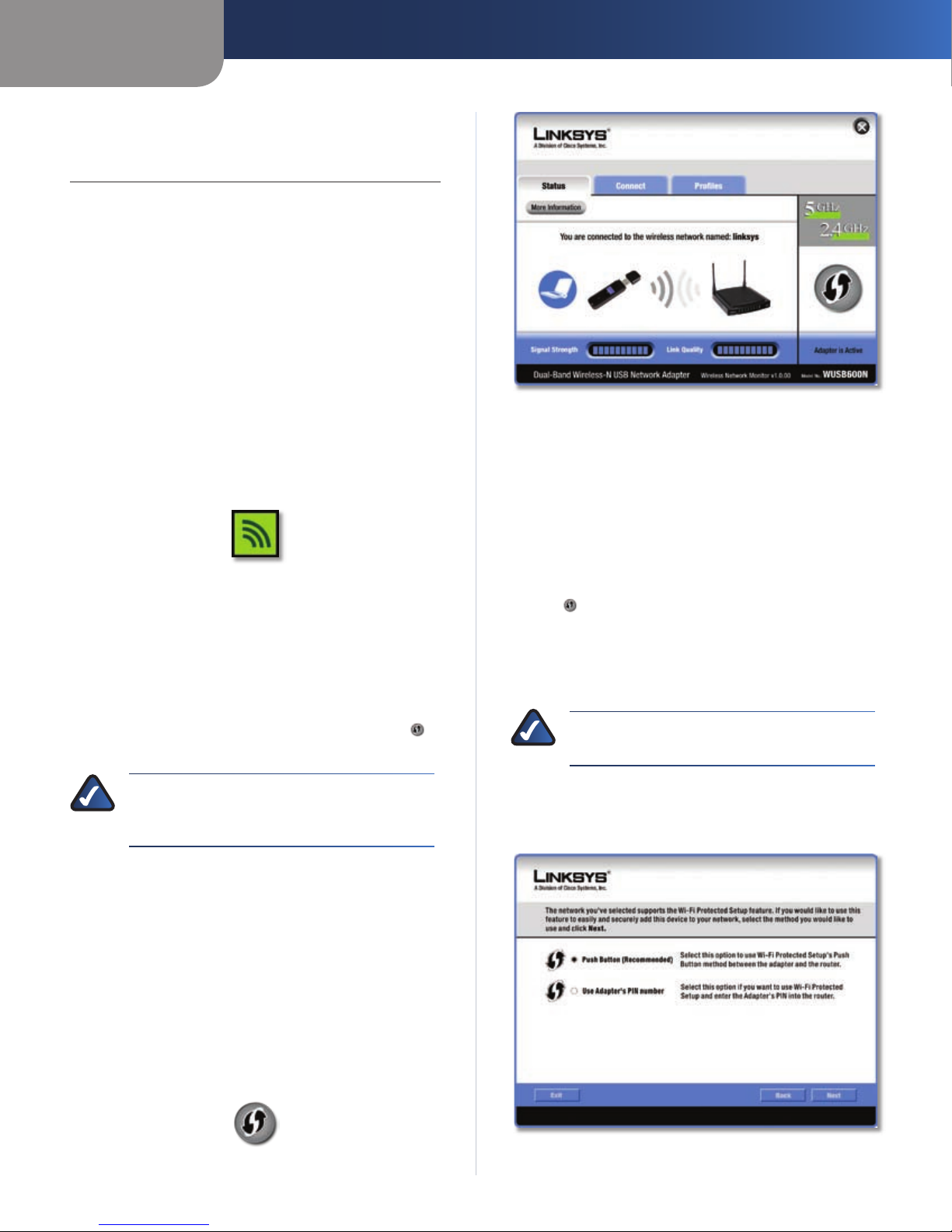

The opening screen of the Monitor is the Status screen.

From this screen, you can find out how strong the current

wireless signal is and how good the connection’s quality

is.You can also click the Wi-Fi Protected Setup button to

connect to a router that supports Wi-Fi Protected Setup.

NOTE: The Adapter supports Wi-Fi Protected

Setup, which is a feature that makes it easy to

set up your wireless network.

Click More Information to view additional status

information about the current connection. To search for

available wireless networks, click the Connect tab. To

perform configuration changes or create connection

profiles, click the Profiles tab.

Status

The Status screen displays network mode, signal strength,

and link quality information about the current connection.

It also displays the Wi-Fi Protected Setup button. Click

More Information for additional status information.

Wi-Fi Protected Setup Button

Status

Signal Strength The Signal Strength bar indicates signal

strength.

Link Quality The Link Quality bar indicates the quality of

the wireless network connection.

More Information Click More Information to view

additional information about the wireless network

connection on the Wireless Network Status screen.

Wi-Fi Protected Setup Click the Wi-Fi Protected Setup

button to connect to a router that supports Wi-Fi

Protected Setup. Proceed to the “Wi-Fi Protected Setup”

section.

Wi-Fi Protected Setup

NOTE: Make sure the router supports Wi-Fi

Protected Setup.

Before you begin, make sure the router and the computer

with the Adapter are in the same room. Then select the

method that is most convenient for you.

Select a Method

Chapter 3 Advanced Configuration

Dual-Band Wireless-N USB Network Adapter

Push Button (Recommended) Select this option to use

the push button method.

Use Adapter’s PIN number Select this option to enter

the Adapter’s PIN number on the router.

Click Next to continue, or click Back to return to the

previous screen.

Proceed to the instructions for the method you selected.

Use the Push Button

Press the Wi-Fi Protected Setup button on the

router.

Within two minutes, click the Wi-Fi Protected Setup

button on this screen.

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Enter the Adapter’s PIN Number

Enter the PIN Number

Access the web-based utility of the router. (Refer to the

router’s documentation for instructions.)

On the router’s Wi-Fi Protected Setup screen, enter

the Adapter’s PIN number in the PIN field. Then click

Chapter 3 Advanced Configuration

Dual-Band Wireless-N USB Network Adapter

On the Adapter’s PIN number screen, click Next.

Enter the PIN Number

The Adapter connects to the network.

Connecting to the Network

Click Print to print out your wireless network settings.

Then click Finish to return to the Status screen, or click

Exit to exit the Monitor.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Network Status

The Wireless Network Status screen provides information

on your current network settings.

Wireless Network Status

Radio Band This is the radio band used on the network.

Wireless Network Name This is the unique name (SSID)

of the wireless network.

Wireless Mode This is the mode of the wireless network

currently in use.

Wide Channel This is the Wireless-N primary channel

used with a 40 MHz radio band network.

Standard Channel This is the channel used by your

wireless network.

Security This is the status of the wireless security

feature.

Authentication This is your wireless network’s

authentication method.

Network Type This is the wireless network type.

IP Address This is the IP Address of the Adapter.

Subnet Mask This is the Adapter’s Subnet Mask.

Default Gateway This is the Default Gateway address.

DNS1 This is the DNS address of the Adapter.

MAC Address This is the MAC address of the wireless

network’s wireless router or access point.

Signal Strength The Signal Strength bar indicates the

signal strength.

Link Quality The Link Quality bar indicates the quality of

the wireless network connection.

Statistics Click Statistics to go to the Wireless Network

Statistics screen.

Chapter 3 Advanced Configuration

Dual-Band Wireless-N USB Network Adapter

Back Click Back to return to the initial Status screen.

Save to Profile Click Save to Profile to save the currently

active connection settings to a profile.

Wireless Network Statistics

The Wireless Networks Statistics screen provides statistics

on your current network settings.

Wireless Network Statistics

Transmit Rate This is the data transmission rate of

the current connection. (In Auto mode, the Adapter

dynamically shifts to the fastest data transmission rate at

any given time.)

Receive Rate This is the rate that the Adapter receives

data.

Packets Received This shows the packets that the

Adapter receives, in real time, after connecting to the

wireless network or after clicking Refresh.

Packets Transmitted This shows the packets that the

Adapter transmits, in real time, after connecting to the

wireless network or after clicking Refresh.

Bytes Received This shows the bytes that the Adapter

receives, in real time, after connecting to the wireless

network or after clicking Refresh.

BytesTransmitted This shows the bytes that the Adapter

transmits, in real time, after connecting to the wireless

network or after clicking Refresh.

Driver Version This shows the Adapter’s driver version.

Noise Level This shows the level of background noise

that affects the wireless signal. A lower reading translates

into a higher quality signal.

Signal Strength This is the intensity of the wireless signal

that the Adapter receives.

Transmit Power This is the power output at which the

Adapter transmits.

Up Time This indicates the length of the most recent

connection to a wireless network.

Total Up Time This indicates the cumulative total of the

Adapter’s connection time.

Signal Strength The Signal Strength bar indicates the

signal strength.

Link Quality The Link Quality bar indicates the quality of

the wireless network connection.

Back Click Back to return to the initial Status screen.

Status Click Status to go to the Wireless Network Status

screen.

Save to Profile Click Save to Profile to save the currently

active connection settings to a profile.

Refresh Click Refresh to reset the statistics.

Connect

The Connect screen displays a list of available networks

in the table. The table shows each network’s wireless

network name, radio band, signal strength, and security

method. You may click the column heading (Wireless

Network Name, GHz, Signal strength, or Security method)

to sort by that field.

NOTE: The icon indicates that the router

supports Wi-Fi Protected Setup.

Connect

Wireless Network Name This is the SSID or unique name

of the wireless network.

GHz This is the radio band used on the network. The

number 2.4 indicates Wireless-B, -G, or -N (2.4 GHz). The

number 5 indicates Wireless-A or -N (5 GHz).

Signal This is the percentage of signal strength, from 0

to 100%.

Chapter 3 Advanced Configuration

Dual-Band Wireless-N USB Network Adapter

Security This is the security method used by the

network.

Wi-Fi Protected Setup Click the Wi-Fi Protected Setup

button to connect to a router that supports Wi-Fi

Protected Setup. Refer to the “Wi-Fi Protected Setup”

instructions in the “Status” section at the beginning of

this chapter.

Refresh Click Refresh to perform a new search for

wireless devices.

Connect To connect to one of the networks on the list,

select the wireless network, and click Connect.

If the router does not support Wi-Fi Protected Setup,

proceed to the section, “No Wi-Fi Protected Setup”. If the

router supports Wi-Fi Protected Setup , proceed to the

section, “Wi-Fi Protected Setup”.

No Wi-Fi Protected Setup

If the router does not use Wi-Fi Protected Setup, proceed

to the appropriate section,“Wireless Security Disabled”or

“Wireless Security Enabled”.

Wireless Security Disabled

If you connect to a network whose wireless security is

disabled, then you will view this screen:

Click Connect Anyway

Click Connect Anyway.

Click Finish.

Congratulations

Congratulations! The Adapter is connected to

the network.

Wireless Security Enabled

If you connect to a network whose wireless security is

enabled, then you will view one of three screens.

Proceed to the appropriate instructions.

WPA2 (Wi-Fi Protected Access 2)

If the network uses WPA2 Personal security, then

the WPA2-Personal Key Needed for Connection screen

appears.

WPA2-Personal Security

Passphrase Enter the network’s Passphrase (also

called a pre-shared key) of 8-63 characters.

To connect to the network, click Connect. To cancel

the connection, click Cancel.

WPA (Wi-Fi Protected Access)

If the network uses WPA Personal security, then

the WPA-Personal Key Needed for Connection screen

appears.

WPA-Personal Security

Autres manuels pour Linksys WUSB600N

Table des matières

Autres manuels Cisco Carte réseau

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Manuel d'installation et d'exploitation

Cisco

Cisco WAE-674-K9 - Wide Area Application Engine... Manuel utilisateur

Cisco

Cisco WPC600N - Ultra RangePlus Wireless-N PC Card Manuel utilisateur

Cisco

Cisco uBR10-MC5X20H Manuel utilisateur

Cisco

Cisco PA-4C-E 1 Manuel de l'opérateur

Cisco

Cisco ONS 15454 Series Manuel utilisateur

Cisco

Cisco 7300-6T3 Manuel de l'opérateur

Cisco

Cisco uBR10-SRP-OC12SML Manuel utilisateur

Cisco

Cisco ASR 9000 Series Manuel utilisateur

Cisco

Cisco DFC3A Manuel d'installation et d'exploitation

Cisco

Cisco IDTA153 Manuel utilisateur

Cisco

Cisco Modular Gigabit Ethernet Line Card I Instructions d'utilisation et d'entretien

Cisco

Cisco LINKSYS WUSB54GR Manuel utilisateur

Cisco

Cisco Valet Connector AM10 Manuel utilisateur

Cisco

Cisco uBR-MC28U Manuel utilisateur

Cisco

Cisco EHWIC 1 GE-SFP-CU Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Cisco

Cisco ONS 15310-MA Manuel utilisateur

Cisco

Cisco Linksys USB200M Manuel utilisateur

Cisco

Cisco EHWIC-4SHDSL-EA Feuille d'instructions

Cisco

Cisco One-Port Serial WAN Interface Card Cable... Manuel utilisateur

Cisco

Cisco WAN Interface Card WIC-1DSU-56K4 Manuel utilisateur

Cisco

Cisco HWIC-4ESW - EtherSwitch HWIC Switch Manuel utilisateur

Cisco

Cisco Catalyst 4500 Series Manuel

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
