Cisco Linksys RangePlus WPC100 Manuel utilisateur

QUICK INSTALLATION GUIDE

RangePlus Wireless

Notebook Adapter

Model: WPC100

Package Contents

RangePlus Wireless Notebook•

Adapter

Setup CD-ROM•

User Guide on CD-ROM•

Quick Installation Guide•

InstallationWPC100

3RangePlus Wireless Notebook Adapter

Installation1

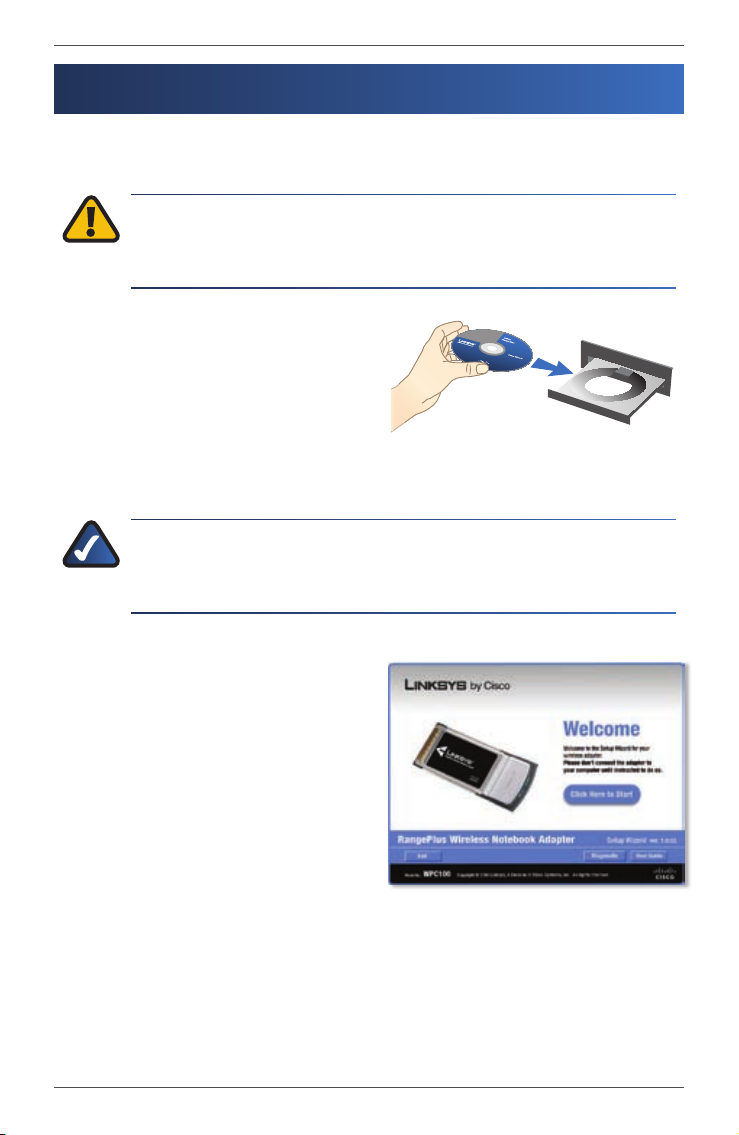

The Adapter is installed and set up using the Setup Wizard on the

enclosed Setup Wizard CD.

IMPORTANT: Do not install the Adapter in your computer

until you are instructed to do so, or the Adapter will not install

correctly.

A. Insert the Setup Wizard CD into

your CD-ROM drive.

NOTE: Windows or other personal firewalls may ask for

permission to run the software or program. You will need to allow

the software to run in order to continue.

B. The Welcome screen appears.

Click the Click Here to Start

button.

Insert the CD-ROM

Click Here to Start

Installation WPC100

4 RangePlus Wireless Notebook Adapter

C. Read the License Agreement,

and select I accept the terms in

the License Agreement.

Click Next to continue the

installation.

D. Locate an available PCMCIA or

CardBus slot on your computer.

Insert the Adapter into the slot

until it locks into place.

Click Next.

If your computer runsE. Windows XP, proceed to “Section 2: Setup for

Windows XP”.

If your computer runs Windows Vista, proceed to “Section 3: Setup for

Windows Vista”.

License Agreement

Insert the Adapter

Setup for Windows XPWPC100

5RangePlus Wireless Notebook Adapter

Setup for Windows XP2

The Adapter supports Wi-Fi Protected Setup, a feature that makes it easy to

set up your wireless network.

If the Available Wireless Networks

screen appears, your router does not

support this feature. Proceed to the

“No Wi-Fi Protected Setup” section.

If the Connect to a Network screen

appears, the Adapter detects a

router that supports Wi-Fi Protected

Setup. Proceed to the “Wi-Fi

Protected Setup”section.

No Wi-Fi Protected Setup

From the Available Wireless Networks screen, you can launch one of the two

setup methods.

If your network appears on the Available Wireless Networks screen, proceed

to step A. If your network does not appear on the Available Wireless

Networks screen, click Advanced Setup and follow the on-screen prompts.

Available Wireless Networks

Connect to a Network

Setup for Windows XP WPC100

6 RangePlus Wireless Notebook Adapter

A. On the Available Wireless

Networks screen, the available

networks are listed in the table.

Select your network, and then

click Connect.

If your network does not use wireless security, proceed to the “WirelessB.

Security Disabled” section. If your network uses wireless security,

proceed to the Wireless Security Enabled” section.

Wireless Security Disabled

A. Click Connect Anyway.

B. Click Finish.

Available Wireless Networks

Click Connect Anyway

Congratulations

Setup for Windows XPWPC100

7RangePlus Wireless Notebook Adapter

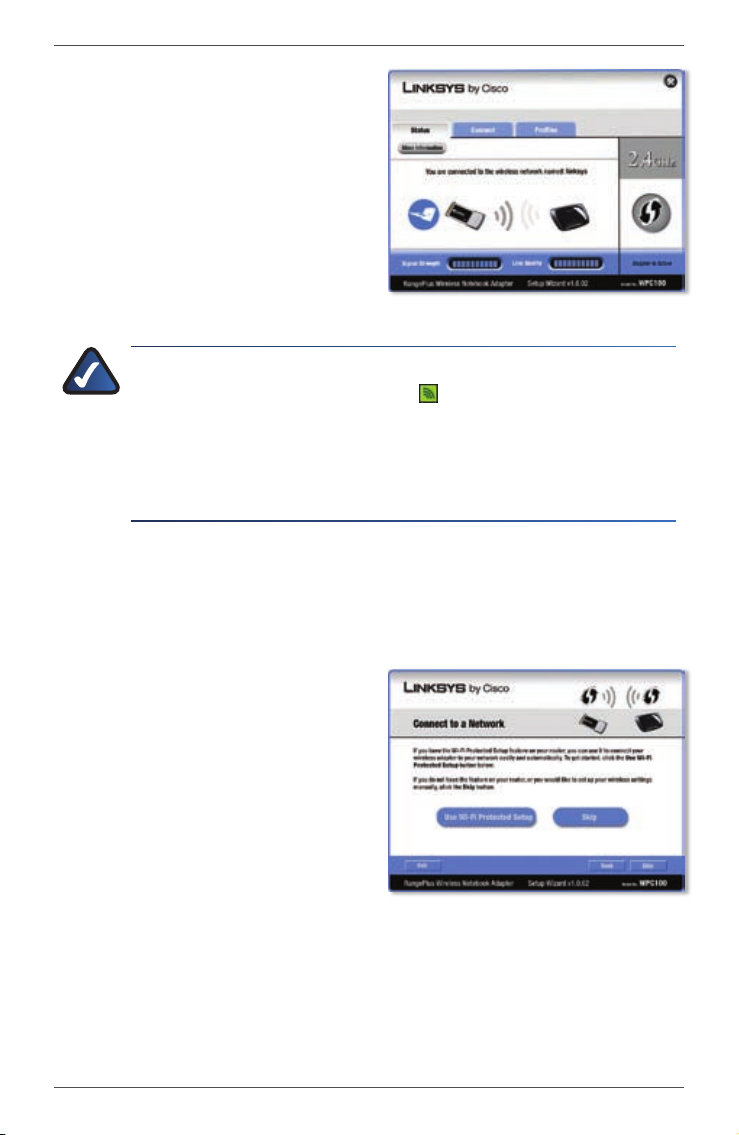

C. The Status screen of the Wireless

Network Monitor appears the

first time you run the Setup

Wizard. To exit the Monitor, click

the Xin the upper right corner.

NOTE: After the Adapter is installed, the Wireless Network

Monitor screen opens, and its icon appears in your computer’s

system tray. You can double-click the icon to open the Monitor

if you want to find available wireless networks or change the

Adapter’s configuration. For detailed information on the Monitor,

refer to the User Guide on the CD-ROM.

Congratulations! Setup is complete.

Wireless Security Enabled

If your network has wireless security, you will see one of these wirelessA.

security screens. Follow the instructions for the screen you see.

WPA2-Personal Key Needed for Connection

1. Enter the Passphrase (also

called a pre-shared key) of your

wireless network. It must have

8-63 characters.

Click2. Connect and go to step B.

Connected to the Network

WPA2-Personal Key Needed for Connection

Setup for Windows XP WPC100

8 RangePlus Wireless Notebook Adapter

WPA-Personal Key Needed for Connection

1. Enter the Passphrase (also

called a pre-shared key) of your

wireless network. It must have

8-63 characters.

Click2. Connect and go to step B.

WEP Key or Passphrase Needed for Connection

1. Enter the Passphrase or WEP

Key.

Passphrase The Passphrase

is case-sensitive and must

have 16 or fewer alphanumeric

characters.

WEP Key For 64-bit encryption,

enter 10 hexadecimal characters

(“0” to “9” and “A” to “F”). For

128-bit encryption, enter 26

hexadecimal characters.

Click2. Connect and go to step B.

B. On the Congratulations screen,

click Finish.

WPA-Personal Key Needed for Connection

WEP Key or Passphrase Needed for

Connection

Congratulations

Setup for Windows XPWPC100

9RangePlus Wireless Notebook Adapter

C. The Status screen of the Wireless

Network Monitor appears the

first time you run the Setup

Wizard. To exit the Monitor, click

the Xin the upper right corner.

NOTE: After the Adapter is installed, the Wireless Network

Monitor screen opens, and its icon appears in your computer’s

system tray. You can double-click the icon to open the Monitor

if you want to find available wireless networks or change the

Adapter’s configuration. For detailed information on the Monitor,

refer to the User Guide on the CD-ROM.

Congratulations! Setup is complete.

Wi-Fi Protected Setup

A. If your router supports Wi-Fi

Protected Setup, click Use Wi-Fi

Protected Setup.

If you are not sure whether your

router supports Wi-Fi Protected

Setup or you want to manually

connect to your router, click

Skip. Then refer to the “No Wi-Fi

Protected Setup”section for

instructions.

Connected to the Network

Connect to a Network

Setup for Windows XP WPC100

10 RangePlus Wireless Notebook Adapter

B. Press the Wi-Fi Protected

Setup button on the Router.

Within two minutes, click the

Wi-Fi Protected Setup button

on this screen.

C. The Adapter connects to the

network.

D. Click Print to print out your

wireless network settings. Then

click Finish.

Wi-Fi Protected Setup

Connecting to the Network

Congratulations
