Cisco Media Gateway Controller Node Manager Manuel utilisateur

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco Media Gateway Controller Node

Manager Installation Guide

Release 2.8(1)

March 11, 2011

Text Part Number: OL-18332-04

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at

www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1005R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the

document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

Cisco Media Gateway Controller Node Manager Installation Guide

iii

Cisco Media Gateway Controller Node Manager Installation Guide

OL-18332-04

CONTENTS

Preface v

Document Objectives v

Audience v

Related Documentation

The documents that contain information related to Cisco Media Gateway Controller Node Manager are

at the following URL:

http://www.cisco.com/en/US/products/sw/netmgtsw/ps1912/tsd_products_support_series_home.html

The documents that contain information related to the Cisco PGW 2200 Softswitch are at the following

URL:

http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html

You can also find the Cisco PGW 2200 Softswitch Documentation Map at the following URL:

http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/products_documentation_roadmaps_list.ht

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional

information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and

revised Cisco technical documentation at

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed

and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free

service and Cisco currently supports RSS version 2.0.

Document Change History

Release Number Document Number Change Date Change Summary

2.8(1) OL-18332-04 March 2011 Updated the hardware requirements.

2.8(1) OL-18332-03 October 2009 Updated the “Task 3: Plan and Execute Hard Drive

Partitioning” section on page 2-4.

Added a troubleshooting procedure for the Cisco EMF

Licensing problem in Table 2-5.

2.8(1) OL-18332-02 August 2009 Updated hardware requirements.

2.8(1) OL-18332-01 December 2008 Initial release.

CHAPTER

1-1

Cisco Media Gateway Controller Node Manager Installation Guide

OL-18332-04

Installation Overview and Planning

Revised: March 11, 2011, OL-18332-04

This chapter provides overview and planning information for installation of the Cisco Media Gateway

Controller (MGC) Node Manager (MNM). Chapter 2 provides detailed installation procedures.

Note In Cisco MNM Release 2.8(1), the Cisco Voice Services Provisioning Tool (VSPT) is packaged with

Cisco MNM.

The following topics are covered in this chapter:

• Installation Overview, page 1-1

• Determine Your Hardware Requirements, page 1-2

• Installation Checklist, page 1-5

Installation Overview

Successful network management using Cisco MNM begins with a well planned and carefully executed

installation. Network element management involves many interdependent factors, including:

• The correct Sun server for your network size

• The correct software release and patch levels on managed devices

• The correct installation of Cisco Element Management Framework (EMF), the foundation software

for Cisco MNM

• Performing installation tasks in the required order, so that required items are in place

To organize the installation process, use the Installation Checklist, page 1-5, to plan and execute your

installation. Read through the checklist and check off each task as it is completed.

Who Should Install Cisco MNM?

Installing Cisco MNM involves setting up hard drives, and checking and modifying system files, tasks

that are best performed by a system administrator with good knowledge of the Solaris operating system.

1-2

Cisco Media Gateway Controller Node Manager Installation Guide OL-18332-04

Chapter 1 Installation Overview and Planning

Determine Your Hardware Requirements

The hardware required and the way Cisco MNM is installed depend on the size of the network you are

managing and the amount of data you collect. Use this section to determine your hardware requirements

and software configurations.

Cisco Element Management Framework (Cisco EMF) and Cisco MNM consist of server and client

software. You can manager all small, medium, and most large networks from a single server, using the

Sun T5220 server which combines the client and server software. The multicore, multithread

architecture of the Sun T5220 servers works well with the Virtual Network Computing (VNC)

technology. It gives each VNC server a processor thread, and keeps the X-terminal traffic off the

network. The combination of the Sun T5220 server and VNC for Cisco MNM provides excellent

response time, even when your access is over WAN network connections.

Here is a breakdown of the client and server roles:

Server Software

• Network management, including management of databases that contain network information, store

alarms, and performance data

• GUI applications, with user interaction, when Cisco MNM is installed on a standalone server

Client Software

• GUI applications, with which users interact.

The Cisco EMF and Cisco MNM software run on a separate machine, or on machines other than the

Cisco MGC host. In a small network, server and client software might reside on a single machine (a

standalone configuration). In larger networks, the software is installed on two or more machines in the

following distributed configuration:

• One machine, known as the management server, contains the server software (including the

ObjectStore database management software in the Cisco EMF) and client software.

• One machine, known as the presentation server, contains the client software only. In some large

networks, more than one Presentation server might be required.

In either configuration, users typically access Cisco MNM from X terminal workstations that run the

Client software through a Telnet session. In the distributed configuration, the X terminal workstations

connect directly to the Presentation server to run the client software.

See the standalone and distributed configurations illustrated in Figure 1-1.

1-3

Cisco Media Gateway Controller Node Manager Installation Guide

OL-18332-04

Chapter 1 Installation Overview and Planning Determine Your Hardware Requirements

Figure 1-1 Standalone and Distributed Configurations

Note The management server is sometimes called the database server. The presentation server is sometimes

called the client, GUI, or application server. To avoid confusion, this document uses management server

and presentation server consistently, and these terms denote the machines in a distributed configuration,

not the software that resides on them.

The Cisco MNM client simultaneously supports up to ten X terminal users or VNC users. The exact

number supported in a given installation depends on your processing resources, and the network size.

Supported Configurations

The following configurations are supported:

• Cisco MNM and Cisco VSPT installed together on a server (recommended)

Distributed Configuration

Standalone Configuration

Presentation Server

Cisco EMF and

Cisco MNM

Client Software only

Managment Server

Cisco EMF and Cisco MNM

Client software and Server

software (including

ObjectStore database)

Cisco EMF and Cisco MNM

Client software and Server

software (including

ObjectStore database)

X terminal

workstations

X terminal

workstations Cisco MGC nodes

Cisco MGC nodes

120692

1-4

Cisco Media Gateway Controller Node Manager Installation Guide OL-18332-04

Chapter 1 Installation Overview and Planning

Determine Your Hardware Requirements

• Cisco VSPT (only) installed on a Cisco PGW 2200 Softswitch host machine

• Cisco MNM installed on a server and Cisco VSPT installed on a separate server

Caution Cisco MNM is not supported on a Cisco PGW 2200 Softswitch host machine.

Hardware Recommendations

Before you find the suitable hardware platform for Cisco MNM, determine your network deployment

size. Table 1-1 gives guidance on how to determine your network deployment size.

You have two options to get the hardware platforms for Cisco MNM:

• Reuse old Sun SPARC-based platforms.

You cannot use Sun OPETRON-based platforms or X86 platforms for Cisco MNM. Old Sun

SPARC-based platforms, Sun Fire 240 and Sun Netra240, were fully tested with Cisco MNM. Other

old Sun SPARC-based platforms might be interoperable.

• Order new hardware platforms.

Table 1-2 describes Cisco MNM hardware recommendations for various network sizes.

Note The Cisco MNM host machine requires the minimum number of drives indicated in Table 1-2. These are

recommendations to aid you in planning. The total amount of disk space required depends on many

factors, such as the amount of alarm and performance data collected.

Table 1-1 Network Deployment Size

Criteria Small Deployment Medium Deployment Large Deployment

PGW Pairs 1–3 6–10 11–20

Gateways 1–10 11–40 41–100

HSI 1–3 6–10 11–20

BAMS 1–2 2–3 2–5

Table 1-2 Hardware Recommendations for the Cisco MNM Host Machine

Network Deployment Size

Host Machine Components

Platform CPU Hard Disks RAM

Small Deployment Sun Netra T5220 4 core 2 x 73 GB1

1. Two-drive machines work for smaller networks that have less traffic and fewer operators. Response time to operator commands increases as the network

grows and additional operators are added.

8 GB

Medium Deployment Sun SPARC

Enterprise T5220 8 core 7 x 146GB 16GB

Large Deployment Sun SPARC

Enterprise T5220 8 core 7 x 146GB 16GB

Table des matières

Autres manuels Cisco Carte réseau

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Manuel d'installation et d'exploitation

Cisco

Cisco Aironet 340 Series Manuel utilisateur

Cisco

Cisco WAN Interface Card WIC-1DSU-56K4 Manuel utilisateur

Cisco

Cisco WAN Interface Card Cable WIC-1DSU-T1 Manuel utilisateur

Cisco

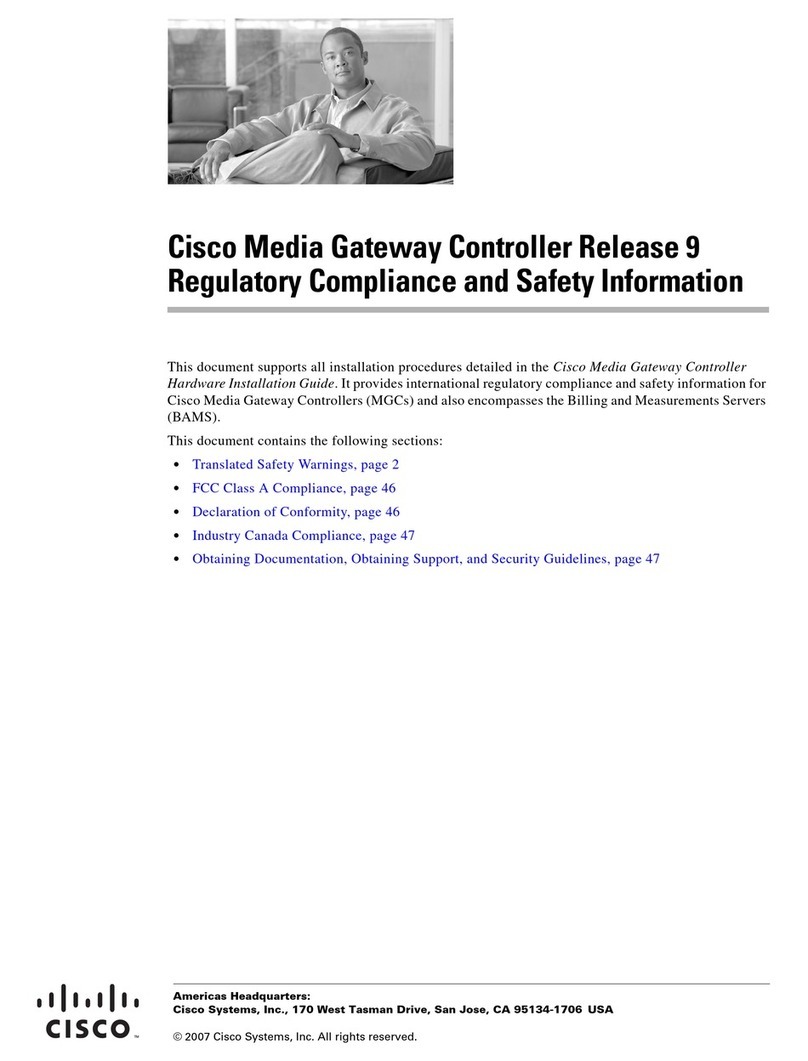

Cisco Gateway Controllers Instructions originales

Cisco

Cisco VWIC-2MFT-T1 - Multiflex Trunk Voice/WAN Interface Card Expansion... Manuel utilisateur

Cisco

Cisco Linksys WUSB54G Manuel utilisateur

Cisco

Cisco WPC600N - Ultra RangePlus Wireless-N PC Card Manuel utilisateur

Cisco

Cisco IDTA153 Manuel utilisateur

Cisco

Cisco HWIC-4ESW - EtherSwitch HWIC Switch Manuel utilisateur

Cisco

Cisco 12000 - Series Chassis Modular Expansion... Instructions d'utilisation et d'entretien

Cisco

Cisco MGX-FRSM-2CT3 Manuel utilisateur

Cisco

Cisco uBR10-SRP-OC12SML Manuel utilisateur

Cisco

Cisco EHWIC 1 GE-SFP-CU Manuel utilisateur

Cisco

Cisco One-Port Serial WAN Interface Card Cable... Manuel utilisateur

Cisco

Cisco Gigabit Switch Router Cisco 12012 Mode d’emploi

Cisco

Cisco CompactFlash Adapter Manuel utilisateur

Cisco

Cisco CTX2500 Manuel utilisateur

Cisco

Cisco WUSB54GSC Manuel utilisateur

Cisco

Cisco WEC600N Manuel utilisateur

Cisco

Cisco Catalyst 4500 Series Manuel

Cisco

Cisco uBR10-LCP2-MC28C Manuel utilisateur

Cisco

Cisco Modular Gigabit Ethernet Line Card I Instructions d'utilisation et d'entretien

Cisco

Cisco CE-100T-8 Mode d’emploi

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
