Cisco Model EPC2425 EuroDOCSIS 2.0 Wireless

Residential Gateway with Embedded Digital Voice Adapter

The Cisco® Model EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with

Embedded Digital Voice Adapter (EPC2425) is a high performance home gateway that

combines a cable modem, two-line digital voice adapter, router and wireless access point

in a single device providing a cost-effective voice and networking solution for both the

home and small office.

The EPC2425 has been designed to meet EuroPacketCable™ 1.5 and EuroDOCSIS™ 2.0

specifications. In addition, the EPC2425 is fully backward compatible for use on both EuroDOCSIS

1.1 and EuroDOCSIS 1.0 networks.

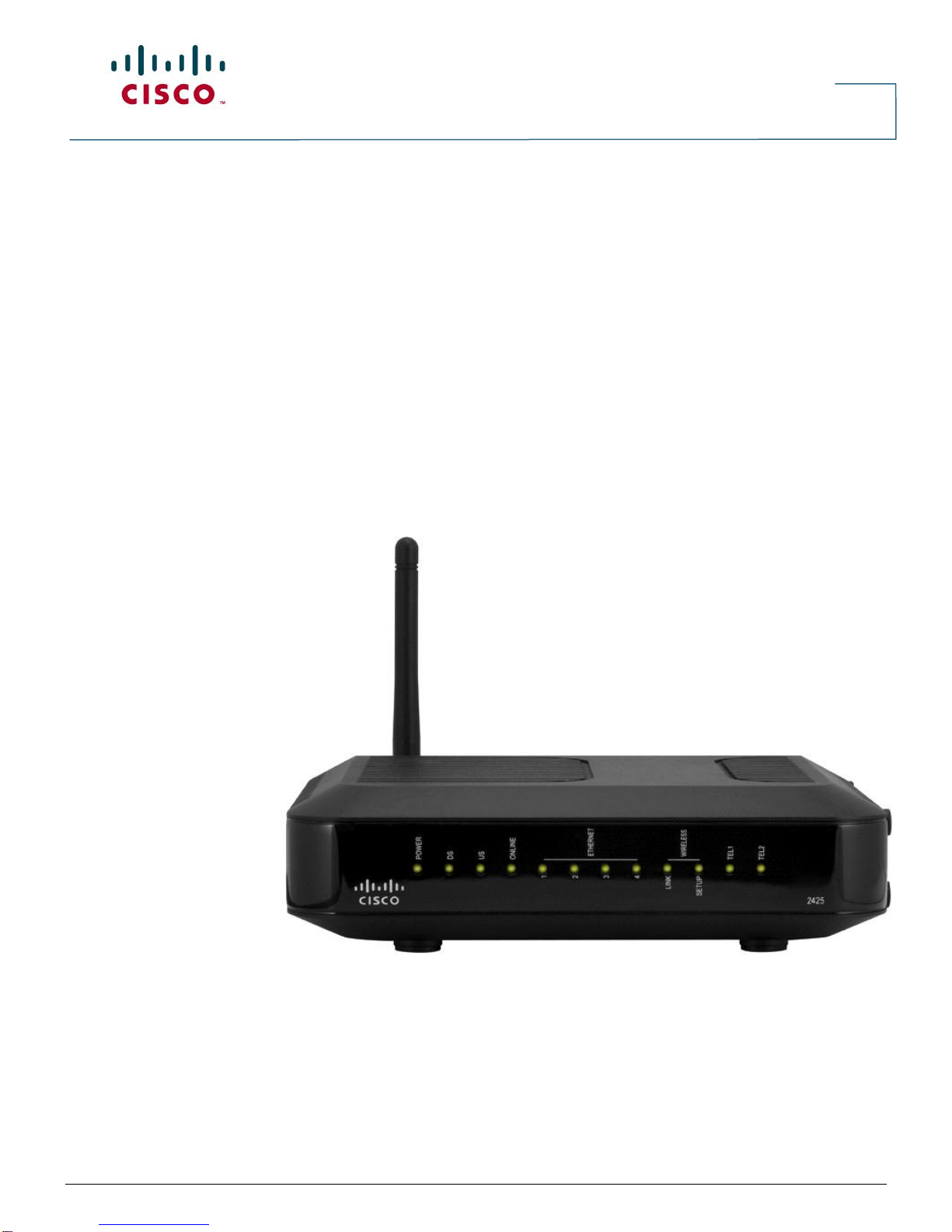

Figure 1. Model EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with Embedded Digital Voice

Adapter

Designed for the active digital home or office, the EPC2425’s integrated router features a Dynamic

Host Configuration Protocol (DHCP) server, Network Address and Port Translation (NAT/NAPT)

and a Stateful Packet Inspection (SPI) firewall. These features allow the user to share a single

high-speed public Internet connection as well as share files and folders between devices within the

home network by attaching multiple wired and wireless devices in your home or office to the

wireless residential gateway.

Data Sheet

Consumer friendly features like Wireless Protected Setup (WPS) and user configured Parental

Control can protect the home network from unwelcome intruders and family members from access

to undesirable websites.

Features

●Compliant with EuroDOCSIS 2.0, 1.1, and 1.0 standards along with EuroPacketCable

specifications to deliver high-end performance and reliability

●High performance broadband Internet connectivity to energize your online experience

●Two-line embedded digital voice adapter for wired telephony service

●Four 10/100BASE-T Ethernet ports to provide wired connectivity

●802.11g Wireless Access Point with 4 service set identifiers (SSIDs)

●Wireless Protected Setup (WPS), including a push button switch to activate WPS for

simplified and secure wireless setup

●Two RJ-11 telephony ports for connecting to in-home wiring or directly to conventional

telephones or fax machines

●Dual antenna design - one internal and one detachable external

●User configurable Parental Control blocks access to undesirable Internet sites

●Advanced firewall technology deters hackers and protects the home network from

unauthorized access

●Attractive compact design that allows for vertical, horizontal, or wall-mounted operation

●TR-068 compliant color-coded interface ports and corresponding cables simplify installation

and setup

●DOCSIS-5 compliant LED labeling and behavior provides a user and technician friendly

method to check operational status and act as a troubleshooting tool

●Allows automatic software upgrades by your service provider

Data Sheet

Figure 2. Model EPC2425 Front Panel (image may vary from actual product and specification)

Table 1. Front Panel Features

Feature

Description

Indicators

Power, DS, US, Online, Ethernet, Wireless Link, Wireless Setup, Tel1, Tel2

Color

Black, black lens, silver text

Branding

Cisco and model number

Figure 3. Model EPC2425 Back Panel (image may vary from actual product and specification)

Table 2. Back Panel Connections

Feature

Description

Power

Connector Color: Black

Connects the wireless home gateway to the DC output of the AC power adapter

Power Switch

Turns power on and off to the device (power switch provided on all products carrying the CE

mark)

Telephone 1 and 2

Color: Gray

RJ-11 telephone ports connect to home telephone wiring and to conventional telephones or fax

machines

Ethernet (1 –4)

Connector Color: Yellow

Four RJ-45 Ethernet ports connect to the Ethernet port on your PC or your home network

Reboot EMTA

Power cycles the EMTA

Wireless Setup

Activates Wi-Fi Protected Setup (WPS), which allows you to add wireless devices to the wireless

network of the residential gateway

Cable

Connector Color: White

F-connector connects to an active cable signal from your service provider

Antenna (not shown)

Provides a communication connection for the built-in WAP

Data Sheet

Product Specifications

Table 3. Product Specifications

Specification

Value

Voice Specifications

Call Signaling Protocol

●MGCP/NCS including configurable IPSec encryption

●Configurable to support RFC2833 event signaling

●Supports Bell103 detection: Improves alarm panel and Point of Sale (POS) interoperability

by optimizing DSP for Bell103 protocol

●Software upgradeable to support Session Initiation Protocol (SIP)

●The following SIP standards are supported

◦RFC 2617 HTTP Authentication: Basic and Digest Access Authentication

◦RFC 2976 The SIP INFO Method

◦RFC 3261 SIP: Session Initiation Protocol

◦RFC 3262 Reliability of Provisional Responses in Session Initiation Protocol (SIP)

◦RFC 3263 Session Initiation Protocol (SIP): Locating SIP Servers

◦RFC 3264 An Offer/Answer Model with Session Description Protocol (SDP)

◦RFC 3265 Session Initiation Protocol (SIP)-Specific Event Notification

◦RFC 3420 Internet Media Type message/sipfrag

◦RFC 3428 Session Initiation Protocol (SIP) Extension for Instant Messaging

◦RFC 3515 The Session Initiation Protocol (SIP) Refer Method

◦RFC 3842 A Message Summary and Message Waiting Indication Event

●Package for the Session Initiation Protocol (SIP)

◦RFC 3892 The Session Initiation Protocol (SIP) Referred-By Mechanism

◦RFC 3903 Session Initiation Protocol (SIP) Extension for Event State Publication

◦Draft-ietf-mmusic-sdp-new-24 SDP: Session Description Protocol (Replacement for RFC

2327)

◦Draft-ietf-sipping-cc-transfer-01 Session Initiation Protocol Call Control –Transfer

◦Draft-ietf-sip-session-timer-08 The SIP Session Timer

◦Draft-ietf-sipping-realtimefax-01 SIP Support for Real-time Fax: Call Flow

●Examples and Best Current Practices

◦Draft-ietf-mmusic-sdescription-09 Session Description Protocol Security

◦Descriptions for Media Streams

◦Draft-ietf-sip-replaces-02 The Session Initiation Protocol (SIP) "Replaces" Header

Provisioning Modes

●Full PacketCable secure provisioning

●Kerberos support with NVRAM ticket caching

●Configurable PacketCable-lite (MTA config file provisioning without security)

●Configurable for non-PacketCable (MTA configuration using DOCSIS config file)

CODECs

Standard: G.711, T.38 Fax Relay, iLBC and BV16

Software upgradeable to support other CODEC combinations including:

●G.711 and G.728

●G.711 and G.729

●G.711 and G.729 a/e

●G.711 and BV16 and BV32 (High fidelity –near CD quality)

●G.711 and G.723

●G.711 and G.726

CODEC Packetization

Intervals

10, 20, and 30 mS

CODEC Synchronization

CODEC synchronization to UGS time clock allows slip-free end-to-end sync to PSTN clock

(minimizes frame slips that can cause Fax/Analog Modem call failures)

CODEC Encryption

Configurable to support AES-128 encryption or no encryption modes

Hearing Impaired Services

Support

TDD support including detection of V.18 including Annex A

Fax and Analog Modem

support

DSP based Modem/Fax Tone detection and support for Voice Band Data Mode with auto-

CODEC negotiation and auto-control of echo canceller, jitter buffer, and VAD

Jitter Buffer Support

Adaptive dynamically controlled

Latency Control

Configurable min / max jitter buffer size

Data Sheet

Specification

Value

Voice Specifications

Audio Gain Levels

Independently Configurable Tx and Rx audio gains

Silence Suppression

Configurable VAD with comfort noise generation

Packet Loss Concealment

ANSI T1.521-1999

Call Connection Quality

Monitoring

RTCP, RFC1889, RFC1890, SNMP MIB for last call quality statistics

Dialing Modes

DTMF and configurable pulse dial support

DTMF Relay

RFC2833 including fast (40mS) DTMF Relay for alarm system signaling compatibility

Layer 2 Quality of Service

●Full PacketCable secure DQOS with GateID including UGS and UGS/AD

●DQOS Lite support including UGS and UGS/AD

Layer 3 Quality of Service

Configurable DiffServe/TOS support for Signaling, RTP, and RTCP flows

Payload Header

Suppression (PHS)

Supported for RTP and RTCP packet flows to reduce per-call network bandwidth.

Advanced support for Dynamic Payload Header Suppression using Propane Technology.

Management

SNMPv3, SNMPv2, Telnet with configurable user ID and password, internal log, and external

Syslog support

Echo Cancellation

G.168 with extended echo tail support

Call Feature Support

●Caller ID

●Call Waiting with Caller ID

●Cancel Call Waiting

●Call Conferencing (3-way calls)

●Configurable hook flash support

●Distinctive Ringing (Configurable for up to 11 ring patterns per phone line)

●Ring Splash

●Stutter Dial Tone

●Off hook warning tone

●Open Switch Interval support to enhance answering machine compatibility

●Configurable star codes

●Euro/US hook-flash type

●Call transfer

●Message Waiting Indicator

●Warm Line

●Call Forwarding Unconditional

●Call Forwarding on Busy

●Call Forwarding No Answer

●Call return

●Redial Call

●Automatic redial

●Other call features available with compliant CMS or gateway

Telephone Ring Loading

Full 5 REN support on each phone line (10 REN total)

Ring Signal

Configurable balanced ring with configurable DC offset

Max Phone Line Distance

Supports up to 1000 ft of AWG26 wire (0.4mm) on each phone line. Supports operation with

typical in-home telephone wiring

Country-Specific

Telephone Parameters

Supported

United States,United Kingdom, Germany, France, Belgium, Netherlands, Finland, Italy,

Switzerland, Sweden, Denmark, Brazil, ETSI 101 909-18

RF Downstream

Frequency Range

108 to 930 MHz

Demodulation

64 or 256 QAM

Maximum Data Rate

41.4 Mbps for 64 QAM

55.2 Mbps for 256 QAM

Bandwidth

8 MHz

Operating Level Range

43 to 73 dBµV for 64 QAM

47 to 77 dBµV for 256 QAM

Input Impedance

75 ohms

Data Sheet

Specification

Value

RF Upstream

Frequency Range

5 to 65 MHz

Modulation

QPSK

8 QAM

16 QAM

64 QAM

128 QAM TCM

Maximum Data Rate

5.12 Mbps for QPSK

10.2 Mbps for 16 QAM

30.0 Mbps for A-TDMA and SCDMA

Bandwidth

200 kHz to 6.4 MHz

Operating Level Range

(all values +/- 0.5 dBµV)

TDMA

SCDMA

QPSK +68 to +118 dBµV

8QAM +68 to +115 dBµV

16QAM +68 to +115 dBµV

32QAM +68 to +114 dBµV

64QAM +68 to +114 dBµV

QPSK +68 to +113 dBµV

8QAM +68 to +113 dBµV

16QAM +68 to +113 dBµV

32QAM +68 to +113 dBµV

64QAM +68 to +113 dBµV

128QAM +68 to +113 dBµV

Output Impedance

75 ohms

Wireless Access Point

Frequency Range

2.412~2.472 GHz, 13 Channel (Europe; CE/ETSI)

Modulation

DSSS (Direct Sequence Spread Spectrum)

Data Rate:

802.11g

54 Mbps with Auto Fall-Back

Security

WPA2, WPA and 64/128-bit WEP

Transmit Power

14 dBm (typical for 802.11g)

Antenna System

One (1) external, detachable

One (1) internal

Other

Input Voltage

12 VDC

Power Consumption

(Modem Module)

6 watts

Data Ports

Ethernet 10/100BASE-T (Auto-sensing with Auto-MDIX)

RJ-45 Ethernet (4)

Female “F” type

Mechanical

Dimensions (W x D x H)

(approximate)

Not including “F” connector:

17.7 cm x 14.5 cm x 5.0 cm (6 15/16 in. x 5 11/16 in. x 2 15/16 in.)

Including “F” connector and wireless antenna:

17.7 cm x 15.5 cm x 5.0 cm (6 15/16 in. x 6 in. x 2 15/16 in.)

Weight (approximate)

0.39 kg (13.7 oz)

Operating Temperature

0˚to 40˚C (32˚to 104˚F)

Operating Humidity

0 to 90% RH non-condensing

Storage Temperature

-20˚to 60˚C (-4˚to 140˚F)

Data Sheet

Specification

Value

Standards and Approvals

Designed to Comply with

the Following Standards

Euro-PacketCable 1.5

EuroDOCSIS 2.0, EuroDOCSIS 1.1, EuroDOCSIS 1.0

IEEE 802.11g

WEP, WPA, and WPA2

WMM, WPS

Regulatory and Safety

Approvals

As required per country where the EPC2425 will be used

Ordering Information

Table 4. Ordering Information

Model

Description

Part Number

International Configuration –PAL/NTSC

Model EPC2425

EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with

Embedded Digital Voice Adapter. Includes:

●International tuning plan

●230 VAC / 50 Hz, 15 VDC / 1 A desk top linear power supply, Europe

●Ethernet cable

●CD-ROM containing user guide

Europe

4027678

Model EPC2425

EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with

Embedded Digital Voice Adapter. Includes:

●North American tuning plan

●100-240 VAC / 50-60 Hz, 15 VDC / 1 A wall-mount switching

regulated power supply, Europe

●Ethernet cable

●CD-ROM containing user guide

Europe (Customer-specific configuration)

4028605

Model EPC2425

EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with

Embedded Digital Voice Adapter. Includes:

●North American tuning plan

●100-240 VAC / 50-60 Hz, 15 VDC / 1 A wall-mount switching

regulated power supply, Europe

●Ethernet cable

●CD-ROM containing user guide

Europe (Customer-specific configuration)

4030556

Model EPC2425

EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with

Embedded Digital Voice Adapter. Includes:

●North American tuning plan

●100-240 VAC / 50-60 Hz, 15 VDC / 1 A wall-mount switching

regulated power supply, Europe

●Ethernet cable

●CD-ROM containing user guide

Europe (Customer-specific configuration)

4030557

Model EPC2425

EPC2425 EuroDOCSIS 2.0 Wireless Residential Gateway with

Embedded Digital Voice Adapter. Includes:

●North American tuning plan

●230 VAC / 50-60 Hz, 15 VDC / 1 A wall-mount linear switching power

supply, Europe

●Ethernet cable

●CD-ROM containing user guide

Sweden (Customer-specific configuration)

4028604

Data Sheet

Replacement Components

Table 5. Replacement Components

Description

Part Number

Power Supplies

Class 2 Linear Switching

230-240 VAC / 50-60 Hz, 12 VDC /1 A wall-mount linear switching power supply with Euro style

connector

4020995

Class 2 Switching Regulated

100-240 VAC / 50-60 Hz, 12 VDC /1 A wall-mount linear switching power supply with Euro style

connector

4022057

CD-ROM

CD-ROM with User Guide

7016771

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and

other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks

EuroDOCSIS and EuroPacketCable are trademarks of Cable Television Laboratories, Inc.

Other third party trademarks mentioned are the property of their respective owners.

The use of the word partner does not imply a partnership relationship between Cisco and any other company

(1009R).

Specifications and product availability are subject to change without notice.

Cisco Systems, Inc.

800 722-2009 or 678 277-1120 Part Number 7016661 Rev B

www.cisco.com November 2010

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Porte

Cisco

Cisco Linksys SPA8000-XU Instructions d'utilisation d'origine

Cisco

Cisco DPC2425 Manuel utilisateur

Cisco

Cisco LINKSYS RFC 2364 Manuel utilisateur

Cisco

Cisco SPA-841 - Sipura VoIP Phone Mode d’emploi

Cisco

Cisco EPC3928 DOCSIS Manuel utilisateur

Cisco

Cisco DPC3941 Manuel utilisateur

Cisco

Cisco AS5400XM Mode d’emploi

Cisco

Cisco SPA3000 Manuel utilisateur

Cisco

Cisco RF Gateway 10 Manuel utilisateur

Cisco

Cisco ASR 5x00 Home eNodeB Mode d’emploi

Cisco

Cisco ATA 188 Manuel de service

Cisco

Cisco 450 Manuel

Cisco

Cisco Linksys AG041 Manuel utilisateur

Cisco

Cisco Explorer 4250 Manuel utilisateur

Cisco

Cisco DPC3848V Manuel utilisateur

Cisco

Cisco Explorer 9800 Multi-Screen Series Manuel utilisateur

Cisco

Cisco SPA122 ATA Manuel utilisateur

Cisco

Cisco ASR 5000 Series Mode d’emploi

Cisco

Cisco IOS XE Intelligent Services Manuel utilisateur

Cisco

Cisco AS5350XM Manuel utilisateur

Cisco

Cisco SPA8000-G1 Manuel utilisateur

Cisco

Cisco AS5350 - Universal Access Server Manuel utilisateur

Cisco

Cisco IG21-VZ-K9 Manuel utilisateur

Cisco

Cisco IC3000 Manuel de l'opérateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
