Christie Q Series Manuel utilisateur

Q Series

DWU1052/DHD1052

Network Quick Setup Guide

020-000861-01

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

Projector

User's Manual - Network

Quick Setup Guide

Thank you for purchasing this product.

This manual is intended to explain only how to setup this product. For proper use

of this product, refer to this manual and the other manuals for this product.

DWU1052/DHD1052

Connecting the projector and the computer using the network, remote control and

status monitoring of the projector can be performed by Web browser.

Two types of interface, Projector Web Control and Crestron e-Control, are

available for this projector.

1.1 Web Control

Projector Web Control Crestron e-Control

1. Features

See the corresponding pages for quick setup.

・Connection Setup (&7)

・System Requirements for Applications (&13)

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

1.2 Network Presentation

The projector can display the computer screen images transmitted through the

network.

To use Network Presentation, an exclusive application, LiveViewer is required.

The following application is required to use Network Presentation.

OS Application

Windows®LiveViewer

iOS(iPhone/iPad) Christie QuickConnect

Android Christie QuickConnect

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

1.3 My Image Function

The projector can display still images transferred using the network.

You can allocate up to four image les.

MY IMAGE transmission requires an exclusive application for your computer.

Use the application to transfer the image data.

Transfer image data

Display image data (ex. )

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

1.4 Messenger Function

The projector can display text data transferred using the network on the screen.

Up to 12 text data can be stored.

Transfer text data

Display text data (ex. )

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

1.5 Network Bridge Function

This projector is equipped with the NETWORK BRIDGE function to perform

mutual conversion of a network protocol and a serial interface.

By using the NETWORK BRIDGE function, a computer connected to the projector

using wireless or wired LAN can control an external device using

RS-232C communication using the projector as a network terminal.

1.6 Other Functions

The projector can automatically send an alert message to the specied using

addresses when the projector detects a certain condition requiring maintenance

or detected an error.

1.6.1 Email Alerts

The SNMP (Simple Network Management Protocol) manages the projector

information, which is a failure or warning status, from the computer on the

network. The SNMP management software is required on the computer to use

this function.

1.6.2 Projector Management using SNMP

RS-232C

RS-232C cable

CONTROL port

LAN port

External device

Wired LAN

LAN cable

Computer

Protocol change

TCP/IP data Serial data

WIRELESS port

(USB wireless adapter)

Wireless

LAN

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

The scheduling function sets up scheduled events including

power on / power off. It allows the projector to be self-managing.

The schedule can be set in Projector Web Control or OPTION-SCHEDULE menu

in the projector.

1.6.3 Event Scheduling

You can congure and control the projector using the network using RS-232C

commands.

1.6.4 Command Control using the Network

1) Press the MENU button on the remote control or the control panel of the projector.

2) From EASY MENU, select LANGUAGE.

Then, select your desired language.

2. Changing the Display Language

Follow the on-screen display (OSD) for proper operation.

button MENU button

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

3.1 Connection using Wired LAN

1) Connect the projector to the computer using a hub

with a LAN cable (CAT-5e or higher).

2) Press the MENU button on the remote control or the

control panel of the projector.

The MENU you last used will appear.

Use the cursor button to select the following.

EASY MENU >ADVANCED MENU > NETWORK > WIRED SETUP

3) Set the following items in WIRED SETUP.

・󲹭DHCP

・IPADDRESS

・SUBNET MASK

・DEFAULT GATEWAY

・DNS SERVER

For setting an IP address, refer toAbout IP address. (&8)

Select APPLY, then press the ENTER button to apply the settings.

The connection using wired LAN is available. Set wired LAN for the projector by

following the instructions of your network administrator when connecting to the

existing network.

3. Connection Setup

Refer to System Requirements for Applications (&13) rst before setting up the

connection.

3.2 Connection setup of Wired LAN

hub

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

• Although HDBaseT™ and LAN port can be used for wired LAN, they

cannot be used simultaneously. Connect LAN cable to the port set in WIRED

NETWORK on NETWORK menu.

•

The same network address cannot be used for both wireless LAN and wired LAN.

• I

f the projector and the computer exist in the same network (such as, same

network

address), leave the default gateway eld blank.

• When the projector and the computer exist in different networks, the default

gateway must be set. Consult with the network administrator in detail.

NOTE

[About IP address]

■ Setting manually

The Network address portion of the IP address setting on your computer must

be the same as the setting on the projector. Also, the entire IP address on the

computer must not overlap with that of the other devices on the same network,

including the projector.

The projector’s settings are as follows.

IP address: 192.168.1.254

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

Therefore, specify the computer’s IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.)

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

For example

Select from 1 to 254 for “xxx” without duplicating any other equipment.

In this case, as the IP address of the projector is “192.168.1.254”, specify

a setting between 1 to 253 for the computer.

■ Setting automatically

When a DHCP server exists in the connected network, it assigns an IP address

to the projector and the computer automatically. If DHCP server is not available,

set IPADDRESS, SUBNET MASK and DEFAULT GATEWAY.

DWU1052/DHD1052

Network Quick Setup Guide 020-000861-01 Rev. 1 (12-2015)

LIT GUID SET DWU/DHD1052 NET

3.3 Connection using Wireless LAN

Connection using wireless LAN is available with option parts, USB wireless

adapter (USB-WL-11N-NS).

Wireless LAN has two types of connection, Simple Access Point and

Infrastructure.

* Simple Access Point is a mode which connects to computers directly. The

projector can assign IPAddress up to 11 devices.

* Infrastructure is one of the wireless LAN communication methods with having

an access point to communicate. If communicating with existing network, consult

with your network administrator.

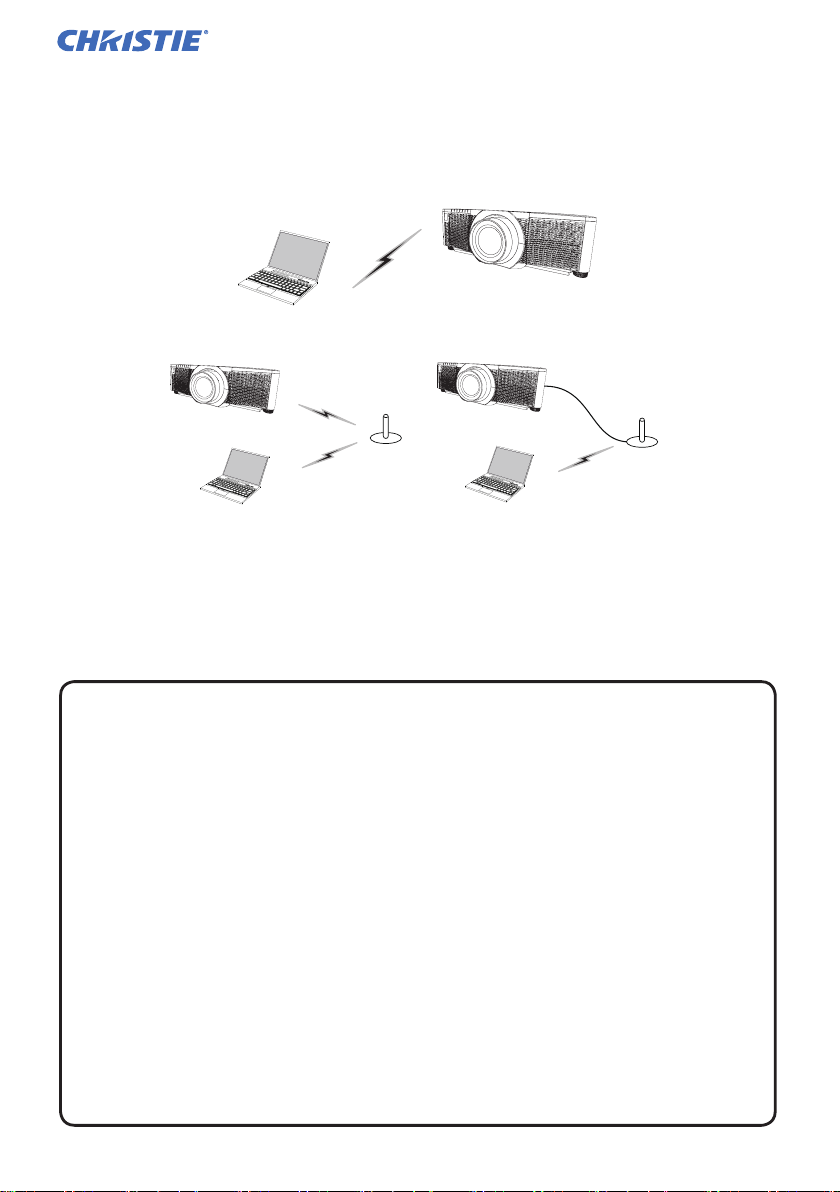

Fig. 3.3.a Without an access point communication (Simple Access Point))

Fig. 3.3.b With an access point communication (Infrastructure)

・

Network settings can also be changed in Network Settings of Projector Web Control.

•

Wireless LAN initial settings for the projector are as follows.

Mode: Simple Access Point

DHCP: Off

IP address: 192.168.10.1

Subnet Mask: 255.255.255.0

Default Gateway: 0.0.0.0

DNS Server: 0.0.0.0

SSID: SimpleAccessPoint*

SSID Broadcast: ON

Encryption: Off

Channel: 11

*Change default setting before use not to overlap.

• The same network address cannot be used for both wireless LAN and wired LAN.

・Communication speed of the projector may be deteriorated in Simple Access

Point mode depending on the number of connected devices.

・Network communication cannot be available between the devices connected to

the projector in Simple Access Point mode.

NOTE
