Christie LW502 Manuel utilisateur

LW502/LWU502/LX602

User’s Manual (detailed)

Instant Stack Guide

020-001085-02

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

LCD Projector

LW502/LWU502/LX602

User's Manual (detailed)

Instant Stack Guide

Thank you for purchasing this projector.

WARNING ►Before using this projector, read all manuals for this projector.

After reading them, store them in a safe place for future reference.

►Follow all the instructions in the manuals or on the projector. The manufacturer

assumes no responsibility for any damage caused by mishandling that is beyond

normal usage dened in the manuals.

NOTE • The information in this manual is subject to change without notice.

•The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in

this manual.

• The reproduction, transfer or copy of all or any part of this document is not

permitted without express written consent.

Trademark acknowledgment

All the trademarks in this manual are the properties of their respective owners.

Various symbols are used in this manual. The meanings of these symbols are

described below.

About this manual

WARNING

CAUTION

NOTICE

This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result

in personal injury or physical damage due to incorrect handling.

This entry notices of fear of causing trouble.

Refer to the pages written following this symbol.



Features

This projector can be used with another projector of the same model to project an

image on the same screen using the Instant Stack feature.

The two projectors can be operated simultaneously to make the image brighter.

Moreover, if you connect two projectors with RS-232C cross-over cable, it turns

to an intellectual stacking system. The two projectors can work alternately by

themselves, and once one projector has an accident the other voluntarily starts to

work to keep your presentation going.

These features, generically called Instant Stack, provide you with the broad use.

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

  

1. Introduction ........................3

1.1 Basic information

and preparations .............................3

Instant Stack ........................................3

Intellectual Stack and Simple Stack.....3

Remote control for Intellectual Stack

and Simple Stack .............................3

Tentative terms for the two projectors

...3

2. Installation ..........................6

2.1 Preparing for Intellectual Stack.....6

2.2 Installing

the rst projector (Set A) ................7

Preparing elevator feet ........................7

Deciding on the installation position ....7

Setting up Set A...................................8

2.3 Installing

the second projector (Set B) ........10

Stacking the projectors ......................10

Connecting projectors........................ 11

Setting up Set B................................. 11

2.4 Conrming Main

and Sub settings............................14

2.5 Fine adjusting

image position ...............................15

For Intellectual Stack users ...............15

For Simple Stack users......................16

3. STACK menu settings......17

3.1 Displaying STACK menu ............17

3.2 Selecting Main, Sub or off ..........18

3.3 Selecting lamp operation mode..19

3.4 Selecting lamp switching mode ..21

3.5 Selecting input source for Sub....22

3.6 Exiting Intellectual

Stack menu ...................................24

STACK menu .....................................24

Dialog from STACK menu..................24

3.7 Important information

for Intellectual Stack ......................25

4. Connecting cables ...........28

4.1 Connecting an RS-232C cable...28

4.2 Connecting signal cables............29

Inputting an image from Main to Sub

...29

Inputting an image

to Sub and Main individually...........30

5. Setting input ports

using menu.........................31

5.1 Preparing for menu operations...31

5.2 Checking the Main projector's

operating status.............................31

5.3 Starting up the Main projector ....32

5.4 Setting the menu ........................33

Inputting an image from Main to Sub

- Computer signal ...........................33

Inputting an image from Main to Sub

- Video signal

(either component or video) ...........34

Inputting an image to

Sub and Main individually...............34

6. Restrictions

on Schedule function ........36

7. Troubleshooting ...............38

Contents

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

(continued on next page)

1. Introduction

1.1 Basic information and preparations

Instant Stack

Instant Stack is a feature that allows you to superimpose images projected from

two projectors easily.

Intellectual Stack and Simple Stack

Instant Stack includes the following two features.

When two projectors are connected using an RS-232C cable with necessary

settings performed on the projectors, these two projectors automatically operate

in synchronization with each other according to the settings.

This is known as

Intellectual Stack in this manual.

The two projectors operate individually without the RS-232C connection. This is

known as Simple Stack in this manual.

Remote control for Intellectual Stack and Simple Stack

For Intellectual Stack, one projector is set as Main and the other is set as Sub.

Only the Main projector can receive the remote control signals.

Operate the projec-

tors from the control panel of the Main projector or with the remote control pointing

at the Main projector. For details on operating by remote control and from the control

panel, refer to 3.7 Important Information for Intellectual Stack.

For Simple Stack, both projectors can receive the remote control signals. To avoid

incorrect operations with the remote control, it is recommended to operate with

the control panel or a wired remote control. KEY LOCK or REMOTE ID * function

is also available. (Operating Guide → OPTION menu)

* Available only in optional remote control.

Tentative terms for the two projectors

For better understanding of the descriptions in this

manual, the following terms are used when explaining

the vertical stacking installation.

Set A : Projector placed underneath

Set B : Projector placed on top of Set A

If you require more information on Instant Stack, consult your dealer.

Set B

Set A

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

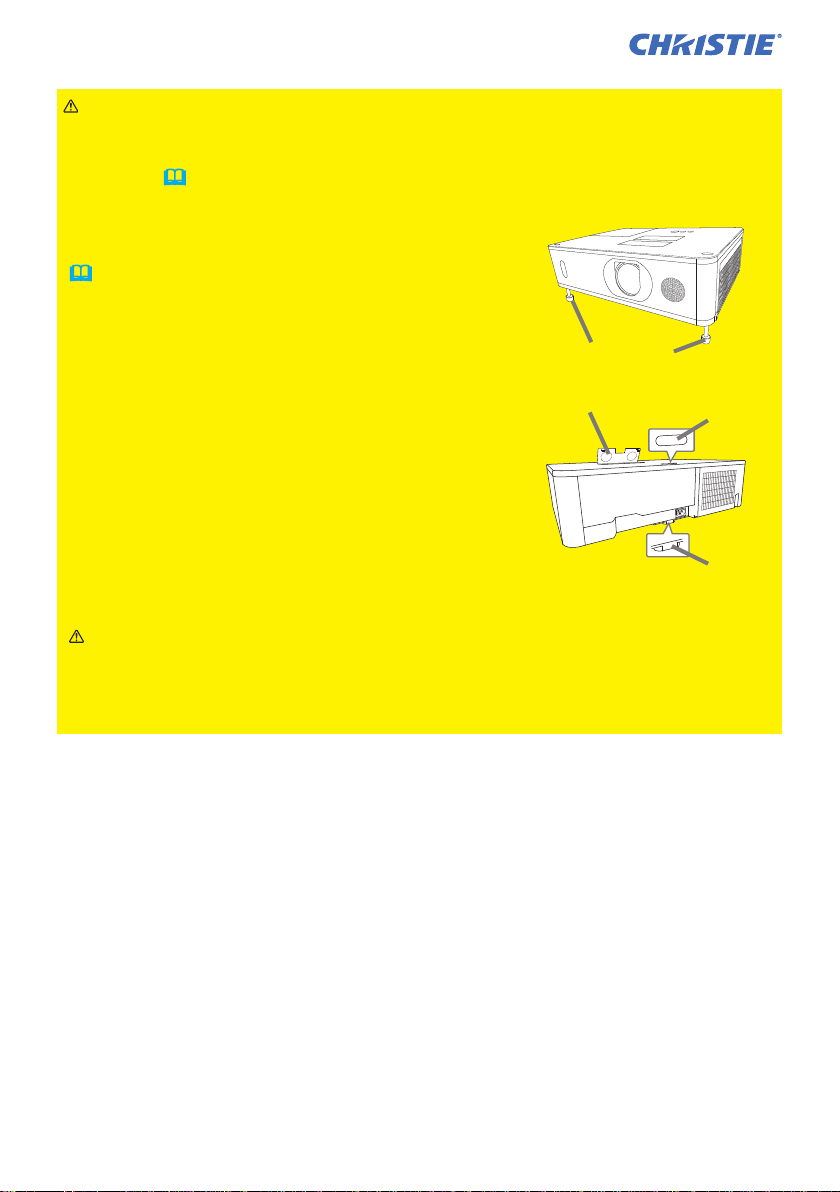

CAUTION ► Place the projector in a cool place with sufcient ventilation.

Keep a space of 50 cm or more between a side of the projector and other

objects such as a wall. Take care not to let the hot exhaust air from other

projectors enter the intake vents of the projector.

WARNING ►

Take a special care not to fall the stacked projectors.

• When stacking two projectors, make sure the elevator feet and heel of the

upper projector are inserted into the corresponding pockets of the lower

projectors. (



10)

• When using the Instant Stack function by piling up two projectors, you can

change the projection angle by adjusting the

elevator feet of the unit that is placed underneath.

(



7) Exercise care to prevent the stacked projector

from falling off or tipping over while adjusting the

elevator feet.

• A maximum of two projectors can be stacked. Do

not stack three or more projectors.

• Do not install the projectors that are stacked using

the stack pockets, elevator feet and heel of this

projector at a place higher than a person's height.

• Do not install the projectors that are stacked using

the stack pockets, elevator feet and heel of this

projector on a ceiling.

• Do not touch the stacked projectors except when

instructions are given in this manual. Do not hit the

projectors with any type of object.

1.1 Basic information and preparations (continued)

(continued on next page)

Elevator feet

Stack pocket

Heel

Lens

adjuster door

Introduction

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

1.1 Basic information and preparations (continued)

NOTICE ► Intellectual Stack can be operated only in pairs of the same model

projectors.

► A maximum of two projectors can be used as Intellectual Stack.

► Use the same type of lens for both projectors.

► Depending on the installation and surrounding environment, images

projected from the two projectors may not superimpose well enough. The

images cannot superimpose well enough especially when the screen is slanted,

deformed or the surface is uneven.

• Images projected immediately after turning on the projectors are unstable due

to rising internal temperature. Wait for more than 20 minutes before starting to

adjust the superimposed images.

• The image positions may shift due to temperature change, vibration, or shock

caused by hitting the projector. Install the projectors in a stable environment

when using Instant Stack. If the image positions are shifted, readjust the

images. (

8, 11, 15

)

• The image positions may shift over time due to the tension and the weight of

the connecting cables. Make sure not to impose any load on the projectors

when arranging the cables.

• If the volume level of the built-in speakers is too high, noise may occur and

the image quality may deteriorate. In this case, check the volume setting on

both projectors. Lower the volume until the symptoms disappear.

• When two projectors are connected using the RS-232C cable, the Main

projector can control the Sub projector. This feature is known as Intellectual

Stack. (

) When Intellectual Stack by means of RS-232C feature is used,

RS-232C communication cannot be used to control the projector. If you want

to control the projectors from a computer, use the LAN connection that is

connected to any of the projectors.

• When Intellectual Stack is used, the operations or settings of some functions

are restricted. Refer to this manual for details. (

)

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

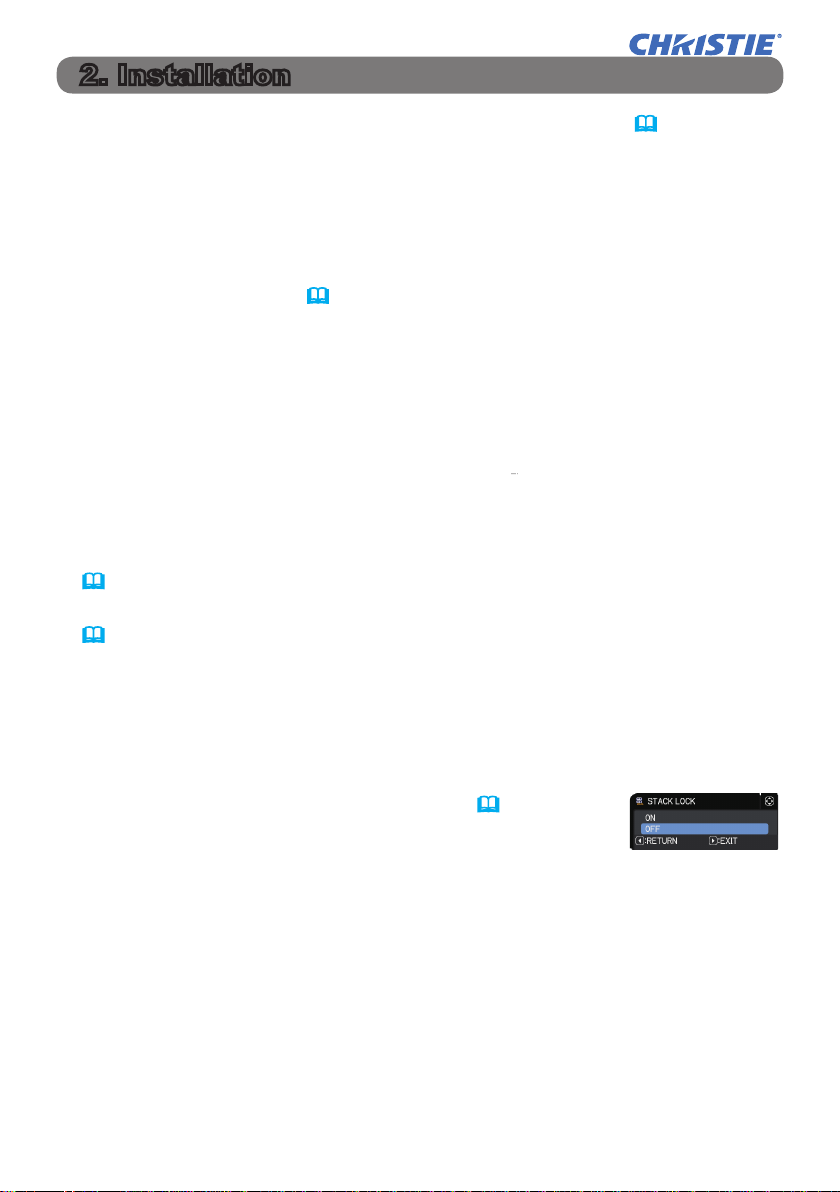

For safety reasons, read 1.1 Basic information and preparations (

3, 4

) carefully

before installation. In addition, take note of the following for proper use of Instant

Stack.

●Use the same model projectors.

●

To avoid incorrect operations with the remote control, it is recommended to

operate with the control panel or a wired remote control if you control one

projector with the remote control during installation. KEY LOCK or REMOTE ID *

function is also available. (Operating Guide → OPTION menu)

●Images from Set A and Set B may superimpose well but the image positions

can shift over time. Readjust to superimpose the images.

* Available only in optional remote control.

2.1 Preparing for Intellectual Stack

When using Intellectual Stack using RS-232C connection, ensure the following

settings are set on the two projectors. Otherwise, the Intellectual Stack menu can-

not be operated.

●STANDBY MODE in SETUP menu: NORMAL

(Operating Guide → SETUP menu)

●COMMUNICATION TYPE under COMMUNICATION in SERVICE menu: OFF

(Operating Guide → OPTION menu)

●STACK LOCK in SECURITY menu: OFF

When STACK LOCK is set to ON, menus related to Instant Stack cannot be

operated. You must set it to off during installation and menu setting.

(1) Use the ▲/▼/◄/► buttons to go into the following menu.

ADVANCED MENU > SECURITY (> ENTER PASSWORD) > STACK LOCK

STACK LOCK dialog appears on screen. (Operating

Guide → SECURITY menu)

(2) Use the ▲/▼ buttons to highlight OFF, and press the ►

button to complete the setting.

2. Installation

Installation

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

NOTE • Set the tilt angle of Set A to within 11 degrees from the level line.

• Take the followings into account when considering the installation position.

- VERTICAL adjuster should be set to the upper limit position.

- ZOOM ring should not be set to the widest position.

- HORIZONTAL adjuster is recommended to be set near the center position.

Deciding on the installation position

Decide on the position of Set A and its projection angle. (User’s Manual

(concise) →Adjusting the projector’s elevator)

2.2 Installing the  rst projector (Set A)

WARNING ►You can install the projector for any direction with speci ed

mounting accessories. Consult your dealer about this installation.

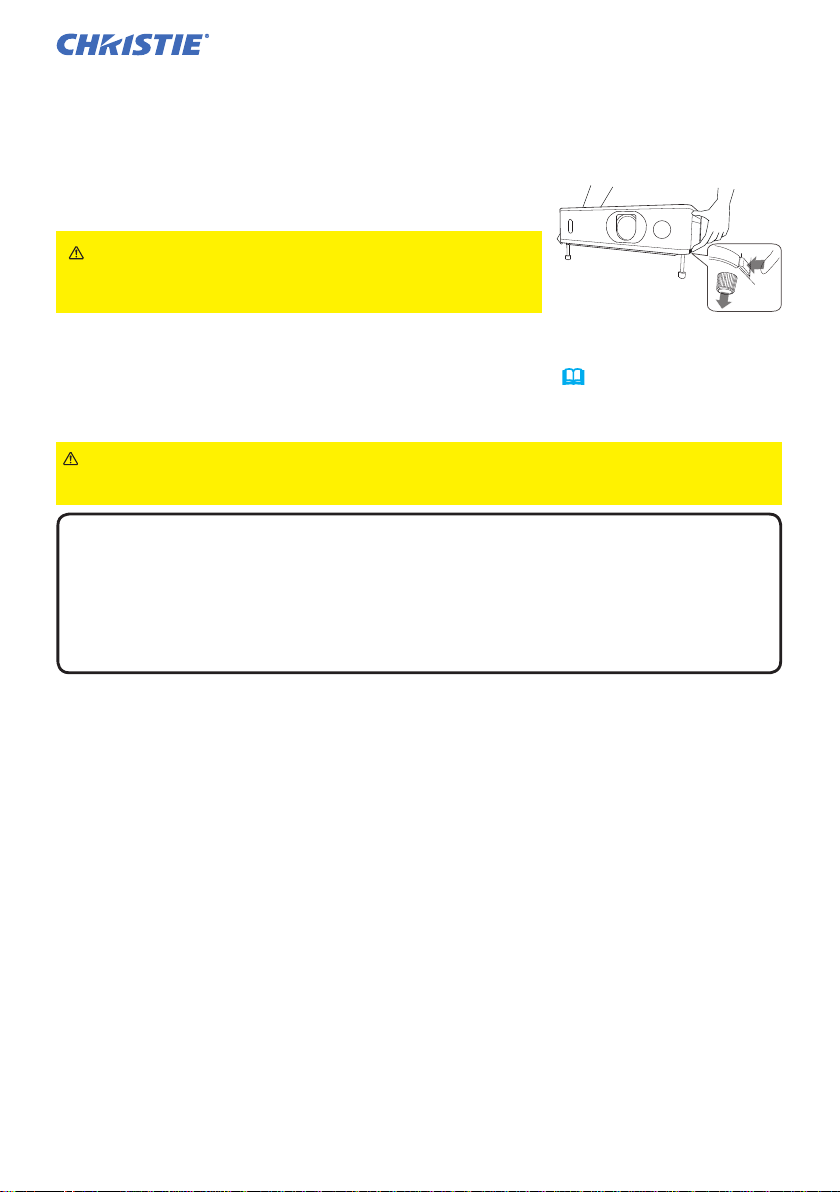

Preparing elevator feet

When stacking the two projectors, set the length of the

elevator feet to the minimum using the elevator buttons

on Set A and B.

CAUTION ► Be careful when stacking the two

projectors, the projector on top may slide down.

Installation

LW502/LWU502/LX602 User's Manual - Instant Stack Guide

020-001085-02 Rev. 1 (02-2018)

(continued on next page)

Setting up Set A

2. Set the lens position to the upper limit with the VERTICAL adjuster.

3. Adjust the image of Set A to t the screen with the VERTICAL adjuster,

HORIZONTAL adjuster, ZOOM ring and FOCUS ring. (User’s Manual (concise)

→ Displaying the picture)

Adjust the image position using KEYSTONE and 3D KEYSTONE if necessary.

(Operating Guide →EASY MENU or SETUP menu)

NOTE • Do not adjust ZOOM ring to the widest position, otherwise the image

of Set B may not superimpose to the image of Set A. Fine adjusting the image

position of Set B electrically does not increase its image size. Use the ZOOM

ring to adjust the image size of Set B to slightly larger than Set A.

• KEYSTONE, 3D KEYSTONE, and WARPING functions cannot be used at

the same time. Use an appropriate function.

• If using Simple Stack, go to 2.3 Installation of the second projector (Set B).

(

)

1. Turn on Set A.

2.2 Installing the rst projector (Set A)

NOTE • If it is not set to the upper limit, the image of Set B may not

superimpose to the image of Set A.

• Run the INSTALLATION setting if necessary as it may change the image

position. (Operating Guide → SETUP menu)

• HORIZONTAL adjuster is recommended to be set near the center position.

Autres manuels pour LW502

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Christie Projecteur

Christie

Christie CP4220 Manuel utilisateur

Christie

Christie 103-008100-01 Manuel utilisateur

Christie

Christie Boxer 4K Series Manuel utilisateur

Christie

Christie DLV1280 DX Manuel utilisateur

Christie

Christie HD5Kc Manuel utilisateur

Christie

Christie LX45 Manuel utilisateur

Christie

Christie APS Series Manuel utilisateur

Christie

Christie 38-VIV210-01 Manuel utilisateur

Christie

Christie boxer 4K30 Manuel utilisateur

Christie

Christie GS Series Manuel utilisateur

Christie

Christie Vivid Blue Manuel utilisateur

Christie

Christie LX1750 Instructions d'installation et d'entretien

Christie

Christie Mirage 4K40-RGB Manuel d'utilisation et d'entretien

Christie

Christie CP2220 Manuel utilisateur

Christie

Christie LX1750C Manuel utilisateur

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie DS Series Manuel utilisateur

Christie

Christie GraphXMASTER DLV1400-DX Manuel utilisateur

Christie

Christie Roadster S4 Manuel utilisateur

Christie

Christie CCM-LX Manuel utilisateur

Christie

Christie LX120 103-006101-01 Manuel utilisateur

Christie

Christie LX501 Manuel utilisateur

Christie

Christie Cinema 4K-RGB Series Manuel utilisateur

Christie

Christie 103-006101-01 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
