Chipsee PPC-CM4-070-D Manuel utilisateur

Industrial PC

PPC-CM4-070-D

PN: CS10600RA4070P-D

Content can change at anytime, check documentation website for latest information.

www.chipsee.com

Contents

31. PPC-CM4-070-D

51.1. Product Overview

61.2. Ordering Options

61.2.1. Pi CM4 Module

61.2.2. Operating System

61.2.3. Optional Features

61.3. 7 inch CM4 Products Comparision

81.4. Specications

101.5. Power Input

111.6. Touch Screen

121.7. Connectivity

121.7.1. RS232/RS485/CAN

131.7.2. GPIO Port

161.7.3. USB Connectors

171.7.4. LAN Connectors

181.7.5. WiFi & BT Module

181.7.6. 3G/4G/LTE Module

201.7.7. Zigbee Module

211.7.8. Camera Connector

231.8. TF Card Slot

241.9. Audio Connectors

251.10. PROG Button

261.11. Mounting Procedure

271.12. Mechanical Specications

271.12.1. PPC-CM4-070-D

271.13. 3D Model

281.14. Disclaimer

281.15. Technical Support

Chipsee IPC Page 2 of 28

PPC-CM4-070-D

Front View

Rear View

PPC-CM4-070-D

Chipsee IPC Page 3 of 28

Side View 1

Side View 2

PPC-CM4-070-D

Chipsee IPC Page 4 of 28

Product Overview

The Cortex -A72 Raspberry Pi series PPC-CM4-070-D (PN: CS10600RA4070P-D) is a high-

quality industrial Pi PC. It features a 7” ve-point capacitive touch screen with a resolution of

1024 x 600 pixels and brightness of 500 cd/m .

Key Applications

Human Machine Interface HMI

Process Control

Process Monitoring

HMI

IIoT node

Environmental Monitoring

PLC

Automotive applications

ATM…

It is available both as an embedded solution and as a device hosed in a casing with bezels,

thus facilitating dierent installation options:

Installation on an industrial cabinet

Integration with the existing equipment

The PPC-CM4-070-D industrial Pi PC is based around the powerful Raspberry Pi Compute

Module 4, powered by the Quad Cortex -A72 processor with a processor speed of 1.5GHz.

® ®

•

PPC-CM4-070-D Product Overview

Chipsee IPC Page 5 of 28

Ordering Options

Chipsee products can be customized during the ordering process. The product will be

shipped with the pre-installed factory defaults if no extra requirements are specied. The

table in the Specications section provides information about the default options bundled

with the product.

Pi CM4 Module

The Pi Compute Module 4 appears in dierent versions depending on the size of the DDR4

and eMMC.

The PPC-CM4-070-D industrial Pi PC does not include the CM4 Raspberry Pi module by

default. If you would like to purchase it with a CM4, you can select it at the Chipsee store

during the ordering process.

Operating System

This product comes with a pre-installed Debian OS. Chipsee software engineers have

created all the drivers, so every hardware feature is readily available for any standard

development tool.

If your project requires a dierent OS, please Contact us, and we’ll make a customized

version that suits your needs.

Optional Features

The PPC-CM4-070-D industrial Pi PC does not include the 3G/4G/LTE modules by default.

These modules are optional and can be selected at the Chipsee store during the ordering

process.

7 inch CM4 Products Comparision

Chipsee provides two 7 inch Industrial Pi PCs, EPC/PPC-CM4-070 and PPC-CM4-070-D, here

is the comparison:

Note

You can order PPC-CM4-070-D from the ocial Chipsee Store or from your nearest distributor.



Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.

Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.



PPC-CM4-070-D Ordering Options

Chipsee IPC Page 6 of 28

Product EPC/PPC-CM4-070 PPC-CM4-070-D

LAN 1 x LAN 2 x LAN

USB-A 2 x USB 2.0 2 x USB 3.0

GPIO 8 x Optical Isolated

GPIO

6 x Raspberry Pi CPU GPIO (Compatible with Pi GPIO Software

Libraries) or 8 x Optical Isolated GPIO

Connectors Distributed on

each side Mostly on the bottom side

Dimension 206 x 135 x 30mm 188.05 x 123.11 x 33.20mm, new case, small and compact

Table 248 Comparison Between the 7 inch CM4 Products

PPC-CM4-070-D 7 inch CM4 Products Comparision

Chipsee IPC Page 7 of 28

Specifications

The PPC-CM4-070-D industrial Pi PC oers a broad range of performance and connectivity

options for scalable integration, providing expandability according to future needs. Some of

the key features are listed in the table below.

PPC-CM4-070-D

CPU Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz

Storage Support for 1 x TF Card3

RAM 2/4/8 GB, Based on CM4

eMMC 16/32 GB, Based on CM4

Display 7” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m

Touch 5-point capacitive touch with 1mm Armored Glass

USB 2 x USB 3.0 Host, 1 x USB Type-C OTG

LAN 2 x Giga LAN

Audio 3.5mm Audio Out Connector, 2W Speaker Internal

Buzzer Onboard Buzzer, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power o (default).

High accuracy RTC with lithium coin battery, can work 3 years after power o

(optional).

RS232 Default to 2 x RS232, up to 4 x RS232

RS485 Default to 2 x RS4851, these 2 x RS485 can be congured as 2 x RS232

CAN 1 x CAN-BUS

GPIO Option 1: 4 x input, 4 x output from expander IC (optical isolated, DEFAULT).

Option 2: 6 x CM4 CPU GPIO (conict with option 1).

I2C Not Supported

WiFi/BT Supported but depending on the CM4 selected2

ZIGBEE Onboard Zigbee module, not mounted by default

HDMI Yes

SATA II Not Supported

3G/4G/LTE Supported, not mounted by default

Camera Yes, not mounted by default. Available on the board in the embedded PC.

Requires a customized case to be exposed in an enclosed PC.

Power Input From 9V to 36V

Current at 12V 700mA (max); 530mA (maximum backlight, idle); 400mA (minimum backlight, idle)

PPC-CM4-070-D Specications

Chipsee IPC Page 8 of 28

The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from

within the software.

The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the

Wi-Fi/BT module at the Chipsee store during the ordering process.

Chipsee designed one TF card slot for CM4 Lite version which has no eMMC to boot OS.

PPC-CM4-070-D

Power

Consumption 8.4W (max); 6.36W (maximum backlight, idle); 4.8W (minimum backlight, idle)

Working

Temperature From 0°C to +60°C

OS Debian

Dimensions PPC-CM4-070-D: 188.05 x 123.11 x 33.20mm

Weight PPC-CM4-070-D: 700g

Table 249 Key Features

PPC-CM4-070-D Specications

Chipsee IPC Page 9 of 28

Power Input

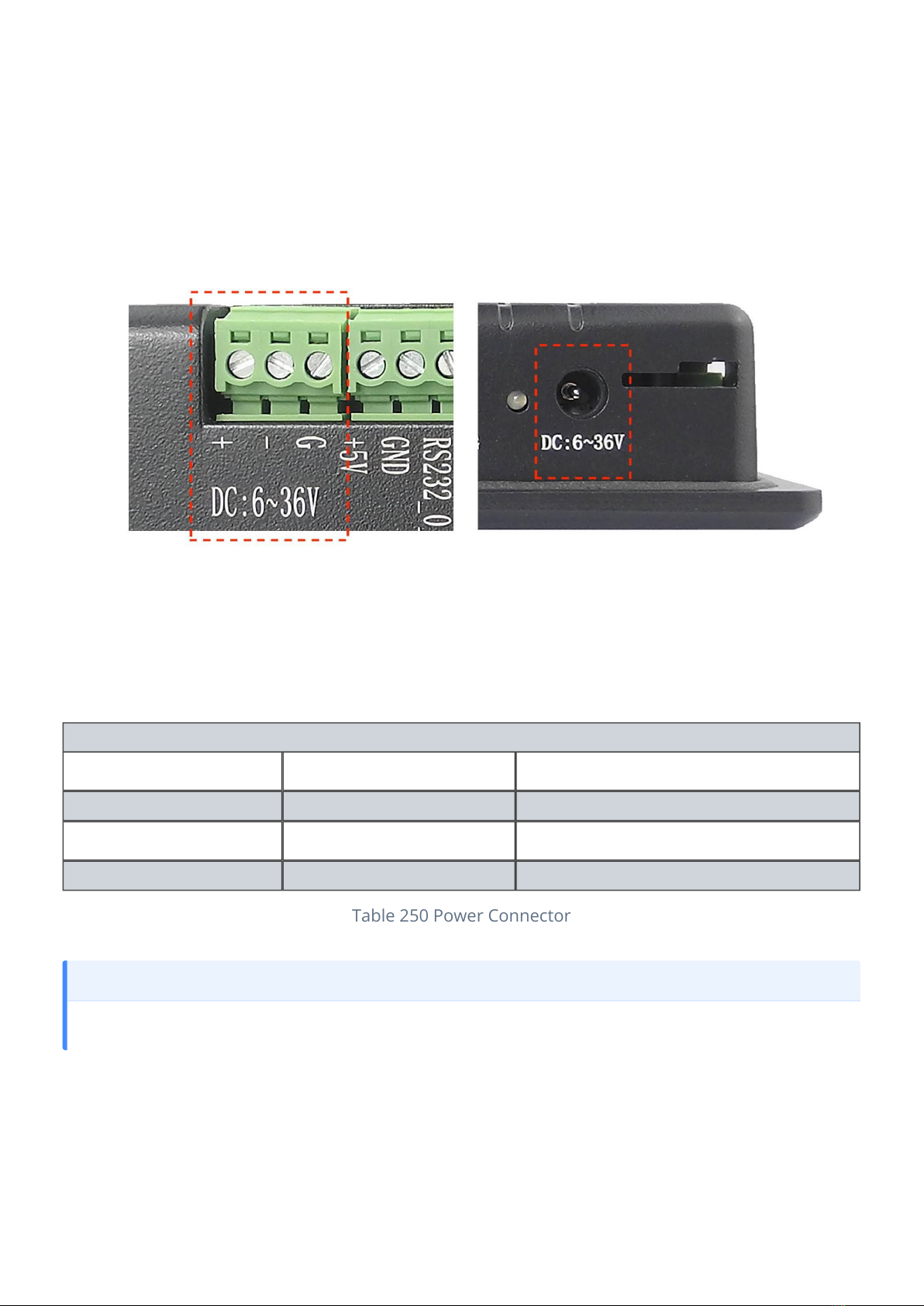

The PPC-CM4-070-D industrial Pi PC can be powered by a wide range of input voltages:

From 9V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm

screw terminal connector, and the other is a 2.1mm DC input head. As shown in the

gure below.

Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the

casing and as a silk-screen on the board of the embedded version. The “-” terminal is

shorted to the ground.

Power Input Denition

Pin Number Denition Description

Pin 1 Positive Input DC Power Positive Terminal

Pin 2 Negative Input DC Power Negative Terminal

Pin 3 Ground Power System Ground

Table 250 Power Connector

Note

The system ground “G” is connected to power negative “-” on board.



PPC-CM4-070-D Power Input

Chipsee IPC Page 10 of 28
