Chipsee EPC-A72-101-C Manuel utilisateur

Industrial PC

EPC/PPC-A72-101-C

PN: CS12800R101

Revision 1.1

www.chipsee.com

Contents

31. EPC/PPC-A72-101-C

41.1. Product Overview

51.2. Ordering Options

51.2.1. Operating System

61.2.2. Optional Features

61.3. Hardware Features

71.4. Power Input

81.5. Touch Screen

91.6. Connectivity

91.6.1. RS232+RS485 Connector

111.6.2. USB Connectors

121.6.3. LAN Connectors

131.6.4. WiFi & BT Module

131.6.5. 4G/LTE Module

141.6.6. GPIO Port

161.7. TF Card Slot

161.8. Audio Connectors

171.9. HDMI Connector

171.10. Power Button

171.11. Mounting Procedure

181.11.1. EPC-A72-101-C

181.11.2. PPC-A72-101-C

181.12. Mechanical Specications

181.12.1. EPC-A72-101-C

191.12.2. PPC-A72-101-C

201.13. Disclaimer

201.14. Technical Support

Chipsee IPC Page 2 of 20

EPC/PPC-A72-101-C

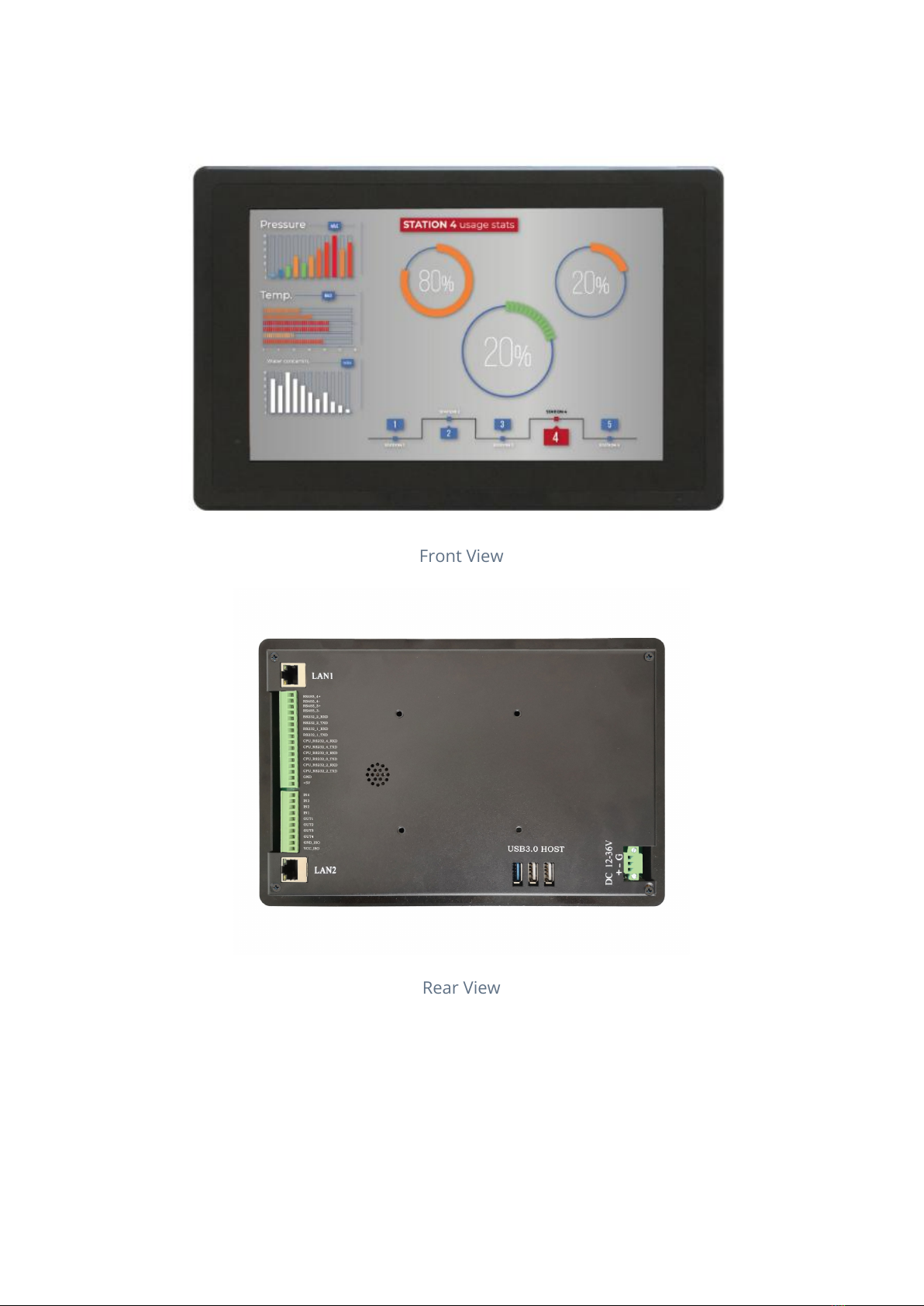

Front View

Rear View

EPC/PPC-A72-101-C

Chipsee IPC Page 3 of 20

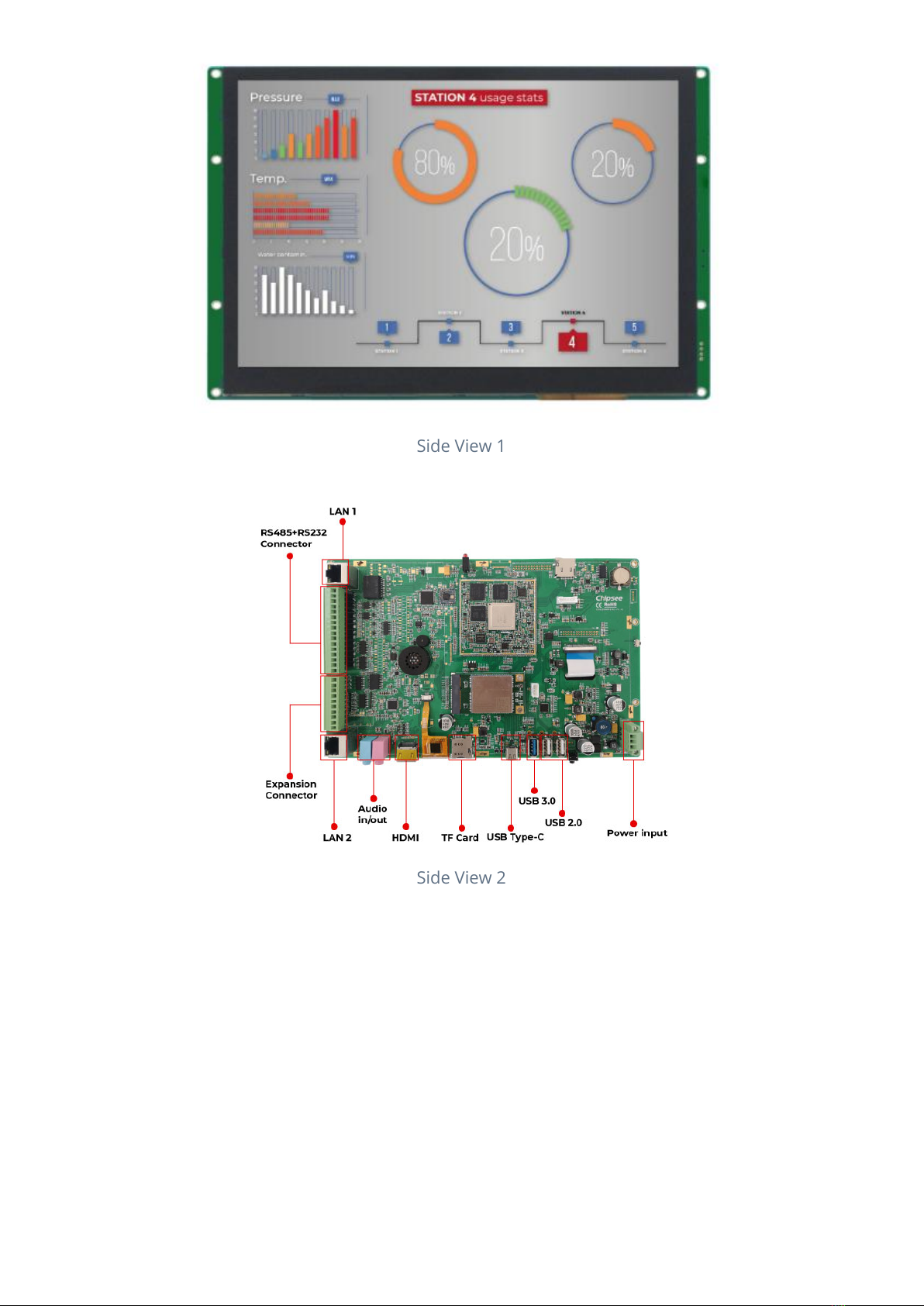

Side View 1

Side View 2

Product Overview

The Cortex -A72/53 series EPC/PPC-A72-101-C (PN: CS12800R101) is a high-quality

industrial panel PC. It features a 10.1” ten-point capacitive touch screen with a resolution of

1280 x 800 pixels and brightness of 250 cd/m .

Key Applications

Human Machine Interface HMI

Mobile Applications

Video Processing

•

EPC/PPC-A72-101-C Product Overview

Chipsee IPC Page 4 of 20

Machine Learning

Video Gaming

Process Control

Process Monitoring

ATM…

It is available both as an embedded solution and as a device hosed in an aluminum casing

with bezels, thus facilitating dierent installation options:

Installation on an industrial cabinet

Integration with the existing equipment

The EPC/PPC-A72-101-C Industrial Panel PC is based around the powerful CS-SOM-RK3399

System on Module (SoM), powered by the Rockchip RK3399 low-power processor which

integrates a dual-core Cortex -A72 and a quad-core Cortex -A53 with a separate NEON

coprocessor.

The RK3399 supports multi-format video decoders and has a high-performance dual-

channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining

demanding memory bandwidths. It also provides a complete set of peripheral interfaces.

Ordering Options

Chipsee products can be customized during the ordering process. The product will be

shipped with the pre-installed factory defaults if no extra requirements are specied. The

table in the Hardware Features section provides information about the default options

bundled with the product.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the

supported OSes, which can be also obtained from the Software Documentation section,

along with the detailed installation instructions.

Chipsee Linux*

Android 7.1

Debian 10

•

® ®

Note

You can order The EPC/PPC-A72-101-C Industrial Panel PC from the ocial Chipsee Store or from your nearest

distributor.



•

EPC/PPC-A72-101-C Ordering Options

Chipsee IPC Page 5 of 20

*Chipsee Linux is based on buildroot that has been integrated with:

Chipsee Hardware Test Application

An initialization script for GPIO/Buzzer/Audio

Multiple libraries, such as the libQt5Sql to develop Qt application with SQL

Various packages, such as the ntfs-3g to use NTFS le system

Optional Features

The EPC/PPC-A72-101-C Industrial Panel PC does not include 4G/LTE module by default. The

module is optional and can be selected at the Chipsee store during the ordering process.

Hardware Features

The EPC/PPC-A72-101-C Industrial Panel PC oers a broad range of performance and

connectivity options for scalable integration, providing expandability to meet future needs.

Some of the key features are listed in the table below.

Warning

The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.

However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”

your device, please contact Chipsee Technical Support at [email protected] for further assistance



Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.

Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.



EPC/PPC-A72-101-C

CPU Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53

(1.4GHz)

RAM 4GB DDR3

eMMC 16GB

Storage TF Card, Supports up to 32GB SDHC

Display 10.1” LCD, 1280 x 800, High Brightness: 250 cd/m

Touch 10-point capacitive touch screen

USB 2 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C

LAN 1 x RJ45, GbE

Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker

Buzzer Yes

EPC/PPC-A72-101-C Optional Features

Chipsee IPC Page 6 of 20

1(1,2)This product has 7 x UART channels in total. The default conguration is 5 x RS232 and 2 x RS485. UART can

be swapped between RS232 and RS485 modes easily, so if you need dierent RS232/RS485 conguration,

please get in touch with the Chipsee Technical Support at [email protected]

Power Input

The EPC/PPC-A72-101-C Industrial Panel PC can be powered by a wide range of input

voltages: From 15V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The

polarity and the pinout is clearly marked on the housing of the product as shown on the

gure below.

EPC/PPC-A72-101-C

RTC Yes

RS232 5 x RS2321

RS485 2 x RS485 (Optional 4 x RS485 at most, 1 debug port)1

GPIO 8 Channels

WiFi/BT Integrated WiFi/BT Module

HDMI 1 x HDMI

4G/LTE Supported, Optional

Power Input From 15V to 36V

Current at 15V 500mA Max

Power Consumption 7.5W Typical

Working

Temperature From -20°C to +70°C

OS Android 7.1

Dimensions EPC-A72-101-C (PN: CS12800R101E): 245 x 155 x 11mm

PPC-A72-101-C (PN: CS12800R101P): 280 x 185.5 x 27.5mm

Weight EPC-A72-101-C (PN: CS12800R101E): 600g

PPC-A72-101-C (PN: CS12800R101P): 1500g

Mounting EPC-A72-101-C (PN: CS12800R101E): Embedded

PPC-A72-101-C (PN: CS12800R101P): Panel

Table 109 Key Features

EPC/PPC-A72-101-C Power Input

Chipsee IPC Page 7 of 20

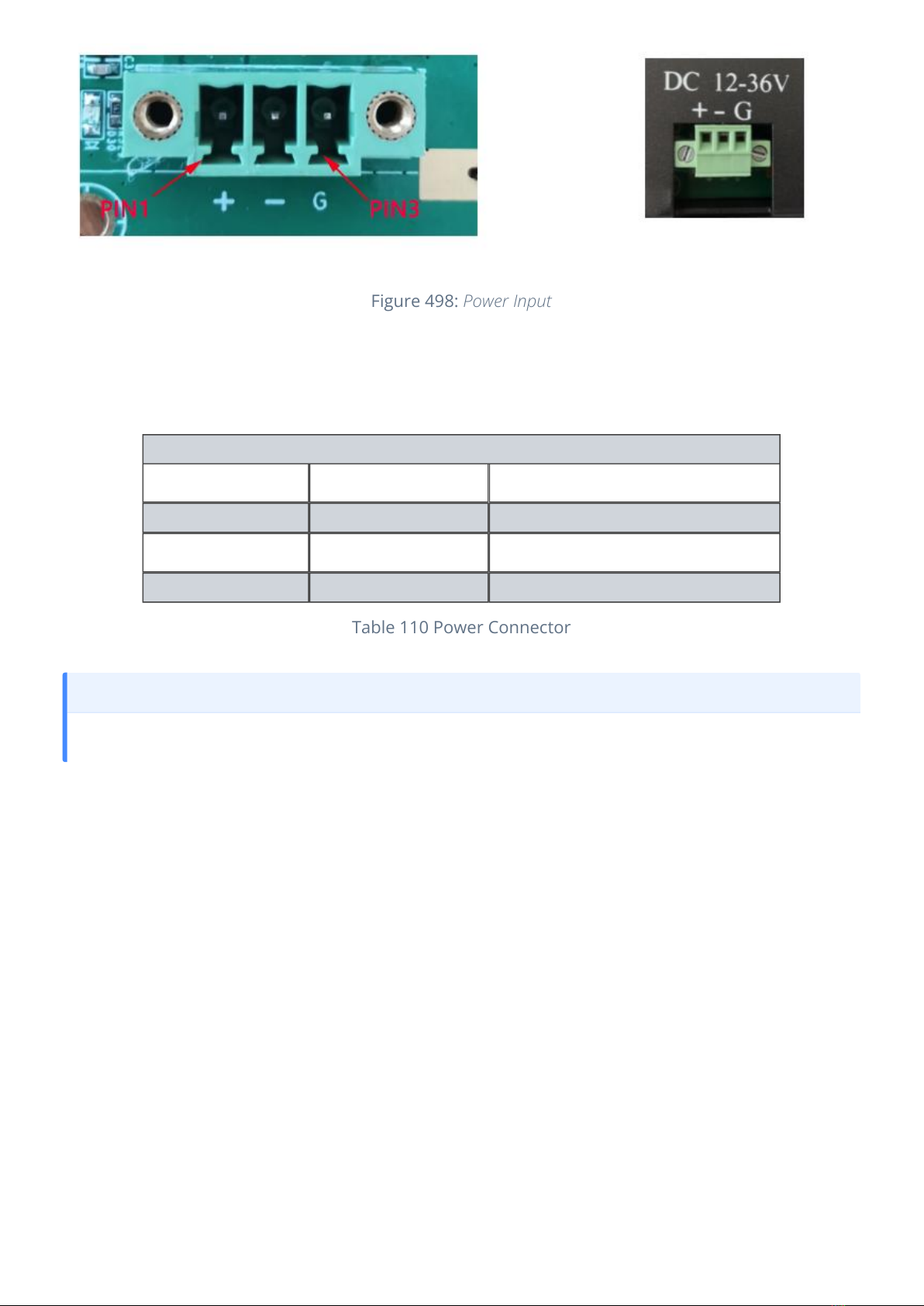

Figure 498: Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the

casing and as a silk-screen on a PCB of the embedded version. The “-” terminal is shorted to

the ground.

Touch Screen

The EPC/PPC-A72-101-C Industrial Panel PC uses a 10-point capacitive touch screen.

Power Input Denition

Pin Number Denition Description

Pin 1 Positive Input DC Power Positive Terminal

Pin 2 Negative Input DC Power Negative Terminal

Pin 3 Ground Power System Ground

Table 110 Power Connector

Note

The system ground “G” is connected to power negative “-” on board.



EPC/PPC-A72-101-C Touch Screen

Chipsee IPC Page 8 of 20

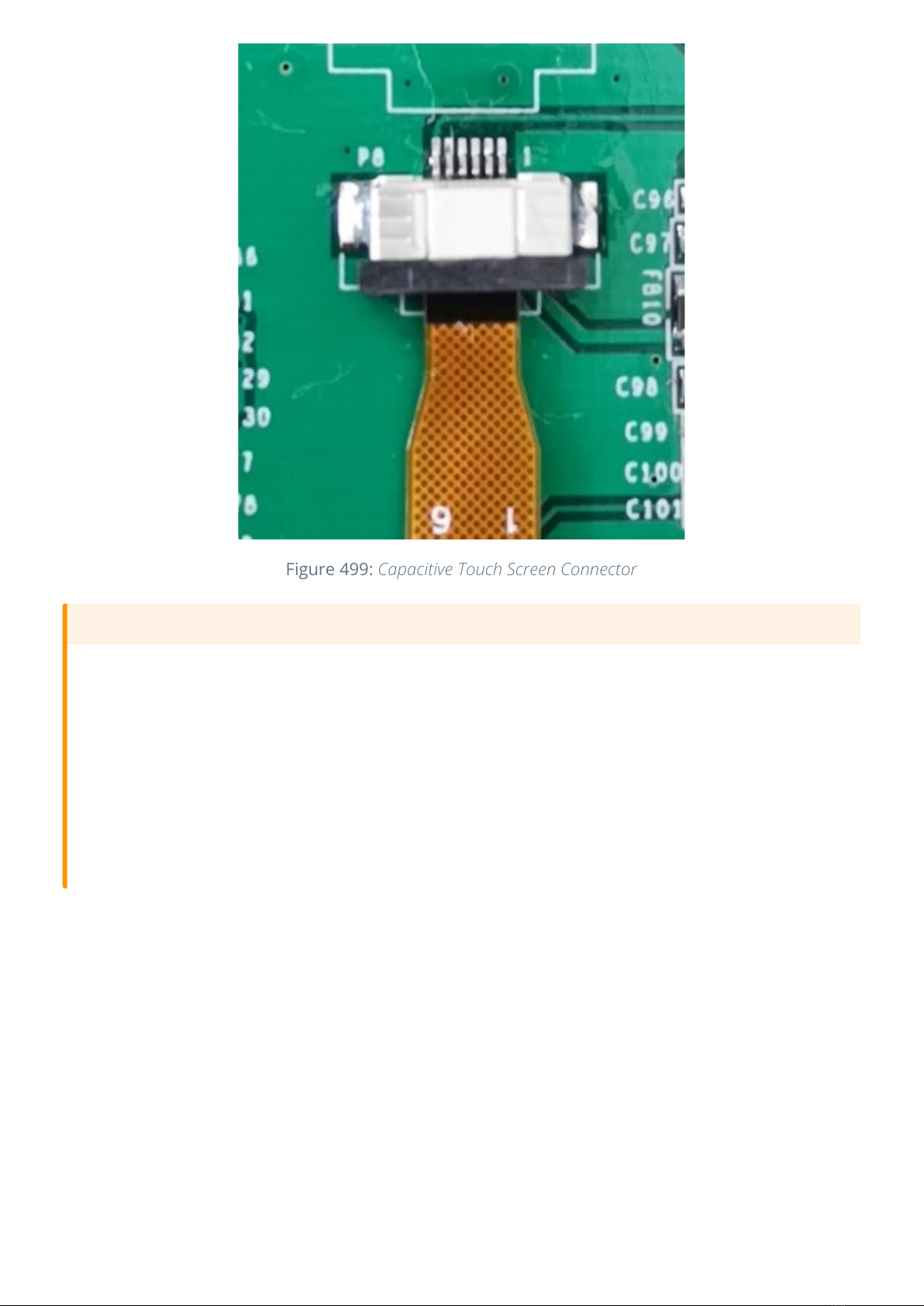

Figure 499: Capacitive Touch Screen Connector

Connectivity

There are many connectivity options available on the EPC/PPC-A72-101-C industrial PC. It

has 2 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, 1 x network connector (RJ45)

supporting up to 1 Gbps, and 7 x UART terminals (RS232/485).

RS232+RS485 Connector

The serial communication interfaces (RS485 and RS232) are routed to a 16-pin 3.81mm

terminal, as illustrated in the gure below. Serial communication on both RS485 and RS232

interfaces can reach up to 115200 kbps.

Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples

or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch

points oat erratically across the display. There are several solutions to this problem:

Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

Make sure that the EPC/PPC-A72-101-C Power Input connector (pin 3) is properly connected to the Power System

Ground to provide sucient EMI shielding and eliminate the problem entirely.

Bad GND problem can also be conrmed by touching pin 3 of the Power Input connector with one hand while

operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power

System Ground.



EPC/PPC-A72-101-C Connectivity

Chipsee IPC Page 9 of 20

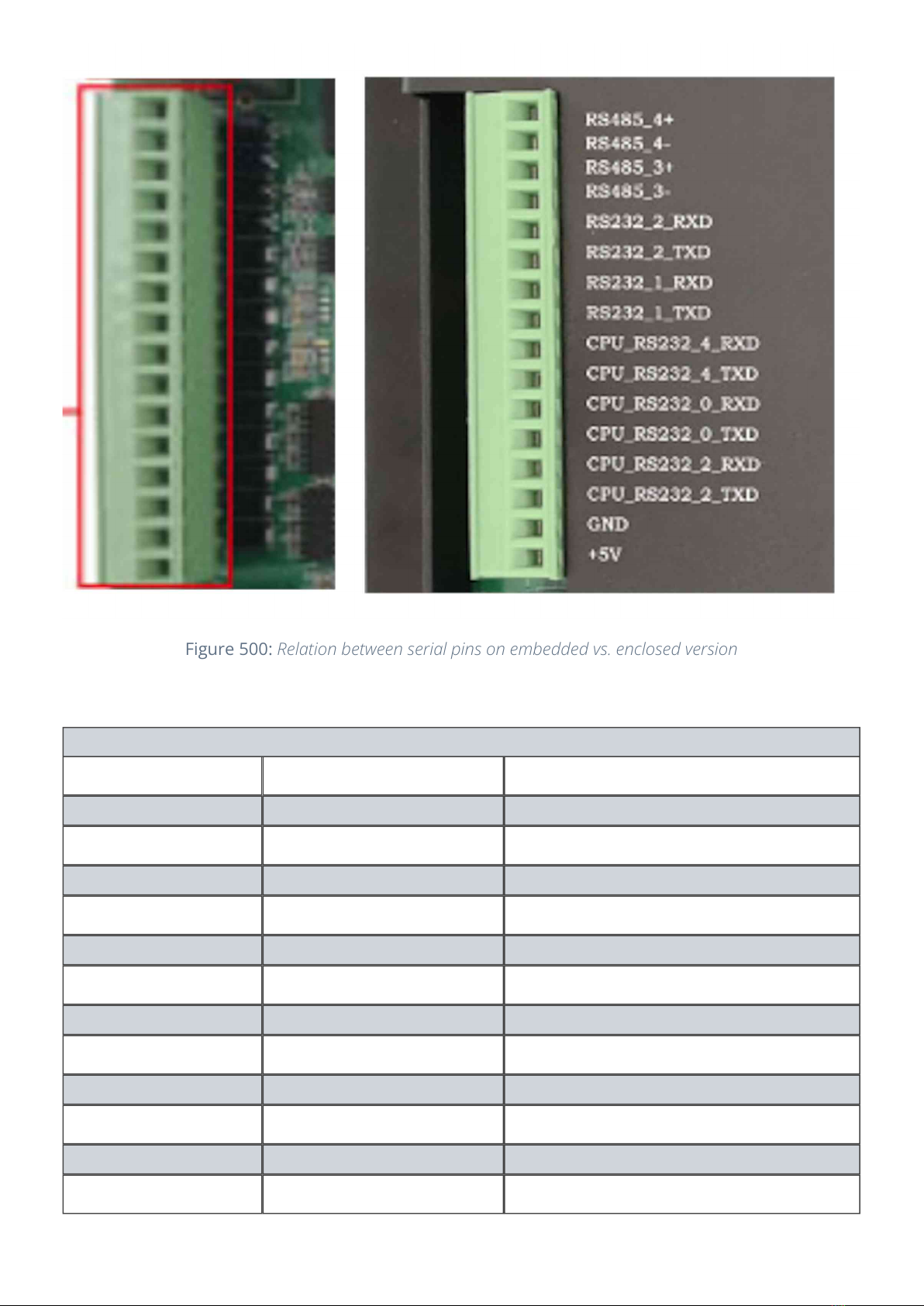

Figure 500: Relation between serial pins on embedded vs. enclosed version

The table below oers more detailed description of every pin and its denition:

RS232 / RS485 / CAN Pin Denition:

Pin Number Denition Description

Pin 1 RS485_4+ USB UART4, RS485 +(A) signal

Pin 2 RS485_4- USB UART4, RS485 -(B) signal

Pin 3 RS485_3+ USB UART3, RS485 +(A) signal

Pin 4 RS485_3- USB UART3, RS485 -(B) signal

Pin 5 RS232_2_RXD USB UART2, RS232 RXD signal

Pin 6 RS232_2_TXD USB UART2, RS232 TXD signal

Pin 7 RS232_1_RXD USB UART1, RS232 RXD signal

Pin 8 RS232_1_TXD USB UART1, RS232 TXD signal

Pin 9 CPU_RS232_4_RXD CPU UART4, CPU RS232 RXD signal

Pin 10 CPU_RS232_4_TXD CPU UART4, CPU RS232 TXD signal

Pin 11 CPU_RS232_0_RXD CPU UART0, CPU RS232 RXD signal

Pin 12 CPU_RS232_0_TXD CPU UART0, CPU RS232 TXD signal

EPC/PPC-A72-101-C RS232+RS485 Connector

Chipsee IPC Page 10 of 20
