Chipsee CS-A55-BOX Manuel utilisateur

Industrial PC

CS-A55-BOX

PN: CS-RK3568-BOX

Content can change at anytime, check documentation website for latest information.

www.chipsee.com

Contents

3CS-A55-BOX

71. Product Overview

82. Ordering Options

82.1. Operating System

92.2. Optional Features

103. Hardware Features

124. Power Input

145. Connectivity

145.1. RS232/RS485/CAN

165.2. USB Connectors

185.3. LAN Connectors

195.4. WiFi & BT Module

205.5. 4G/LTE Module

226. TF Card & SIM Card Slot

237. Audio Connectors

248. HDMI Connector

259. PROG Button

2610. GPIO

2911. Mounting Procedure

3012. Mechanical Specications

3113. Disclaimer

3114. Technical Support

Chipsee IPC Page 2 of 31

CS-A55-BOX

Front View

CS-A55-BOX

Chipsee IPC Page 3 of 31

Rear View

CS-A55-BOX

Chipsee IPC Page 4 of 31

Side View 1

CS-A55-BOX

Chipsee IPC Page 5 of 31

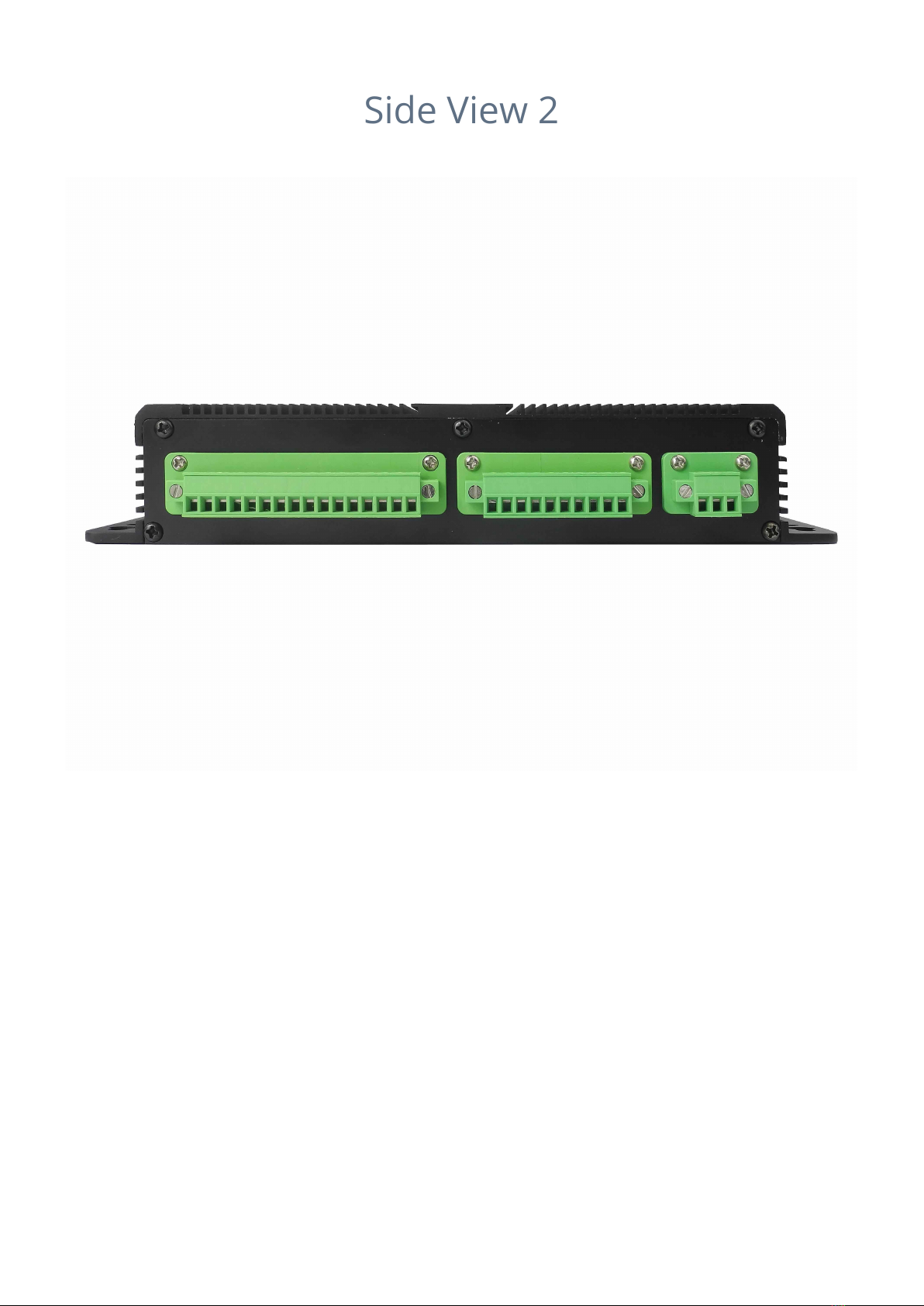

Side View 2

CS-A55-BOX

Chipsee IPC Page 6 of 31

Product Overview

The fanless embedded PC CS-A55-BOX (PN: CS-RK3568-BOX) is a Cortex -A55 series high-

quality industrial PC. Thanks to the fanless design, it is stable and reliable in client terminal,

multimedia and other industry applications.

Key Applications

Industrial Automation

Process Control

Smart Grid Management

CNC Manufacturing

Environmental Monitoring

Predictive Maintenance

The oered CPU consumes very little power, around 4.35W (max). From the ground-up, the

CPU is built for low power consumption. As such, it is best suited for mobile and power-

constrained industrial or eld applications. A specially designed aluminum alloy housing

with ns for increased heat dissipation serves as a passive cooler, eliminating the need for

built-in fans. The fanless design reduces noise, as well as the maintenance costs and eorts,

leading to increased reliability at the same time.

The CS-A55-BOX Industrial PC is based around the powerful RK3568 System on Chip (SoC),

Cortex -A55 2.0GHz processor.

The RK3568 supports multi-format video decoders and has a high-performance 2GB

LPDDR4 RAM capable of sustaining demanding memory bandwidths. It also provides a

complete set of peripheral interfaces.

•

CS-A55-BOX Product Overview

Chipsee IPC Page 7 of 31

Ordering Options

Chipsee products can be customized during the ordering process. The product will be

shipped with the pre-installed factory defaults if no extra requirements are specied. The

table in the Hardware Features section provides information about the default options

bundled with the product.

Operating System

This product comes with a pre-installed OS of your choice. Please see the list below for the

supported OSes, which can also be obtained from the Software Documentation section,

along with the detailed installation instructions.

Debian 11

Android 11

Buildroot Linux Qt 5.15

Note

You can order the CS-A55-BOX from the ocial Chipsee Store or from your nearest distributor.



•

Warning

The Software Documentation section provides a detailed instruction on how to install dierent OSes on your own.

However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick”

your device, please contact Chipsee Technical Support at [email protected] for further assistance



CS-A55-BOX Ordering Options

Chipsee IPC Page 8 of 31

Optional Features

The CS-A55-BOX Industrial PC does not include 4G/LTE module by default. The module is

optional and can be selected at the Chipsee store during the ordering process.

Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear

any responsibility for damage caused by inadequate handling of the product.



CS-A55-BOX Optional Features

Chipsee IPC Page 9 of 31

Hardware Features

The CS-A55-BOX Industrial PC oers a broad range of performance and connectivity options

for scalable integration, providing expandability according to future needs. Some of the key

features are listed in the table below.

CS-A55-BOX

CPU Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz)

RAM 2GB LPDDR4

eMMC 16GB

SSD N/A

Storage TF Card, Supports up to 128GB SDHC

Display N/A

HDMI 1 x HDMI-D (Micro-HDMI) Out

Touch N/A

USB 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C

LAN 2 x RJ45, GbE

POE Supported for 1 x optional POE RJ45

Audio 3.5mm Audio In/Out Connector, 2W Internal Speaker

Buzzer Yes

RTC

High accuracy RTC with farad capacitor, can work 1 week after power o (default).

High accuracy RTC with lithium coin battery, can work 3 years after power o

(optional).

RS232 default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port)1

RS485 default 3 x RS485 at most1

CAN default 2 x CAN

GPIO 8 Channels Isolated IO, 4 x Input and 4 x Output

WiFi/BT Integrated WiFi/BT Module

4G/LTE Supported, Optional

Power Input From 6V to 36V

Current 290mA (max) at 15V

Power

Consumption 4.35W (max)

Working

Temperature From 0°C to +60°C

CS-A55-BOX Hardware Features

Chipsee IPC Page 10 of 31
