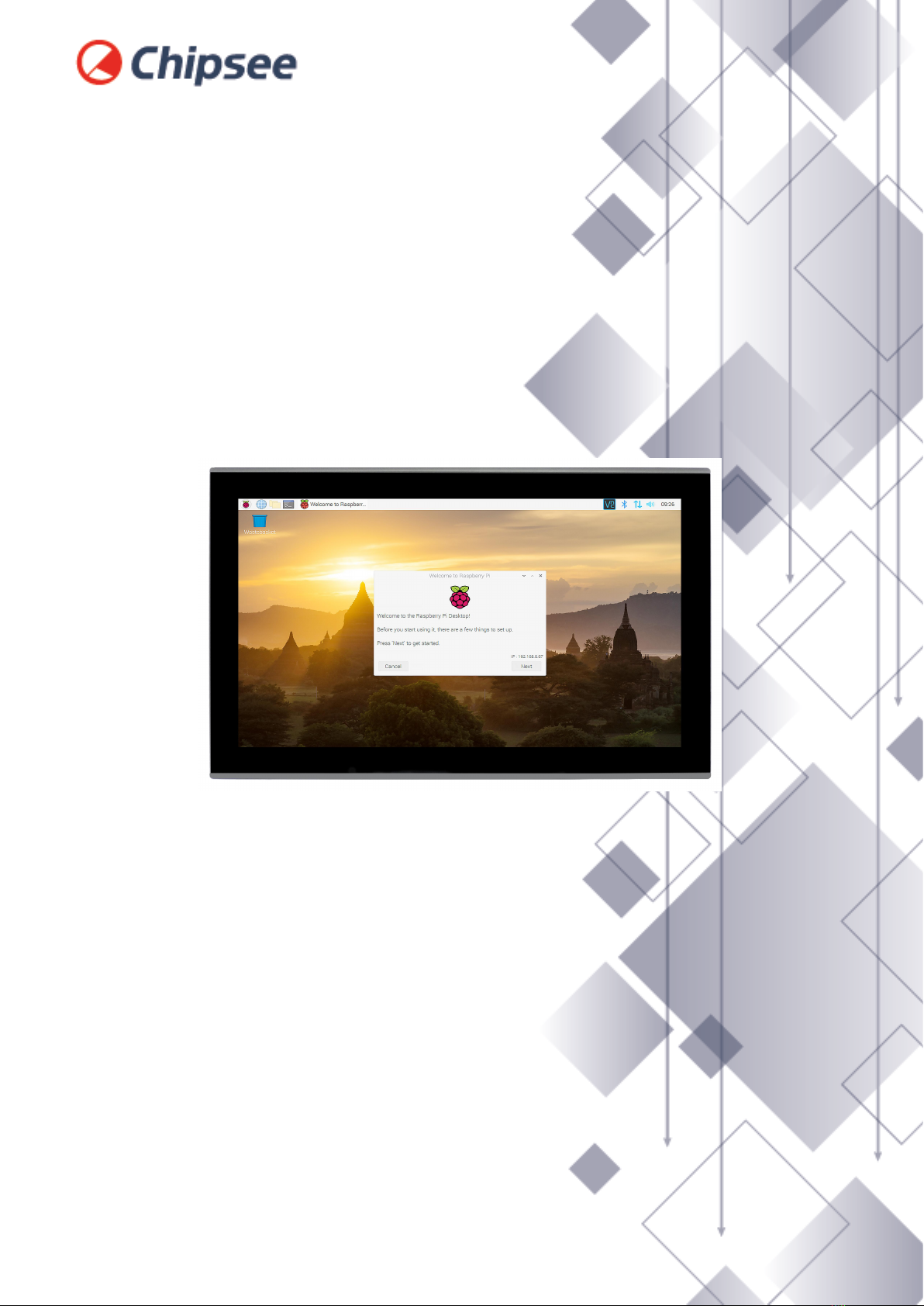

Chipsee PPC-CM4-236 Manuel utilisateur

Industrial PC

PPC-CM4-236

PN: CS19108RA4236

Content can change at anytime, check documentation website for latest information.

www.chipsee.com

Contents

31. PPC-CM4-236

51.1. Product Overview

61.2. Ordering Options

61.2.1. Pi CM4 Module

61.2.2. Operating System

61.2.3. Optional Features

71.3. Specications

91.4. Power Input

101.5. Touch Screen

111.6. Connectivity

111.6.1. RS232/RS485/CAN

121.6.2. GPIO Port

141.6.3. USB Connectors

151.6.4. LAN Connectors

161.6.5. WiFi & BT Module

161.6.6. 3G/4G/LTE Module

171.6.7. Zigbee Module

201.7. TF Card Slot

211.8. Audio Connectors

221.9. PROG Button

231.10. Mounting Procedure

241.11. Mechanical Specications

241.11.1. CS19108RA4236P

251.12. Disclaimer

251.13. Technical Support

Chipsee IPC Page 2 of 25

PPC-CM4-236

Front View

Rear View

PPC-CM4-236

Chipsee IPC Page 3 of 25

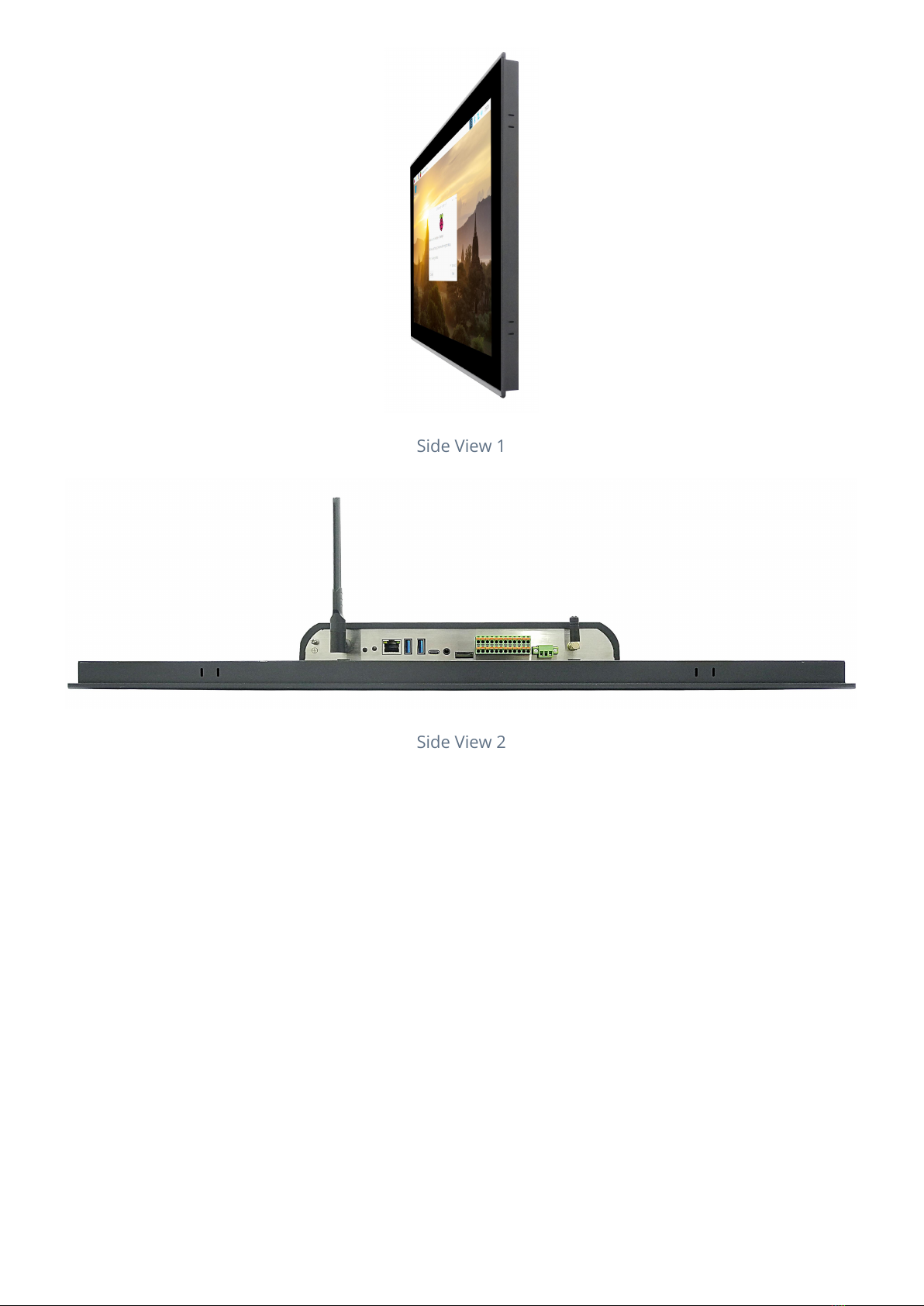

Side View 1

Side View 2

PPC-CM4-236

Chipsee IPC Page 4 of 25

Product Overview

The Cortex -A72 Raspberry Pi series PPC-CM4-236 (PN: CS19108RA4236) is a high-quality

industrial Pi PC. It features a 23.6” Ten-point capacitive touch screen with a resolution of

1920 x 1080 pixels and brightness of 400 cd/m .

Key Applications

Human Machine Interface HMI

Process Control

Process Monitoring

HMI

IIoT node

Environmental Monitoring

PLC

Automotive applications

ATM…

It is available both as an embedded solution and as a device hosed in a casing with bezels,

thus facilitating dierent installation options:

Installation on an industrial cabinet

Integration with the existing equipment

The PPC-CM4-236 industrial Pi PC is based around the powerful Raspberry Pi Compute

Module 4, powered by the Quad Cortex -A72 processor with a processor speed of 1.5GHz.

® ®

•

PPC-CM4-236 Product Overview

Chipsee IPC Page 5 of 25

Ordering Options

Chipsee products can be customized during the ordering process. The product will be

shipped with the pre-installed factory defaults if no extra requirements are specied. The

table in the Specications section provides information about the default options bundled

with the product.

Pi CM4 Module

The Pi Compute Module 4 appears in dierent versions depending on the size of the DDR4

and eMMC.

The PPC-CM4-236 industrial Pi PC does not include the CM4 Raspberry Pi module by

default. If you would like to purchase it with a CM4, you can select it at the Chipsee store

during the ordering process.

Operating System

This product comes with a pre-installed Debian OS. Chipsee software engineers have

created all the drivers, so every hardware feature is readily available for any standard

development tool.

If your project requires a dierent OS, please Contact us, and we’ll make a customized

version that suits your needs.

Optional Features

The PPC-CM4-236 industrial Pi PC does not include the 3G/4G/LTE modules by default.

These modules are optional and can be selected at the Chipsee store during the ordering

process.

Note

You can order PPC-CM4-236 from the ocial Chipsee Store or from your nearest distributor.



Warning

Installation, repair, and maintenance tasks should be performed by trained personnel only.

Chipsee does not bear any responsibility for damage caused by inadequate handling of the product.



PPC-CM4-236 Ordering Options

Chipsee IPC Page 6 of 25

Specifications

The PPC-CM4-236 industrial Pi PC oers a broad range of performance and connectivity

options for scalable integration, providing expandability according to future needs. Some of

the key features are listed in the table below.

PPC-CM4-236

CPU Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz

Storage Support for 1 x TF Card3

RAM 2/4/8 GB, Based on CM4

eMMC 16/32 GB, Based on CM4

Display 23.6” IPS LCD, 1920 x 1080 resolution px, brightness 400 cd/m

Touch 10-point capacitive touch with 1mm Armored Glass

USB 2 x USB 3.0 Host, 1 x USB OTG

LAN 1 x Channel Giga LAN

Audio 3.5mm Audio Out Connector, 2W Speaker Internal

Buzzer Onboard Buzzer, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power o (default).

High accuracy RTC with lithium coin battery, can work 3 years after power o

(optional).

RS232 Default to 2 x RS232, up to 4 x RS232

RS485 Default to 2 x RS4851, these 2 x RS485 can be congured as 2 x RS232

CAN 1 x CAN-BUS

GPIO 8 Channels, 4 Input, 4 Output

I2C Not Supported

WiFi/BT Supported but depending on the CM4 selected2

ZIGBEE Onboard Zigbee module, not mounted by default

HDMI Not Supported

SATA II Not Supported

3G/4G/LTE Supported, not mounted by default

Camera No

Power Input From 12V to 36V

Current at 12V 1.96A Max

Power

Consumption 19.92W (12V x 1.66A) Typical, 23.52W (12V x 1.96A) Max

PPC-CM4-236 Specications

Chipsee IPC Page 7 of 25

The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from

within the software.

The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the

Wi-Fi/BT module at the Chipsee store during the ordering process.

This TF card is designed for storage expansion, as the TF card uses the same pins with WiFi, it can’t be used

with WiFi at the same time

PPC-CM4-236

Working

Temperature From 0°C to +50°C

OS Debian

Dimensions CS19108RA4236P: 595 x 374 x 57.25mm

Weight CS19108RA4236P: 7500g

Table 279 Key Features

PPC-CM4-236 Specications

Chipsee IPC Page 8 of 25

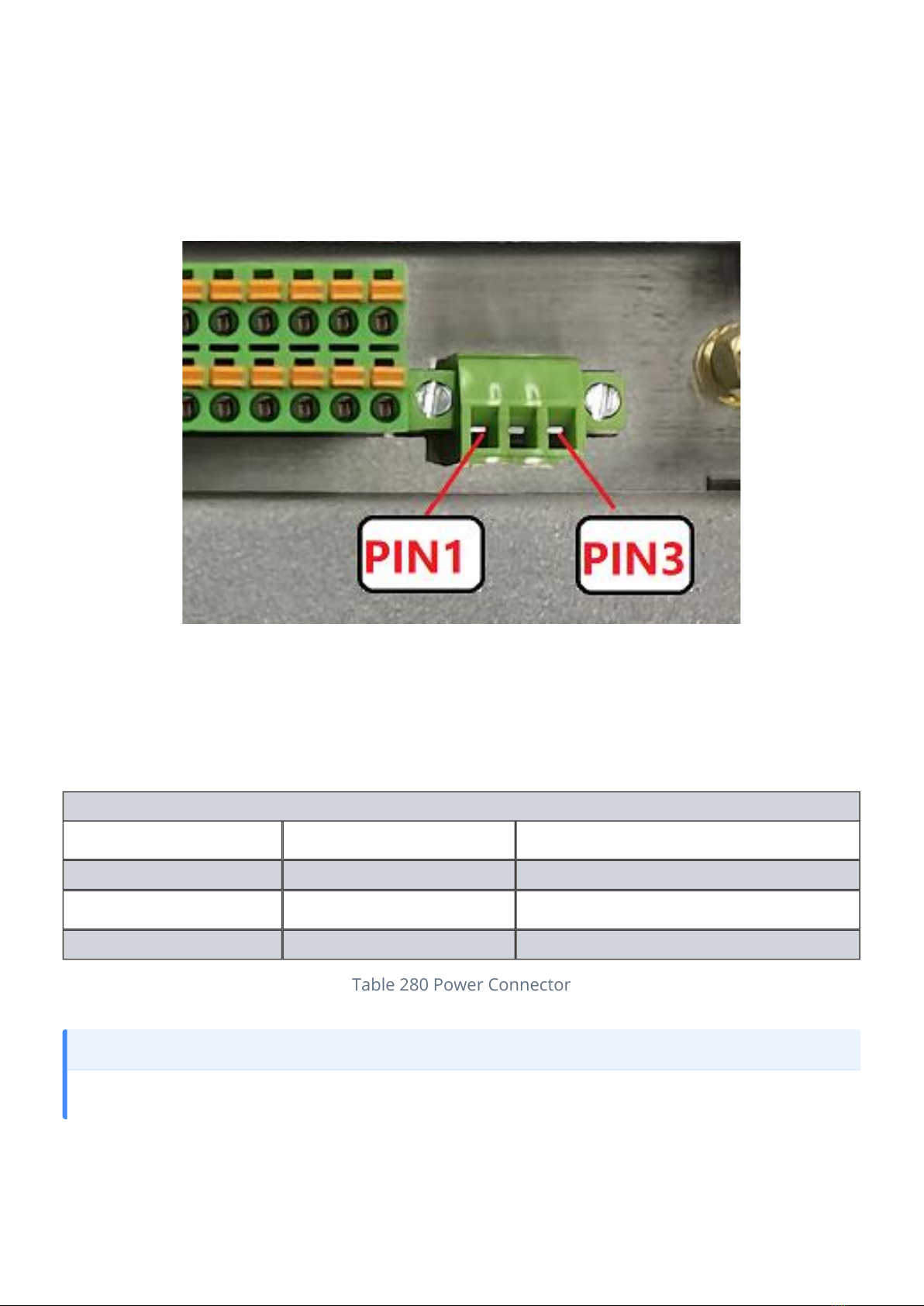

Power Input

The PPC-CM4-236 industrial Pi PC can be powered by a wide range of input voltages: From

12V to 36V DC. It is a 3 Pin, 3.81mm screw terminal connector. As shown in the gure

below.

Power Input

Note that the “+” sign represents the positive power input, and it is printed both at the

casing and as a silk-screen on the board of the embedded version. The “-” terminal is

shorted to the ground.

Power Input Denition

Pin Number Denition Description

Pin 1 Positive Input DC Power Positive Terminal

Pin 2 Negative Input DC Power Negative Terminal

Pin 3 Ground Power System Ground

Table 280 Power Connector

Note

The system ground “G” is connected to power negative “-” on board.



PPC-CM4-236 Power Input

Chipsee IPC Page 9 of 25

Touch Screen

The PPC-CM4-236 industrial Pi PC uses a 10-point capacitive touch screen. However, the

Debian OS supports only One-Point touch.

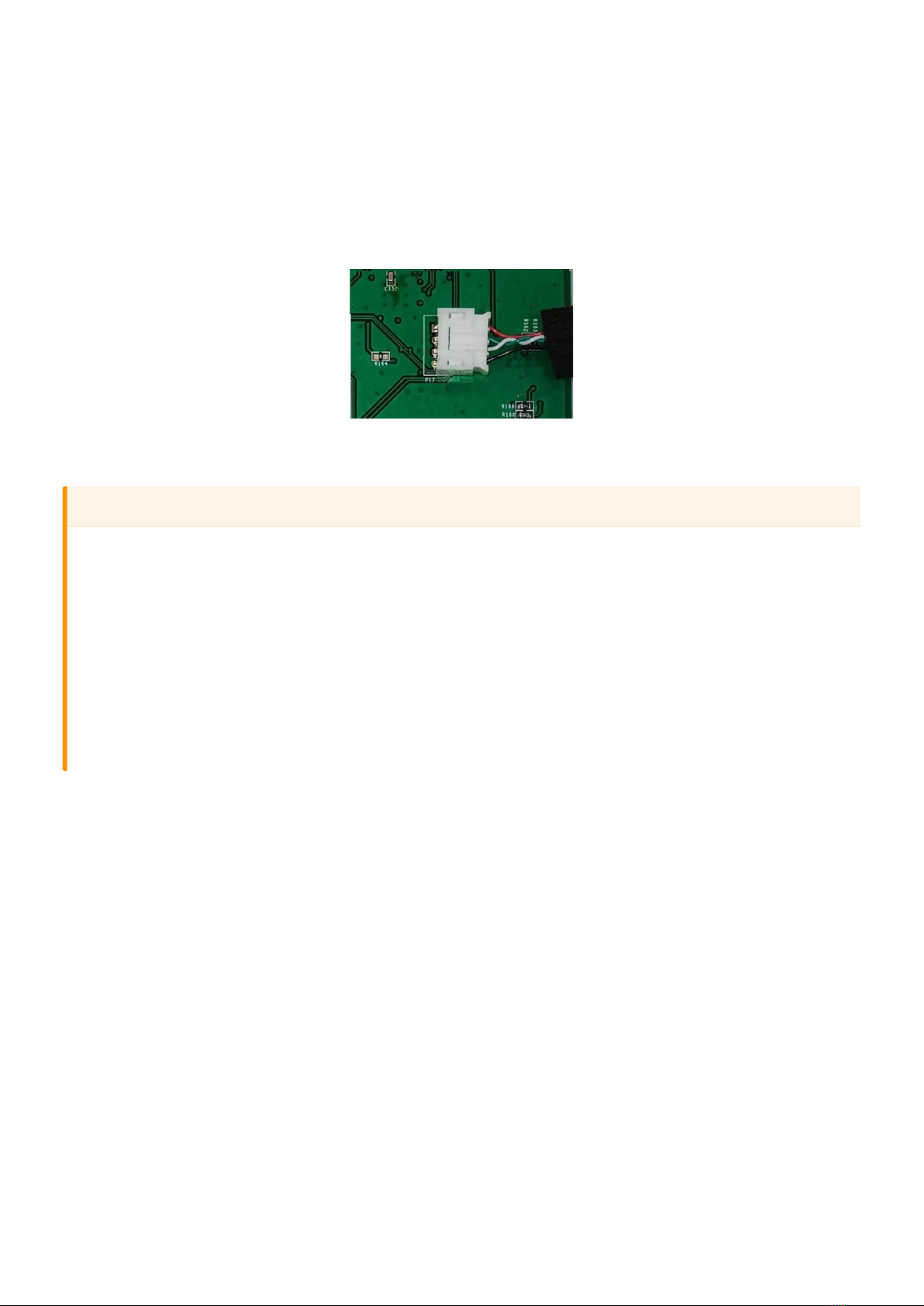

The gure below shows the capacitive touch screen connected to the motherboard via the

USB connector.

Capacitive Touch Connector

Attention

A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples

or even capacitive touch malfunction. If using a capacitive multi-touch test application, you might notice the touch

points oat erratically across the display. There are several solutions to this problem:

Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery.

Make sure that the PPC-CM4-236 Power Input connector (pin 3) is properly connected to the Power System

Ground to provide sucient EMI shielding and eliminate the problem entirely.

Bad GND problems can also be conrmed by touching pin 3 of the Power Input connector with one hand while

operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power

System Ground.



PPC-CM4-236 Touch Screen

Chipsee IPC Page 10 of 25
