CHIEF PSB-2114 Manuel utilisateur

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PKWY, STE. 700

SAVAGE, MINNESOTA 55378 USA

8804-000213 RevC

2005 Chief Manufacturing

www.chiefmfg.com

12/05

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS 175 POUNDS

(

79.38 KG

)

PSB-2114

PLASMA DISPLAY MOUNTING BRACKET

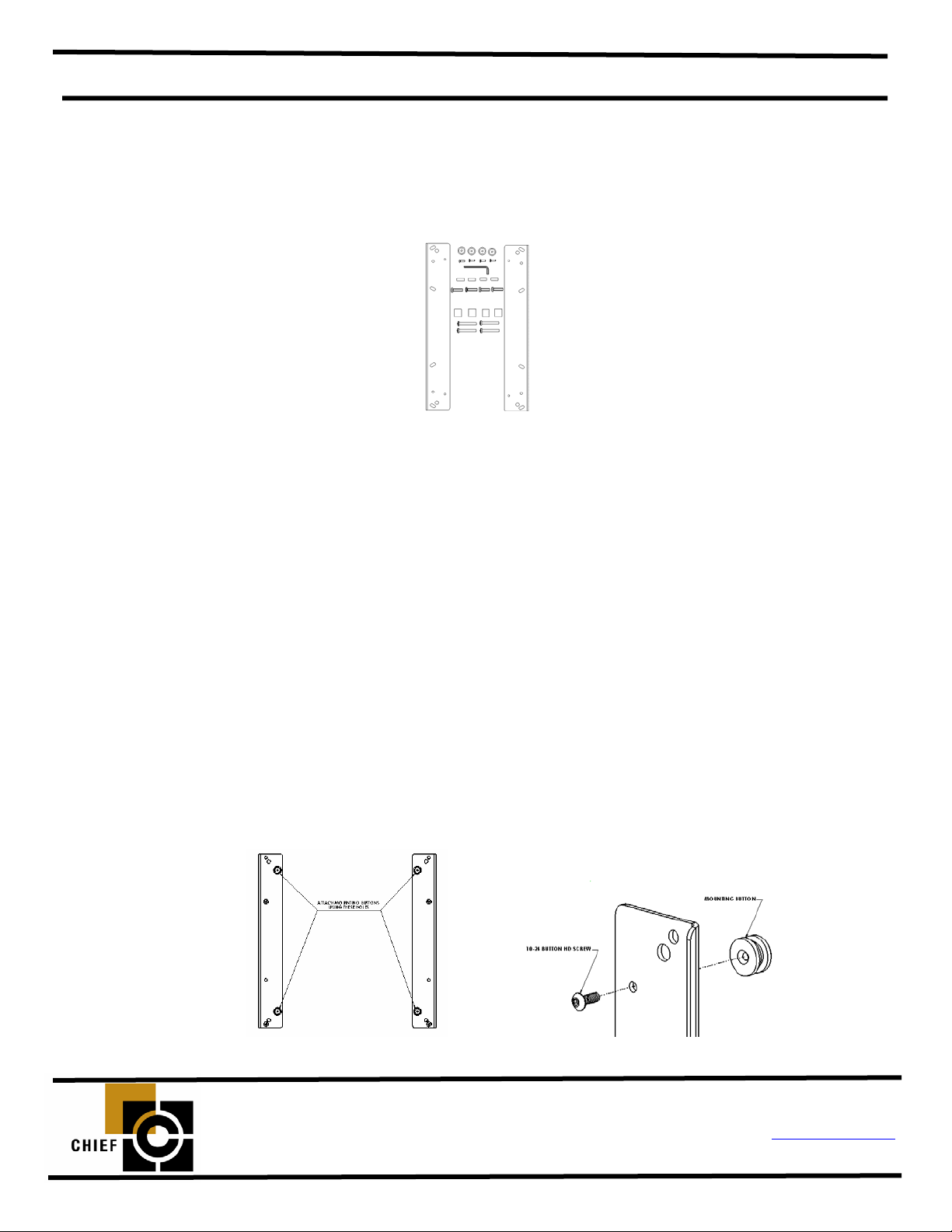

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

(2) Plasma Static Mount Brackets (4) Mounting Buttons

(4) 10-24 Button Head Cap Screws (4) M6 X 25 mm Phillips Head Cap Screws

(4) .75 x .26 x .31 Nylon Spacers - White (4) 18mm x 8.3mm x 20mm Nylon Spacers - Black

(4) M6 x 45mm Phillips Head Cap Screws (1) 1/8” Allen Key

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

PLASMA DISPLAYS ARE EXTREMELY FRAGILE.

1. Using a 10-24 Button head cap screw inserted from back side of bracket, secure mounting button,

with chamfered hole of mounting button (larger surface) facing bracket, to bracket (four places) (see

Figure 2 and Figure 3).

CAUTION!

Figure 1

WARNING!

Figure 2 Figure 3

2. Place .313” nylon spacers (white) over mounting holes on back of screen. Attach mounting brackets to

the display using the M6 x 25mm screws (see Figure 4 & Figure 5). If screen has a protrusion on back,

stack .313” (white) and 20mm (black) spacers and attach brackets using the longer M6 x 45mm screws.

3. With the aid of another person, lift the display up to the Chief Mount, aligning buttons of mounting

brackets with slots in the Chief Mount.

4. Lower safety latch on the Chief Mount to secure the display, making sure latch is completely engaged.

Figure 4 Figure 5

If screen has protrusion

on back, stack both white

and black spacers and attach

bracket using the longer screws
