CHIEF MSB-6053 Manuel utilisateur

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING, a products division of

Milestone AV Technologies.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PKWY

SAVAGE, MINNESOTA 55378 USA

8840-000040 RevC

2008 Milestone AV Technologies

A Duchossois Group Company

www.chiefmfg.com

12/08

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES

THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE

EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT

THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

INTERFACE IS 125 POUNDS (79.38 KG).

MSB-6053

DISPLAY MOUNTING BRACKET

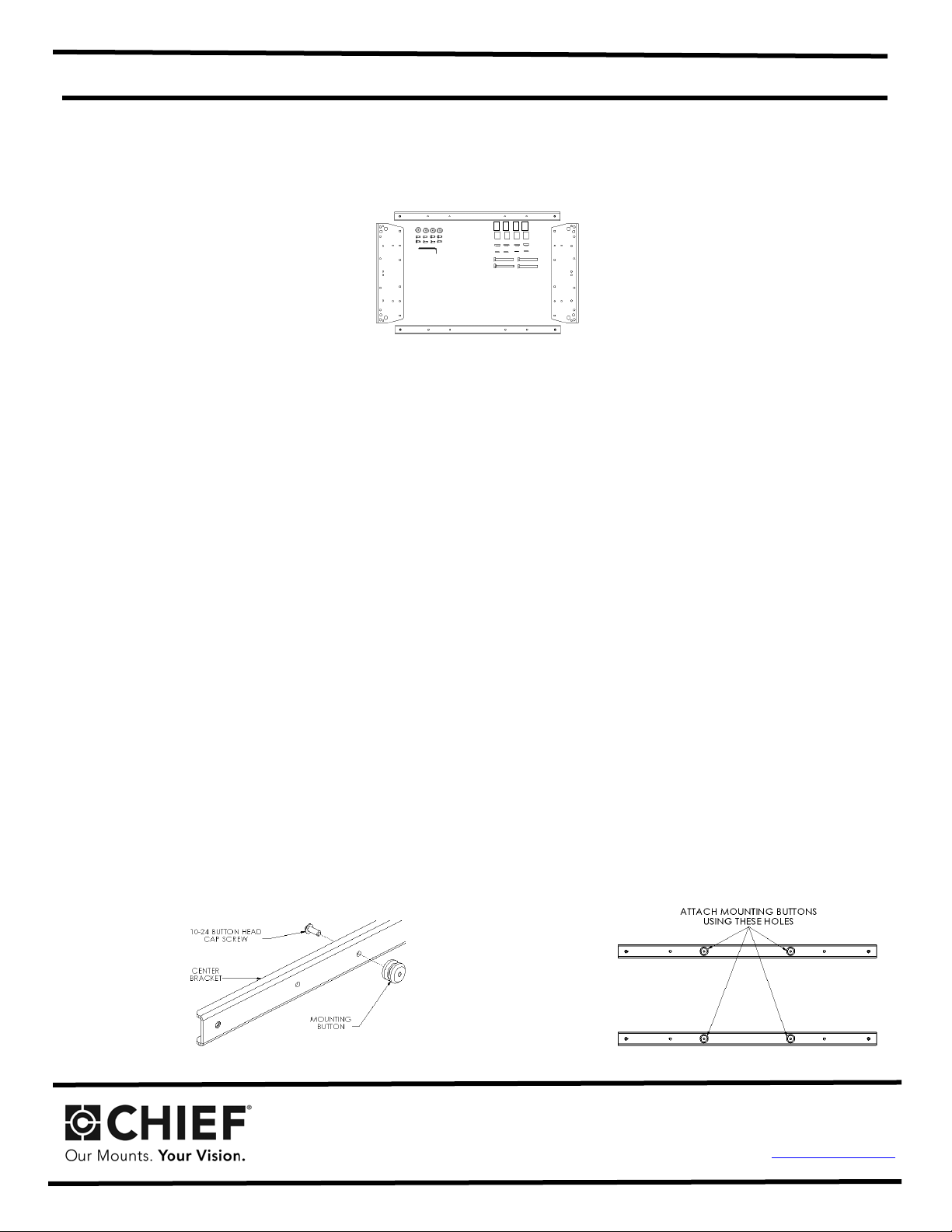

Prior to assembly, unpack carton completely and verify contents.

(2) Interface Side Brackets (2) Interface Center Brackets

(4) Mounting Buttons – Tapped (8) 10-24 x .5 Button Head Cap Screws

(4) M8 x 65mm Hex Head Cap Screws (4) 18mm x 8.3mm x 20mm Nylon Spacers

(4) M8 Flat Washers (4) Nylon Shoulder Washers

(1) 1/8” Allen Key (4) .74x.39x1.0” Nylon Spacers

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

DISPLAYS ARE EXTREMELY FRAGILE.

NOTE:If installing screen on a Chief J-series wall mount, proceed to Step 3 (J-Series VESA Interface Installation).

1. Chief Q-latch Button Installation (Used with MSR, MTR, MWH, MWR, MCS and MCD mounts):

Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with

chamfered hole of mounting button (larger surface) facing bracket, to center brackets (four places) (see

Figure 2 & Figure3).

2. Proceed to Step 4 (Side Bracket Assembly).

CAUTION!

Figure 1

WARNING!

Figure 2 Figure 3

3. J-Series VESA Interface Installation:

Using the 10-24 button head cap screws along with the 10-24 Nylock

nuts (provided with J-Series mount), attach VESA interface from J-Series mount to center brackets (see

Figure 4 & Figure 5).

4. Side Bracket Assembly: Attach center brackets to side brackets using the 10-24 button head cap screws (see

Figure 6 & Figure 7).

5. Bracket Installation: Place four nylon spacers over mounting holes on back of screen. Attach mounting

brackets to display using the M8 screws, shoulder and steel washers (see Figure 8 & Figure 9). Do not over

tighten screws.

NOTE: Select nylon spacers to use based upon the type of device being mounted. The remaining four

spacers will not be used.

6. Follow the Chief mount instruction manual for screen installation.

Figure 4 Figure 5

Figure 6 Figure 7

Figure 8 Figure 9
