INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE 700

SAVAGE, MINNESOTA 55378 USA

8831-000007 Rev E

www.chiefmfg.com

02/06

BEFORE YOU BEGIN

Large Flat Panel

Dual Arm Wall Mount

Model PNR™

The PNR is wall-mounted, rugged, versatile, and

installer-friendly. The PNR is compatible with the

standard (14” x 14”) PSB interface bracket in which a

display can be mounted in either the landscape or

portrait position on the PNR.

The dual arms on the PNR:

• Extend from the wall 24-7/8” in length

• Pivot up to 90º left or right of center

The standard PNR is shipped with the support posts for

the dual arms centered in the mount. The support posts

can be moved laterally right or left of center to readily

accommodate sites with limited wall space. The mount

also has two inches of height adjustment. The tilt range

for the display is 5º up and 15º down.

The PNR was designed for fast installation. After drawing

the plumb line and installing the two top lag bolts into the

dual wall studs, the installer hangs the PNR on its top

bracket and installs two lag bolts in the bottom bracket.

Next, the installer makes the height adjustment, mounts

the display, and connects the power/audio/video cables,

which are diverted into the built-in path in the swing-out

arms. After making the lateral, rotational, and tilt

adjustments, the installation process is complete.

CAUTION: To prevent damage to the PNR, which could affect or void the Factory warranty, and to the equipment that

will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particular

attention to the “Important Warnings and Cautions” on Page 2.

• The combined weight of the components installed on the PNR must not exceed 200 lbs. (90.72kg).

• The PNR wall mount must be installed on dual wall studs or supporting framework. The wall to which the PNR is

anchored must be capable of supporting five times the total weight of the mount and all attached equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

Model PNR™ Installation Instructions

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment: if not, reinforce the structure before

installing the PNR.

WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

WARNING: The installer is responsible for verifying that the wall to which the PNR is anchored will safely support

the combined load of all attached components or other equipment.

WARNING: The weight of the display placed on the PNR must not exceed 200 lbs. (90.72kg), the maximum load

capacity of the PNR.

WARNING: Watch for pinch points. Do not put your fingers between movable parts.

WARNING: Make sure the mount and brackets are correctly oriented.

WARNING: Make sure the flag securing the display is completely lowered at all times except when removing or

installing the display.

CAUTION: Check the unit for shipping damage before you begin the installation.

NOTE: Hardware for attaching this unit to the wall is not supplied.

CONTENTS

IMPORTANT WARNINGS AND CAUTIONS! ............................. 2

Inspect The Unit Before Installing ............................................... 4

SPECIFICATIONS ...................................................................... 4

INTERFACES .............................................................................. 4

TOOLS REQUIRED FOR INSTALLATION ................................. 4

PARTS LIST ................................................................................ 4

INSTALLATION ........................................................................... 5

Install the Mount .......................................................................... 6

Mounting the top bracket ............................................................. 6

Mounting the bottom bracket ....................................................... 6

Adjust Height on the PNR ........................................................... 7

Install Cover Plates and End Caps .............................................. 7

Mount the Display ........................................................................ 8

CABLE MANAGEMENT .............................................................. 9

Swing Arm Tension Adjustment .................................................. 10

Installation Instructions Model PNR™

DIMENSIONAL DRAWING

Model PNR™ Installation Instructions

Inspect The Unit Before Installing

WARNING: Watch for pinch points. Do not put your

fingers between movable parts.

1. Carefully inspect the PNR for shipping damage. If any

damage is apparent, call your carrier claims agent

and do not continue with the installation until the

carrier has reviewed the damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the

required parts before proceeding. See

“DIMENSIONAL DRAWING” on page 3.

SPECIFICATIONS

Table 1 provides the specificiations for the mount.

NOTE: *Dimension does not include the PSB interface

bracket.

INTERFACES

Table 2 lists the interface for the PNR.

TOOLS REQUIRED FOR INSTALLATION

• Allen wrench set

• Drill and bit set

• Wrench set

NOTE: Other tools may be required depending on the

method of installation.

PARTS LIST

Unpack the carton and verify the contents listed in Table

3. If you are missing any of the listed parts, contact

Customer Service at: 1-800-582-6480.

Table 1: Mount Specifications

Model Max Support Weight Mount

Extended

from Wall

PNR 200 lbs. (90.72kg) 24-7/8”*

Table 2: PNR Interfaces

Model Interface

PNR 14” x 14” Plasma Static Brackets (PSB)

Table 3: Parts List

REF DESCRIPTION QTY

10 PNR Wall Mount 1

20 Cover Plates 2

30 End Caps 4

40 Tiewraps 12

— Lag Bolts, 5/16” x 2 1/2” (required, not

supplied)

— Flat Washers, 5/16” (required, not supplied) 4

— Wrench, Adjustment 1

— Bar, Adjustment 1

Installation Instructions Model PNR™

INSTALLATION

WARNING: Improper installation can result in serious

personal injury!

WARNING: It is the responsibility of the installer to

verify that the wall to which the PNR is anchored will

safely support five times the combined load of all

attached components and equipment. If not, reinforce

the structure before installing the PNR.

1. Locate two wood studs 16” apart on center

2. Determine the exact mounting location prior to

installation, considering screen size and the unit’s

total swing arm radius. Keep in mind that the PNR

must be mounted to wood studs that are 16” apart on

center.

NOTE: Mount the PNR between parallel wall studs or

other supporting framework that is vertical or

horizontal.

3. Using a stud sensor, locate the two wood studs where

you will mount the PNR.

4. Draw a level plumb line to indicate the desired height

of the top mounting bracket.

5. With an assistant, lift and hold the PNR against wall.

Use a pencil, awl, or small nail to mark the mounting

holes where two pilot holes will be drilled into the

center of the wood studs. Make sure the mounting

holes are level.

6. With an assistant, lay the PNR down on the floor.

7. Drill two pilot holes using a 7/32” drill bit where the

mounting holes were marked for anchoring the top

bracket. See Figure 1.

8. Install two 5/16” x 2 1/2”lag bolts and two 5/16” flat

washers, through PNR Top Bracket and into upper

pilot holes.

NOTE: Lag bolts and flat washers are not supplied.

NOTE: Do not tighten the lag bolts down at this time.

Leave enough space between the wall and lag

bolts to hang the PNR.

Figure 1: Two Wood studs 16" Apart On Center

16”

Wood Studs

Pilot Holes

Wall

Model PNR™ Installation Instructions

Install the Mount

Mounting the top bracket

WARNING: Improper installation can result in serious

personal injury!

1. With an assistant, lift and hang the PNR on the two lag

bolts and washers previously installed on the wall.

(See figure 2).

NOTE: Make sure washers are installed in front of the

top bracket, not behind the bracket.

2. Slide the PNR into the desired position on the wall

and tighten the two lag bolts.

Mounting the bottom bracket

1. Mark the two mounting holes in the bottom mounting

bracket (See figure 3). Make sure to align the holes

parallel to the holes drilled in the top bracket.

2. Drill two pilot holes in the wall studs using a 7/32” drill

bit.

3. Install two 5/16” x 2 1/2” lag bolts and two 5/16”

washers through PNR Bottom Bracket into the lower

pilot holes.

NOTE: Lag bolts and flat washers are not supplied.

4. Tighten all lag bolts.

Figure 2: Mount Top Bracket

Figure 3: Mount Bottom Bracket

Mount (Hang) the PNR on Lag Bolts

Use Lag Bolts and Washers to Fasten PNR to the Wall.

Installation Instructions Model PNR™

Adjust Height on the PNR

NOTE: Height adjustment range up to 1-1/4 inches.

To adjust the PNR height:

1. Check PNR for the desired height. If needed, use the

adjustment wrench (40) to adjust the PNR height.

• Turn adjustment nut (see Figure 4) clockwise

(CW) to lower the unit height, or

• Turn adjustment nut counterclockwise (CCW) to

raise the unit height.

Install Cover Plates and End Caps

NOTE: The cover plates and end caps have pressure

fitting ends that lock in place with each other.

1. Install cover plate (20) over the top bracket.

(See figure 5)

2. Install end cap (30) on the cover plate (20).

(See figure 5)

3. Repeat steps 1 and 2 for the bottom mounting

bracket. (See figure 5)

Figure 4: Adjust PNR Height

Figure 5: Install Cover Plates and End Caps

Adjustment Nut

Cover Plate (20)

End Caps (30)

Bottom Mounting Bracket

Model PNR™ Installation Instructions

Mount the Display

1. Make sure power is not supplied (turned off) to the

display and the locking device is in the unlocked

(down) position (see Figure 6) before attempting to

mount the display.

2. Following the instructions for mounting the PSB

interface bracket of your specific plasma display

panel, install the mounting bracket on your plasma

display panel.

WARNING: Watch for pinch points. Do not put your

fingers between movable parts.

3. With an assistant, slide the display down over the

PNR. Make sure buttons of PSB interface bracket

fully engage all teardrop slots of the PNR.

4. Secure the mounting bracket to the PNR by

completely engaging the locking device (see Figure

6).

WARNING: Make sure the locking device securing the

display is completely engaged at all times except when

removing or installing the display. The locking device

must be completely engaged during installation/

removal of cables when the display is mounted.

NOTE: A padlock may be used on the locking device for

increased security.

5. Connect and secure power/audio/video cables,

making sure to leave sufficient slack to allow for

movement of the swing arms.

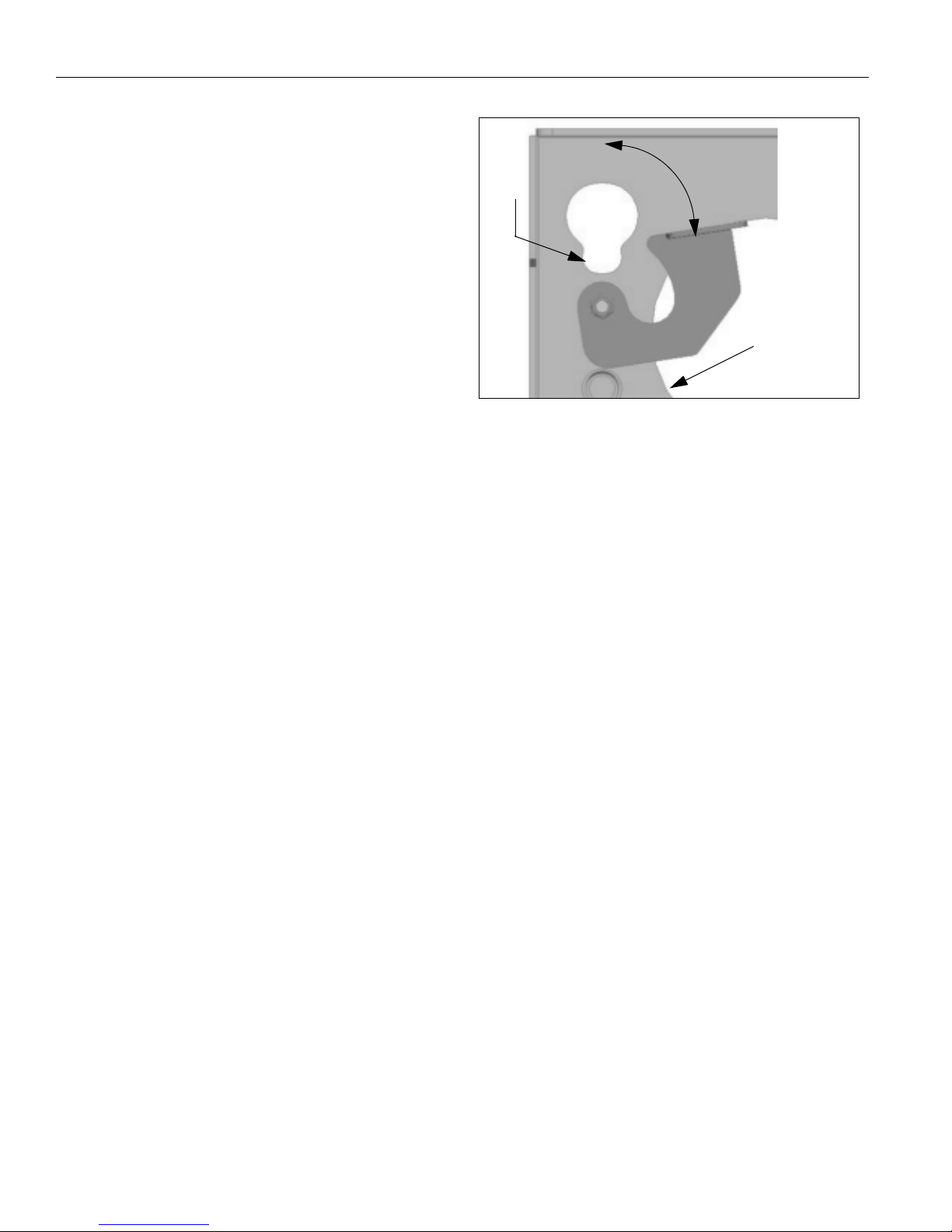

Figure 6: Locking Device

Lock

Unlock

MSB

Teardrop

Slot

(Typical)

Bracket

Interface

Installation Instructions Model PNR™

CABLE MANAGEMENT

WARNING: Make sure your cables do not run through

a pinch point.

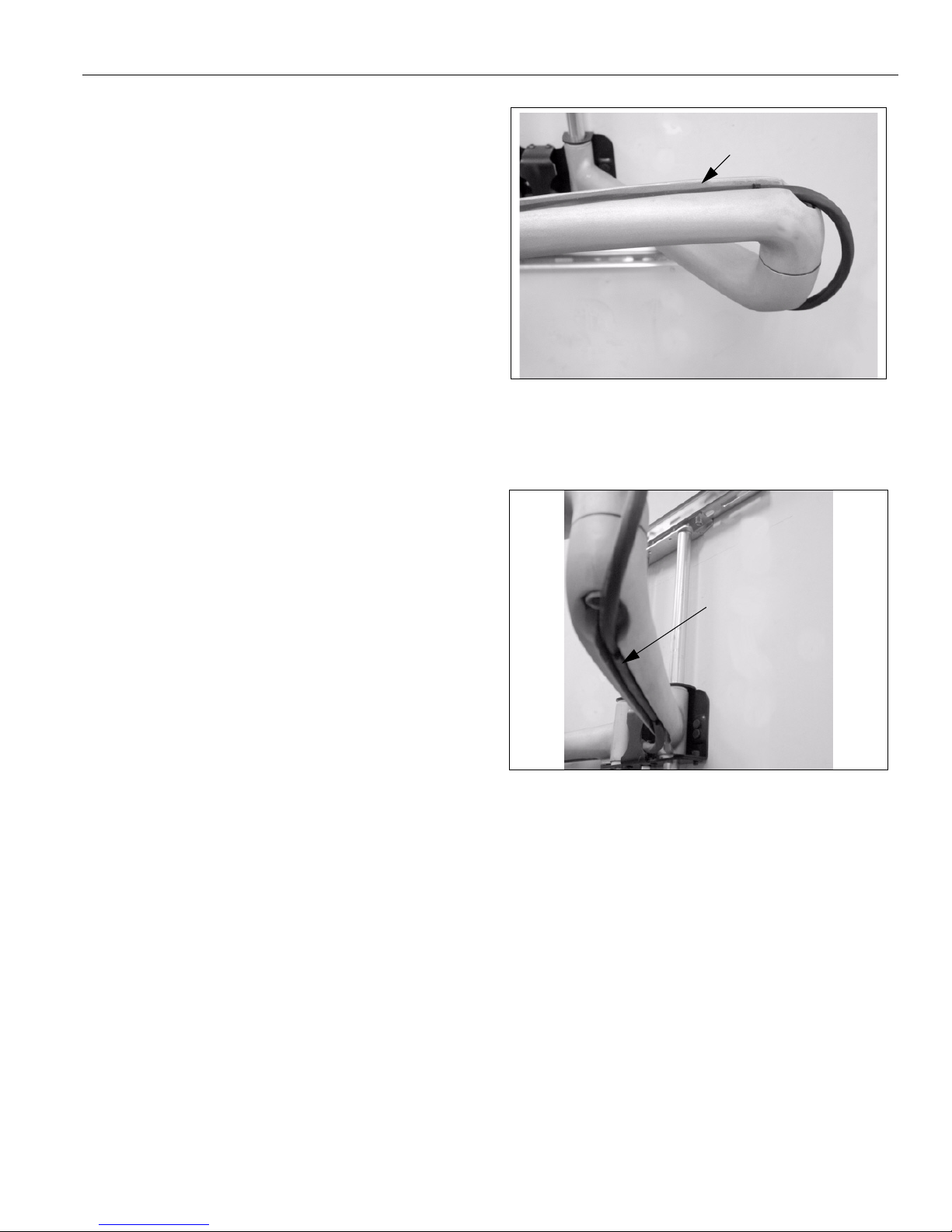

1. Route power/audio/video cables through the cable

channel in top arm (see Figure 7), allowing sufficient

slack in cables for extension and avoiding pinch

points, and secure cables using two clips and two

tiewraps (50, not shown).

2. Route power/audio/video cables along bottom arm

(see Figure 8), using tiewraps (50, not shown) to

secure cables to each arm, and through cable

channel.

CAUTION: To prevent equipment damage, do not

route cables through holes in the display mounting

plate.

3. Route power/audio/video cables to an open area

behind the mounting plate (not shown). Leave a

sufficient amount of slack in cables to allow for

connection and extension where needed.

Figure 7: Cable Management Channel (Top)

Figure 8: Cable Management Channel (Bottom)

Management Channel

Bottom Cable

Management Channel

Model PNR™ Installation Instructions

ADJUSTMENTS

TENSION ADJUSTMENTS

Vertical Tilt Tension Adjustment

1. Using 5/32” Allen wrench, slightly tighten or loosen

two screws, one on each side, equally (See figure 9).

2. With display mounted, check for desired vertical tilt

tension.

3. Repeat Step 1 and Step 2 until desired vertical tilt

tension is obtained.

Lateral Tilt Tension Adjustment

CAUTION: Overtightening lateral adjustment will

cause excessive wear and may distort adjustment

components.

1. Using a 9/16” wrench (not provided), slightly tighten or

loosen lateral tilt tension adjustment nut

(See figure 10).

2. Mount the display and check for desired tilt tension.

3. Repeat Steps 1 and 2 until desired tilt tension is

obtained.

Rotational Tilt Tension Adjustment

1. If necessary, loosen or tighten bottom rotational tilt

tension adjustment nut (See figure 10).

2. Mount the display and check for desired rotational tilt

tension.

3. Repeat Steps 1 and 2 until desired rotational tilt

tension is obtained.

Figure 9: Vertical Tilt

Figure 10: Lateral and Rotational Adjustment

Vertical Tilt

Adj. Screw

Rotational Tilt

Adjustment Nut

Lateral Tilt

Adjustment Nut

Autres manuels pour PNR

Table des matières

Autres manuels CHIEF Support et étagère

CHIEF

CHIEF KITEC Series Manuel utilisateur

CHIEF

CHIEF PAC-200 Manuel utilisateur

CHIEF

CHIEF MF2 Series Manuel utilisateur

CHIEF

CHIEF Truss Ceiling Adapter CMA365 Manuel utilisateur

CHIEF

CHIEF LCD2TS Manuel utilisateur

CHIEF

CHIEF FCA612 Manuel utilisateur

CHIEF

CHIEF MAC1005 J Series Manuel utilisateur

CHIEF

CHIEF RLT1 Instructions d'installation

CHIEF

CHIEF SLBU Manuel utilisateur

CHIEF

CHIEF SSB-2100 Manuel utilisateur

CHIEF

CHIEF FCA650 Manuel utilisateur

CHIEF

CHIEF RPA287 Manuel utilisateur

CHIEF

CHIEF NE1D20F Manuel utilisateur

CHIEF

CHIEF PSH-2000 Manuel utilisateur

CHIEF

CHIEF FWGSK110 Manuel utilisateur

CHIEF

CHIEF Centris FHP-110 Manuel utilisateur

CHIEF

CHIEF SLBU Manuel utilisateur

CHIEF

CHIEF NAID1B Manuel utilisateur

CHIEF

CHIEF WMAC16 Manuel utilisateur

CHIEF

CHIEF Fusion Series Manuel utilisateur

CHIEF

CHIEF CMS440 Manuel utilisateur

CHIEF

CHIEF Exclusive Q2 FSP Series Manuel utilisateur

CHIEF

CHIEF PWRSKU Manuel utilisateur

CHIEF

CHIEF XVAU Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
