CHIEF TPA-111 Manuel utilisateur

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8832-000019 (Rev. B)

1-800-582-6480 952-894-6280 FAX 952-894-6918 2003 Chief Manufacturing

8401 EAGLE CREEK PARKWAY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 4/05

TRUSS PITCH-ADJUSTABLE MOUNT

TPA-111

Figure 1

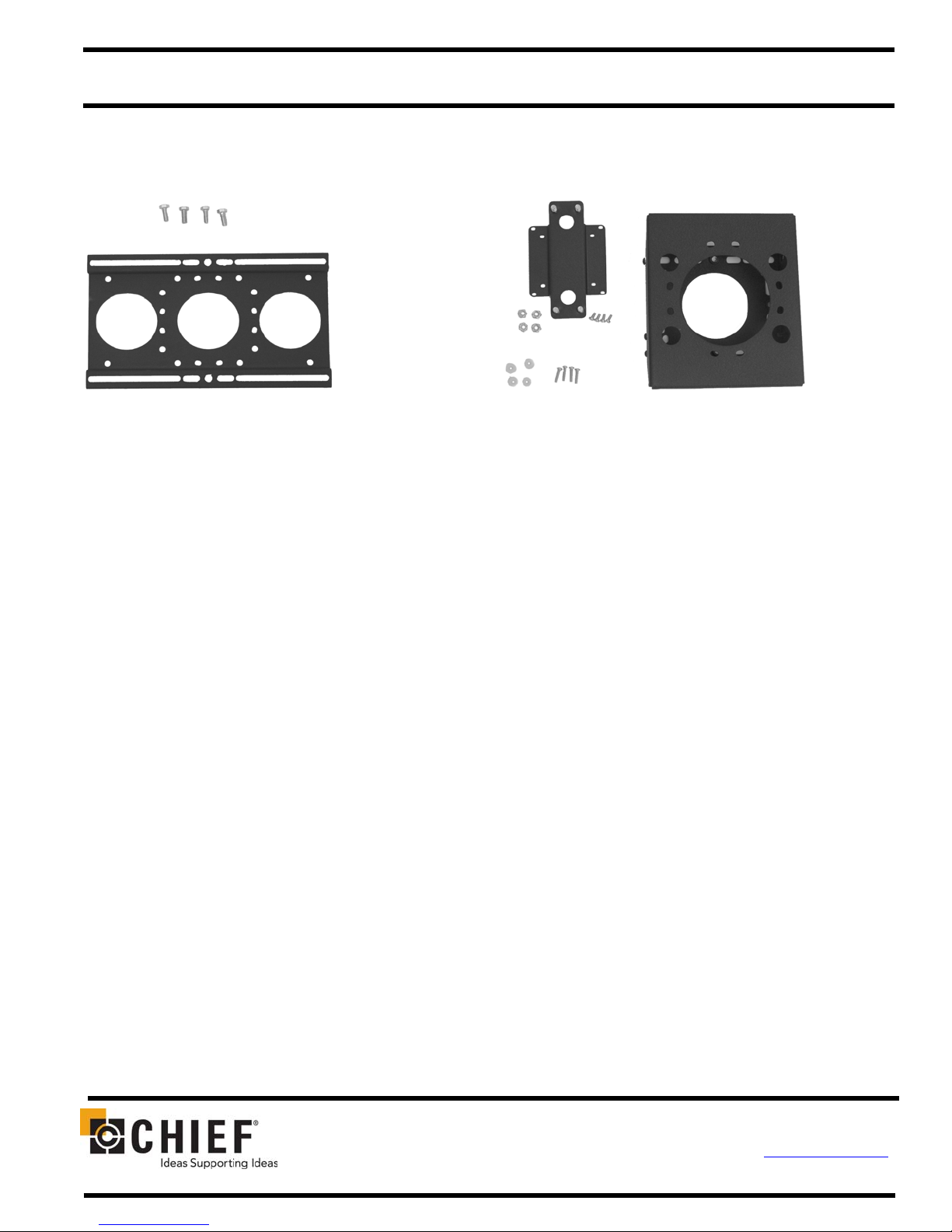

(1) PLATE, back (4) SCREW, Pan Head, M4-.7X20mm

(1) PLATE, assembly, pitch-adjustable (4) Nylon, Spacer, .5 X .194 ID X .0375”

(1) ADAPTER, VESA Flat Panel Interface (4) SCREW, cap, hex head, 5/16-18 X ½”

(4) SCREW, Pan Head, M4-.7X10mm (4) NUT, Nylock, 5/16-18

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read installation

instructions completely. If you are missing any of the listed components, please contact Customer Service at

1-800/582-6480.

CAUTION! PLASMA DISPLAYS ARE EXTREMELY FRAGILE.

WARNING! ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES

THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE

EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT THIS

WEIGHT, THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT

IS 150 POUNDS (68.04 KG).

Installation Instructions TPA-111

Installation for 75mm and 100mm Mounting:

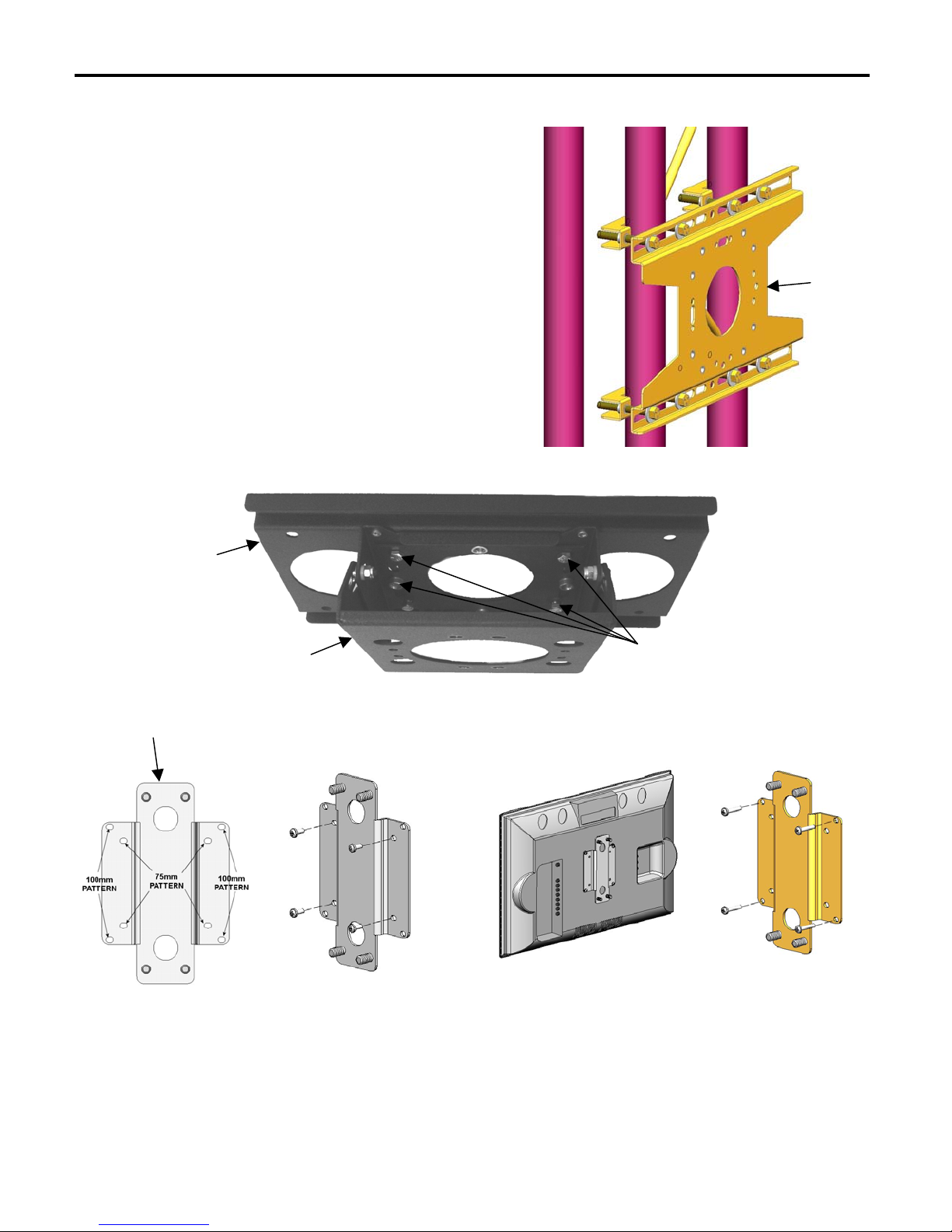

1. Securely anchor the back plate to framework using

Chief TPK accessory clamps or equivalent rated

for the required load (see Figure 2).

2. Install the pitch-adjustable plate on the back plate

and secure using four 5/16-18 X ½” hex head cap

screws (see Figure 3).

3. For displays with a flat mounting surface (see

Figure 6), place adapter bracket over four

mounting holes and secure using four M4 X 10

PHCS screws, as follows:

• For 75mm, see Figure 4 and Figure 5.

• For 100mm, see Figure 4 and Figure 7.

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

5/16-18 X ½” hex head cap screws

Pitch-Adjustable

Plate Assembly

Back Plate

VESA Flat Panel

Interface Adapter

Installation Instructions TPA-111

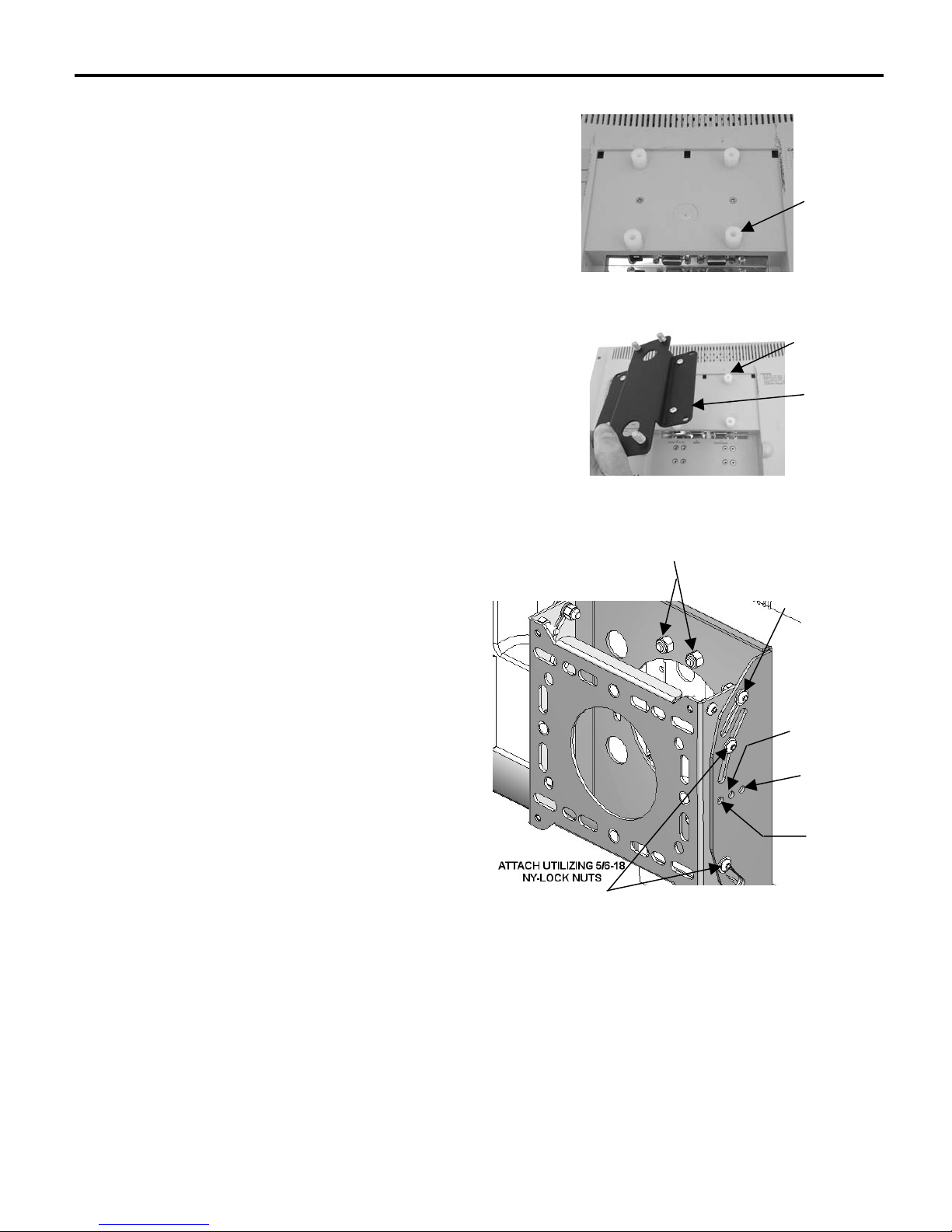

4. For displays with a recessed mounting surface,

place four 5 X .194 ID X .0375” Nylon spacers over

four mounting holes (see Figure 8).

5. For displays with a recessed mounting surface,

place VESA interface adapter bracket over four

spacers and secure using four M4 X 20 PHCS

screws (see Figure 9).

VESA Flat Panel Interface Adapter To Pitch-

Adjustable Mount Installation

1. Install VESA flat panel interface adapter on pitch-

adjustable mount (see Figure 9).

2. Secure VESA flat panel interface adapter to pitch-

adjustable mount using four 5/16-18 Nylock Nuts.

Pitch-Adjustable Mount Installation And

Adjustment

1. Securely anchor the pitch-adjustable mount to

framework (see WARNING!).

2. Loosen tilt adjustment screws. Tilt the mount to

desired position. Tighten tilt adjustment screws.

See Figure 10.

3. If desired, use a ¼” bolt to secure tilt at 0 degrees,

5 degrees, or 10 degrees (see Figure 10).

Figure 8

Figure 9

Figure 10

5/16-18 Nylock Nuts

10 degree Tilt

(Inside Hole)

Tilt

Adjustment

Screw

Tilt

Adjustment

Screws

5 degree Tilt

(Middle Hole)

0 degree Tilt

(Outside Hole)

ylon

Spacers

VESA Interface

Adapter Bracket

ylon

Spacers
