MSB-6602

DISPLAY MOUNTING BRACKET

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

(2) Interface Side Brackets (2) Interface Center Brackets

(4) Mounting Buttons – Tapped (8) 10-24 x .500 Button Head Cap Screws

(4) M8 x 16mm Phillips Head Screws (1) 1/8” Allen Key

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

DISPLAYS ARE EXTREMELY FRAGILE.

1. Chief Q-latch Button Installation

Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with

chamfered hole of mounting button (larger surface) facing bracket, to center brackets (four places) (see

Figure 2 & Figure3).

CAUTION!

Figure 1

Figure 2 Figure 3

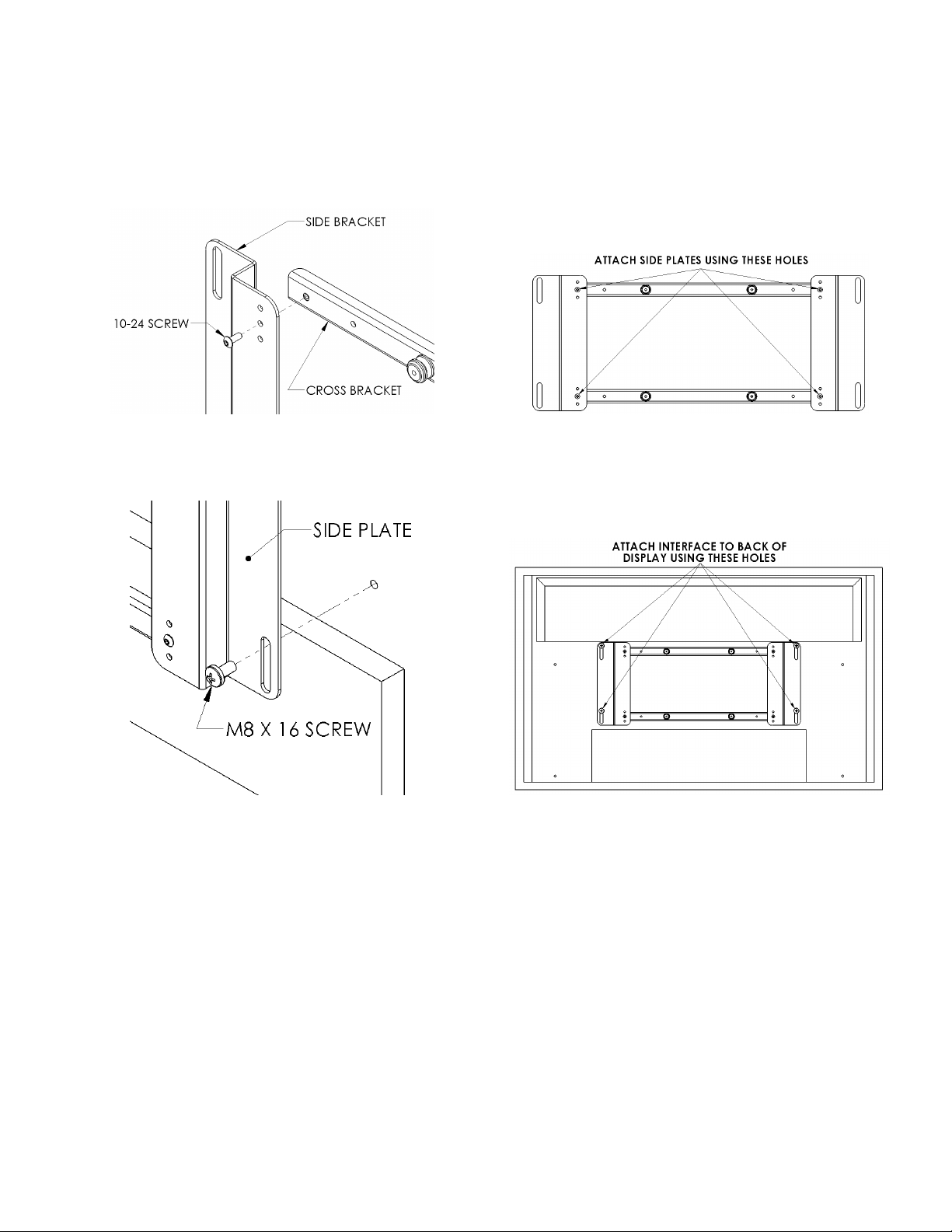

2. Side Bracket Assembly: Attach center brackets to side brackets using the 10-24 button head cap screws (see

Figure 4 & Figure 5). Offset holes are provided incase the cross brackets need to be

shifted up or down.

3. Bracket Installation: Place nylon spacers over mounting holes of screen and attach brackets to back of display

using the M8 screws (see Figure 6 & Figure 7). Do not over tighten screws.

4. Follow the Chief mount instruction manual for screen installation.

Figure

4

Figure 5

Figure 6 Figure 7
