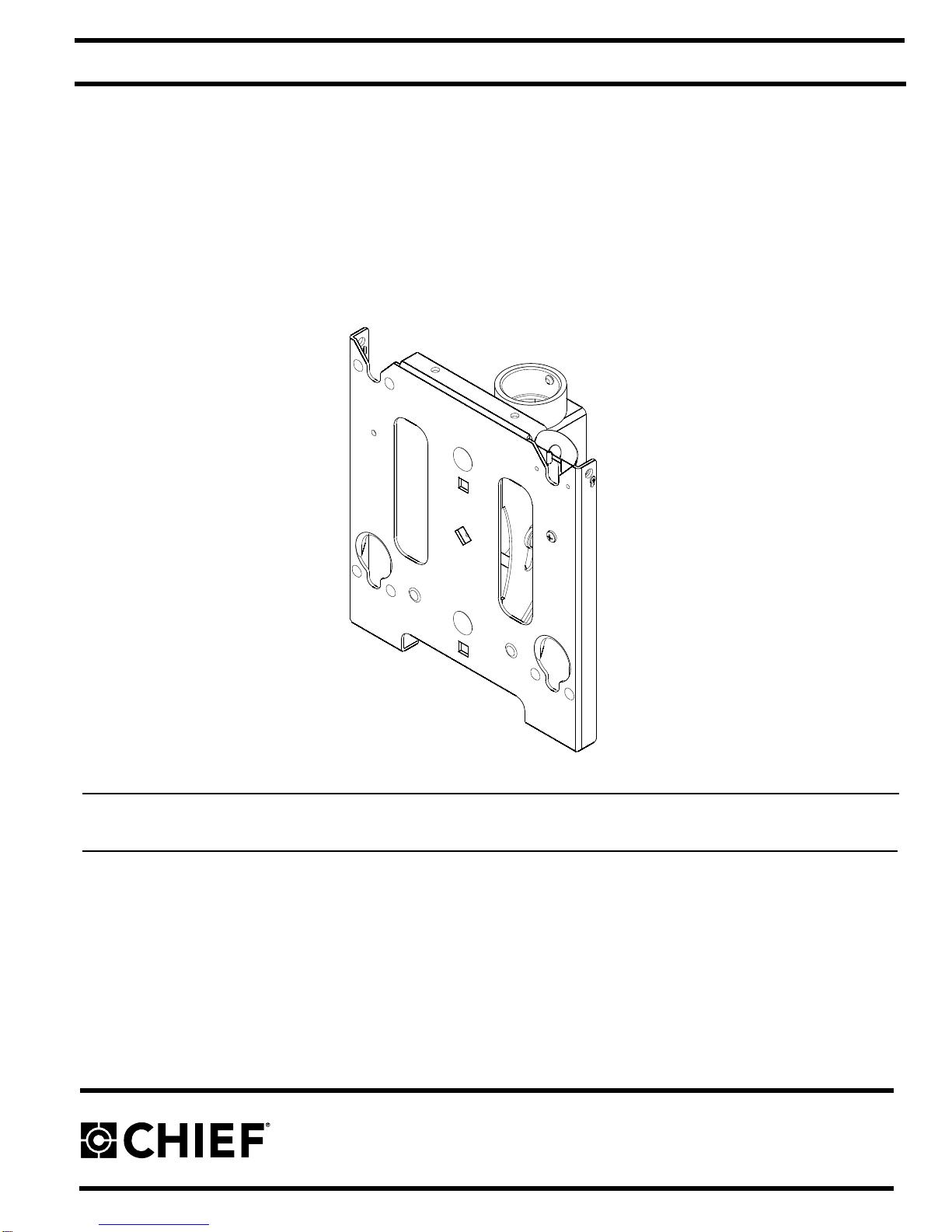

INSTALLATION INSTRUCTIONS

Single Ceiling Mount

MCS6000 Series

MCS6000 Series Installation Instructions

DIMENSIONS

DISCLAIMER

CSAV, Inc., and its affiliated corporations and subsidiaries

(collectively, "CSAV"), intend to make this manual accurate and

complete. However, CSAV makes no claim that the information

contained herein covers all details, conditions or variations, nor

does it provide for every possible contingency in connection

with the installation or use of this product. The information

contained in this document is subject to change without notice

or obligation of any kind. CSAV makes no representation of

warranty, expressed or implied, regarding the information

contained herein. CSAV assumes no responsibility for

accuracy, completeness or sufficiency of the information

contained in this document.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION:

A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING:

Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING:

Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components located between the supporting structure and

MCS does not exceed 125 lbs (57 kg).

• TheweightcapacityoftheMCSmaybeLIMITEDtothe

lowest capacity of any other component located

between the MCS and the supporting structure!

Installation Instructions MCS6000 Series

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

MCS6000 Series Installation Instructions

PARTS

TOOLS REQUIRED FOR INSTALLATION

A (1)

B (1)

5/32"

(Provided)

Installation Instructions MCS6000 Series

INSTALLATION

WARNING:

FAILURE TO PROVIDE ADEQUATE

STRUCTURAL STRENGTH FOR THIS COMPONENT CAN

RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE

TO EQUIPMENT! It is the installer’s responsibility to make

sure the structure to which this component is attached can

support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

Attaching MCS to NPT Pipe

CAUTION:

Watch for pinch points. Do not place fingers

between moveable parts.

1. Thread the MCS (A) onto the existing 1-1/2" NPT pipe until

tight. (See Figure 1)

2. Usingthehexheadwrench (B) tighten thesetscrew into the

MCS threaded collar to prevent movement of the mount.

(See Figure 1)

Figure 1

Attaching Interface Bracket to Display

1. Attach interface bracket to display following instructions

included with interface bracket kit.

Attaching Displays to MCS

1. While supporting both sides of display, align four mounting

buttons on display or interface bracket with four mounting

holes in MCS. (See Figures 2, 3 and 4)

Figure 2

WARNING:

DISPLAY MAY WEIGH IN EXCESS OF 40

LBS! Always use two people and proper lifting techniques

when installing or positioning display on MCS.

2. Lower display into place listening for audible "click" to

ensure recessed area of mounting buttons are properly

seated in lower area of mounting holes. (See Fig. 2, 3 and 4)

Figure 3

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

DISPLAY FALLING CAUSING SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! Ensure mounting

buttons are completely engaged in mounting holes.

NOTE:

Holes are provided in the faceplate for use with a

padlock or similarlocking device,if desired. Inaddition,

the pin and nut may be removed from the upper holes

and moved to the lower holes for use as a more

permanent locking device. (See Figure 4).

Set

Screw

(A)

NPT

Pipe

(A)

Display

(A)

Back

of Display

Interface Bracket

(will vary in

appearance)

MCS6000 Series Installation Instructions

Figure 4

Removing Display from MCS

1. Disconnect all power/audio/video cables.

2. Remove bolt or padlock from faceplate (if used).

(See Figure 5)

NOTE:

The pin may have been used as a more permanent

locking device. If so, remove nut and pin and move

from the lower holes to the upper holes.

3. Pull back on flag on upper mounting hole and press pin

down into "Open" position. (See Figure 5)

WARNING:

THE DISPLAY MAY WEIGH IN EXCESS OF

40 LBS EACH! Always use two people and proper lifting

techniques when installing or positioning display on MCS.

4. Carefully lift display from MCS.

5. Lift up on pin and place flag back against faceplate to return

it to "Closed" position. (See Figure 5)

Figure 5

Adjusting Display

CAUTION:

Watch for pinch points. Do not place fingers

between moveable parts.

Adjusting Roll

1. Using a 9/16" wrench, loosen the Nylock roll adjustment nut

on back of mounting plate. (See Figure 6)

2. Tilt the faceplate left or right as required.

3. TIghten nut.

NOTE:

Do NOT overtighten fasteners.

Adjusting Pitch

1. Adjust display to the desired pitch.

2. Using the 5/32" hex head wrench (B), tighten the pitch

adjustment screw to hold mount in position. (See Figure 6)

May remove

pin and nut and

move to lower holes

A padlock or bolt

may be placed

through latch holes

Remove bolt

or padlock

if used

Pin in

"Open"

position -

Pin in

"Closed"

position -

move to

"Open"

position to

move to

"Closed"

position

remove

display

after display

is removed.

Installation Instructions MCS6000 Series

Figure 6

Roll

Adjustment

Nut

Pitch

Adjustment

Screw

MCS6000 Series Installation Instructions

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P800.582.6480 / 952.894.6280

F877.894.6918 / 952.894.6918

Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands

P+31 (0)40 2668620

F+31 (0)40 2668615

Asia Pacific A Room 30I, Block D, Lily YinDu International Building

LuoGang, BuJi Town, Shenzhen, CHINA. Post Code: 518112

P+86-755-8996 9226 ; 8996 9236 ; 8996 9220

F+86-755-8996 9217

8805-000144 Rev. E

www.chiefmfg.com

10/07
