CHIEF JSB210 Manuel utilisateur

INSTALLATION INSTRUCTIONS

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Interface Bracket for J-Series

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

JSB210

JSB210 Installation Instructions

DISCLAIMER

Milestone AV Technologies, Inc., and its affiliated corporations

and subsidiaries, intend to make this manual accurate and

complete. However, Milestone makes no claim that the

information contained herein covers all details, conditions or

variations, nor does it provide for every possible contingency in

connection with the installation or use of this product. The

information contained in this document is subject to change

without notice or obligation of any kind. Milestone makes no

representation of warranty, expressed or implied, regarding the

information contained herein. Milestone assumes no

responsibility for accuracy, completeness or sufficiency of the

information contained in this document.

Chief® and Centris™ are registered trademarks of Milestone

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION:

A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING:

Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING:

Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING:

Exceeding the weight capacity of the mount

can result in serious personal injury or damage to equipment!

It is the installer’s responsibility to make sure the combined

weight of the mount and all attached components does not

exceed 75 lbs (34 kg).

DIMENSIONS

2.50

63.50

3.94

100

7.87

200

3.94

100

4X M4 X 0.7 TAPPED HOLE

9.00

228.60

9.00

228.60

7.87

200

7.87

200

ALL MEASUREMENTS ARE IN

THE FOLLOWING FORMAT:

[MILLIMETERS]

INCHES

Installation Instructions JSB210

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

JSB210 Installation Instructions

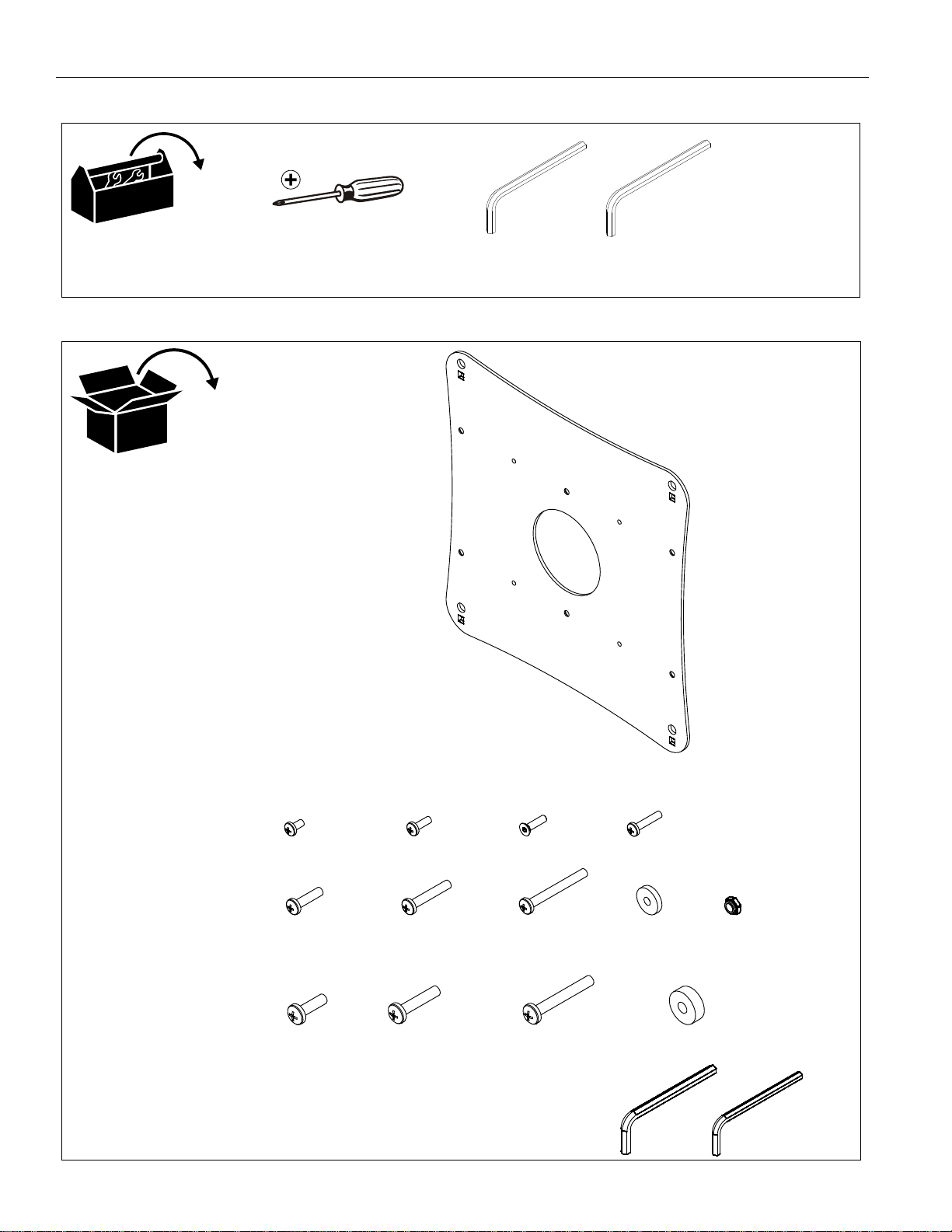

TOOLS REQUIRED FOR INSTALLATION

PARTS

5/32"

(Provided) 3/16"

(Provided)

A (1)

B (4)

M4 x 8mm C (4)

M4 x 12mm D (6)

M4 x 16mm E (4)

M4 x 20mm

F (4)

M5 x 20mm G (4)

M5 x 30mm H (4)

M5 x 45mm J (6)

.194x.625x.125 K (4)

10-24

L (4)

M6 x 20mm M (4)

M6 x 30mm N (4)

M6 x 45mm

P (4)

.740x.250x.250

Q (1)

5/32" R (1)

3/16"

BAG 1

BAG 2

BAG 3

Installation Instructions JSB210

INSTALLATION

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

MOUNT FALLING CAUSING SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! DO NOT substitute

hardware. Only use hardware provided or specified by

manufacturer.

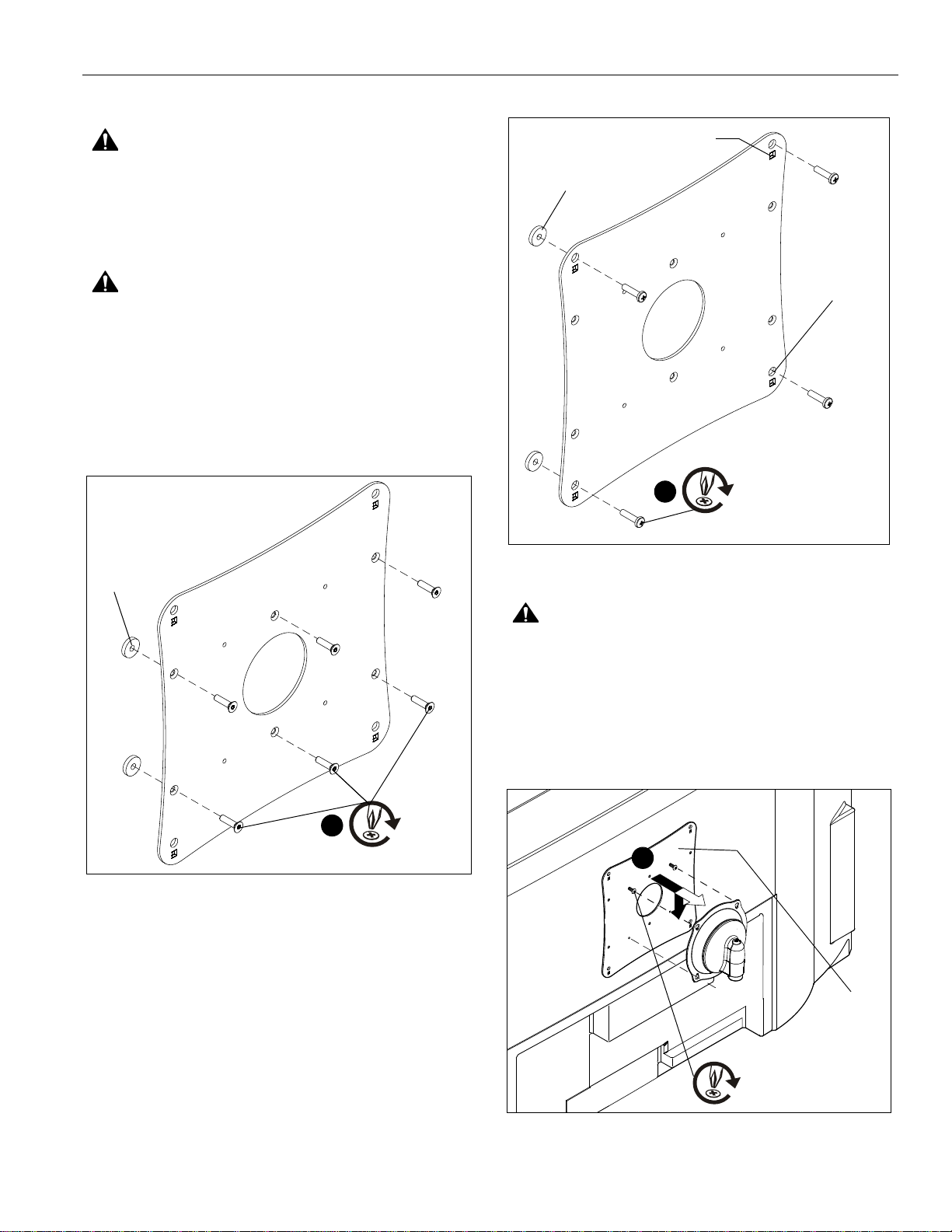

1. Determine pattern of mounting holes in back of display.

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

DAMAGE TO EQUIPMENT OR TO MOUNT FALLING

CAUSING SERIOUS PERSONAL INJURY ! Use proper size

and length hardware depending on display.

200mm x 100mm Mounting Hole Pattern

2. Use six nylon spacers (J) and six flat head screws (D) to

attach JSB210 interface bracket to the display back.

(See Figure 1)

Figure 1

200mm x 200mm Mounting Hole Pattern

3. Use four nylon spacers (J or P) and four Phillips cap head

screws (E through H, L through N) to attach JSB210

interface bracket to the display back. (See Figure 2)

NOTE:

Phillips cap head screws should be placed through

eitherthesquareor round holes inthe interfacebracket

corners.

• Use M4 cap head screws through SQUARE

holes.

• Use M6 cap head screws through ROUND

holes.

Figure 2

CAUTION:

PREVENT EQUIPMENT DAMAMGE! Tighten

each screw carefully, but do NOT overtighten.

Attach Display to Mount

1. Start two Phillips pan head screws into top mounting holes

on interface bracket (A). (See Figure 3)

2. Align two screws in interface bracket (A) with upper

mounting holes in Centris cup and lower display until

screws are seated in lower area of teardrop mounting

holes. (See Figure 3)

Figure 3

(D) x 6

(J) x 6

(E through H,

L through N) x 4

(J or P) x 4

M4 screws placed

through square holes

M6 screws

placed through

round holes

x 4

(A)

JSB210 Installation Instructions

3. Hold display so that display back is against Centris cup and

install two Phillips pan head machine screws through lower

mounting holes in Centris cup and into lower mounting

holes in interface bracket (A). (See Figure 4)

Figure 4

4. Complete installation of mount to display, following

instructions included with the mount.

(R) x 1

x 4

Installation Instructions JSB210

JSB210 Installation Instructions

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P800.582.6480 / 952.894.6280

F877.894.6918 / 952.894.6918

Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands

P+31 (0)40 2668620

F+31 (0)40 2668615

Asia Pacific A Room 24F, Block D, Lily YinDu International Building

LuoGang, BuJi Town, Shenzhen, CHINA.

P+86-755-8996 9226

F+86-755-8996 9217

Chief Manufacturing, a division of

Milestone AV Technologies

8832-000251

www.chiefmfg.com

06/08
