CHIEF GPM-110 Manuel utilisateur

CHIEF MANUFACTURING INC. 8807-000019 Rev. A

1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing

8401 EAGLE CREEK PARKWAY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 06/04

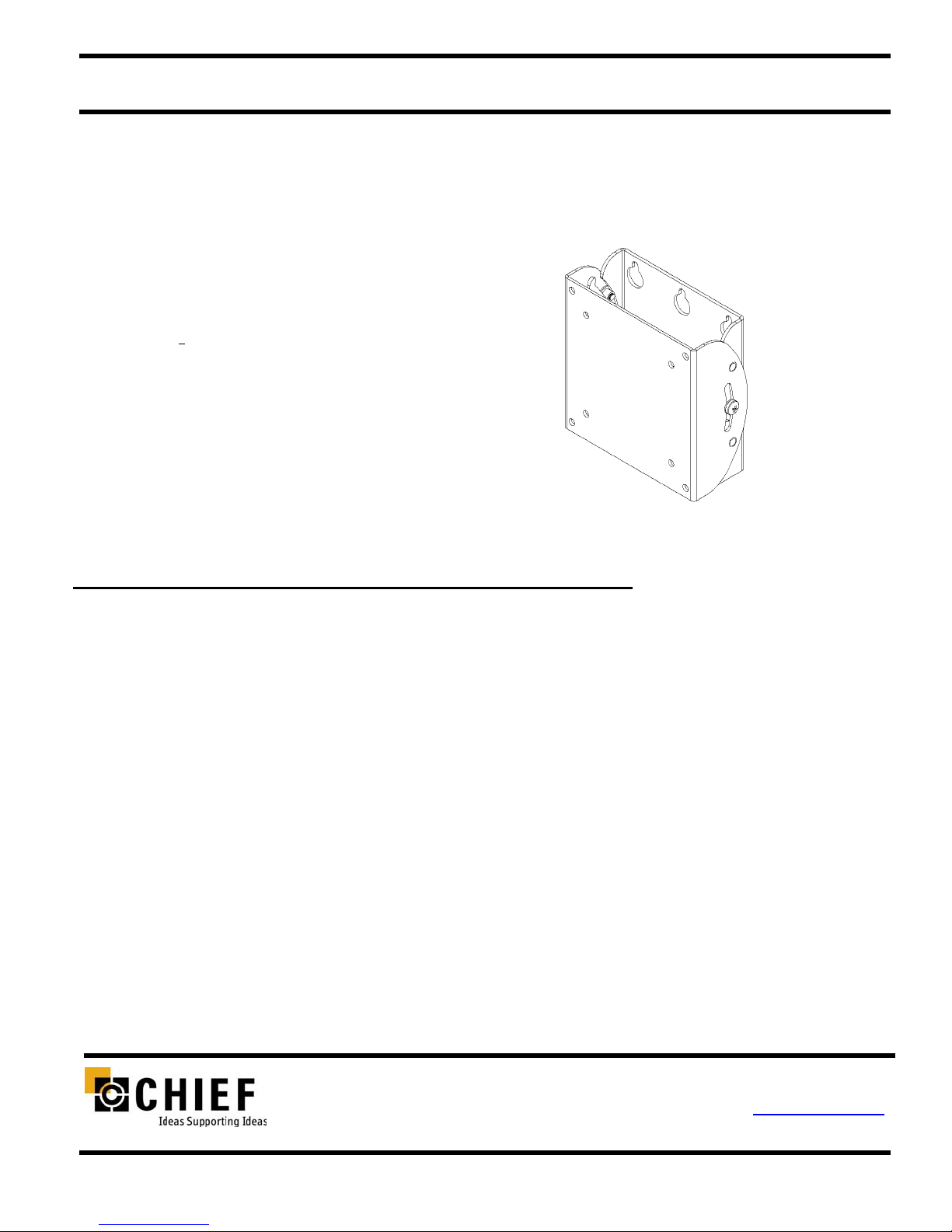

INSTALLATION INSTRUCTIONS

Small Flat Panel

Tilt Wall Mount (GPM-110)

BEFORE YOU BEGIN

• CAUTION: To prevent damage to your display, which could affect or void the Factory warranty,

thoroughly study all instructions and illustrations before you begin to install the mount brackets. Pay

particular attention to the “Important Warnings and Precautions” on Page 2.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.

The GPM-110 tilt wall mount is designed to adapt to

VESA® 75mm/100mm compliant displays.

The GPM-110 allows the user to adjust the viewing angle

of the mount + 15 degrees horizontally or vertically by

hand, depending on the preferred type of installation.

After adjusting the display to the desired angle, the user

can lock the mount into a fixed position. The user can

easily remove the display from the wall bracket when the

mount is unlocked.

GPM-110

Instruction Manual GPM-110

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow

the instructions.

CAUTION ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not

follow the corresponding instructions.

• WARNING Improper installation can result in serious personal injury! Make sure that the

mounting surface can support a redundant weight factor five times the total weight of

the equipment: if not, reinforce the mounting surface structural members before

installing the GPM-110.

• WARNING Be aware of the potential for personal injury or damage to the unit if it is not

adequately mounted.

• WARNING The installer is responsible for verifying that the mounting surface to which the GPM-

110 is anchored will safely support the combined load of all attached components or

other equipment.

• WARNING The combined weight of the display placed on the GPM-110 must not exceed 40 lbs.

(18.1kg), the maximum load capacity of the mount.

• WARNING Watch for pinch points. Do not put your fingers between movable parts.

• WARNING Make sure the mount is correctly oriented.

• CAUTION Check the unit for shipping damage before you begin the installation.

• CAUTION If your monitor uses a longer screw size other than those included in the kit, DO NOT use

the screws provided with the mount. Use the screws provided with your monitor or contact

the manufacturer. Using the wrong screws could result in damage to your monitor.

CONTENTS

TOOLS REQUIRED FOR INSTALLATION....................................2

GPM-110 TILT MOUNT KIT...........................................................3

Installation Instructions...................................................................4

Installing the Wall Bracket (Step 1) ............................................4

OPTION A (Drywall Installation Procedures)..........................4

OPTION B (Wall Stud Installation Procedures) ......................4

Attaching the VESA Bracket to the Display (Step 2)..................5

Flushed Mount ........................................................................5

Recessed Mount .....................................................................5

Mounting the Display on the Wall Bracket (Step 3)....................6

Locking the Display on the Wall Bracket (Step 4) ......................6

TOOLS REQUIRED FOR INSTALLATION

• Phillips screwdriver

• Drill and drill bits

NOTE: Other tools may be required depending on your method of installation.

Instruction Manual GPM-110

GPM-110 TILT MOUNT KIT

Unpack the carton. Verify the kit contains the contents shown in Table 1. Read installation instructions completely. If

you are missing any of the listed components, please contact Customer Service at 1-800/582-6480.

Table 1. GPM-110 Tilt Mount Kit

ITEM

NUMBER DESCRIPTON QTY NOTES

10 BRKT, VESA INTERFACE 1

20 BRKT, WALL MOUNT 1

30 ANCHOR, HOLLOW WALL 4

DRYWALL

MOUNTED

40 PHILLIPS HEAD WOOD SCREW, 2-1/2” 2

SINGLE STUD

MOUNTED

50 NYLON WASHER 2

60 PHILLIPS PAN HEAD MACHINE SCREW, M5 X 10MM 2

TILT ADJUSTMENT

70 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 10MM 4 FLUSH MOUNT

PHILLIPS PAN HEAD MACHINE SCREW, M4 X 20MM

(USE WITH 90) * 4

90 3/8” NYLON SPACER 4

100

PHILLIPS PAN HEAD MACHINE SCREW, M4 X 30MM

(USE WITH 110) ** 4

110 3/4” NYLON SPACER 4

RECESSED

MOUNT

Instruction Manual GPM-110

Installation Instructions

NOTE: Read the “Important Warnings and Precautions” on

Page 2.

Installing the Wall Bracket (Step 1)

The wall bracket can be mounted vertically or horizontally.

Mounting the bracket vertically allows you to tilt the display up

and down. Mounting the bracket horizontally allows you to pivot

the display side-to-side.

To install the wall bracket, perform Option A or Option B as

applicable.

OPTION A (Drywall Installation Procedures)

A. Determine the exact mounting location prior to

installation, considering screen size as well as the mount

tilt radius.

B. Position the wall bracket (20) in the vertical position or

the horizontal position, as needed.

C. Using the wall bracket (20) as a template at the desired

mounting location, mark the location of the four outer

mounting holes.

NOTE: This procedure applies to a minimum drywall

thickness of ½” inch (12.7 mm).

D. Using a 3/8-inch drill, drill four pilot holes at the locations

marked in Step 1.A.

E. Install an anchor (30) in one of the pilot holes and tighten

anchor bolt until it is fully seated (see Figure 1).

F. Remove and retain bolt from anchor (30) and repeat

Step 1.E and 1.F for three remaining anchors (30).

G. Using four bolts, with washers installed, secure wall

bracket (20) to wall.

OPTION B (Wall Stud Installation Procedures)

A. Determine the exact mounting location prior to

installation, considering screen size as well as the mount

swing and extension radius.

B. Position the wall bracket (20) in the vertical position or

the horizontal position, as needed.

C. Locate stud and, using wall bracket (20) as a template at

the desired height, mark the location of the two center

mounting holes.

D. Using the two wood screws (40), secure wall bracket

(20) to wall.

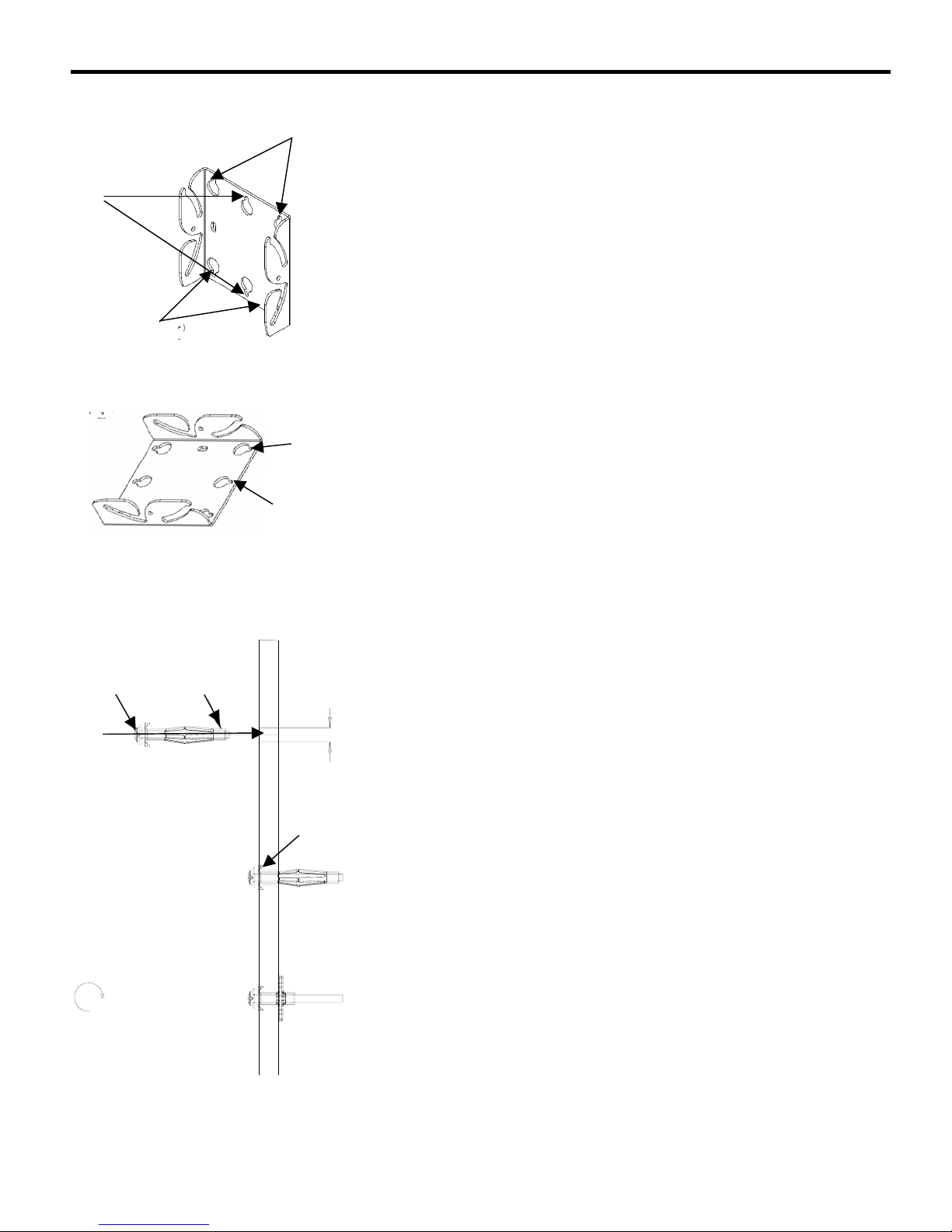

Step 1

Installing Wall Bracket – Vertically

Installing Wall Bracket – Horizontally

%%c0.375 (PREDRILL HOLE)

INSERT ANCHOR INTOPPREDRILLED HOLE

ANCHOR BARBP(STOPS ANCHOR ROTATION)

#10-24

Screw 0.375 (Predrill Hole)

Insert anchor into

predrilled hole

nchor Ba

(Stops anchor rotation)

nchor (30)

Turn 10-24 screw clockwise

until anchor fully seats

against back side of wall

Figure 1. Anchor Installation

(Corner Holes)

(Center Holes)

Instruction Manual GPM-110

Attaching the VESA Bracket to the Display

(Step 2)

NOTE: Choose the instructions, listed below, that apply to the

type of installation you want.

• Flush Mount Applications do not use spacers. The

display is attached to the mount with four screws.

• Recessed Mount Applications use spacers. The display

is attached to the mount with four screws and four

spacers.

CAUTION: If monitor uses a screw size other than those

included in the kit, DO NOT use the screws provided.

Using the wrong screws could result in damage to your

monitor.

Flushed Mount

A. Place the VESA bracket (10) on the display.

B. Align the hole-pattern of your display with the hole-

pattern on the VESA bracket (10).

C. Attach VESA bracket (10) to the display using four

M4 X 10mm screws (70) provided.

Recessed Mount

NOTE: Use one of the following screw and spacer

combinations: (80 with 90) or (100 with 110).

A. Select four screws (80 or 100) for the Recessed

application.

B. Select the four spacers (90 or 110) for the Recessed

application.

C. Set four spacers (90 or 110) over the four mounting

holes on your monitor.

D. Install four screws (80 or 100) into the top mounting

holes of your display.

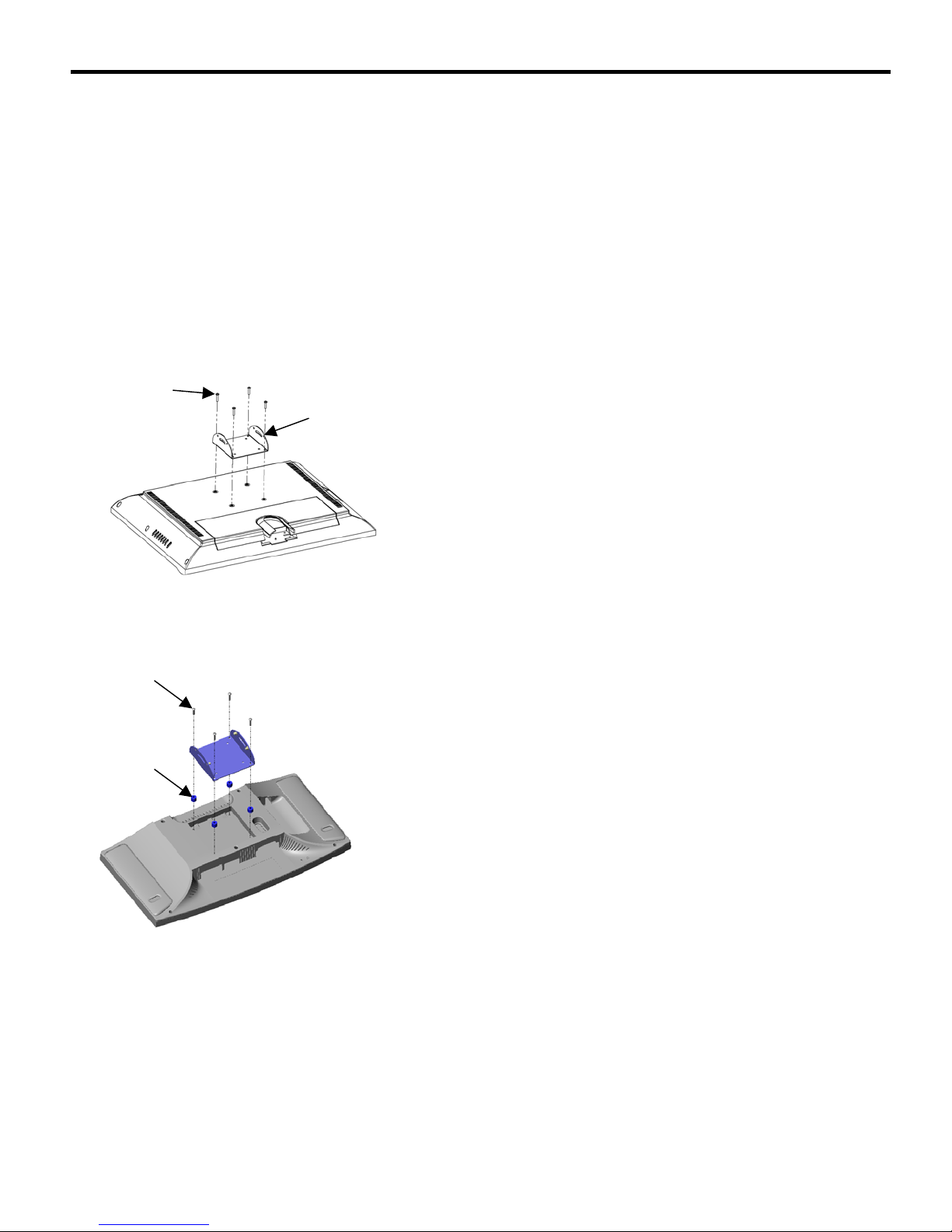

Step 2

Recessed Mount

Flushed Mount

80 or 100

90 or 110

Instruction Manual GPM-110

Mounting the Display on the Wall Bracket

(Step 3)

A. With the aid of another person (if necessary), lift the

display up to the wall bracket (20) over the four mounting

pins.

B. Align the mounting pins on the display with the slots in

the wall bracket (20), and set the display into place.

C. Verify that the display tilts in the wall bracket (20).

• For displays that are mounted vertically, tilt the

display + 15 degrees upward and downward.

• For displays that are mounted horizontally, pivot the

display + 15 degrees from side-to-side.

Locking the Display on the Wall Bracket

(Step 4)

A. Assemble a washer (60) over each M5 screw (70).

Install the two M5 (70) screw assemblies into the tapped

holes located on the side on the wall bracket (20).

B. Set the display into the desired position. Tighten the M5

screw (70) until friction holds the display stationary.

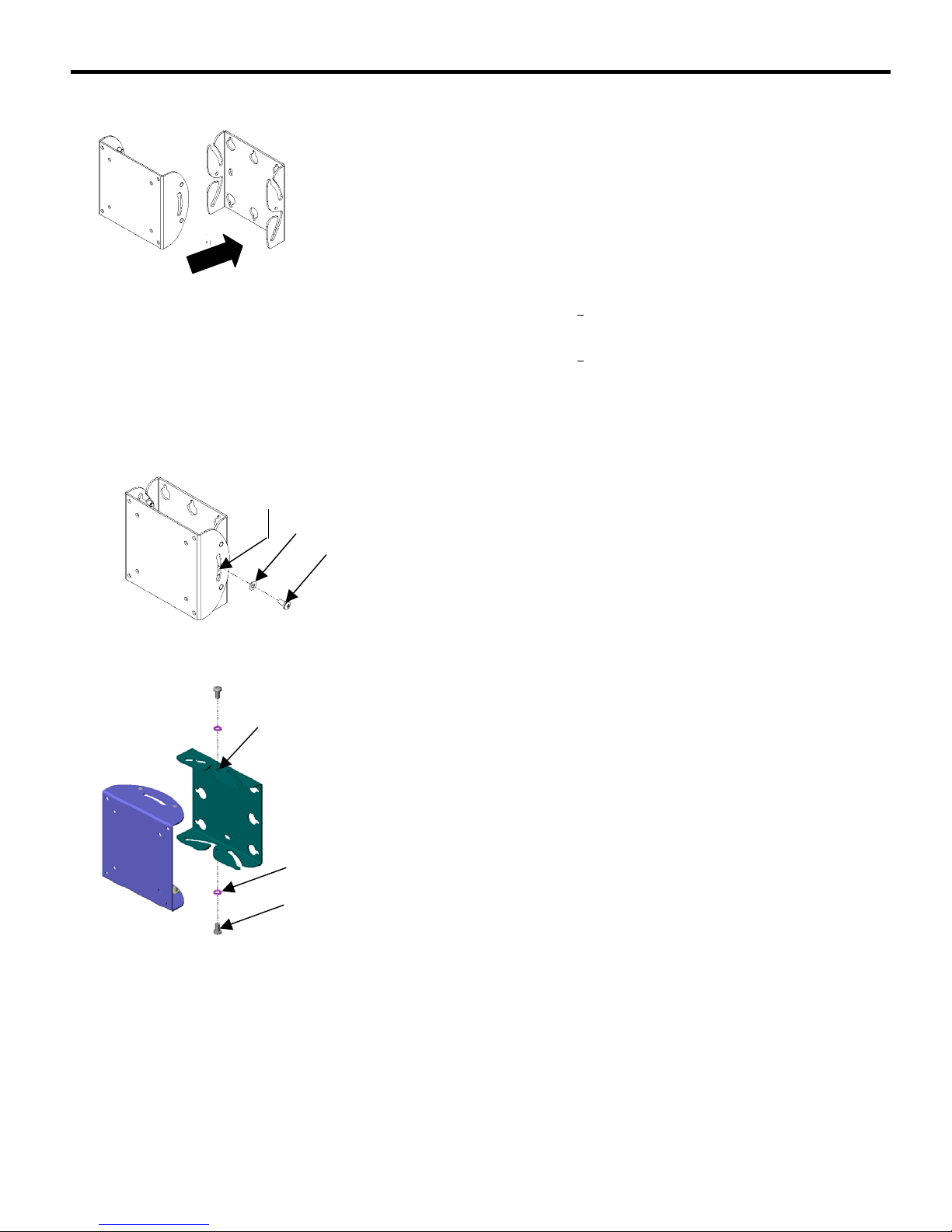

Step 3

Assemble the Brackets

Step 4

Install the M5 Screw – Vertical Tilt

Install the M5 Screw –

Horizontal Pivot

Tapped

Hole

Tapped

Hole
