CHIEF FPD-110 Manuel utilisateur

Small Flat Panel

Dual Swing Arm Pole Mount (FPD-110)

The FPD is a sleek design providing a broad range of viewing

for Small Flat Panel Displays.

At only 2.18” deep in the closed position, the mount allows

side-to-side pivot adjustment up to 180 degrees in the closed

and the fully extended position. Displays up to 30” (max. 40

pounds) can be extended to 15.3” and can pivot 360 degrees.

The FPD accommodates all VESA® 75mm/100mm compliant

displays.

BEFORE YOU BEGIN

•Caution: To prevent damage to the FPD, which could affect or void the Factory warranty, and to the equip-

ment that will be attached to it, thoroughly study all instructions and illustrations before you begin the

installation. Pay particular attention to the “Important Warnings and Precautions” on Page 1.

• The maximum weight to be installed on the FPD is 40 pounds (18.1 Kg)

• The FPD is designed to be installed using a pole. The pole to which the FPD is anchored must be capable of sup-

porting five times the total weight of the mount and all attached equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE. 700

SAVAGE, MINNESOTA 55378 USAA

PART NO. 8832-000029 (Rev. B)

2004 Chief Manufacturing

www.chiefmfg.com

Printed in USA 03-05

INSTALLATION INSTRUCTIONS

Installation Instructions FPD

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING:Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment: if not, reinforce the struc-

ture before installing the FPD.

•WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING:The installer is responsible for verifying that the pole to which the FPD is anchored will safely support the

combined load of all attached components or other equipment.

•WARNING:The weight of the display placed on the FPD must not exceed 40 lbs. (18.1 kg), the maximum load capacity

of the FPD.

•WARNING:Watch for pinch points. Do not put your fingers between movable parts.

•WARNING:Make sure the mount and brackets are correctly oriented.

•CAUTION: Check the unit for shipping damage before you begin the installation.

TOOLS REQUIRED FOR INSTALLATION

• Phillips Screwdriver

NOTE: Other tools may be required depending on the

mounting surface and method of installation.

CONTENTS

DRAWINGS ............................................................... 2

INSPECT THE UNIT BEFORE INSTALLING ............ 3

FPD INSTALLATION ................................................. 3

CABLE MANAGEMENT ............................................ 4

ADJUSTMENTS ........................................................ 5

Installation Instructions FPD

DRAWINGS

M4 X .7 X 12mm Phillips Pan Head Screws

M4 X .7 X 20mm or 30mm Phillips Pan Head Screws

Spacers (optional)

(optional)

Phillips Panhead Screw

(Adjustment Screw)

1/4-20 Button Head Cap Screws

Rear Pole Bracket

Cover Plate Cover Plate

Cover Plate Screws Cover Plate Screws

Arm Tension

Adj. Bolt

Lateral Tension

Adj. Bolt

Lateral Tension

Adj. Bolt

Installation Instructions FPD

INSPECT THE UNIT BEFORE INSTALLING

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Carefully inspect the FPD for shipping damage. If any damage

is apparent, call your carrier claims agent and do not continue

with the installation until the carrier has reviewed the damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts

before proceeding (see FPD drawing on page 2).

FPD INSTALLATION

WARNING: It is the responsibility of the installer to verify that

the structure to which the FPD is anchored will

safety support five times the combined load of all

attached components and equipment.

Install the FPD as follows:

1. Determine the exact mounting location prior to installation,

considering the unit’s swing radius.

WARNING: Improper installation can result in serious per-

sonal injury! Make sure that the structural mem-

bers can support a redundant weight factor five

times the total weight of the equipment: if not,

reinforce the structure before installing the FPD.

2. Using three 1/4-20 button head screws and bracket clamp,

secure the bracket to the pole.

3. Make sure no power is supplied to the display before attempt-

ing to mount the display.

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

VESA Compliant Flush Mounting

CAUTION: If monitor uses a screw size other than M4, DO NOT

use the M4 screws provided. Using the wrong screws

could result in damage to your display.

A. Start two M4 X .7 X 12mm Phillips pan head screws inthe

top mounting holes of your display.

B. Matching the hole pattern on your display with the hole

pattern on the mount, hang the mount from the two screws

started in Step A.

C. Install two remaining Phillips pan head screws through the

mount and into the mounting holes of your display.

D. Secure your display to the mount by tightening the four

Phillips pan head screws.

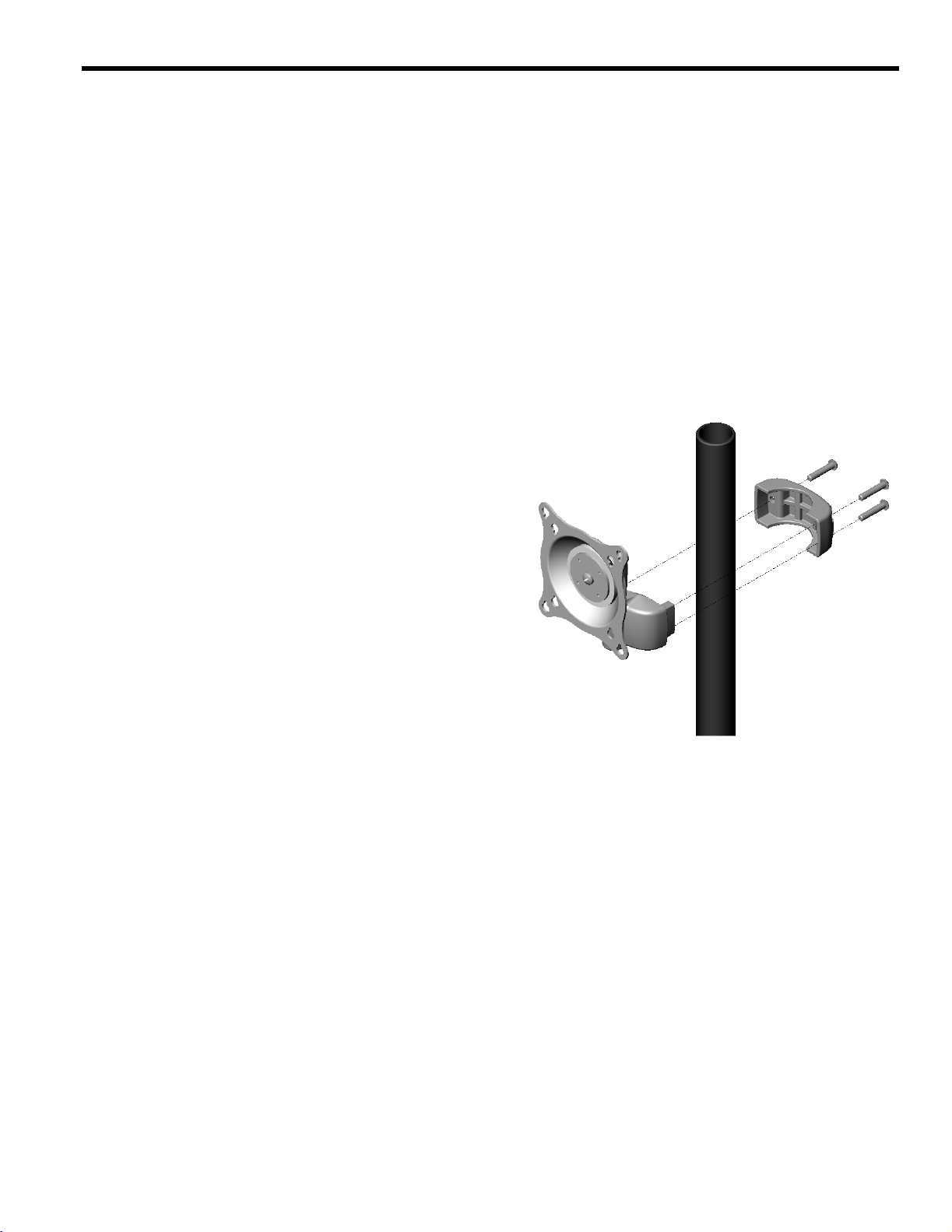

Figure 1. Secure Bracket To Pole

Installation Instructions FPD

WARNING: Make sure your cables do not run through a pinch

point.

E. Connect and secure power/audio/video cables, making

sure to leave sufficient slack to allow for movement of the

display.

VESA Compliant Recessed Mounting

A. Place four 1/2” X 3/8” Nylon spacers or four 1/2” X 3/4”

Nylon spacers, as necessary, over the mounting holes of

your display (see Figure 2).

B. Place the mount over the Nylon spacers, matching the hole

pattern on your display (75mm or 100mm) with the hole

pattern on the mount.

C. Using four M4 X .7 X 20mm Phillips pan head screws for

1/2” X 3/8” Nylon spacer installation or four M4 X .7 X

30mm Phillips pan head screws for the 1/2” X 3/4” Nylon

spacer installation, secure the mount to your display.

WARNING: Make sure your cables do not run through a pinch

point.

D. Connect and secure power/audio/video cables, making

sure to leave sufficient slack to allow for movement of the

display.

Non-VESA Compliant Mounts

A. Contact Chief Manufacturing for custom interface brack-

ets.

CABLE MANAGEMENT

WARNING: Make sure your cables do not run through a pinch

point.

1. Route power/audio/video cables under each arm, allowing suf-

ficient slack in cables for extension and avoiding pinch points

2. Secure cables using cover plates and four screws (see “DRAW-

INGS” on page 2).

Figure 2. Recessed Mounting

Installation Instructions FPD

ADJUSTMENTS

CAUTION: Overtightening adjustment will cause excessive wear.

Rotational Tilt, Pitch, and Roll Adjustment

1. If necessary, use a Phillips screwdriver to tighten or loosen

the Phillips pan head screw (see DRAWINGS).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Lateral Tension Adjustment

1. Using a 3/16” hex wrench (provided), slightly tighten or

loosen lateral tension adjustment bolt (see DRAWINGS).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Arm Tension Adjustment

1. Using a 3/16” hex wrench (provided), slightly tighten or

loosen arm tension adjustment bolt (see “DRAWINGS” on

page 2).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.
