Plasma Ceiling Mount

Model MSP-SPCM (PCM Series)

The MSP-SPCM, with Q-latch design, is a quick ceiling instal-

lation process that easily attaches to 1 1/2” NPT coupling. A

low profile design compliments the sleekness of you plasma

while providing versatile sturdy support for your plasma.

With the mount securely in place, simply install PSB-2095

(bracket designed specifically for your display) on your dis-

play, use the easy to hang Q-latches to mount your display, and

engage the locking device to prevent removal of the display.

Height adjustment (5”) and roll adjustment (4º right and left)

simplify screen positioning, Optimum viewing is easily

achieved using the tilt adjustment (15º down and 5º up).

The display can be installed using either the horizontal

(landscape) or vertical (portrait) mounting format.

BEFORE YOU BEGIN

•CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, and to the equipment

that will be attached to it, thoroughly study all instructions and illustrations before you begin the installation.

Pay particular attention to the “Important Warnings and Cautions” on Page 2.

• The maximum weight to be installed on the wall mount is 175 pounds (79.38 kg).

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE. 700

SAVAGE, MINNESOTA 55378 USA

PART NO. 8832-000098 (Rev. A)

www.chiefmfg.com

08/05

Installation Instructions MSP-SPCM

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING: Improper installation can result in serious personal injury! Make sure that the ceiling structural mem-

bers can support a redundant weight factor five times the total weight of the equipment. If not, reinforce

the ceiling before installing the suspended ceiling kit.

•WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING: The installer is responsible for verifying that the ceiling to which the reinforcing plate on the mount is

anchored will safely support the combined load of all attached components or other equipment.

•WARNING: The combined weight of the plasma display panel must not exceed 175 lbs (79.38 kg), the maximum load

capacity of the reinforcing plate.

•CAUTION: Check the unit for shipping damage before you begin the installation.

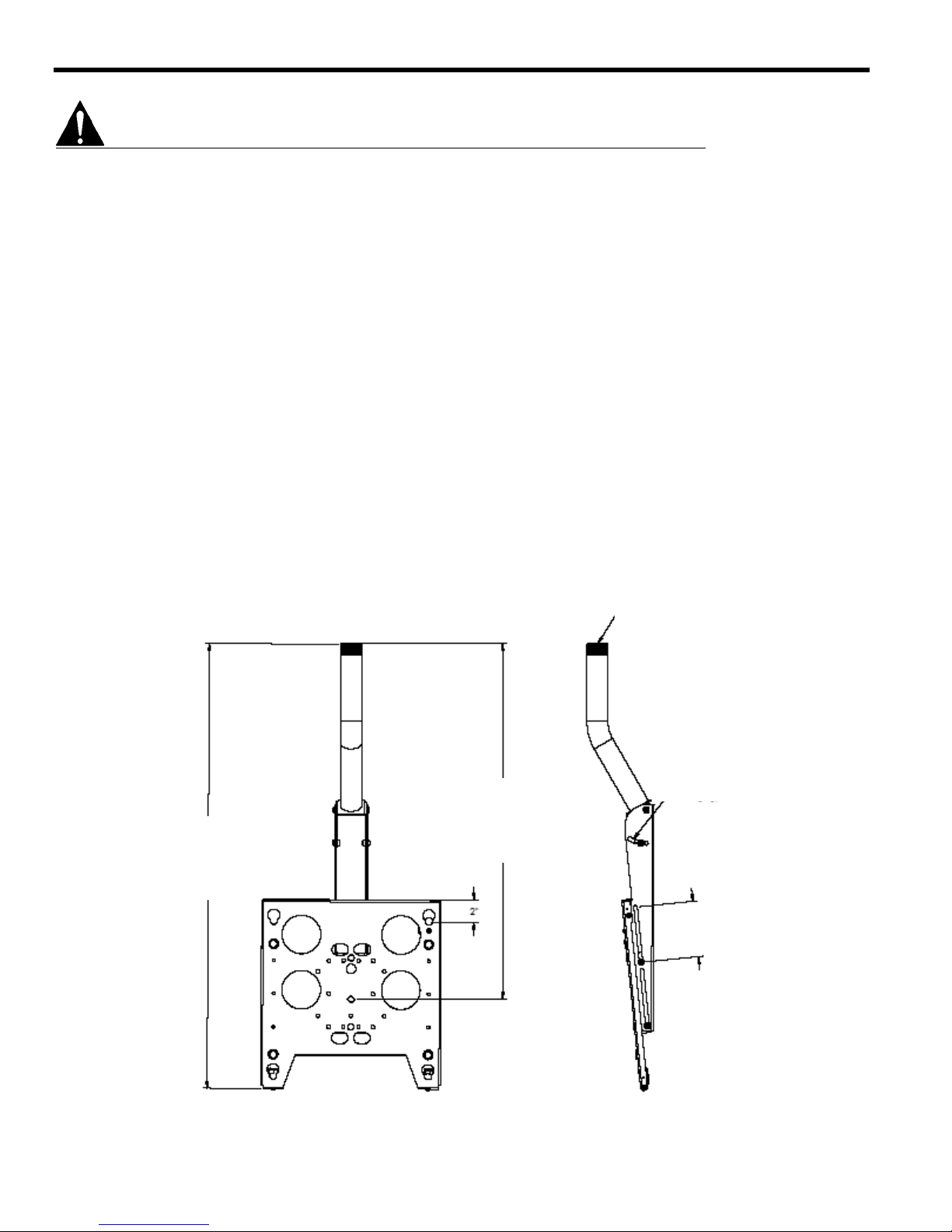

DIMENSIONAL DRAWING

35 1/16”

40 1/16”

27 1/16”

32 1/16”

5” Height

Adjustment

Tilt

25 Degrees Down

5 Degrees Up

1 1/2” NPT

Installation Instructions MSP-SPCM

C O N T E N T S

IMPORTANT WARNINGS AND CAUTIONS ................. 2

DIMENSIONAL DRAWING .............................................. 2

TOOLS REQUIRED FOR INSTALLATION ..................... 3

PARTS LIST ........................................................................ 3

PARTS.................................................................................. 4

ASSEMBLY PROCEDURE ................................................ 4

INSTALL PSB-2095 ............................................................ 5

MOUNTING PROCEDURES ............................................. 7

ADJUSTMENTS.................................................................. 8

TOOLS REQUIRED FOR

INSTALLATION

• Pipe wrench

• 5/16” Allen Wrench

• 1/2” wrench

• Other tools may be required depending on the method of

installing the unit in the ceiling.

PARTS LIST

Unpack the carton and verify the contents listed in Table 1 on

page 3. If you are missing any of the listed parts, contact

Customer Service at: 1-800-582-6480.

Table 1: Parts List

REF DESCRIPTION QTY

1 Screw, Cap, Button Head 8

2 Nut, Hex, 3/8-16 2

3 Washer, Stainless Steel 2

4Nut,Lock,10-24 1

5 Washer, UHMW 3

6Plate,Front 1

7 Knob, Latch 1

8 Tube, 1 1/2” Threaded 1

9 Mount, Pitch 1

10 Adapter, Mount, Pitch 1

11 Buckle, Spud 2

12 Screw, Socket Head Cap, 1/4-20 2

13 Key, Allen (Not Shown) 1

14 Washer, Flat 2

15 Screw, Pan Head, 10-24 1

16 Spacer, .38 X .194 X .032” 1

Installation Instructions MSP-SPCM

PARTS

11 12

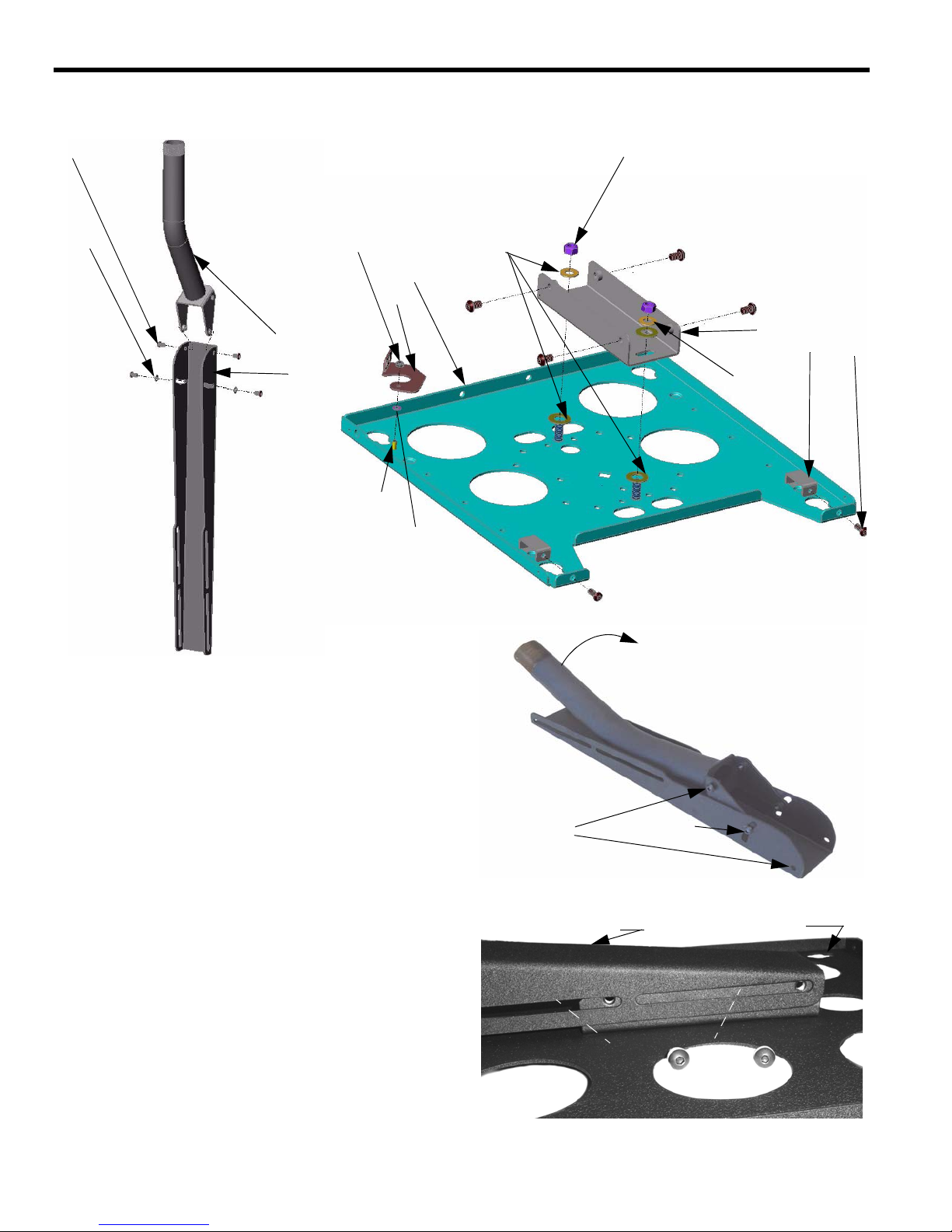

ASSEMBLY PROCEDURE

1. Remove two adjustment screws that are not securing the

tube and open the body assembly by raising the tube, piv-

oting it on the tilt adjustment screws (see Figure 1).

2. Secure the tube using the two adjustment screws removed

in step 1.

3. Using four 5/16-18 button head cap screws and four wash-

ers, secure the body to the plate assembly (see Figure 2).

Tilt Adj. Screw

Remove and

Reinstall Here

after tube is raised

Body Assembly Plate Assembly

Figure 1. Raise tube of Body

Figure 2. Assemble Body to Plate

Installation Instructions MSP-SPCM

INSTALL PSB-2095

The PSB-2095 parts list is shown in the table on this page.

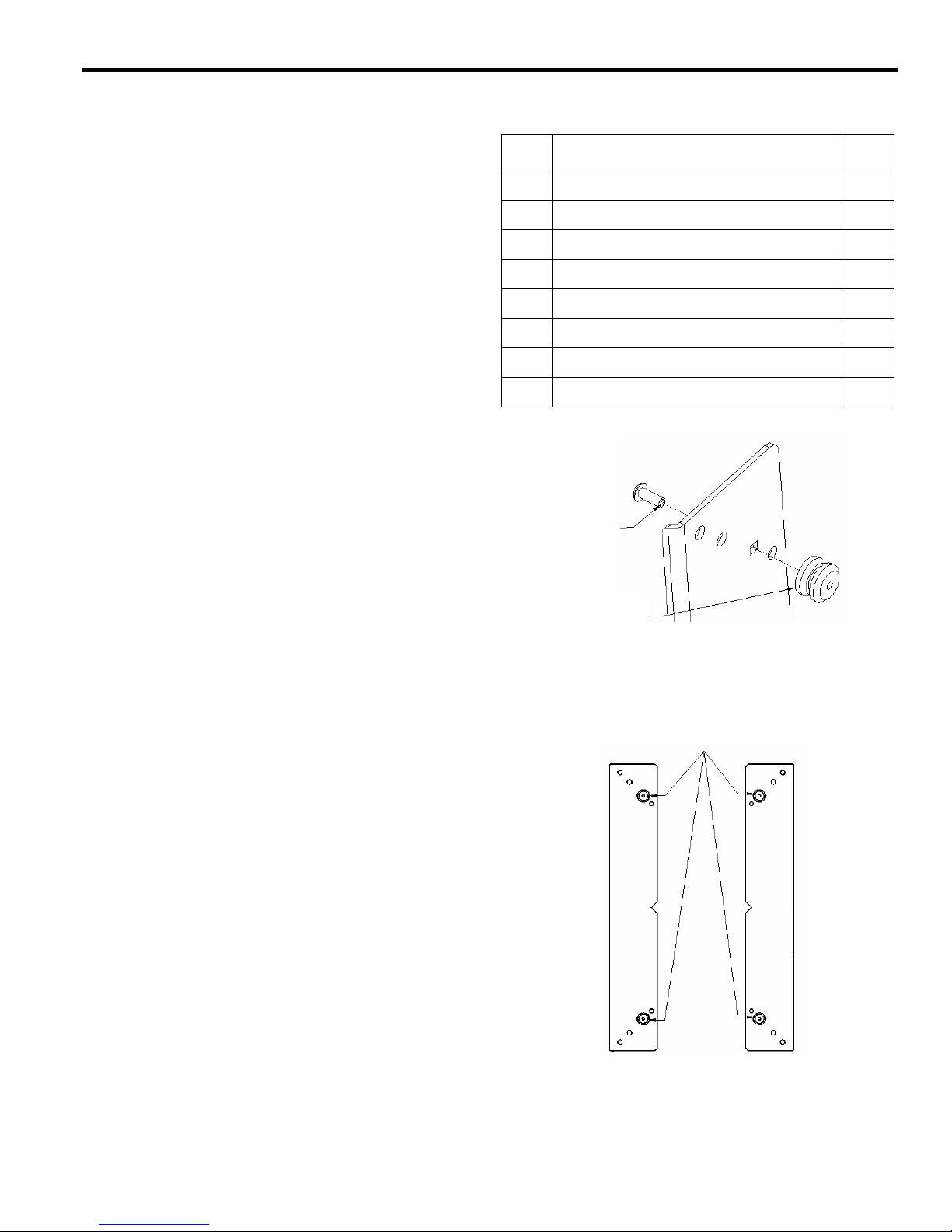

1. Using a 10-24 button head cap screw inserted from the

backside of the bracket (see Figure 3), secure the mount-

ing button with the chamfered hole of mounting button

(larger surface) facing the bracket (see Figure 4).

2. Repeat Step 1 to install the other three mounting buttons.

REF DESCRIPTION QTY

10 Plasma Bracket 1

20 10-24 x 1/2 Button Head Cap Screw 4

30 M5 x 20mm Button Head Cap Screw 4

40 M6 x 20mm Button Head Cap Screw 4

50 Mounting Buttons – Tapped 4

60 1/8” Allen Key 1

70 .875 OD x .33 ID x .375 Nylon Spacer 4

80 M4 Allen Key 1

Mounting Button

10-24 Button Head

Cap Screw

Attach Mounting Buttons

Using These Holes

Figure 3. Mounting Button Attachment

Figure 4. Mounting Button Location

Installation Instructions MSP-SPCM

INSTALL PSB-2095 (CONT’D)

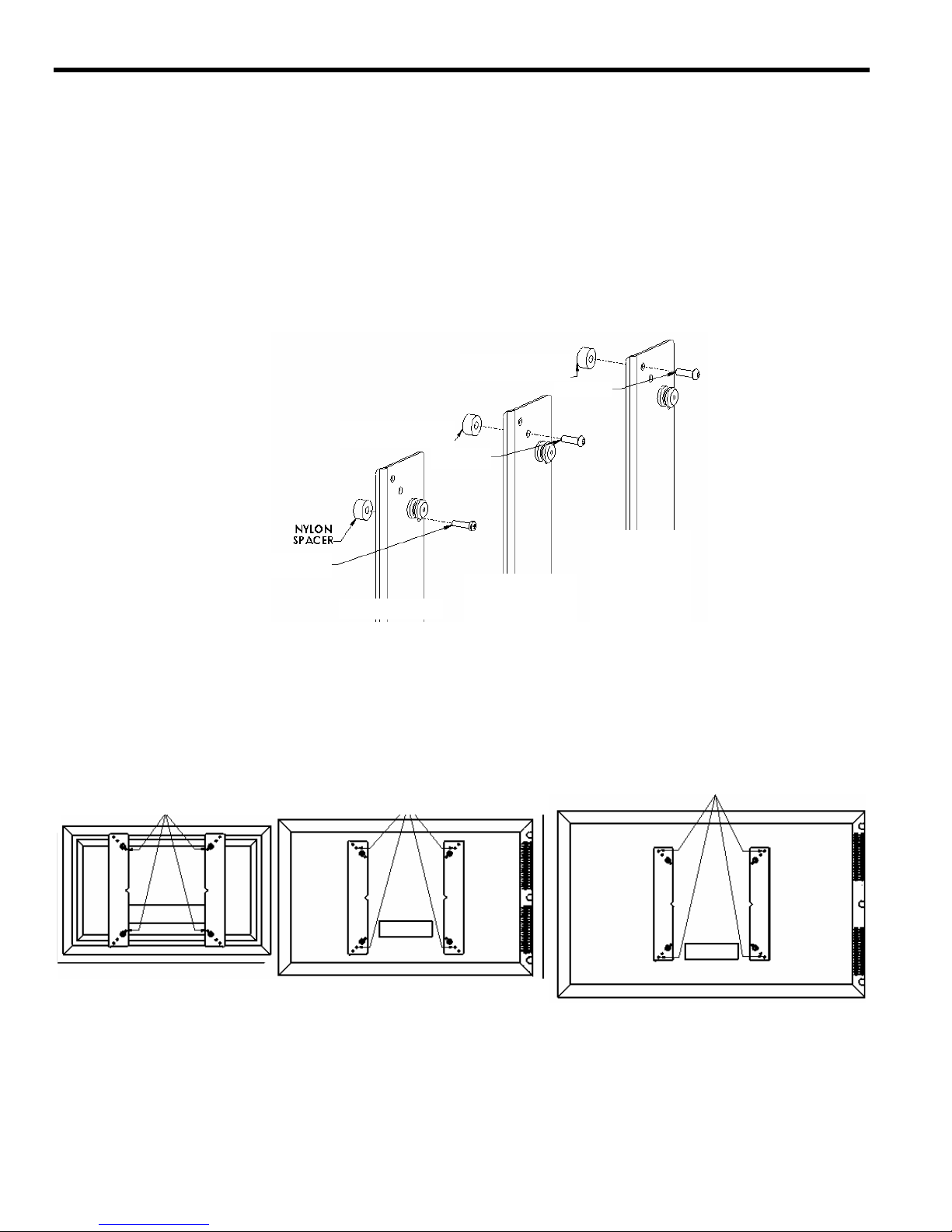

3. Place nylon spacers over the mounting holes on the back

of the screen (see Figure 5).

4. Attach mounting bracket to the display (see Figure 6), as

follows:

a. For 32” screens, use the M5 screws.

b. For 42” and 50” screens, use the M6 screws.

Nylon Spacer

6mm

50” Display

42” Display

32” Display

5mm

Nylon Spacer

Figure 5. Bracket Hole Location

Figure 6. Bracket Attachment Location

50” Display

42” Display

32” Display

Installation Instructions MSP-SPCM

MOUNTING PROCEDURES

1. Thread the mount onto the 1 1/2”NPT pipe extension/cou-

pling you have provided.

2. Read and follow the hanging bracket instructions

(PSB-2095) for your application (display model).

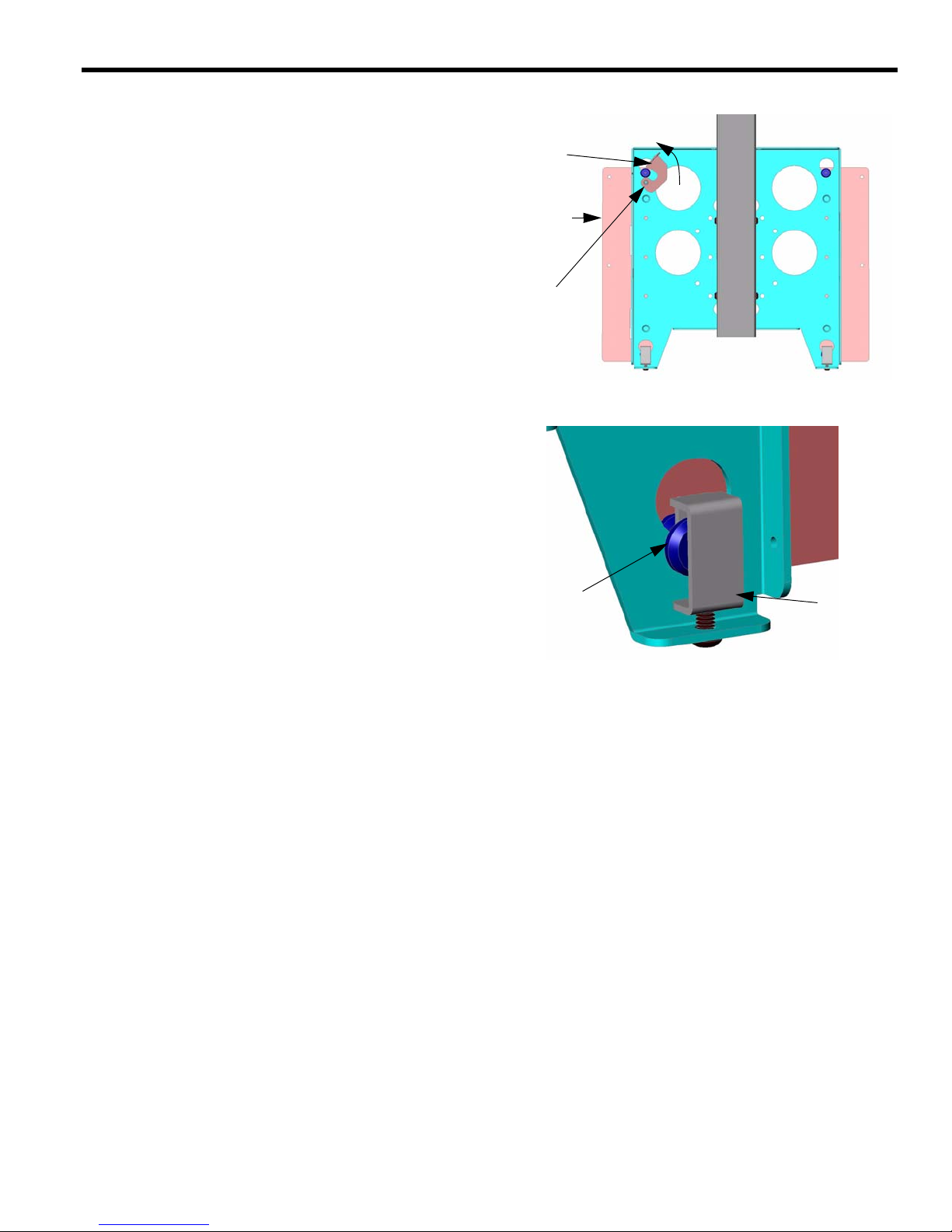

3. Make sure the mount is level (see “ADJUSTMENTS” on

page 8, Roll) and latch is positioned so it will not obstruct

plasma installation (see Figure 7).

4. With one person supporting each side of the display, align

the four Q-latches with the four openings.

5. Secure the display by completely engaging the latch.

6. Lock the display in place by installing a Q-clamp on each

side of the bottom of face plate as shown in Figure 8.

7. Connect and secure power/audio/video cables.

Q-latch

PSB-2095

Latch

secure

your

display

Figure 7. Mounting

Q-Latch Q-Clamp

Figure 8. Install Q-Locks

Installation Instructions MSP-SPCM

ADJUSTMENTS

Height

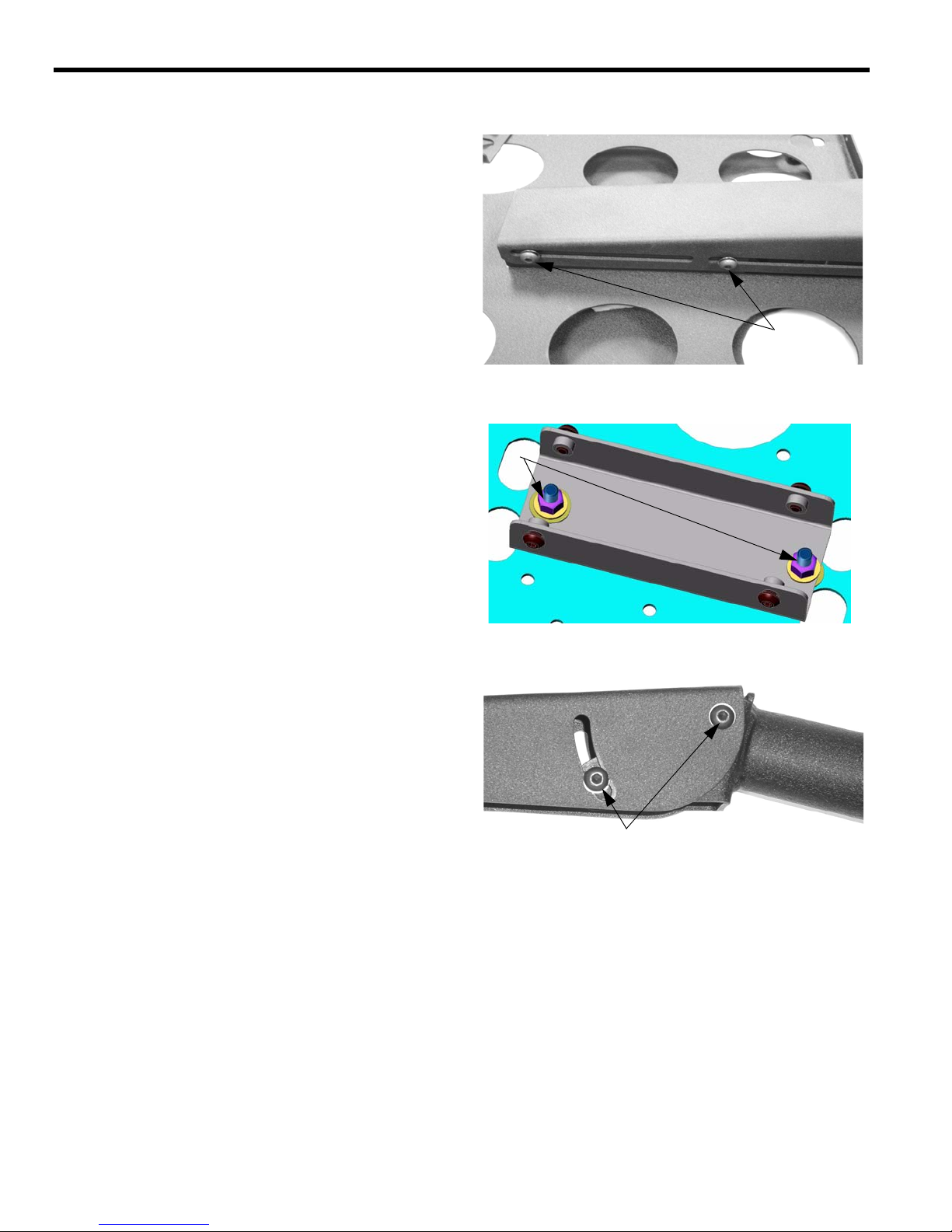

1. Loosen four 5/16-18 button head cap screws (see

Figure 9).

2. Adjust the height to the desired position.

3. Tighten the four 5/16-18 button head cap screws.

Roll

1. Loosen the two 3/8-16 Nylock nuts (see Figure 10).

2. Adjust the roll, using the slotted bottom holes, to the

desired position.

3. Tighten the two 3/8-16 Nylock nuts.

Tilt

1. Loosen the four 5/16-18 button head cap screws (see

Figure 11).

2. Adjust to the desired tilt position.

3. Tighten the four 5/16-18 button head cap screws.

Height

Adjustment

Screws

Nylock

Nuts

Figure 9. Height Adjustment

Figure 10. Roll Adjustment

Screws

Tilt

Adjustment

Figure 11. Tilt Adjustment
