Chamberlain 953EV Manuel utilisateur

3-BUTTON REMOTE CONTROLS

MODELS 953EV, 953EVC, 956EV AND 956EVC

To prevent possible SERIOUS INJURY or

DEATH from a moving gate or garage door:

• ALWAYS keep remote controls out of

reach of children. NEVER permit children

to operate or play with remote controls.

• Activate gate or door ONLY when it can be

seen clearly, is properly adjusted and there

are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight

until completely closed. NEVER permit

anyone to cross path of moving gate or

door.

For use with Chamberlain 315 MHz or 390 MHz garage door openers manufactured after

January 1, 1993. The garage door opener activates when the programmed button on the

remote control is pressed. The remote control can activate up to three garage door openers.

Make sure the garage door opener has a working light bulb because it is a programming

indicator.

LED LED

Locate the Program button on the

remote control.

Locate the Learn

button on the garage

door opener.

NOTE: Your garage door

opener may look different.

OR OR

Learn

LED

Learn

LED

Learn

LED

Green

Red/Orange

Purple Yellow Program Button

Program Button

23Press and release the remote

control button you want to use...

4To exit programming mode, press

any remote control button except

the button that was just programmed.

Install the visor clip.

The garage door opener

will activate.

To test, press the programmed button on

the remote control...

1Press and

release the

Learn button

on the garage

door opener.

Within 30 seconds...

To enter

programming

mode, use the

visor clip to

press the Program

button until the LED

on the front of the

remote control turns on.

The Learn LED will light.

Check to see if the garage door opener

light bulb blinks. If not, wait for the

remote control LED to light solid then

slowly press and release the remote

control button again. Repeat until the

light bulb blinks.

DO NOT press the button after the

light bulb blinks.

MODELS 953EV AND 953EVC MODELS 956EV AND 956EVC

GARAGE ACCESS SYSTEM

REMOTE

GARAGE ACCESS SYSTEM

KEYCHAIN REMOTE

PREPARE

PROGRAM THE REMOTE CONTROL (953EV & 953EVC)

953EV &

953EVC

956EV &

956EVC

4To exit programming mode, press

any remote control button except

the button that was just programmed.

The garage door opener

will activate.

To test, press the programmed button on the remote control...

Using a safety pin or paper

clip, press the Program button

until the LED on the front of

the remote control turns on.

12Press and

release the

Learn button

on the garage

door opener.

Within 30 seconds...

The Learn LED will light.

3Press and release the remote

control button you want to use...

Check to see if the garage door opener

light bulb blinks. If not, wait for the

remote control LED to light solid then

slowly press and release the remote

control button again. Repeat until the

light bulb blinks.

DO NOT press the button after the

light bulb blinks.

NOTICE: To comply with FCC and or Industry Canada rules (IC),

adjustment or modifications of this receiver and/or transmitter

are prohibited, except for changing the code setting or replacing

the battery. THERE ARE NO OTHER USER SERVICEABLE

PARTS.

Tested to Comply with FCC Standards for Home or office use.

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

BATTERY

The LED on your remote will stop flashing when the battery is low and needs to be replaced.

To replace battery, open the case as shown. Insert battery positive side up (+). Replace the battery

with only 3V2032 coin cell batteries. Dispose of old battery properly. To prevent possible SERIOUS INJURY or

DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify

doctor.

To reduce risk of fire, explosion or chemical

burn:

• Replace ONLY with 3V2032 coin batteries.

• DO NOT recharge, disassemble, heat

above 212° F (100° C) or incinerate.

1-800-528-9131

REPLACEMENT PARTS

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 10A20

Visor Clip

(Models 953EV & 953EVC ONLY) . . . . 29B137

WARRANTY

www.chamberlain-diy.com

ONE YEAR LIMITED WARRANTY

The Chamberlain Group, Inc. warrants to the first retail purchaser of this product that is free from

defect in materials and/or workmanship for a period of 1 year from the date of purchase.

Pry open the case with a screwdriver blade.

956EV & 956EVC

Pry open the case first in the middle (1), then

at each side (2 and 3) with the visor clip.

953EV & 953EVC

PROGRAM THE REMOTE CONTROL (956EV & 956EVC)

Ce manuel convient aux modèles suivants

Autres manuels Chamberlain Télécommande

Chamberlain

Chamberlain Clicker KLIK1U Manuel utilisateur

Chamberlain

Chamberlain 4330EML Manuel utilisateur

Chamberlain

Chamberlain TriCode Systems Manuel utilisateur

Chamberlain

Chamberlain E940C Manuel utilisateur

Chamberlain

Chamberlain PASSPORT CPTK3 Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Professional 312HM Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Professional 412HM Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Security+ 373LM Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Security+ 370LM Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Professional 98685E Manuel utilisateur

Chamberlain

Chamberlain Liftmaster Security+ 974LM Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Security+ 973-315LM Manuel utilisateur

Chamberlain

Chamberlain 54332EML Manuel utilisateur

Chamberlain

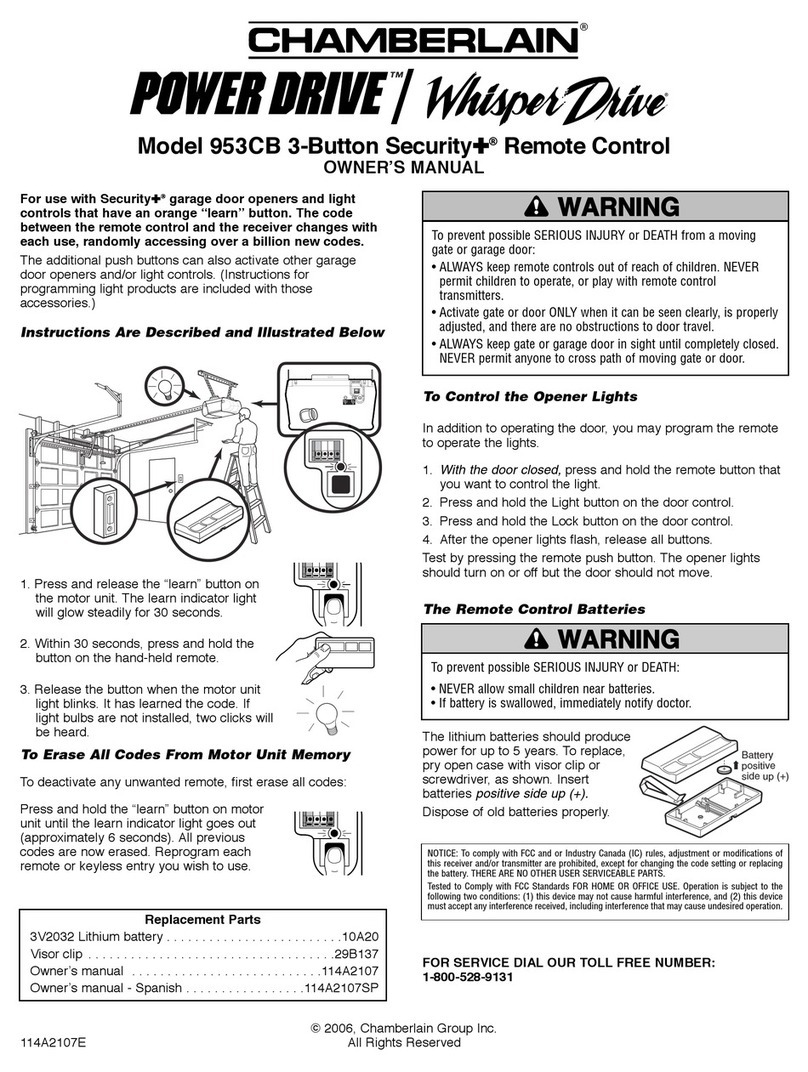

Chamberlain Power Drive Whisper Drive Security+ 953D Manuel utilisateur
