CBC CX Series Manuel utilisateur

Please carefully read and observe all instructions

and warnings contained in this manual or on the

product. Improper installation may damage the

device and void the warranty.

CX Series

Instruction Manual

B/W, Color and Day/Night Outdoor Cameras

www.cbcamerica.com

CX Series Instruction Manual

CONTENTS

BASIC DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

MAJOR FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

WIRING CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

MOUNTING THE CAMERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

ADJUSTING CAMERA ORIENTATION . . . . . . . . . . . . . . . . . . . . . . 2

LENS ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

FCC RULES: PART 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

DIP Switch Setup: Color Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . 4

DIP Switch Setup: Black and White Cameras . . . . . . . . . . . . . . . . . 5

CAMERA SPECIFICATIONS

CX-NV310A-2 Color/CXH-NV310A-2 Hi-Res Color . . . . . . . . 6

CAMERA SPECIFICATIONS

CX-EV310A-2 B&W Camera . . . . . . . . . . . . . . . . . . . . . . . . . 7

CAMERA SPECIFICATIONS

DXH-NV39A Hi-Res Color Day/Night . . . . . . . . . . . . . . . . . . . 8

MODEL CX-EV310A-2 B/W Camera Components . . . . . . . . . . . . . 9

CX Series Instruction Manual

Page 1

BASIC DESCRIPTION

CX Series cameras utilize a high-sensitivity CCD camera with auto iris varifocal lens in a

compact weatherproof housing. Four versions are available:

1) Model CX-EV310A-2 (B/W with 2.8-10mm auto iris varifocal lens)

2) Model CX-NV310A-2 (Color with 2.8-10mm auto iris varifocal lens)

3) Model CXH-NV310A-2 (Hi-Res Color with 2.8-10mm auto iris varifocal lens)

4) Model DXH-NV39A (Hi-Res Color Day/Night with 3-9mm A/I varifocal lens)

MAJOR FEATURES

• Compact and stylish design for use in commercial or residential applications

• Anodized aluminum weather-proof housing with removable sunshield

• Auto-iris varifocals compensate for changing light conditions and provide maximum

depth of field

• Wide Operating Temperature Range for use in any climate

• Adjustable swivel mount for ceiling or wall installations

• Phase adjustment for synchronizing multiple cameras in 24VAC systems

• 12VDC/24VAC auto-sensing power input

• Optional Day/Night Model with retractable IR cut filter (DXH112-V39A).

WIRING CONNECTIONS

WARNING: Make wiring connections only after it has been determined that power has

been disconnected. Use either a 12VDC regulated power supply (C12DCR-500

recommended) or a 24VAC power supply (C24AC recommended). For 12VDC power

input, determine the polarity prior to connection to the camera. Failure to do so could

lead to permanent damage to the device and void the warranty.

NOTE: A BNC connector (included) can be crimped to the WHITE and GREEN video

signal wires using the supplied butt connectors.

Page 2

CX Series Instruction Manual

MOUNTING THE CAMERA

The camera base has two mounting holes for #8 screws (#8 screws and anchors are

supplied). To mount the camera, loosen the swivel set screw with the 1/8” Allen

wrench (supplied) and mount the base in the desired location. The mounting base

can be removed completely from the bracket if necessary.

ADJUSTING CAMERA ORIENTATION

Loosen the swivel set screw and rear end cap set screw with supplied Allen keys.

Orient the camera and tighten both set screws. Be sure to tighten the rear end cap

set screw to maintain a water-tight seal.

LENS ADJUSTMENT

1) Completely loosen the two Phillips screws on the rear endcap that hold the

housing cover in place, and remove the cover.

2) Loosen the focus and zoom adjustment locking screws.

3) Connect the camera to power and a monitor to adjust focal length and focus

for best image.

4) Tighten focus and zoom locking screws. Recheck image after tightening.

5) Replace cover carefully in order to prevent damage to the camera components.

6) Make sure cover is tight against back plate and tighten two Phillips screws on

housing with equal force.

RED

BLACK

WHITE

GREEN

+12VDC/24VAC

POWER GROUND/24VAC

VIDEO SIGNAL OUT

VIDEO GROUND

CX Series Instruction Manual

Page 3

NOTES

A) Do not remove desiccant pack! There is a desiccant pack attached to

the housing base under the board camera that is designed to absorb any

moisture trapped inside the housing during adjustment. To avoid excessive

moisture buildup, it is recommended that the camera not be installed in rainy

or excessively damp conditions. It is also advisable to limit the number of times

the housing cover is removed. The desiccant pack can be replaced if

condensation develops inside the housing.

B) If the housing cover is opened frequently or if the gasket dries out, apply a light

coat of good quality silicone-based grease to the gasket to maintain a

watertight seal.

C) Make sure that the end of the cable, including BNC connector and power

connection, are not exposed to the elements. Exposed cable may cause a

power short.

FCC RULES: PART 15

This device can be expected to comply with part 15 of the FCC Rules, provided it is

assembled in exact accordance with the instructions provided with this kit. Operation

is subject to the following conditions: (1) This device may not cause harmful

interference; and (2) this device must accept any interference received including

interference that may cause undesired operation.

DC DC Iris

1 Iris AES Auto Electronic Shutter

ON Shutter speed to be fixed at 1/100 sec.

2Flickerless (FL) OFF Normal position

Back Light ON Set to this position when a strong light is in the background

3Compensation (BLC) OFF Normal position

INT Internal synchronization mode

4 Synchronization Mode LL Line lock mode

Page 4

CX Series Instruction Manual

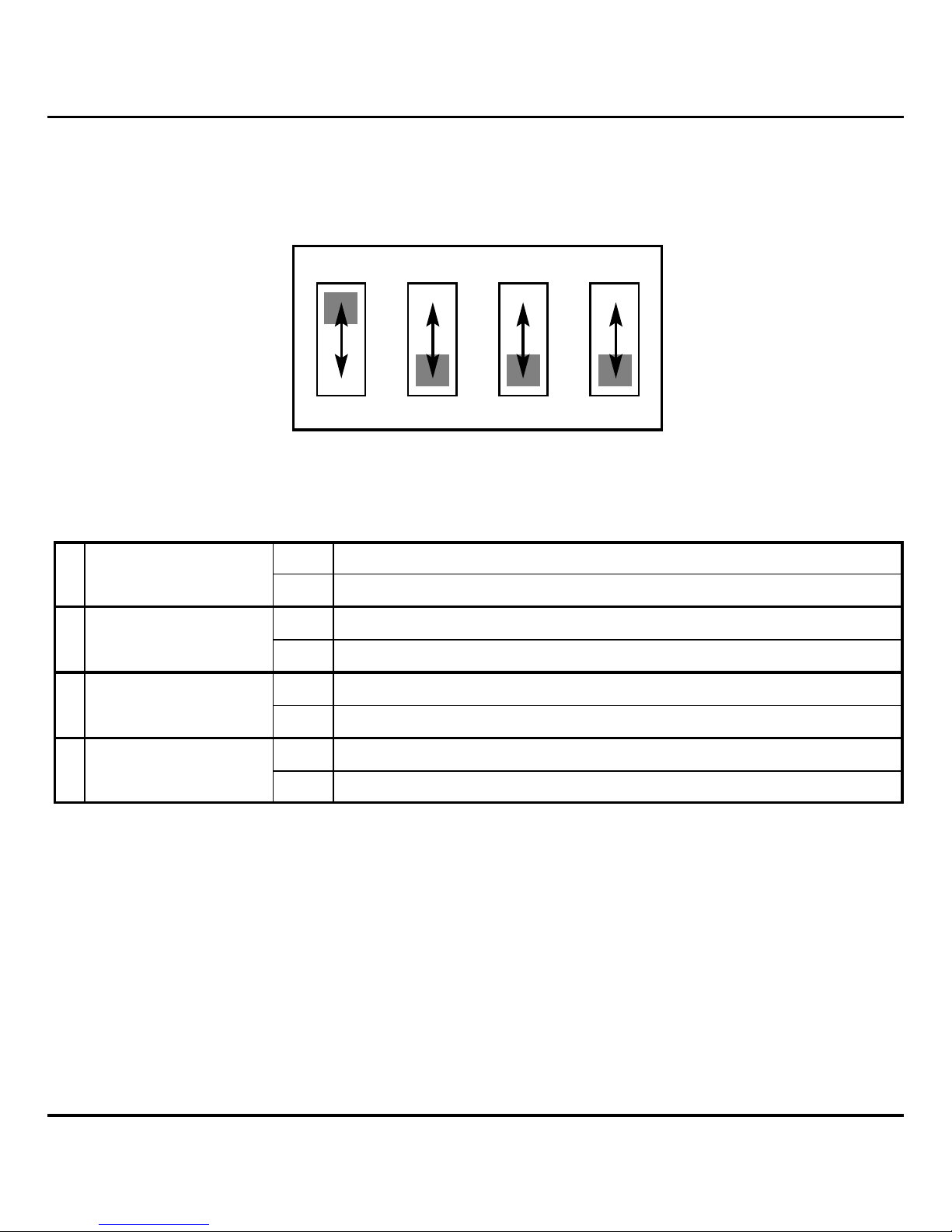

IRIS FL BLC SYNC

DC ON ON INT

AES OFF OFF L.L.

1234

DIP Switch Setup: Color Cameras

(Factory settings shown. Do not change settings except for BLC function as needed)

CX Series Instruction Manual

Page 5

IRIS AGC BLC SYNC

DC OFF ON INT

AES ON OFF L.L.

123 4

DIP Switch Setup: Black and White Cameras

(Factory settings shown. Do not change settings except for BLC function as needed)

DC DC Iris

1Iris AES Auto Electronic Shutter

Auto Gain Control ON Gain level to be fixed at min.

2(AGC) OFF Set to this position to improve camera sensitivity in low light conditions

Back Light ON Set to this position when a strong light is in the background

3Compensation (BLC) OFF Normal position

INT Internal synchronization mode

4Synchronization Mode LL Line lock mode

Page 6

CX Series Instruction Manual

CAMERA SPECIFICATIONS

CX-NV310A-2 Color/CXH-NV310A-2 Hi-Res Color

Video Signal System NTSC Standard

Image Output 1 Volt p-p/75 Ohms

Scanning System 2:1 Interlace

Resolution 330 lines horz (standard)/480 lines horz (hi-res)

Sensitivity @f1.2 1.0 lux (50 IRE) / 1.5 lux (50 IRE)

0.4 lux (30 IRE) / 0.7 lux (30 IRE)

S/N Ratio More than 50dB

Image Sensor 1/4" Interline Transfer CCD

Effective Picture Elements 510(H) x 492(V) / 768(H) x 492(V)

Scanning Frequency Horz. 15.734KHz/Vert 59.9Hz

Sync System Internal / Line Lock

Gamma 0.45

Gain Control Automatic

Iris DC Auto Iris

Power Source DC 12V ± 1.0 volt or 24VAC

Power Consumption min 200 mA

Operating Temperature Range -30ºF to +140º F

Lens 2.8 ~ 10mm f1.2 Auto Iris

CX Series Instruction Manual

Page 7

CAMERA SPECIFICATIONS

CX-EV310A-2 B&W Camera

Video Signal System EIA Standard

Image Output 1 Volt p-p/75 Ohms

Scanning System 2:1 Interlace

Resolution 380 lines horz

Sensitivity @f1.2 0.1 lux (50 IRE)

0.04 lux (30 IRE)

S/N Ratio 50dB (AGC off)

Image Sensor 1/4" Interline Transfer CCD

Pixel Size 9.60 um(H) x 7.50 um(V)

Effective Picture Elements 510(H) x 492(V)

Scanning Frequency Horz. 15.734KHz/Vert 59.9Hz

Sync System Internal / Line Lock

Gamma 0.45

AGC +12dB

Iris DC Auto Iris

Power Source DC 12V ± 1.0 volt or 24VAC

Power Consumption min 200 mA

Operating Temperature Range -30ºF to +140º F

Lens 2.8 ~ 10mm f1.2 Auto Iris

Page 8

CX Series Instruction Manual

CAMERA SPECIFICATIONS

DXH-NV39A Hi-Res Color Day/Night

Video Signal System NTSC Standard

Image Output 1 Volt p-p/75 Ohms

Scanning System 2:1 Interlace

Resolution 480 lines horz

Sensitivity @f1.4 0.21 lux (50 IRE-Night Mode/B/W)

0.07 lux (30 IRE-Night Mode/B/W)

S/N Ratio More than 50dB

Image Sensor 1/4" Interline Transfer CCD

Effective Picture Elements 768(H) x 494(V)

Scanning Frequency Horz. 15.734KHz/Vert 59.9Hz

Sync System Internal / Line Lock

Gamma 0.45

Gain Control Automatic

Iris DC Auto Iris

Power Source DC 12V ± 1.0 volt or 24VAC

Power Consumption 300 mA recommended

Operating Temperature Range -30ºF to +140º F

Lens 3-9mm f1.4 Auto Iris Day/Night Lens with ED glass

and filter removal mechanism
