CBC CL-301 Manuel utilisateur

EG-2

Thank you for your purchase of this product. Before operating the product, please read this instruc-

tion manual carefully to ensure proper use of the product. Please store this instruction manual in a

safe place for future reference.

CONTENTS

FEATURES EG-2

SAFETY PRECAUTIONS EG-2

PART DESCRIPTION EG-5

INSTALLATION EG-6

SPECIFICATION EG-8

FEATURES

- Compact and Light weight design.

- Accepts DC or Video type auto-iris lenses.

- Impressive color reproduction.

- Line lock function with line phase adjustment

- DSP controls for Back Light Compensation,White Balance, and Gain Control

SAFETY PRECAUTIONS

The lightning flash with

arrowhead symbol,

within an equilateral

triangle is intended to

alert the user to the

presence of uninsulated “dangerous

voltage” within the product’s enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock to

persons.

The exclamation point

within an equilateral

triangle is intended to

alert the user to the

presence of important

operating and maintenance (servicing)

instructions in the literature

accompanying the appliance.

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING :

To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

To avoid electrical shocks, do not open the cabinet. Refer servicing to qualified

personnel only.

EG-3

These cameras should be used with 12VDC or 24VAC.

CAUTION :

To prevent electrical shocks, do NOT use any other power source.

Regulatory Notices :

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This machine generates, uses, and can

radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause interference, in which case the user will be required to correct the interference at the user’s own

expense.

EG-4

1. Power supply

(1) Use only with a 24VAC power supply marked class 2 or 12VDC regulated power supply.

(2) Be sure to connect each lead to the appropriate terminal. Wrong connection may cause mal-

function and / or damage to the camera.

2. Operating and storage locations

(1) Do not attempt to aim the camera at the sun or other extremely bright objects that cause smear

to appear irrespective of whether the camera is operating or not. This can damage the CCD

(Charge Coupled Device).

(2) Do not place the camera in the following locations.

qLocations subjected to extremely high or low temperatures.

(operating temperature range : –10°C to +50°C {14°F to 122°F})

(storage temperature range : –20°C to +60°C {–4°F to 140°F})

wLocations subjected to high levels of humidity and dust

(storage humidity range : max 85% {no condensation})

eLocations where there are large amounts of water vapour and steam

rLocations subjected to excessive vibrations

(3) When this camera is installed near equipment, like a wireless communication device, that emits a

strong electromagnetic field, some irregularity such as noise on the monitor screen may happen.

3. Handling of the unit

Do not allow the camera to be subjected to strong impacts or shocks. The camera could be

damaged by improper handling or storage.

-Never attempt to disassemble or modify the camera.

-If an abnormality should occur, immediately turn off the power and consult your dealer.

-Never open the housing of any power supply during cleaning.

-After installation, ensure that all cables are laid in such a way that they cannot be kinked or

crushed or damaged in any other way.

PART DESCRIPTION

①Tripod adaptor

②CCD cover

③Dip switches

④Line phase adjustment buttons

⑤Auto iris mode switch

⑥DC iris level adjustment volume

⑦Back focus lock screw

⑧Auto iris lens connector

⑨Back focus adjustment screw

⑩Power LED

⑪ BNCconnectorforvideooutput

⑫Power input connector

Pin assignment of auto iris lens connector

EG-5

POWER

VIDEO

OUT

12 11 10

GND

+12VDC

AC24V

CLASS 2

ONLY

Pin No. DC iris Video iris

1Control - Vcc +

2Control + Not used

3Drive + Video

4Drive - Ground

SYNC

BLC

AGC

W/B

L.L

ON INT DC

IRIS

VIDEO

AES

OFF

OFFON ATWAWB

PHASE

3 7

654

DC IRIS

INSTALLATION

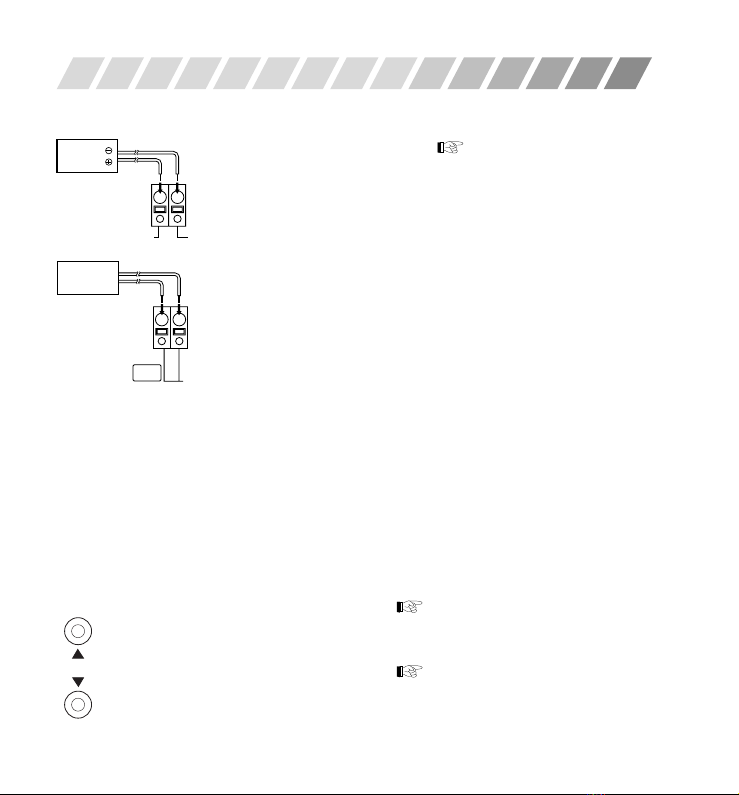

CONNECTION OF POWER SUPPLY CABLE

Connect to the 12VDC

power supply. Please refer

to the drawing on the left.

NOTE

When using DC power, check for

proper polarity before connecting

to power supply.

Connect to the 24VAC

power supply. If necessary,

adjust the line phase to

synchronize the image.

Please refer to the drawing

on the left.

LINE PHASE ADJUSTMENT

If necessary, adjust the line phase to

synchronize the image by pressing

PHASE adjustment button.

NOTE

In case 12VDC power supply is used, this

function is not available.

NOTE

In case the line phase cannot be adjusted

(Phase difference is more than 1800),

exchange the polarity of AC power input.

EG-6

PHASE

GND+12VDC

12VDC

AC24V

CLASS 2

ONLY

24VAC

class 2 only

LENS MOUNTING

AUTO IRIS MODE SELECTION

BACK FOCUS ADJUSTMENT If back focus has to be adjusted after mounting

the lens, (1) loosen the back focus lock screw on

the left side of the camera with a (+) screwdriver,

(2) turn the back focus adjustment screw on the

right side of the camera with a (-) screwdriver until

the desired focus is reached, (3) tighten the back

focus lock screw.

Remove the CCD cover. Then

attach the CS mount lens to

the camera. Please refer to the

drawing on the left.

CAUTION

Be cautious not to use Auto

Iris Lens with over 75mA

SYNC

BLC

AGC

W/B

L.L INT

ON OFF

AWB ATW

DIP SWITCH

SETTING

No. NAME POSITION FUNCTION

1Synchronization mode L.L. Line lock mode

(SYNC) INT. Internal synchronization mode

2Back light compensation ON sets to this position when strong light comes in behind the target

(BLC) OFF normal position

3Auto gain control ON AGC level varies from 0dB to maximum 20dB

(AGC) OFF normal position

4White balance AWB adjusts WB automatically and fixes it in 5sec

(WB) ATW tracks and adjusts WB automatically

DC IRIS LEVEL

ADJUSTMENT

POSITION LENS

DC DC iris lens

AES Manual or fixed iris lens

VIDEO Video iris lens

DC iris level is preset in the

factory. Only if necessary, adjust

the DC iris level to achieve the

proper picture with AGC off.

factory setting

DIP switch on the left side of the camera

allows you to set the functions of the camera.

Please refer to the following table.

Set the auto iris mode selection

switch to the position that

corresponds to the lens which is

mounted to the camera.

Please refer to the table on the left.

EG-7

VIDEO

AES

screw screw

1 3 2

DC IRIS

SPECIFICATION

MOUNTING BRACKET

Tighten the screw to attach

the bracket. Refer to the

above drawing.

Printed in KOREA

Model No. CL-301 CLH-401

TV System NTSC

Scanning System 2:1 Interlaced

Image Sensor 1/3” IT. CCD

Effective Elements ( H x V ) 510 x 492 768 x 494

Scanning Frequency ( H / V ) 15.734 kHz / 59.94 Hz

Video Output 1.0V (p-p) / 75Ω

Resolution ( Horizontal ) 330 TV lines 480 TV lines

Minimum Illuminance (50IRE) 0.8 lux (F1.2) 1.6 lux (F1.2)

AGC +20dB

S/N Ratio ( AGC Off ) More Than 48 dB

γCharacteristic 0.45

Auto Electric Shutter ( AES ) 1/60 - 100,000 Sec.

Sync. System INT. / L.L.

White Balance AWB / ATW

Power Supply 12VDC/24VAC

Power Consumption Less Than 3.5 W

Ambient Temperature Operation : –10°C  +50°C / Storage : –20°C +60°C

Ambient Humidity Operation : RH80% Max. ( Keep Free From DAMP ) / Strage : RH85%

External Dimensions 55 (W) x 40 (H) x 102.4 (D) mm

Weight 280g approx.

Input / Output Video Output : BNC

Power Input : Screwless 2 Pins Terminal
