Casio QT-6000 Guide d'installation

Training manual

QT-6000

Smart Touch Terminal

October 2004

QT-6000 Training Manual

Chapter 1 Hardware and Cable Specifications

Chapter 2 Loading the IPL Via CF Card and PC

& Setting up the In-line network

Chapter 3 Initialising the Terminal

Chapter 4 Memory Allocation

Chapter 5 Function Keys

Chapter 6 Setting up shared check tracking

Chapter 7 Setting up floating clerk interrupt

Chapter 8 Setting up printing & shared printing

Chapter 9 Setting up RF Communications

Chapter 10 New functions and features and Memory

Chapter 11 New Check Tracking & Interrupt functions

Chapter 12 Other new functions

Chapter 13 Customer File and Invoice number

Chapter 14 Downloading graphic logo’s bitmaps and sounds

CHAPTER 1

HARDWARE CONFIGURATION

General Configuration Front View

General Configuration Back View

QT-6000 Hardware Specification

QT-6000 Standard RAM is 32mb (16mb usable)

Flash Memory used for IPL data is 16mb

The In-Line system used is Ethernet

The Ethernet communications Board comes as standard when

purchasing the QT-6000 terminal

You can connect up to three external printers per terminal

You can connect up to two drawers

Layout of Com ports on the QT-6000

As you can see from the diagram above there are 6 Com ports

These are used for the following tasks

Com Port 1 = PC / Modem

Com Port 2 = Scanner

Com Port 3 = Remote display

Com Port 4 = My Printer 1

Com Port 5 = My Printer 2

Com Port 6 = My Printer 3

In addition to the Com ports you can also find

Ethernet In-Line connector

Volume control switch

Two drawer connectors

An External Microphone connector

An External Speaker connector

QT-6000 Optional extra’s

Card Swipe

Rear display

Dallas keys and lock

QT-6000 In-Line (Ethernet)

Configuration 1

Terminal to Terminal (You must use a Hub)

Configuration 2

Multiple Terminals 10 BASE-T

Configuration 3

Multiple Terminals 100 BASE-T

In-Line Maximum Configurations

You can have up to 12 terminals In-Line when using

floating check tracking or floating clerk interrupt.

You can have up to 32 terminals In-Line if you are not

using check tracking or clerk interrupt.

You can have a maximum of 8 Printers shared thought out

the Ethernet network.

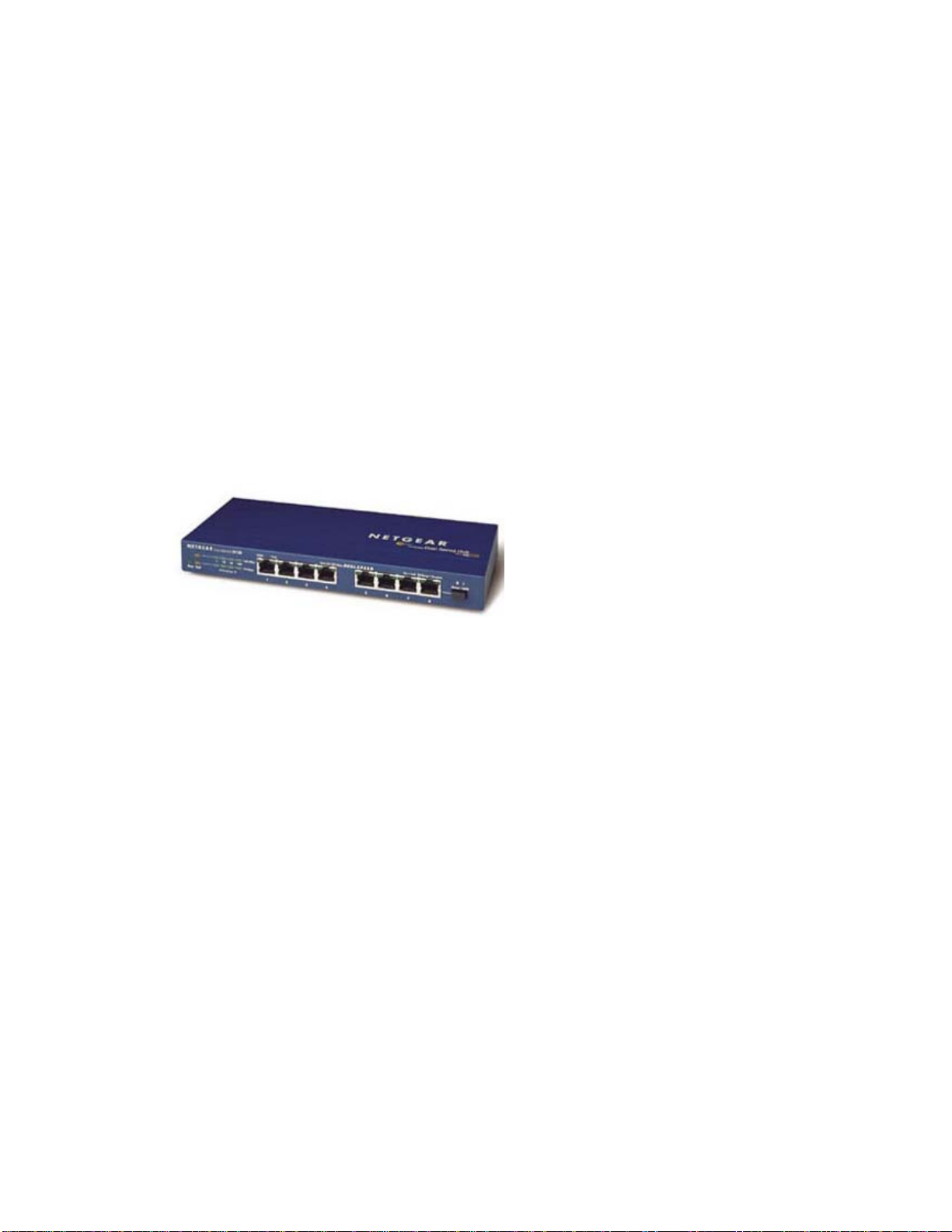

All Terminals must always be connected to a hub

You must use the Netgear FS108 hub.

Note: will do not support the cross over cat-5 cable

between two terminals. When connecting more than one

terminal you must use a Hub.

In-Line specifications and cable lengths

Wiring configuration for Cat-5

All Terminal need to be connected to the hub as shown below

Cat-5 Wiring diagram

This is how the cables should be wired and also the specification

of the cable which should be used

Connecting printers

It is possible to have 3 printers per terminal if the terminals are

stand-alone and there is a maximum of 8 terminals for an In-line

situation

Supported Printers

Epson Thermal TM-88 / UP-350 / 360

Epson Dot Matrix TM-U210 / U-220 / UP-250

Printer wiring diagram

D Sub 9 Pin Female D Sub 25 Pin Male

3TXD RXD3

6DSR DTR20

8CTS RTS4

2RXD TXD2

4DTR DSR6

5SG SG7
