Casio PV-250X Manuel utilisateur
121
Data communications capabilities let you transfer data between two CASIO
PV Units, between a PV Unit and a BN-10/BN-20 Unit, or between a PV
Unit and a BN-10A/BN-20A/BN-40AUnit. You can also receive data from a
CASIO SF, CSF, or NX Series Unit, and communicate with a personal
computer using PC sync for Windows.
• See the manual that comes with PC sync for Windows for details on
connecting to a computer and setting up for communication.
Chapter
10 Data Communication
Using the Cradle............................................................................ 122
To connect the PV Unit to the cradle........................................................ 122
To detach the PV Unit from the cradle ..................................................... 123
Data Communications Between Two PV Units .......................... 123
To connect two PV Units .......................................................................... 123
To send data from the host unit to the terminal unit ................................. 124
To receive data from the terminal unit on the host unit ............................ 126
Data Communications Between a PV Unit and a BN Unit ....... 129
To connect a PV Unit to a BN Unit .......................................................... 129
To send data from the PV Unit to the BN Unit ........................................ 130
To receive data from the BN Unit on the PV Unit.................................... 132
Receiving Data From an SF/CSF/NX Series Unit...................... 134
To connect a PV Unit and an SF/CSF/NX Series Unit............................. 134
To make communication parameter settings ............................................ 135
To receive data from an SF/CSF/NX Series Unit ..................................... 137
10
122
Using the Cradle
The PV Unit comes with a cradle that helps to make data communications quicker
and easier. The following procedures describe how to attach the PV Unit to and
detach it from the cradle.
To connect the PV Unit to the cradle
1. Turn off PV Unit power.
2. Place the PV Unit onto the cradle.
• Gently but firmly press down on the PV Unit to ensure that it is inserted
into the cradle as far as it will go.
123
Chapter 10 Data Communication
To detach the PV Unit from the cradle
1. Turn off PV Unit power.
2. Lift up on the PV Unit while holding down the cradle’s Release button.
Data Communications Between Two PV Units
This section describes how to set up and communicate between two PV Units.
To connect two PV Units
1. Make sure that the power of both units is turned off.
2. Place the PV Units onto their cradles.
• Gently but firmly press down on the PV Units to ensure that they are
inserted into the cradles as far as they will go.
Release button
124
3. Use an optional SB-90 9-9 pin connector to connect the two cradles to
each other.
• All data communication settings must be made on only one of the PV
Units only. This unit is called the host unit, while the other unit is called
the terminal unit.
To send data from the host unit to the terminal unit
1. After connecting the two PV Units, turn on the host unit.
• Terminal unit power should still be off at this time.
2. Display the list view in a mode whose data can be sent with this setup.
• This configuration supports transfer of Contacts (Business, Personal,
Untitled 1-5), Memo (Untitled 1-5), Schedule, To Do, Reminder, Expense
Manager, and Quick-Memo data.
Start button
Cradles
SB-90 9-9 pin connector
Host unit Terminal unit
125
Chapter 10 Data Communication

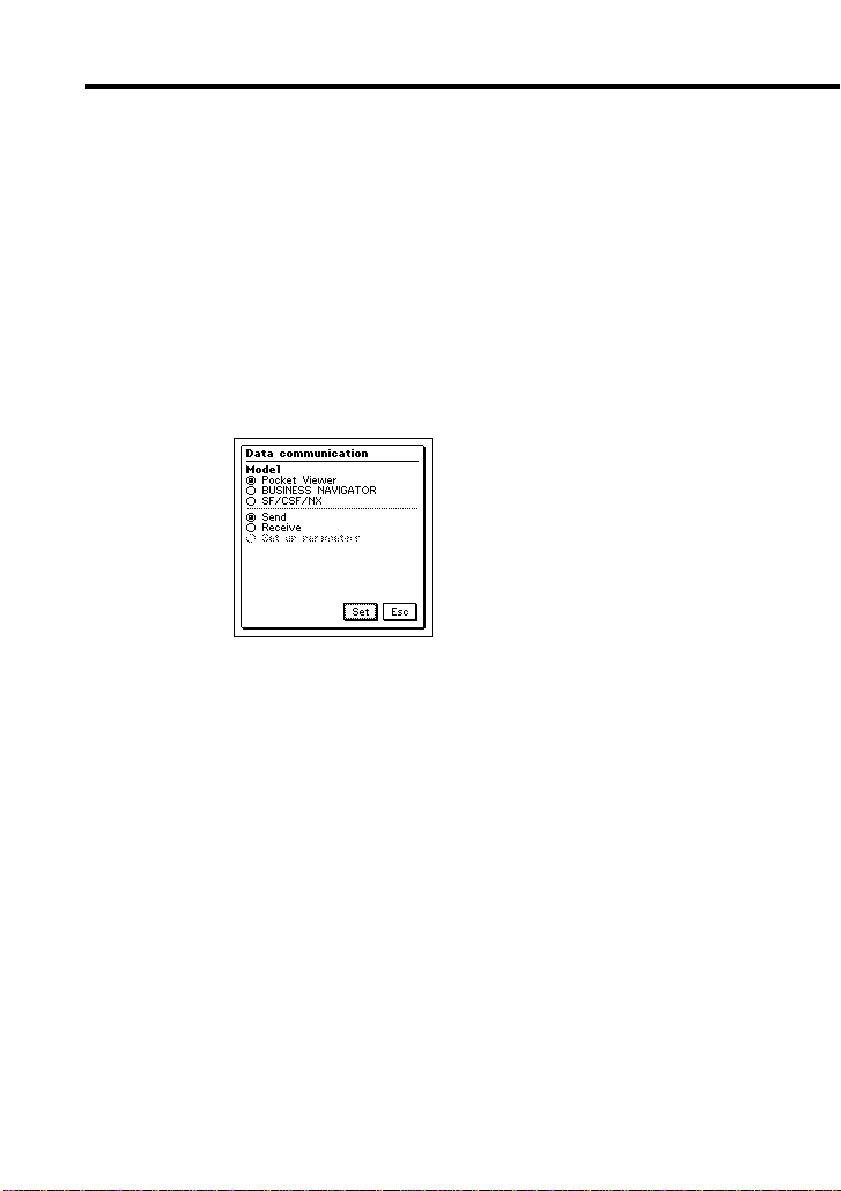

3. Tap the Menu Bar icon to display the menu bar, and then tapSystem –
Data communication.
4. Tap the button next to Pocket Viewer to specify the data communication
configuration.
5. Tap the button next to Send.
6. Tap Set.
7. Tap the check boxes to specify the data you want to send (checked) and
the data you do not want to send (unchecked).
126
8. After everything is the way you want it, tap Set.
9. Turn on the power of the terminal unit and then press the Start button
on its cradle to start the data transfer operation.
To receive data from the terminal unit on the host unit
1. Perform steps 1 through 4 under “To send data from the host unit to the
terminal unit”.
2. Tap the button next to Receive.
127
Chapter 10 Data Communication
3. Tap Set.
4. Tap the check boxes to specify the data you want to receive (checked)
and the data you do not want to receive (unchecked).
5. After everything is the way you want it, tap Set.
6. Turn on the power of the terminal unit and then press the Start button
on its cradle to start the data transfer operation.
128
Notes
• The above procedures can be used to send or receive all data in specific
modes only. You cannot send or receive individual data items.
• Data communication can be interrupted at any time by pressing Esc.
This causes the message Stopped! to appear on the displays of both
units.
• The message Communication error! appears on the displays of both
units whenever data communication is interrupted due to cable
disconnection, line noise, or other abnormal condition.
• If the secret memory area is accessed on a unit receiving data, the received
data is stored in the secret memory area, regardless of the memory area
the data is in on the sending unit.
• Transferring data from the PV-200A/PV-250X/PV-400A/PV-450X to a
PV-100 or PV-200 causes all euro symbols to be replaced by spaces.
• The size of the PV-200A/PV-250X/PV-400A/PV-450X screen is 160 ·
160 dots. Transferring PV-200A/PV-250X/PV-400A/PV-450X Quick-
Memo data to a PV-100 or PV-200, which both have 98(V) ·124(H)-
dot screens, causes the right side and bottom part of the Quick-Memo
image to be cut off in order to fit the PV-100/PV-200 screen.
129
Chapter 10 Data Communication
Data Communications Between a PV Unit and
a BN Unit
This section describes how to set up and communicate between a PV Unit and a
BN Unit (BN-10/BN-20 or BN-10A/BN-20A/BN-40A).
To connect a PV Unit to a BN Unit
1. Make sure that the power of both units is turned off.
2. Open the cover of the Mini Cradle port of the BN Unit, and connect its
Mini Cradle to the port.
3. Place the PV Unit onto its cradle.
• Gently but firmly press down on the PV Unit to ensure that it is inserted
into the cradle as far as it will go.
4. Use an optional SB-90 9-9 pin connector to connect the PV Unit cradle
to the BN Unit Mini Cradle.
• All data communication settings must be made on the PV Unit, which is
the host unit. The BN Unit is the terminal unit.
START button
Mini Cradle
Cradle
SB-90 9-9 pin connector
Host unit (PV Unit) Terminal unit (BN Unit)
130
To send data from the PV Unit to the BN Unit
1. After connecting the two units, turn on the PV Unit.
• BN Unit power should still be off at this time.
2. Display the list view in a mode whose data can be sent with this setup.
• This configuration supports transfer of Contacts (Business, Personal),
Memo, Schedule, To Do, and Reminder data.
• Calendar and Expense Manager data cannot be transferred.
• Contacts Untitled 1-5 data is transferred as Personal data.
• Memo Untitled 1-5 data is transferred as Memo data (no category).
3. Tap the Menu Bar icon to display the menu bar, and then tap System –
Data communication.
4. Tap the button next to BUSINESS NAVIGATOR to specify the data
communication configuration.
5. Tap the button next to Send.
