GETTING READY
25
GETTING READY
This section contains information about things you need to
know about and do before trying to use the camera.
About This Manual
This section contains information about the conventions
used in this manual.
■Terminology
The following table defines the terminology used in this
manual.
■Button Operations
Button operations are indicated by the button name inside
of brackets ([ ]).
■On-screen Text
On-screen text is always enclosed by double quotation
marks (“”).
■File Memory
The term “file memory”in this manual is a general term that
refers to the location where your camera is currently storing
the images you record. File memory can be any one of the
following three locations.
•The camera’s built-in Flash memory
•An SD memory card loaded in the camera
•A MultiMediaCard loaded in the camera
For more information about how the camera stores images,
see page 129.
This term as used in this
manual:
“this camera”or “the
camera”
“file memory”
“batteries”
“charger unit”
Means this:
The CASIO QV-R40 Digital
Camera
The location where the
camera is currently storing
images you record (page 51)
The Rechargeable nickel-
metal hydride batteries
The CASIO BC-5H Charger
Unit
GETTING READY
26
General Guide

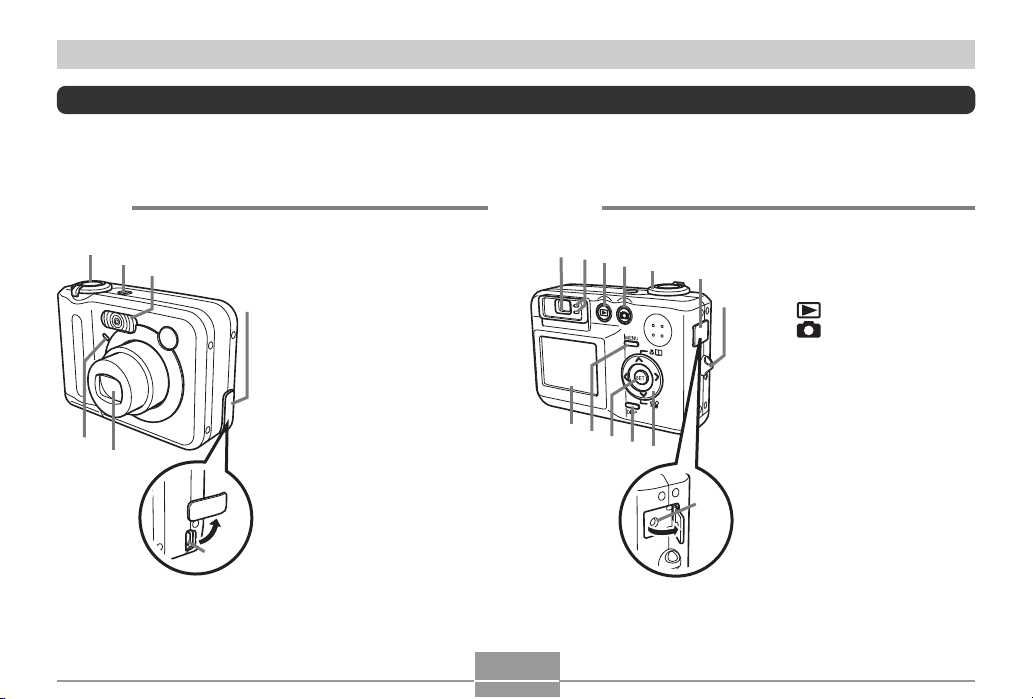

The following illustrations show the names of each component, button, and switch on the camera.
■Front ■Back
6
4
7
5
123
1Shutter release button
2Power button
3Flash
4Terminal cover
5Self-timer lamp
6Lens
7[USB] port
H
A
890BC
D
JIGF
E
8Viewfinder
9Operation lamp
:[] (PLAY mode)
A[] (REC mode)
BZoom controller
CTerminal cover
DStrap ring
E[DC IN 3V] terminal
F[][][][]
G[DISP] button
H[SET] button
I[MENU] button
JMonitor Screen
GETTING READY
27

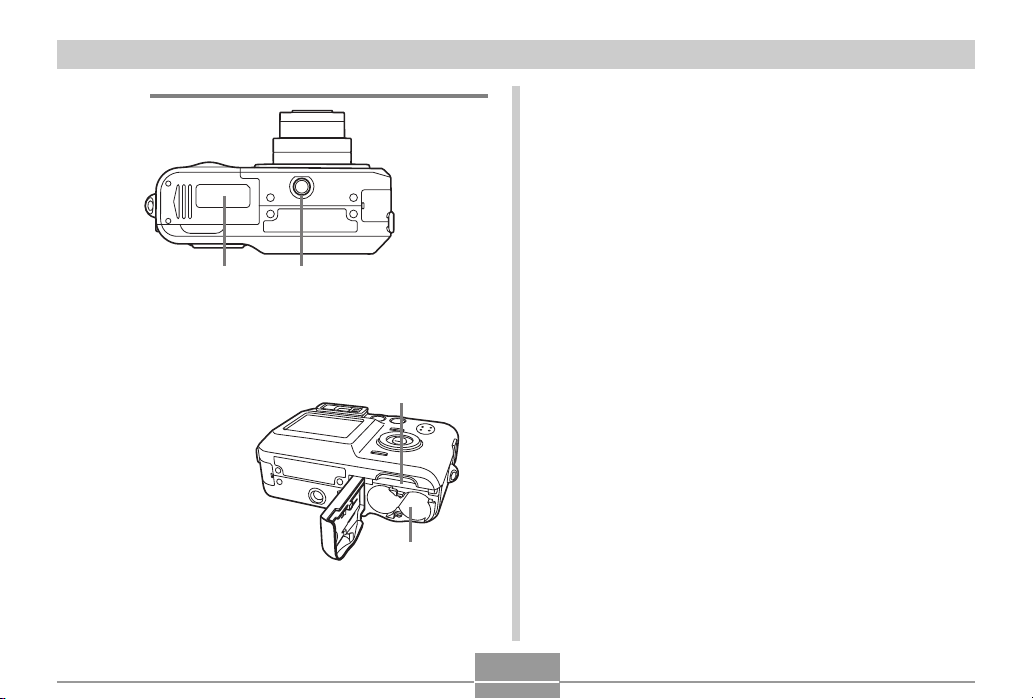

■Bottom
LK
KBattery compartment cover
LTripod screw hole
*Use this hole when attaching to a tripod.
N
M
MMemory card slot
NBattery compartment
GETTING READY
28
Monitor Screen Contents
The monitor screen uses various indicators and icons to keep you informed of the camera’s status.
REC mode
1Flash Mode indicator
None Auto
Flash Off
Flash On
Red-eye reduction
•If the camera detects that
flash is required while auto
flash is selected, the flash on
indicator will appear when the
shutter release button is
pressed half way.
2Focus Mode indicator
None Auto Focus
Macro
Infinity
Manual Focus
3White balance indicator
None Auto
Sunlight
Shade
Light Bulb
Fluorescent
Manual
8Image size
2304 ҂1712 pixels
2240 ҂1680 pixels
1600 ҂1200 pixels
1280 ҂960 pixels
640 ҂480 pixels
Movie Recording: recording
time (seconds)
9Quality
FINE
NORMAL
ECONOMY
0Built-in memory selected
for data storage.
Memory card selected
for data storage.
ADate and time
BEV value
CBattery capacity
DFocus frame
•Focusing complete: Green
•Focusing failed: Red
57
8
9
0
A
BC
D
3 64 4Self-timer
None 1-Image
10
s
Self-timer 10 sec
2
s
Self-timer 2 sec
x3Triple self-timer
5REC modes
Snapshot
Best Shot
Movie
6Metering Mode indicator
Multi-pattern Metering
Center-weighted
Metering
Spot Metering
7Memory capacity
(Remaining number of
storable images)
21
GETTING READY
29
1Digital zoom indicator
2Shutter speed value
•An out of range aperture or shutter speed
causes the corresponding monitor screen
value to turn amber.
3Aperture value
4ISO sensitivity
5Zoom indicator
•Left side indicates optical zoom.
•Right side indicates digital zoom.
2
3
4
1
5
GETTING READY
30
PLAY mode
1PLAY mode file type
Snapshot
Movie
2Image protection indicator
3Folder number/File number
4Image size
2304 ҂1712 pixels
2240 ҂1680 pixels
1600 ҂1200 pixels
1280 ҂960 pixels
640 ҂480 pixels
5Quality
FINE
NORMAL
ECONOMY
6Built-in memory selected for data
storage.
Memory card selected for data storage.
7Date and time
8Battery capacity
IMPORTANT!
•Some information may not
display properly if you display an
image that was recorded using a
different digital camera model.
12
4
5
6
3
7
8
GETTING READY
31
Indicators
on
(page 28)
Histogram
on
(page 82)
Indicators
off Monitor
screen off
*
Changing the Contents of the Monitor
Screen
Each press of the [DISP] button changes the contents of
the monitor screen as shown below.
*You cannot turn off the monitor screen in the following modes:
PLAY mode, Best Shot mode, Movie mode.
Indicator Lamps
You can find out the operational status of the camera at a
glance by checking the color of the indicator lamps, and
whether a lamp is lit or flashing. For details, see “Indicator
Lamp Reference”on page 164.
Green operation lampSelf-timer lamp
Red operation lamp
GETTING READY
32
Attaching the Strap
Attach the strap to the strap ring as shown in the
illustration.
IMPORTANT!
•Be sure to keep the strap around your wrist when
using the camera to protect against accidentally
dropping it.
•The supplied strap is intended for use with this
camera only. Do not use it for any other purpose.
•Never swing the camera around by the strap.
Power Requirements
Your camera features a two-way power supply that lets you
use either AA-size batteries or household AC current. A set
of AA-size rechargeable nickel-metal hydride batteries is
supplied with the camera. The other items listed below are
available separately.
■Batteries
•Two AA-size rechargeable
nickel-metal hydride batteries: HR-3UA
•Proper operation cannot be guaranteed if you use any
other type of battery other than that noted above.
The batteries are not charged when you purchase the
camera. You need to charge batteries before using the
camera for the first time (page 33).
•Two AA-size lithium batteries: FR6
•AA-size alkaline batteries (LR6) can be used if they are
the only option available to you. Note, however, that
alkaline batteries provide about ten minutes or so of
camera operation. Alkaline batteries may not provide any
operation when the temperature is 5˚C (41˚F) or lower.
GETTING READY
33
■To charge the batteries
1.
Positioning the positive and negative
terminals of each battery as shown in the
illustration, attach the batteries to the charger
unit.
○○○○○○○○○○○○○○○○
Plug-in TypeInlet Type
■Household Current
• AC Adaptor: AD-C30
Charging Batteries
You can use the steps below to charge the rechargeable
nickel-metal hydride batteries (HR-3UA) using the charger
unit (BC-5H) that comes with the camera.
Never try to use the charger unit to charge any other
type of batteries besides the specified rechargeable
nickel-metal hydride batteries (HR-3UA). Attempting to
use it to charge dry cells or other types of rechargeable
batteries creates the risk of battery leakage,
overheating, and explosion.
GETTING READY
34
NOTE
• The bundled charger unit is designed for operation
with any power supply in the range of 100V to 240V
AC. Note, however, that the shape of the AC power
cord plug varies according to country or geographic
area. If you plan to use the charger unit in a
geographic area where the power receptacle shape
is different from that in your area, replace the AC
power cord with one of the other ones that comes
with the camera, or purchase a commercially
available AC power cord that is compatible with the
power outlets in that area.
2.
Plug the charger unit into a household power
outlet.
• This will cause the [CHARGE] lamp to light.
• Charging will take about four hours.
• Note that the shape of the charger unit depends on
the area where you purchased the camera.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
[CHARGE] lamp
Plug
Charger unit
[CHARGE] lamp
Charger unit
AC power cord
