CAS NC-1 Manuel utilisateur

CONTENTS

PRECAUTIONS..................................................................... 4

INSTRUCTION...................................................................... 6

FEATURES & MAIN FUNCTIONS................................. 6

TECHNICAL SPECIFICATION....................................... 7

DESCRITION OF OVERALL ........................................... 8

THE OPERATIONS............................................................ 10

TEST MODE ......................................................................... 12

SET MODE ............................................................................ 15

BATTERY OPERATION................................................... 19

REMOTE CONTROL........................................................ 20

ASSEMBLE AND DISASSEMBLY ................................ 21

ERROR MESSAGE & TROUBLE SHOOTING........ 22

PRECAUTIONS

INSTRUCTION

We greatly appreciate your purchase of the NC-I.

These goods perform excellently and exhibit splendid properties through strike tests.

Before using the NC-I, it is recommended that you read this manual carefully so you

may use this device to its full potential.

FEATURES

Appropriate hoist scale for industrial field

Useful Zero, Tare and Hold function

Weight Back-Up

Easy to move

Be able to control with remote controller

MAIN FUNCTIONS

User can change the stable condition and range of digital-filter at user's option

Self Hardware test (internal A/D value, Battery power, key and etc)

TECHNICAL SPECIFICATION

Max Capacity 20kg 30kg 50kg 100kg 200kg 500kg

Kilogram Division 10g 10g 20g 50g 100g 200g

Max Cap 200lb(100kg) 400lb(200kg) 1250lb(500kg)

kg/lb

version Division 0.1lb(0.05kg) 0.2lb(0.1kg) 0.5lb(0.2kg)

Max Capacity 250lb(125kg) 500lb(250kg) 1000lb(400kg)

U.S.A

version Division 0.1lb(0.05kg) 0.2lb(0.1kg) 0.5lb(0.2kg)

Max Capacity 250lb 500lb 1000lb

Pound Division 0.1lb 0.2lb 0.5lb

A/D Speed 20 times/second

Tare Subtraction Full Capacity

Display below zero “ ᅳ“ minus sign

Excessive Weight Maximum + 9d (display OUEr )

Weight Display Type LCD (5 digit + Sign, 1 Inch Height)

Character Display ZERO, TARE, BAT, POWER, CHARGE

Keys ON/OFF, ZERO, TARE, kg lb <ᅳ>(HOLD)

Battery 7.2V , 2A (Li - ion)

Use the Backlight Not use the Backlight

0.45 W 0.17 W

Power and Battery

consumption Approximate 22 Hours Approximate 58 Hours

Operation Temperature -10 ~ +40℃℃

Rechargeable Adapter 110/220VAC 12V, 1.5AH

Rechargeable Time 4 ~ 5 Hours

Low BAT & Power Off LOW BAT : Below of 6.7V, POWER OFF : 6.4V

WEIGHT Approx. 5.5kg

DESCRIPTION OF OVERALL

1. OVERALL VIEW

2. DISPLAY

3.LAMP of DISPLAY PART(Front body)

Power ON Being connected theAdapter

Charge RED In charge GREEN Charge is completed

LED

Remocon Receiving part from remote controller

BAT Display the battery recharging time (rechargeable battery)-

about 6.7V remain

- Below zero

ZERO ON when current weight is 0

TARE ON when tare is activated

LCD

OZ/lb/kg Weight Unit

4. KEY

KEYS FUNCTIONS

Power is ON while pressing for 1 second

Power is OFF while pressing for 2.0 seconds

Above function is possible while the power switch on the rear part is ON

Please turn off the power switch on rear part when not use for a long time.

It makes the current weight within the zero range to zero

(±2% of maximum capacity)

Pressing ZERO key for 2 second, can enter the TEST Mode

It is used to weigh with a container

If press the tare key at unload state, Tare state is released

Pressing the ON/OFF key while tare key is pressed, can enter the SET Mode

It is used to weigh the moving things

If you press this key once more in the hold mode, hold state is released

(atAVERAGE HOLD, at MANUALHOLD, at PEAK HOLD)

It is used to change the unit of weight(kg<->lgToggle _ U.S.A. version)

This key is not operated inthe area whichlb unit is used only

5. REAR PART

Power Switch

POWER Main Power Switch (If use, you have to turn on this switch)

ChargerAdaptor connector

Jack Cover If you want to recharge the battery, Connect to the adaptor.

THE OPERATION

1. POWER ON

■Press "ON/OFF" key.

2. ZERO OPERATION

■Press "ZERO" key when the zero point is drifted.

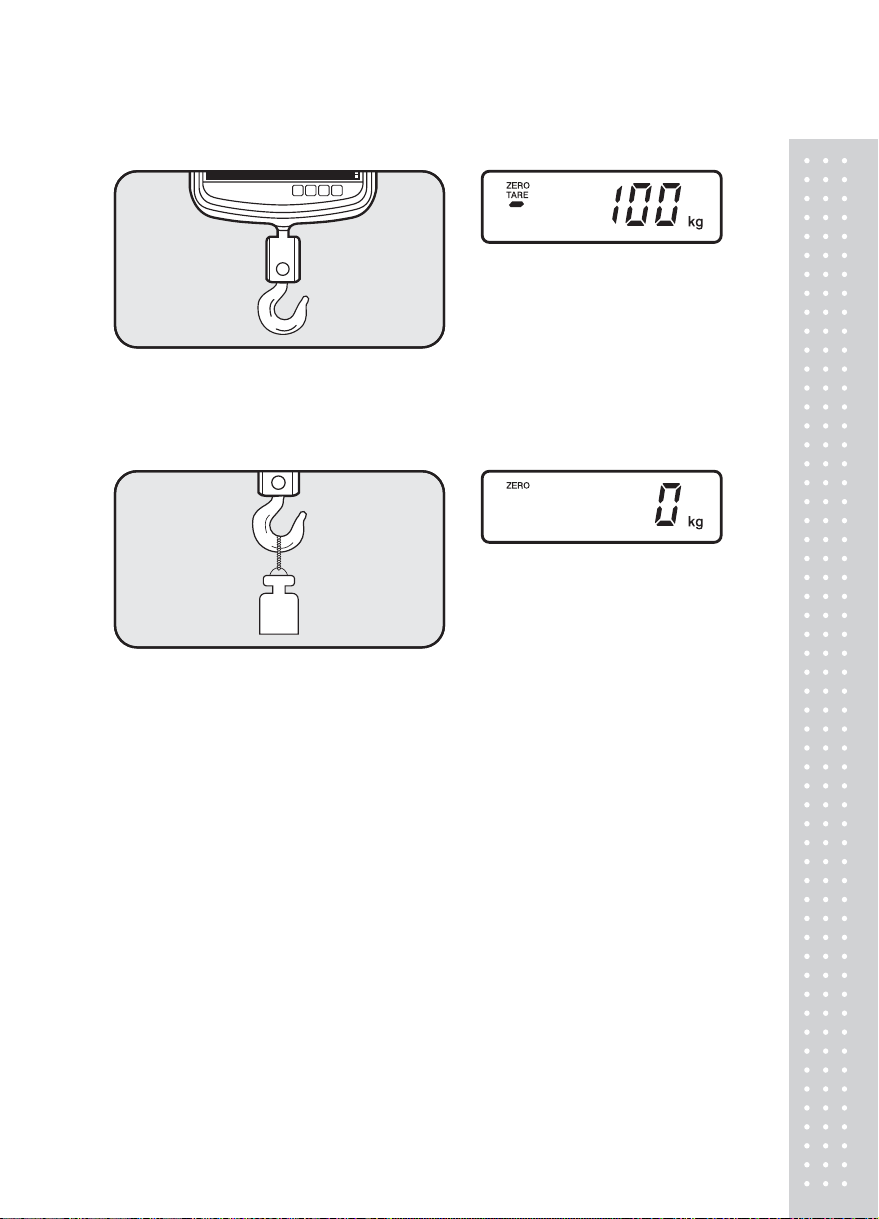

3. TARE OPERATION

■Load tare on the hook.

■Press "TARE" key.

"0" is displayed, and the tare is subtracted.

■Remove tare on the hook.

■Press "TARE" key.

The tare weight is cleared appers in the display window.
