Setting up the CAS PD-II
Black Edition (OZ Configuration)
This document contains step-by-step instructions for setting up the CAS PD-II (black) to work with CRE.
To connect the CAS PD-II to your computer, you need the following cable:
The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128
2 | P a g e
Plugging the scale in
To plug the scale in, you need the following cable:
1. Plug end 2 of the aforementioned cable into the
appropriate port on the left side of the scale.
2. Plug end 1 into a power outlet.
3. Note the location of the power switch.
3 | P a g e
Setting up communication between the CAS PD-II and the computer
To set up communication between the CAS PD-II and the computer, turn the scale off and follow
these steps.
1. Turn on the scale while holding down the #
button.
2. “tYPE-“ and a number will be displayed. Change
this number to 5by pressing the lb/oz button.
3. When “tYPE-5” is displayed, press ZERO to save
the setting.
4 | P a g e
Calibrating the CAS PD-II Black Edition
To calibrate the CAS PD-II Black Edition, turn off the scale and follow these steps.
Note: Some of the images shown are of the white model.

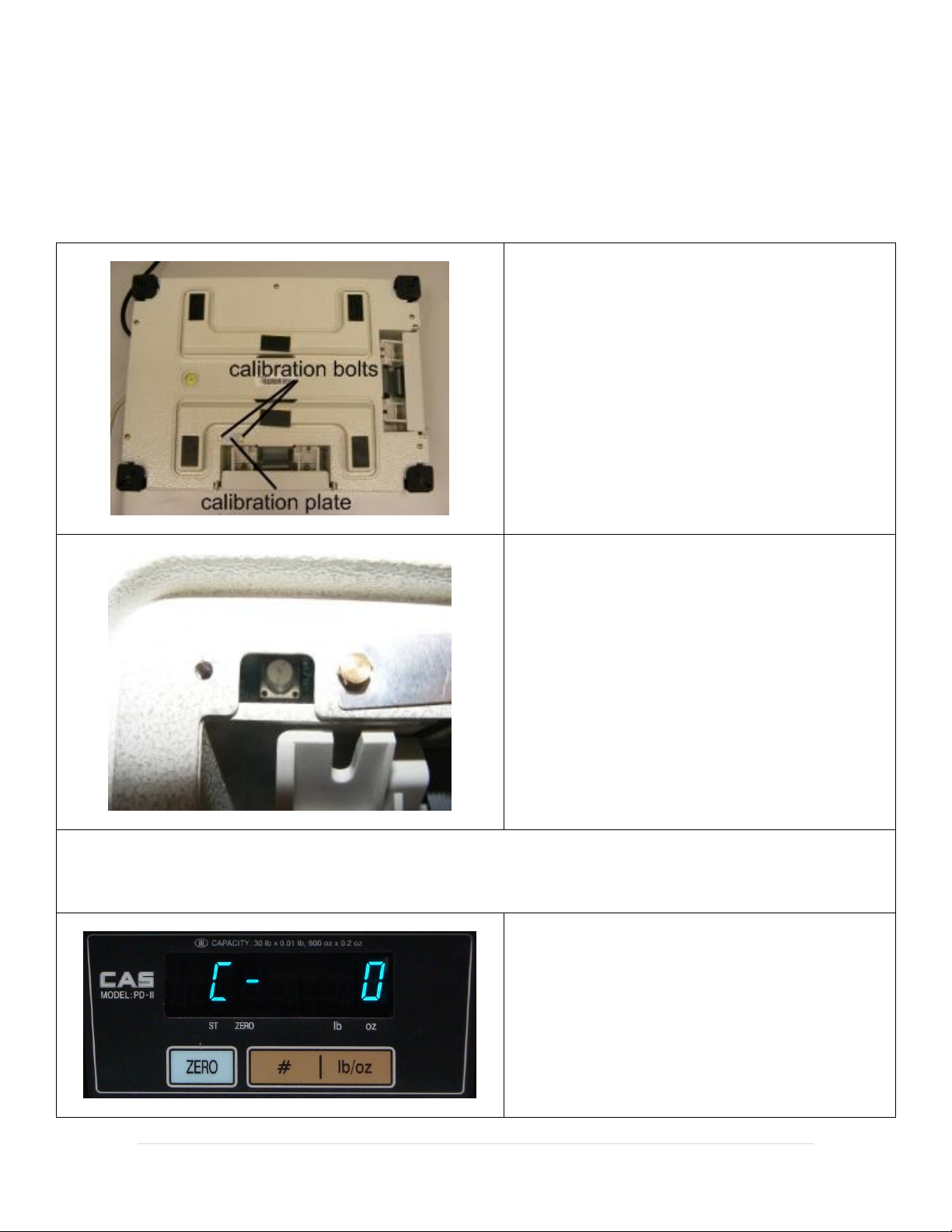

1. Remove the tray.
2. Remove one of the calibration bolts and swing
the metal plate out of the way.
3. You will see a white button inside. Hold this
button down while turning on the scale.
After making any of the following changes to the scale you will need to contact Weights and Measures to make sure
the scale are certified and weighing items properly.
4. The scale should display "CAL”, “Ver 1.02”or
"Ver 1.03", and then “C-0”.
5 | P a g e
5. Swing the metal plate back to its original position
and put the calibration bolts back in.
6. Replace the tray.
7. Press the # button until the scale displays “C-4”.
Note: The #key will increase the value while,
lb/oz will decrease the value.
8. Press ZERO.
9. The scale should display “C41 d0”. If it does not,
use the # button to move the cursor (in red) and
the lb/oz button to change the value.
10. Press ZERO when the correct values are
displayed.
11. The scale should display “C42 38”. If it does not,
use the # button to move the cursor and the
lb/oz button to change the value.
12. Press ZERO when the correct values are
displayed.
13. The scale should display “C43 00”. If it does not,
use the # button to move the cursor and the
lb/oz button to change the value.
14. Press ZERO when the correct values are
displayed.
6 | P a g e
15. The scale should display “C44 00”. If it does not,
use the # button to move the cursor and the
lb/oz button to change the value.
16. Press ZERO when the correct values are
displayed.
17. The scale should display “C45 00”. If it does not,
use the # button to move the cursor and the
lb/oz button to change the value.
18. Press ZERO when the correct values are
displayed.
19. The scale should display “C46 00”. If it does not,
use the # button to move the cursor and the
lb/oz button to change the value.
20. Press ZERO when the correct values are
displayed.
21. The scale should display “C-4”. Press the lb/oz
button until it displays “C-0”.
22. Press the ZERO button.
23. The scale should display 0.00.If it does not, turn
off the scale and repeat steps 1-22.
7 | P a g e
Connecting the CAS PD-II to your computer
To connect the CAS PD-II to your computer, you need the following cable:
The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128
Turn off your computer and follow these steps:
1. Find the serial port on your computer.
2. Plug the serial cable connected to the
scale into the port.
8 | P a g e
Setting up the CAS PD-II to work with CRE
To set up the scale to work with CRE, turn on the computer, start CRE, select Manager, provide
the requested credentials, and follow these steps.
1. Select Setup and then Setup
Screen.
2. Select the Hardware tab.
3. Select the COM port that the
scale is connected to. Many
systems have labels on the ports
that contain this information. If
yours does not, select COM 1.
You may need to select other
COM ports later if CRE does not
find the scale.
Enter the optional tare amount. Leave
at 0 if you do not want to use a tare.
4. Select CAS PD-I for “Primary Scale
Type”.
9 | P a g e
5. Select Page 2.
6. Select the radio button next to
600x0.2 under “Scale Weight
Formatting”.
7. Select Scale.
8. Activate the scale feature and
select Done.
9. Select Update.
