Carrier XCT7 40VCW317FQEE Instructions d'installation

Central Controller

Installation and Owner’s Manual

MODEL NAME

40VCW317FQEE

Edition: 2020-09

Mode Menu Swing

Set temp.

Indoor temp. 21oC

Indoor humidity32%RH

Mode Menu Swing

Set temp.

Indoor temp. 21oC

Indoor humidity32%RH

Thursday

01.01.2015 10:30AM

Set temp.

24o

Indoor temp.

Indoor humidity 32%RH

Qty.online

Standby

Defrost Master

Outdoor temp. 2 C

Outdoor humidity 32%RH

Mode Menu Swing

CONTENT

Parts and Functions..............................................1

Operation..............................................................8

Wired Controller Wiring Instruction.....................31

Interface Display

Parts and Functions

Monday

2011.11.03

10:30AM

Set temp.

20.

Indoor temp.

Indoor relative hum 32%

25.5

Qty. online Defrost

Standby Operation

Master Slave

PM 2.5 A++

Outdoor temp 22.5 o

Outdoor relative hum 32%

Mode Menu Swing

EXQUISITE DESIGN & EXQUISITE LIFE

English

Key

Left Mode key in the main interface, return key in another interface.

Intelligent key press it to go directly to the intelligent mode.

Left/Right key, fan speed adjustment key, swing angle adjustment key in the main interface,

direction adjustment key in another interface.

Up/Down key, temp. adjustment key in the main interface,

shift direction and value adjustment key in another interface.

Menu key in the main interface, enter key in another interface.

Right Swing key in the main interface, back to the (Right) main interface through the key in another

interface. When the swing function is invalid, press the key to adjust the fan speed.

On/O󰀨 key

Parts and Functions

Main Interface Display

Parts and Functions

Quiet function (indoor)

Turbo function.

Child lock function. Press the Left and Right key for 5s at the same time to either set or cancel the

function in the main interface.

Forced defrost function.

Icon Instruction:

Monday

2011.11.03

10:30AM

Mode Menu Swing

Set temp.

20 o

Indoor temp.

Indoor relative hum 32%

25.5

Qty. online Defrost

Standby Operation

Master Slave

PM 2.5 A++

Outdoor temp 22.5 o

Outdoor relative hum 32%

English

Parts and Functions

Ventilation function

Health function.

Quiet function (outdoor)

10°C Heating function

Electrical heating.

Health airow.

Health airow up.

Health airow down.

LED on panel.

Error code function, the icon will display in the main interface when the wired controller or the indoor

unit linked to the controller shows an error.

out

10 c

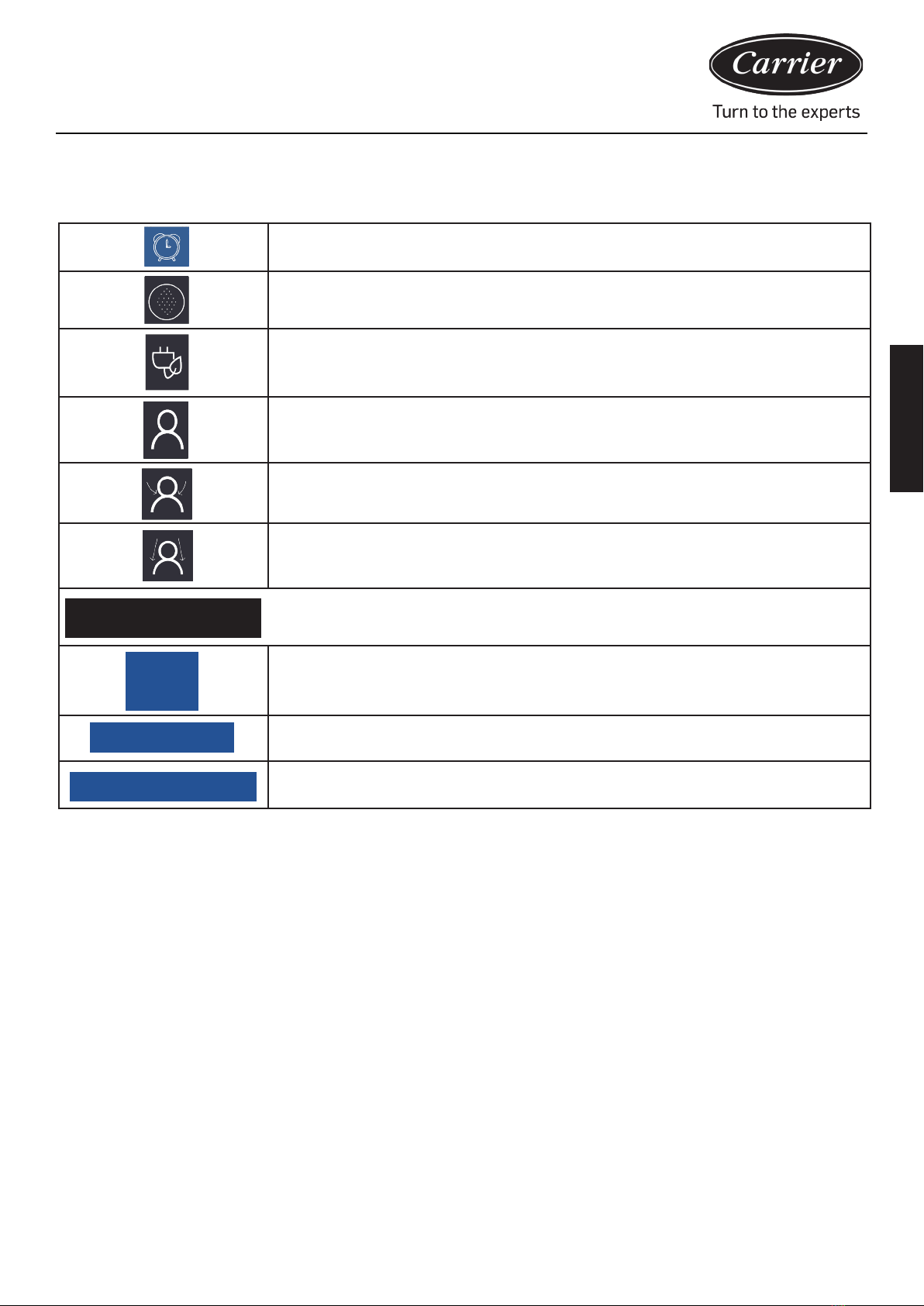

Parts and Functions

Schedule.

Filter clean reminder.

Energy Saving function.

Motion sensing.

Motion sensing follow.

Motion sensing evade.

Date, week and the clock display area. The format of the date

can be changed through the time function.

Sets temperature from 60°F ~86°F (16°C~30°C)

Indoor room temperature.

Indoor humidity display area.

Indoor temp. 25.5oC

Indoor humidity hum 32%

Monday

20.11.11.03 10:30AM

Set temp.

20oF

English

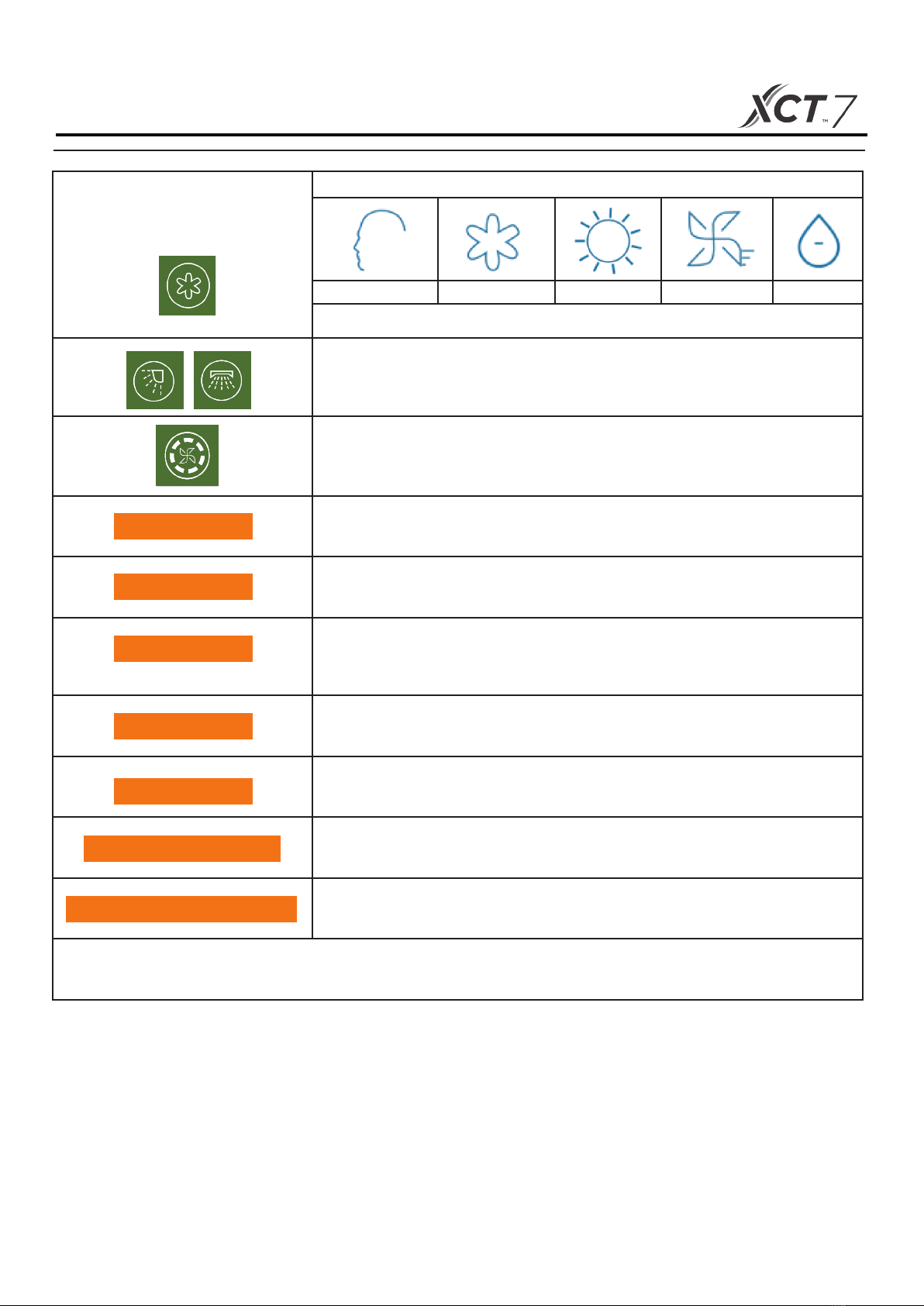

Parts and Functions

Mode

Intelligent Cooling Heating Fan Dry

The mode cycle depends on the mode setting in the basic setting function.

Up/Down swing and Left/Right swing function.

Fan speed. Di󰀨erent fan speed cycles can be set through the basic setting.

Quality online The number of indoor units connected to the wired controller.

Defrost Defrost function.

Standby The state of indoor unit. This area also displays the “operation”.

Master

The state of the wired controller, this area can also display the” slave” icon.

“Master” means the wired controller and is the major controller whereas

“Slave” is the wired controller and can only control parts of the function.

PM 2.5 A++ Reserved function.

Outdoor temp. 22.5oFOutdoor temperature display area. It can be set whether on display or not.

Outdoor relative hum 32% Outdoor humidity display area. It can be set whether on display or not.

The above functions are valid only for parts of the model.

Operation

Schedule

Schedule options include segmented timing and customized timing. It can be selected through the displayed setting.

The default is the segmented timing.

Segmented timing

(1) The segmented timing will only operate in cooling or heating mode. Time can be adjusted in 24 hours.

The default format of time display is 12-hours. Temperature can be adjusted from 60°F to 86°F (16°C to 30°C).

The “OFF” function can also be set, which shows the power is o󰀨.

(2) Once, the left and right arrows ash beside the ‘Wake’ time, press the Enter key for the arrows to be static.

Continue to press Left or Right key to adjust the time followed by the key to conrm. Four direction keys can

move the arrow while they are ashing.

(3) Press the ‘OK’ key to conrm the setting as stated in the prompt below the screen.

(4) The default value is the same as in the gure below.

Press the Menu key in the main interface to enter the menu interface.

Schedule

Sleep Swing

Time Error codeExtra Function

Humidity Control Display Setting Installer Setting

Return Enter Main

Menu Monday

2011.11.03

10:30AM

Service help

English

(1) When ashes in the Schedule editing interface, press the Enter key to enter the interface.

Operation

Heat Cool Cool

Heat

(mon - fri) (mon - fri) (sta- sun)

(sta - sun)

Wake

Leave

Return

Sleep

6:00 am

8:00 am

6:00 pm

10:00 pm

70oF

70oF85oF

OFF OFF

OFF

70oF85oF

70oF

62oF82oF62oF

62oF

78oF

62oF

Cancel OK

Schedule Monday

2011.11.03

10:30AM

Random timing

(5) Keep pressing the ‘Left/Right’ key to speed up the time adjustment.
