General warnings.

•The following information must be read and understood before proceeding with the installation, commissioning and maintenance of

the devices described in this document.

•ATTENTION! Any omission or failure to follow these instructions scrupulously can cause danger.

•ATTENTION! Explosion hazard. In case of batteries substitution, make sure that the type is compatible and complies with the

specifications indicated by the manufacturer.

•In case of batteries substitution, DO NOT disconnect the flat cable which connect the electronic boards without removing batteries

before

•ALWAYS substitute all the batteries, also in case of one single battery exhausted.

•If the device is powered by a fixed network, make sure you have disconnected the power supply before carrying out any type of

intervention. Failure to comply with this indication can cause damage to people and/or property.

•Follow the manufacturer's suggested warm-up time (

time required to obtain a reliable measurement

) of the transducer.

•Follow the manufacturer's suggested electric wiring of the transducer to measure (

ground shields at a single point, cable length and

section

); voltage measures on distances exceed 15/20 meters are subjected to electromagnetic disturbances. 0÷25mA inputs have a

superior electromagnetic compatibility (

EMC

•Avoid passage in cavities with power or high voltage cables.

•The protection and safety measures and the warranty provided by the Manufacturer with the equipment may be compromised if it’s

used in a manner that does not comply with this user manual.

•This equipment complies with CE regulations.

•Modifications or tampering not expressly approved by the Manufacturer could void the user's authorization to operate the equipment.

•This equipment must be installed by qualified personnel and in accordance with national regulations and/or related local requirements.

•Make sure that the object is properly fixed to supports/infrastructures capable of withstanding this load. Make sure proper methods

and materials are used when fixing the equipment to a wall.

•Only personnel expressly authorized by the manufacturer can open the container. There are no user serviceable parts inside.

1. Description.

The WSD12-4D wireless datalogger, provided with 4 channels, is designed to acquire linear

deformation (

up to 4 resistive potentiometers

) and temperature in the structural monitoring field.

2. Configuration.

Using

WineCapManager

software, for each channel, the measure acquired can be selected as

showed in the following table:

Channel 1

Channel 2

Channel 3

Channel 4

Temperature

Proportional

Linear deformation

Where:

•

Temperature

: datalogger reports the case internal temperature or the temperature

acquired by an external transducer (

NTC10K-FR

). The transducer selection

(

internal/external

) is performed using jumpers.

•

Proportional

: datalogger reports a proportional value (

from 0% to 100%

) related to full-

scale of potentiometer installed, independently by the stroke.

•

Potentiometric

: datalogger reports the mechanical stroke of the installed potentiometer expressed in mm. Full-scale is configurable

for each channel using

WineCapManager

software.

To properly configure the device:

•Connect the datalogger to PC using the provided USB cable. Datalogger’s led will flash

RED

GREEN

Picture 1 - Product image

WSD12-4D

User Manual

PAGE 3/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

•Execute

WineCapManager

software, create a new database, open it, and wait for datalogger acknowledgement and automatic

connection.

Once the connection is established, datalogger’s led flashes in

GREEN

, meantime on

WineCapManager

main page real time channels data

appears (

as shown in the following image

From the “

Sensor

” drop-down menu (

or clicking with right button on sensor’s

row

) select “

Properties

” to access at the device’s configuration

page (

Picture 10 –Wireless devices user interface

Therefore, select “

Tools

” and click on “

InfoReq

” button:

The “

Advanced sensor properties

” panel opens, from which some different parameters for each channel can be modified.

•Channel type (

selectable from drop-down menu

) can have following values:

a. temperature (

only for the first channel

);

b. proportional (

all channels

), acquires the linear transducer’s movement value expressed in percentage (

0 ÷ 100.00%

);

c. deformation (

all channels

), acquires the linear transducer’s movement value expressed in mm.

Picture 2 - WineCapManager - Main page

Picture 3 - WineCapManager - Sensor menu

Picture 4 - WineCapManager - Tools panel

WSD12-4D

User Manual

PAGE 4/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

•Scale factor

Modifies resolution and consequently the transducer’s dynamic range.

The correct value to be inserted is the external linear transducer’s full scale, expressed in mm, divided per 10,000.

For example, if the full-scale value of a linear transducer is 25mm, the value to be inserted in the “

Scale factor

” field is

25/10,000=0.0025.

This parameter influences only “

Deformation

” measures type; for other measures type this parameter is, however, initialized to “0,01”.

This value depends on the transducer’s type used. If not necessary must contain “0”.

Once parameters are modified, they must be saved on the device clicking on “

Write

” button. A message pop-up appears warning

about consequences of writing operation as the device’s flash memory erase. Click on “Yes” to confirm operation.

A new pop-up appears confirming the successful writing operation:

ATTENTION: Whenever the full-scale value is changed, the "REACTIVATE" command must be given to the datalogger

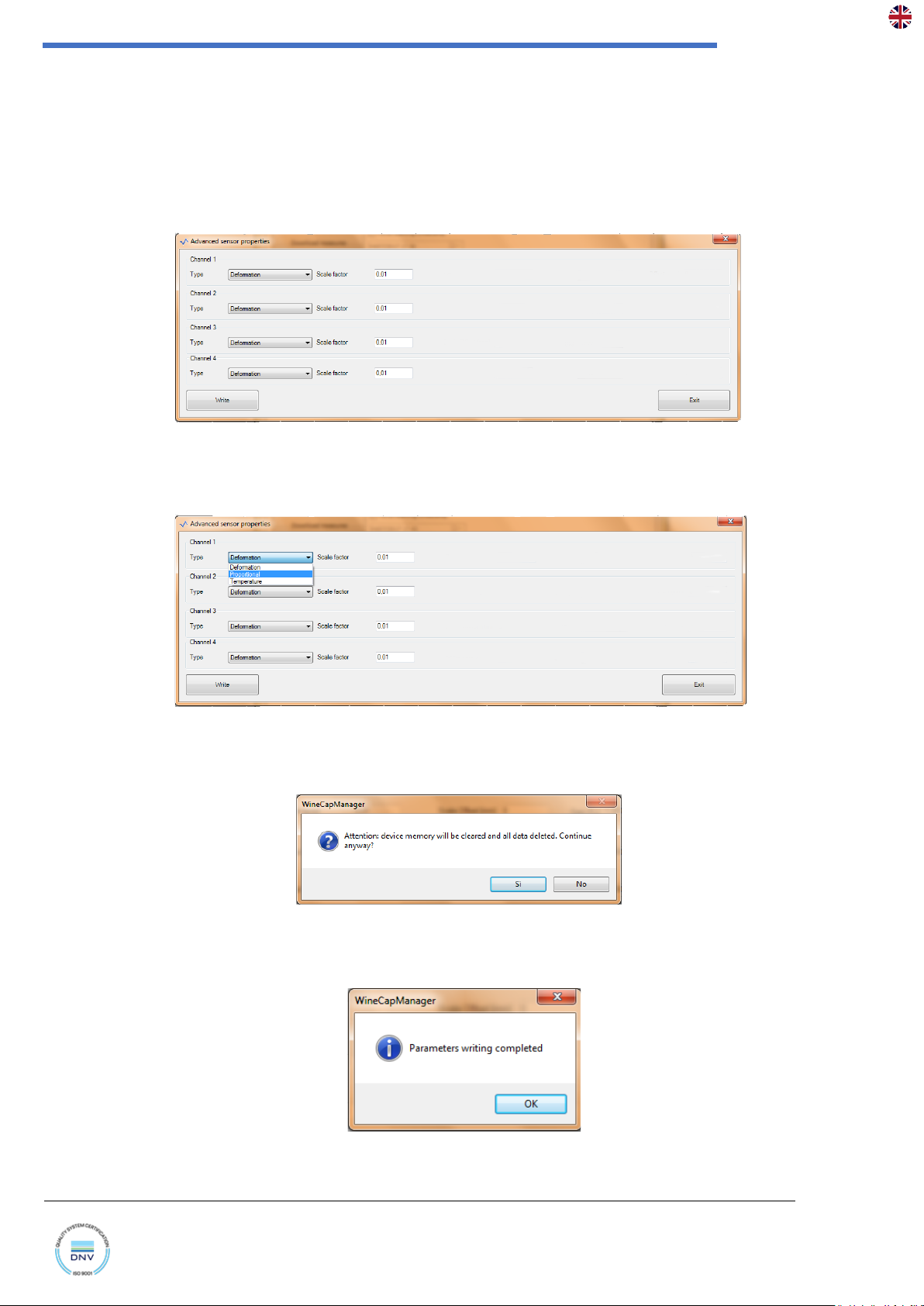

Picture 5 - WineCapManager - Advanced sensor properties

Picture 6 - WineCapManager - Channel type selection

Picture 7 - WineCapManager - Configuration alert

Picture 8 - WineCapManager - Confirmation pop-up

WSD12-4D

User Manual

PAGE 5/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

•Channel Calibration.

If you need to add calibration values to a measurement channel, you can access the "Advanced sensor properties" screen and set the gain

and offset values in the appropriate fields on the "Calibration" tab.

This configuration is done via the WSN network by accessing the "Properties" tab from the "Sensor" drop-down menu after selecting the

device row from the WineCapManager main screen.

The "Sensor Properties" screen appears. Select the "Tools" tab and click on the "InfoReq" button.

The 'Advanced Sensor Properties' screen opens. Select the "Calibration" tab where you can set the desired gain and offset values in the

appropriate fields.

This procedure must be repeated on each channel for which calibration is to be performed.

When finished, click on the "Write" button to confirm the new parameters.

WSD12-4D

User Manual

PAGE 6/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

3. Resetting channels.

Once the device has been installed in the desired location, it is possible to proceed with resetting the channels previously configured for

acquiring strain or proportional measurement values.

This procedure can be performed via WineCapManager or by using the wireless device user interface directly on the device (see

Wireless device

user interface.

To proceed with channel zeroing via WineCapManager, access the "Properties" tab from the "Sensor" drop-down menu after selecting the

device row from the main WineCapManager screen.

The 'Sensor Properties' screen appears. Select the "Tools" tab and click on the "InfoReq" button.

On the "Advanced Sensor Properties" screen, set the value to "0" in the appropriate field on the "Calibration" tab.

This procedure must be repeated on each channel for which zeroing is to be performed.

Once the entry is complete, click on the "Write" button to confirm the new parameter.

4. Device pre-set and use mode.

a. Wireless Mode:

In this use mode, the datalogger records and transmits each measure sampled to the linked gateway. Typically, the monitoring system is

configured in factory, so, if the device is already associated to the system gateway is in STANDBY mode (

refer to Picture 11 - Status table

–Wireless mode

). In this case, it is necessary to start it with the TEST command (

refer to Picture 10 –Wireless devices user interface

). After

this operation, the datalogger reactivates, resumes measure activity, and performs the connection to the gateway or to a

repeater WR12.

Connection The onboard LED shows the radio signal quality for 2 minutes (

refer to Picture 11 - Status table –Wireless mode

Otherwise, in case the device is in FACTORY RESET mode (

refer to refer to Picture 11 - Status table –Wireless mode

), that means it's ready

for connecting to an existing system, in order to associate it using the ENROL command, Refer to the

“WineCap System - User Manual R30”

software manual. It is necessary to use the

WineCapManager

software on the PC connected to the gateway that will be linked with the

device.

b. USB Logger Mode:

For this operation mode, the dataloggers works in stand-alone, recording data in its internal memory and without any wireless connection.

This is not the factory setup so, to select it, the connection with the PC and the

WineCapManager

running on it is necessary to modify the

device 's operation mode. The device must be set in STAND-ALONE

(refer to 8 - Stand-alone USB datalogger installation.)

mode and the

sample time must be configured; automatically, the device 's clock is aligned with the PC's clock, in order to assure the temporal reference

of the sample.

Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key (

refer to 8 -

Stand-alone USB datalogger installation.

). More details on device 's connection/disconnection through the USB cable are available on the

WineCap System - User Manual R30

manual.

c. On field transition from USB to Wireless datalogger:

WSD12-4D

User Manual

PAGE 7/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

This transition is practicable in field, during the sampling period, using the wireless network association command. When the association is

done, the datalogger becomes a wireless datalogger and, besides sending new measures to the gateway, starts a download process towards

the same gateway of the measures acquired during the stand-alone period (

refer to Picture 12 - Status table -

5. Wireless device user interface.

The user interface consists of a “virtual” button that can be activated using the

WineCapKey

and of a two-colours led.

To give a command, user must approach the

WineCapKey

to the device’s sensible area and keep it in that position.; the following picture

(

Picture 9 - WineCapKey positioning

) shows device’s sensible points.

LED

WineCapKey

Picture 9 - WineCapKey positioning

WSD12-4D

User Manual

PAGE 8/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

The following COMMAND table describes the available commands:

WIRELESS DEVICES USER INTERFACE

Flash count

Command

Description

1 flash

STATUS

Shows the device STATUS. As answer the led perform a flash sequence as

reported in the STATUS table. If the device is performing the TEST (

refer to

TEST command

) this command stops it.

2 flashes

TEST

Enter in TEST mode and transmits status and measurements every 5 seconds.

If the device is in STANDBY mode or it is out of radio range, this command

forces the connection procedure to the WSN and the return to the operative

mode. The TEST stops after 120 seconds. During TEST, the led continuously

shows the STATUS to monitor the received radio signal quality.

CAUTION: Measures acquired during TEST phase are NOT saved.

3 flashes

ENROL

Association to the network: must be used when the device has not yet been

included in a network, starts the entry and association procedure to the

gateway (

refer to “WineCap System - User Manual R30”

4 flashes

+ 4 flashes

STANDBY

Temporary device deactivation: the device is stopped. The sampling process

and the radio are/is. turned off losing the connection to the network. To

reactivate, a TEST command is necessary. The STANDBY command must be

given twice to confirm it: at the first sequence the led flashes alternating RED

and GREEN lights, waiting for the second confirm sequence within 15

seconds. At the command execution the led flashes as the STANDBY status

(

refer to “Picture 11 - Status table –Wireless mode”

5 flashes

+ 5 flashes

FACTORY RESET

The device performs the memory deleting procedure and goes in STOP

status. All samples, configuration and wireless network data associated are

LOST. To reactivate the device a new association and configuration

procedure is necessary (

ENROL command

). Also in this case, the FACTORY

RESET command must be given twice to confirm it. At the command

execution the led flashes as the “PROBE/DATALOGGER NOT ASSOCIATED”

status (

refer to “Picture 11 - Status table –Wireless mode”

5 flashes

+ 3 flashes

LOGGER

NO WSN

As the previous command but performs only the WSN deleting procedure

and disassociate from the gateway. The device enters in LOGGER STAND

ALONE mode: data are kept, and the sampling activity CONTINUES with

previous setup. Command must be given with 2 sequences: 5 flashes and

then 3 flashes. At the command execution wait for the device reboot. At the

STATUS command, “LOGGER” will be the answer (

refer to “Picture 12 - Status

table - Stand-alone mode”

). A new association (

ENROL command

) is

possible to a new gateway.

6 flashes

+ 6 flashes

RESETTING

CHANNEL #1

Resets channel #1 to the current position

7 flashes

+ 7 flashes

RESETTING

CHANNEL #2

Resets channel #2 to the current position

8 flashes

+ 8 flashes

RESETTING

CHANNEL #3

Resets channel #3 to the current position

9 flashes

+ 9 flashes

RESETTING

CHANNEL #4

Resets channel #4 to the current position

Picture 10 –Wireless devices user interface

WSD12-4D

User Manual

PAGE 9/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

6. Device enrolment.

Not necessary if performed in factory before delivery.

Enrol the device to the wireless network referring to the

“WineCap System - User Manual R30”

. In case the device is already enrolled but in

STANDBY status, a TEST command must be issued (refer to

Picture 10 –

)

7. Installation procedure.

After installing the gateway in appropriate place in charge, (

refer to “WineCap System - User Manual R30

”), be sure that the device is enrolled

to the gateway and activated.

Head for the installation point. On the way, to check the quality of the radio coverage, use the "Field Measurer" function.

This function is activated issuing the TEST

(refer to Picture 10 –)

command: position the

WineCapKey

in the spot indicated in

Picture 9 -

WineCapKey positioning

and wait for two AMBER flashes, then remove the

WineCapKey

from device. The "Field Measurer" function lasts

enabled for two minutes.

To issue commands to the device, place the

WineCapKey

where indicated.

Once the

WineCapKey

, is detected, the led periodically emits AMBER flashes with a 2 second cadence.

For each flash, a different command is associated; to confirm the command the

WineCapKey

must be removed from the sensible area

immediately after the number of flashes corresponding at the desired command. The TEST corresponds to the second pulse and activate the

"Field Measurer" function.

The device will give back the radio signal quality through led flashes:

WIRELESS MODE STATUS Table

FLASH COUNT –WIRELESS MODE

STATUS/RADIO SIGNAL QUALITY

5 green flashes

ACTIVE - Radio signal: Excellent

4 green flashes

ACTIVE - Radio signal: Good

3 green flashes

ACTIVE - Radio signal: Fair

2 amber flashes

ACTIVE - Radio signal: Sufficient

1 red flash

ACTIVE - Radio signal: Insufficient

1 red flash 2” long

OUT OF RANGE

Network searching

2 red flashes 2” long

STANDBY

Radio off - No Logging

Short-long-short red

flashes series

FACTORY RESET

Device not enrolled –No logging

Picture 11 - Status table –Wireless mode

Optimize reception selecting the best position: small movements can help.

If the signal is absent or insufficient at the install point, a

repeater WR12

should be put between (

refer to “WineCap System - User Manual

R30

”). The

repeater WR12

itself must be in a position where the signal level is at least sufficient.

The network will reconfigure itself automatically; the signal will be good again when the device synchronizes with the

repeater WR12

The wireless communication will not be reconfigured until completely lost by the device. Because of this, in some cases it could be necessary

to force the operation. In such cases, put the device in STANDBY mode, then run the TEST again (

refer to “WineCap System - User Manual

R30

”).

NOTE: The display equipped datalogger

(WD04T)

is recommended, to verify the signal quality during devices installation.

8. Stand-alone USB datalogger installation.

Install the datalogger in appropriate place.

If the sampling process has not yet been activated, you can start it through the

WineCapKey

Bring it closer to the sensitive point, wait for 2 flashes (

TEST

)

(refer to Picture 10 –)

and remove. The datalogger begins sampling according to

your settings through your PC.

WSD12-4D

User Manual

PAGE 10/14

WA0389_WSD12-4D_User Manual_R13 V6.1

www.capetti.it

Through the

WineCapKey

is possible to ask for the status, bring it close to the datalogger for 1 flash (

STATUS

) and remove it.

STAND-ALONE DEVICE - STATUS TABLE Table

FLASH COUNT –STAND ALONE MODE

STATUS

1 green flash 2 seconds long

ACTIVE

2 red flashes 2 seconds long

STANDBY

Sequence of red flashes: short,

2 seconds long, short

FACTORY RESET

INVALID datalogger clock!

PC connection required.

Picture 12 - Status table - Stand-alone mode

Autres manuels pour Winecap WSD12-4D

Table des matières

Autres manuels Capetti Elettronica Enregistreur de données

Capetti Elettronica

Capetti Elettronica WineCap WSD12-TT1K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD10DGII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCapKey WSD12T-KK Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-DD Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WLRD00TH Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-LVD Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12PS-4AI Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-EVTT Manuel utilisateur

Capetti Elettronica

Capetti Elettronica MWLI-MB Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCapKey WSD02T-KK Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD10TII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica MWDG-GSM Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap Lupo WSD15TIIDRO Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD15TIIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-CO Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-IIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-VW Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD15TIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WINECAP WSD02-TT10K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Wine cap WSD10TGII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD02T-T1K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD15IIDIST Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD00T Manuel utilisateur

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
