WSD00T / WSD00T_LD

User Manual

1. Description.

The WSD00T and the WSD00T_LD are dataloggers with one input channels to acquire indoor temperature, with storage

functionality of samples acquired.

2. Device preset and use mode.

a. Wireless Mode:

No setup operation is needed. Typically the system is configured from factory so the device is already associated to the system

basestation. The device is in STANDBY mode for which is necessary to start it with the TEST command (refer to chapter 5 -

Installation procedure.).

Otherwise, in case the device is in FACTORY RESET mode, that means it's ready for connecting to an existing system, in order to

associate it, make reference to the “WineCap System - User Manual R28 - chapter 4.3.1 Probe/datalogger association procedure.”

software manual. Is necessary to use the "WineCapManager" software on the PC connected to the basestation that will be

coupled with the device.

b. USB Logger Mode:

For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the

“WineCapManager” running on it is necessary in order to modify the device 's operation mode. The sampling interval must be

set with the device in "STAND-ALONE" mode and automatically, the device 's clock is aligned with the PC's clock, in order to

assure the temporal reference of the sample.

Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key.

(refer chapter 6- Stand-alone USB datalogger installation.). More details on device 's connection/disconnection through the USB

cable are available on the WineCap System - User Manual R28 manual.

c. On field transition from USB to Wireless datalogger:

This transition is practicable in field, during the sampling period, using the wireless network association command. When the

association is done, the datalogger becomes a wireless datalogger and, besides sending new measures to the basestation,

starts a download process towards the same basestation of the measures acquired during the stand alone period.

Picture 1 - Product Image

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

2/8

WSD00T / WSD00T_LD

User Manual

3. Wireless device user interface.

The user interface consists of a “virtual” button that can be activated using the WineCapKey and of a two-coloured led.

To give a command, user must approach the WineCapKey to the device’s sensible area and keep it in that position.; the following

picture (Pic. 3) shows device’s sensible points.

Picture 2 - Device positioning

Picture 3 - WineCapKey positioning

WineCapKey

LED

WineCapKey

LED

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

3/8

WSD00T / WSD00T_LD

User Manual

The following COMMAND table describes the available commands:

Flash count

Command

Description

1 flash

STATUS

Shows the device STATUS. As answer the led perform a flash sequence as

reported in the “STATUS” table. If the device is performing the TEST (refer to TEST

command) this command stops it.

2 flashes

TEST

Enter in TEST mode and transmits status and measurements every 5 seconds. If

the device is in STANDBY mode or it is out of radio range, this command forces

the connection procedure to the WSN and the return to the operative mode. The

TEST stops after 120 seconds. During TEST the led continuously shows the

STATUS to monitor the received radio signal quality.

CAUTION: Measures acquired during TEST phase are NOT saved.

3 flashes

ENROLL

Association to the network: must be used when the device has not yet been

included in a network, starts the entry and association procedure to the

basestation (refer to “WineCap System - User Manual R28 - chapter 4.3.1 Probe/datalogger

association procedure”).

4 flashes

+ 4 flashes

STANDBY

Temporary device deactivation: the device is stopped. The sampling process and

the radio are/is turned off losing the connection to the network. To reactivate, a

TEST command is necessary. The STANDBY command must be given twice to

confirm it: at the first sequence the led flashes alternating RED and GREEN lights,

waiting for the second confirm sequence within 15 seconds. At the command

execution the led flashes as the STANDBY status (refer to “Picture 5 - Status table -

Radio signal quality”).

5 flashes

+ 5 flashes

FACTORY

RESET

The device performs the memory deleting procedure and goes in STOP status. All

samples, configuration and wireless network data associated are LOST. To

reactivate the device a new association and configuration procedure is necessary

(ENROLL command). Also in this case, the FACTORY RESET command must be given

twice to confirm it. At the command execution the led flashes as the

“PROBE/DATALOGGER NOT ASSOCIATED” status (refer to “Picture 5 - Status table -

Radio signal quality”).

5 flashes

+ 3 flashes

LOGGER

NO WSN

As the previous command but performs only the WSN deleting procedure and

disassociate from the basestation. The device enter in LOGGER STAND ALONE

mode: data are kept and the sampling activity CONTINUES with previous setup.

Command must be given with 2 sequences: 5 flashes and then 3 flashes. At the

command execution wait for the device reboot. At the STATUS command,

“LOGGER” will be the answer (refer to “Picture 6 - Stand-alone datalogger status”). A

new association (ENROLL command) is possible to a new basestation.

4. Enrolling the device.

Enroll the device to the network referring to the “WineCap System - User Manual R28”. In case the device is already enrolled but in

STANDBY status, a TEST command must be issued.

5. Installation procedure.

After installing the basestation in appropriate place in charge, (refer to “WineCap System - User Manual R28”), be sure that the device is

enrolled to the basestation and activated.

Head for the environment to be monitored. On the way, to check the quality of the radio coverage, use the "Field Measurer"

function.

This function is activated issuing the TEST command: position the WineCapKey in the spot indicated in Picture (Picture 3) and wait for

two AMBER flashes, then remove the WineCapKey from device. The "Field Measurer" function lasts enabled for two minutes.

To issue commands to the device, place the WineCapKey where indicated.

Picture 4 - Commands table

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

4/8

WSD00T / WSD00T_LD

User Manual

Once the WineCapKey is detected, the led periodically emits AMBER flashes with a 2 seconds cadence.

For each flash, a different command is associated; to confirm the command the WineCapKey must be removed from the sensible

area immediately after the number of flashes corresponding at the desired command. The TEST corresponds to the second pulse

and activate the "Field Measurer" function.

The device will give back the radio signal quality through led flashes:

STATUS Table

Flash count - Wireless mode

Status/Radio signal quality

5 green flashes

Excellent

4 green flashes

Good

3 green flashes

Fair

2 amber flashes

Sufficient

1 red flash

Insufficient

1 red flash 2” long

OUT OF RANGE

Network searching

2 red flashes 2” long

STANDBY

Short-long-short red

flashes series

FACTORY RESET

Device not enrolled

Optimize reception selecting the best position: small movements can help.

If the signal is absent or insufficient at the install point, a WR12 router should be put between (refer to "WineCapManager User

Manual). The WR12 router itself must be located in a position where the signal level is at least sufficient.

The network will reconfigure itself automatically; the signal will be good again when the device synchronizes with the WR12 router.

The link will not be reconfigured until completely lost by the device. Because of this, in some cases it could be necessary to force

the operation. In such cases, put the device in STANDBY mode, then run the TEST again (refer to “WineCap System - User Manual R28”).

NOTE: The display equipped datalogger (WD04T) is recommended, to verify the signal quality during devices installation.

Picture 5 - Status table - Radio signal quality

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

5/8

WSD00T / WSD00T_LD

User Manual

6. Stand-alone USB datalogger installation.

Install the datalogger in appropriate place.

If the sampling process has not yet been activated you can start it through the WineCapKey.

Bring it closer to the sensitive point, wait for 2 flashes (TEST) and remove. The datalogger begins sampling according to your

settings through your PC.

Through the WineCapKey is possible to ask for the current status, bring it close to the datalogger for 1 flash (STATE) and remove it.

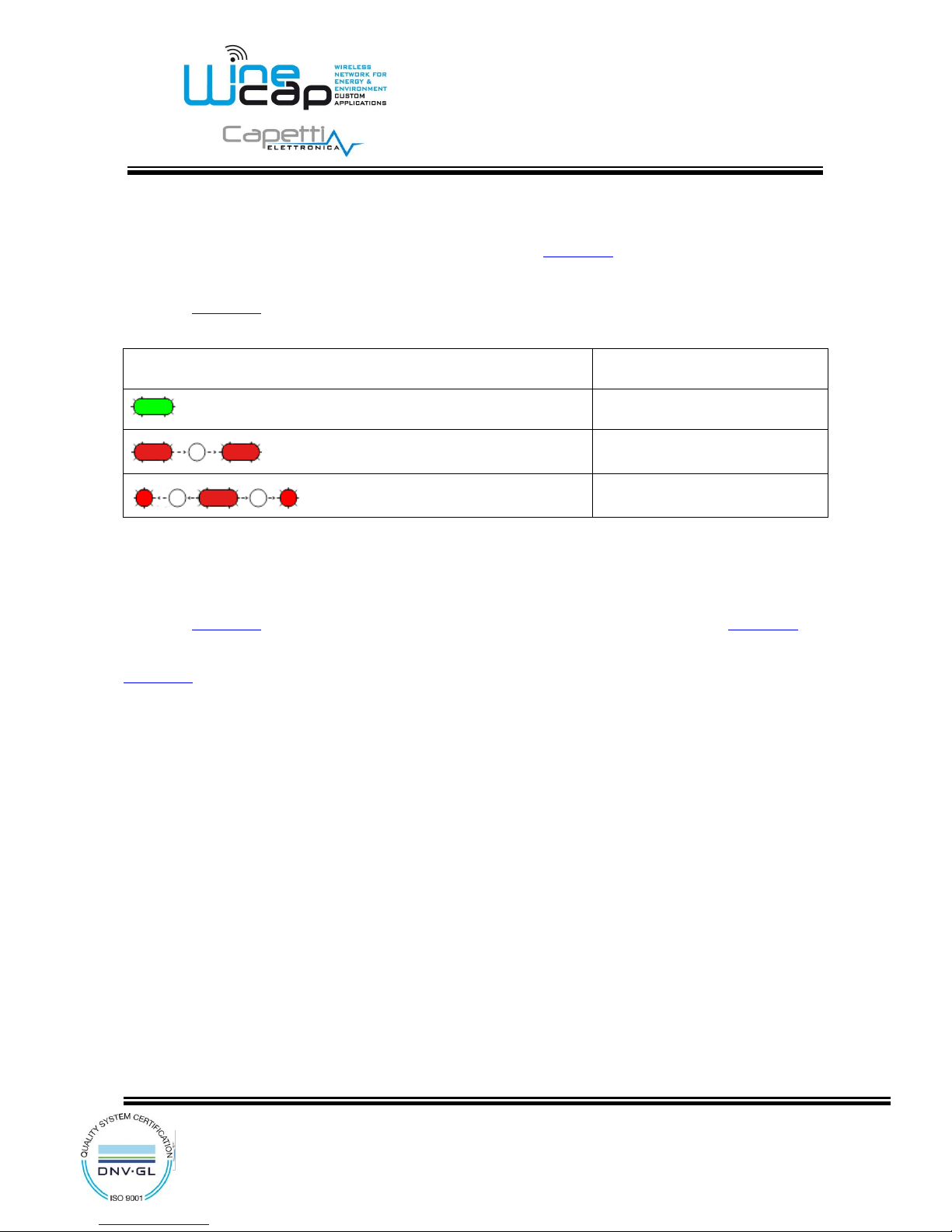

STATUS Table:

Flash count - Stand-alone mode

STATUS

1 green flash 2 seconds long

ACTIVE

2 red flashes 2 seconds long

STANDBY

Sequence of red flashes: short, 2

seconds long, short

FACTORY RESET

INVALID datalogger clock!

PC connection required

7. Shutting off/Reactivating the device.

If the device is shut off and left unused for a long time, you can issue the STANDBY command. Its corresponds to the command

number 4 and must be issued twice to confirm the operation.

Position the WineCapKey in the spot indicated in Picture 3 and wait for four AMBER flashes, then remove the WineCapKey from

device.

Verify that the device asks for confirmation of STANDBY command with alternate GREEN/RED flashing, then position again the

WineCapKey and wait for four flashes again. The device will confirm the STANDBY status lighting the RED led for 2 seconds twice.

To reactivate the device the TEST command must be issued.

Picture 6 - Stand-alone datalogger status

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

6/8

WSD00T / WSD00T_LD

User Manual

8. Technical Information.

Power supply

WSD00T: 2.4A/h - 3.6V type “AA” lithium internal battery

WSD00T_LD: 8.5A/h - 3.6V type “C” lithium internal battery

Battery life (*)

WSD00T: Up to 5 years

WSD00T_LD: Up to 12 years

(samples every 10 minutes and radio signal quality at least sufficient)

Measures acquired (1 channel)

Indoor temperature

Sampling interval (*)

Selectable from one minute to 24 hours (10 minutes default)

Datalogger capacity

128,000 samples (for each channel)

Working temperature

Operative: -30°C ÷ +60°C

Warehousing: -40°C ÷ +70°C

Radio frequency

ISM 868MHz

Radio coverage (**)

Up to 6Km in line of sight

(can be extended using WR12 battery powered routers)

Sealing

IP30

Dimensions

WSD00T: 80 x 80 x 25mm

WSD00T_LD: 120 x 80 x 33.5mm

Weight

WSD00T: 100g

WSD00T_LD: 224g

Case material

ABS

Mounting

Fix on 2/4 points

Connections

Wireless/USB

Temperature - Transducer type

NTC10KΩ

Temperature - Measure range

-10°C ÷ +60°C

Temperature - Measure accuracy

±0.2°C in whole range

Temperature - Measure resolution

0.01°C

* battery life may be influenced by fieldwork conditions, sampling interval and system configuration.

** radio coverage reachable using up to 32 WR12 routers (maximum 16 for each path) between the device and the basestation.

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

7/8

WSD00T / WSD00T_LD

User Manual

9. Mechanical dimensions.

Picture 7 - Mechanical dimensions

WA0123E_WSD00T/WSD00T_LD_User Manual_R10

CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57

10090 CASTIGLIONE TORINESE - TORINO - ITALY

VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210

e-mail [email protected] - web www.capetti.it

8/8

WSD00T / WSD00T_LD

User Manual

10. Reference standards.

EN 61010 -1

For electromagnetic compatibility

EN 61000 - 3 - 2

EN 61000 - 3 - 3

EN 300 220 -2

EN 301 489 - 03

EN 61000 - 6 -1

This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts

the use of substances in the manufacturing of electronic devices.

The “WEEE” logo on the label indicates that this product is compliant with the "WEEE" EC Directive.This

symbol (valid only in the European Union countries) indicates that the product it is applied to, MUST NOT

be discarded with ordinary household or industrial waste, but must be sent to an authorized reception

point. The end user should contact the device provider, either the manufacturer or the reseller, in order to

agree a collection and disposal process, after having checked the terms and conditions of sale.

The features shown may be subject to change without notice.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Capetti Elettronica Enregistreur de données

Capetti Elettronica

Capetti Elettronica Winecap WSD12-TT10KB1 Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD15TIIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-VW Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12-THEE Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD15TIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap Lupo WSD15TIIDRO Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-EVTT Manuel utilisateur

Capetti Elettronica

Capetti Elettronica MWLI-MB Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCapKey WSD12T-KK Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-VW Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-IIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-DD Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WLRD00TH Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCapKey WSD02T-KK Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-CO Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12PS-4AI Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD00THCOP Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Wine cap WSD10TGII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD10DGII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12-TT1K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD02T-T1K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD15IIDIST Manuel utilisateur

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
