General warnings.

•The following information must be read and understood before proceeding with the installation, commissioning and maintenance of

the devices described in this document.

•ATTENTION! Any omission or failure to follow these instructions scrupulously can cause danger.

•ATTENTION! Explosion hazard. In case of batteries substitution, make sure that the type is compatible and complies with the

specifications indicated by the manufacturer.

•In case of batteries substitution, DO NOT disconnect the flat cable which connect the electronic boards without removing batteries

before

•ALWAYS substitute all the batteries, also in case of one single battery exhausted.

•If the device is powered by a fixed network, make sure you have disconnected the power supply before carrying out any type of

intervention. Failure to comply with this indication can cause damage to people and/or property.

•Follow the manufacturer's suggested warm-up time (

time required to obtain a reliable measurement

) of the transducer.

•Follow the manufacturer's suggested electric wiring of the transducer to measure (

ground shields at a single point, cable length and

section

); voltage measures on distances exceed 15/20 meters are subjected to electromagnetic disturbances. 0÷25mA inputs have a

superior electromagnetic compatibility (

EMC

•Avoid passage in cavities with power or high voltage cables.

•The protection and safety measures and the warranty provided by the Manufacturer with the equipment may be compromised if it’s

used in a manner that does not comply with this user manual.

•This equipment complies with CE regulations.

•Modifications or tampering not expressly approved by the Manufacturer could void the user's authorization to operate the equipment.

•This equipment must be installed by qualified personnel and in accordance with national regulations and/or related local requirements.

•Make sure that the object is properly fixed to supports/infrastructures capable of withstanding this load. Make sure proper methods

and materials are used when fixing the equipment to a wall.

•Only personnel expressly authorized by the manufacturer can open the container. There are no user serviceable parts inside.

WLRD00TH

User Manual

PAGE 3/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

1. Description.

The WLRD00TH is a datalogger with two input channels to acquire to acquire indoor temperature and relative humidity, with storage

functionality of samples acquired.

2. Device pre-set and use mode.

a. Wireless Mode:

In this use mode, the datalogger records and transmits each measure sampled to the linked

gateway. Typically, the monitoring system is configured in factory, so, if the device is already

associated to the system gateway is in STANDBY mode (

refer to Picture 5 - Status table –Wireless

mode

). In this case, it is necessary to start it with the TEST command (

refer to Picture 4 –Wireless

devices user interface

). After this operation, the datalogger reactivates, resumes measure activity,

and performs the connection to the gateway or to a

repeater WR12.

Connection The onboard

LED shows the radio signal quality for 2 minutes (

refer to Picture 5 - Status table –Wireless

mode

Otherwise, in case the device is in FACTORY RESET mode (

refer to refer to Picture 5 - Status table

–Wireless mode

), that means it's ready for connecting to an existing system, in order to associate

it using the ENROL command, Refer to the

“WineCap System - User Manual R30”

software manual. It is necessary to use the

WineCapManager

software on the PC connected to the gateway that will be linked with the device.

b. USB Logger Mode:

For this operation mode, the dataloggers works in stand-alone, recording data in its internal memory and without any wireless connection.

This is not the factory setup so, to select it, the connection with the PC and the

WineCapManager

running on it is necessary to modify the

device 's operation mode. The device must be set in STAND-ALONE

(refer to 7 - Stand-alone USB datalogger installation.)

mode and the

sample time must be configured; automatically, the device 's clock is aligned with the PC's clock, in order to assure the temporal reference

of the sample.

Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key (

refer to 7 -

Stand-alone USB datalogger installation.

). More details on device 's connection/disconnection through the USB cable are available on the

WineCap System - User Manual R30

manual.

c. On field transition from USB to Wireless datalogger:

This transition is practicable in field, during the sampling period, using the wireless network association command. When the association is

done, the datalogger becomes a wireless datalogger and, besides sending new measures to the gateway, starts a download process towards

the same gateway of the measures acquired during the stand-alone period (

refer to Picture 6 - Status table -

3. Sensor positioning.

To ensure that the measurements are not affected by external factors, some

precautions must be taken into consideration during positioning:

•positioning must take place on a dividing wall, about 1.5 meters from the

floor;

•the device must not be placed near doors and windows;

•the device must not be positioned above the radiators;

•the device must not be placed near heat sources;

Picture 1 - Product image

Picture 2 - Sensor positioning

WLRD00TH

User Manual

PAGE 4/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

4. Wireless device user interface.

The user interface consists of a “virtual” button that can be activated using the

WineCapKey

and of a two-colours led.

To give a command, user must approach the

WineCapKey

to the device’s sensible area and keep it in that position.; the following picture

(

Picture 5 - WineCapKey positioning

) shows device’s sensible points.

LED

WineCapKey

Picture 3 - WineCapKey positioning

WLRD00TH

User Manual

PAGE 5/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

The following COMMAND table describes the available commands:

WIRELESS DEVICES USER INTERFACE

Flash count

Command

Description

1 flash

STATUS

Shows the device STATUS. As answer the led perform a flash sequence as

reported in the STATUS table. If the device is performing the TEST (

refer to

TEST command

) this command stops it.

2 flashes

TEST

Enter in TEST mode and transmits status and measurements every 5 seconds.

If the device is in STANDBY mode or it is out of radio range, this command

forces the connection procedure to the WSN and the return to the operative

mode. The TEST stops after 120 seconds. During TEST, the led continuously

shows the STATUS to monitor the received radio signal quality.

CAUTION: Measures acquired during TEST phase are NOT saved.

3 flashes

ENROL

Association to the network: must be used when the device has not yet been

included in a network, starts the entry and association procedure to the

gateway (

refer to “WineCap System - User Manual R30”

4 flashes

+ 4 flashes

STANDBY

Temporary device deactivation: the device is stopped. The sampling process

and the radio are/is. turned off losing the connection to the network. To

reactivate, a TEST command is necessary. The STANDBY command must be

given twice to confirm it: at the first sequence the led flashes alternating RED

and GREEN lights, waiting for the second confirm sequence within 15

seconds. At the command execution the led flashes as the STANDBY status

(

refer to “Picture 5 - Status table –Wireless mode”

5 flashes

+ 5 flashes

FACTORY RESET

The device performs the memory deleting procedure and goes in STOP

status. All samples, configuration and wireless network data associated are

LOST. To reactivate the device a new association and configuration

procedure is necessary (

ENROL command

). Also in this case, the FACTORY

RESET command must be given twice to confirm it. At the command

execution the led flashes as the “PROBE/DATALOGGER NOT ASSOCIATED”

status (

refer to “Picture 5 - Status table –Wireless mode”

5 flashes

+ 3 flashes

LOGGER

NO WSN

As the previous command but performs only the WSN deleting procedure

and disassociate from the gateway. The device enters in LOGGER STAND

ALONE mode: data are kept, and the sampling activity CONTINUES with

previous setup. Command must be given with 2 sequences: 5 flashes and

then 3 flashes. At the command execution wait for the device reboot. At the

STATUS command, “LOGGER” will be the answer (

refer to “Picture 6 - Status

table - Stand-alone mode”

). A new association (

ENROL command

) is

possible to a new gateway.

Picture 4 –Wireless devices user interface

5. Device enrolment.

Not necessary if performed in factory before delivery.

Enrol the device to the wireless network referring to the

“WineCap System - User Manual R30”

. In case the device is already enrolled but in

STANDBY status, a TEST command must be issued (refer to

Picture 4 –Wireless devices user interface

)

6. Installation procedure.

After installing the gateway in appropriate place in charge, (

refer to “WineCap System - User Manual R30

”), be sure that the device is enrolled

to the gateway and activated.

Head for the installation point. On the way, to check the quality of the radio coverage, use the "Field Measurer" function.

This function is activated issuing the TEST

(refer to Picture 4 –Wireless devices user interface)

command: position the

WineCapKey

in the spot

indicated in

Picture 5 - WineCapKey positioning

and wait for two AMBER flashes, then remove the

WineCapKey

from device. The "Field

Measurer" function lasts enabled for two minutes.

To issue commands to the device, place the

WineCapKey

where indicated.

Once the

WineCapKey

, is detected, the led periodically emits AMBER flashes with a 2 second cadence.

WLRD00TH

User Manual

PAGE 6/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

For each flash, a different command is associated; to confirm the command the

WineCapKey

must be removed from the sensible area

immediately after the number of flashes corresponding at the desired command. The TEST corresponds to the second pulse and activate the

"Field Measurer" function.

The device will give back the radio signal quality through led flashes:

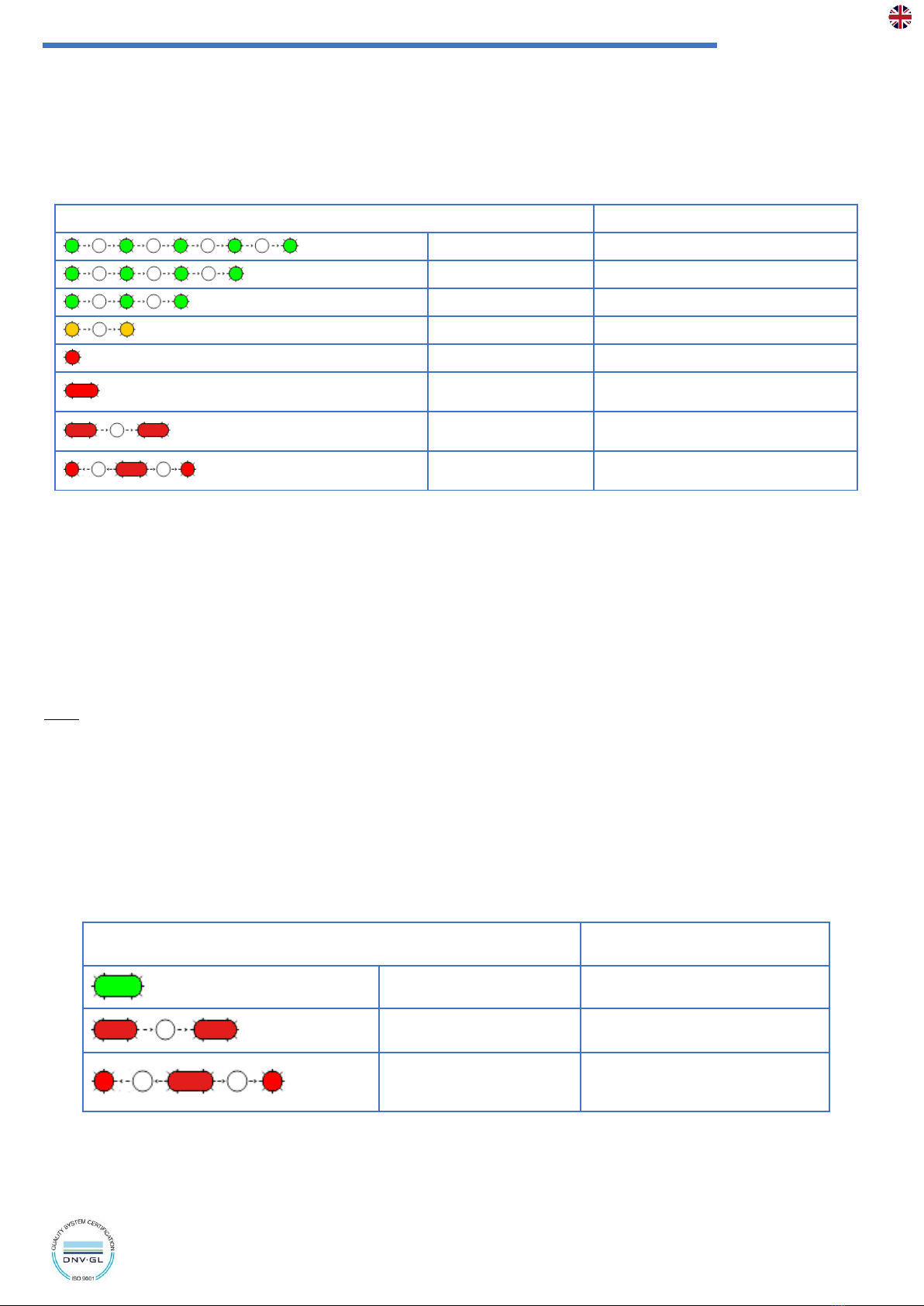

WIRELESS MODE STATUS Table

FLASH COUNT –WIRELESS MODE

STATUS/RADIO SIGNAL QUALITY

5 green flashes

ACTIVE - Radio signal: Excellent

4 green flashes

ACTIVE - Radio signal: Good

3 green flashes

ACTIVE - Radio signal: Fair

2 amber flashes

ACTIVE - Radio signal: Sufficient

1 red flash

ACTIVE - Radio signal: Insufficient

1 red flash 2” long

OUT OF RANGE

Network searching

2 red flashes 2” long

STANDBY

Radio off - No Logging

Short-long-short red

flashes series

FACTORY RESET

Device not enrolled –No logging

Picture 5 - Status table –Wireless mode

Optimize reception selecting the best position: small movements can help.

If the signal is absent or insufficient at the install point, a

enhancer WLRE

should be put between (

refer to “WineCap System - User Manual

R30

”). The

enhancer WLRE

itself must be in a position where the signal level is at least sufficient.

The network will reconfigure itself automatically; the signal will be good again when the device synchronizes with the

enhancer WLRE

The wireless communication will not be reconfigured until completely lost by the device. Because of this, in some cases it could be necessary

to force the operation. In such cases, put the device in STANDBY mode, then run the TEST again (

refer to “WineCap System - User Manual

R30

”).

NOTE: The display equipped datalogger

(WD04T)

is recommended, to verify the signal quality during devices installation.

7. Stand-alone USB datalogger installation.

Install the datalogger in appropriate place.

If the sampling process has not yet been activated, you can start it through the

WineCapKey

Bring it closer to the sensitive point, wait for 2 flashes (

TEST

)

(refer to Picture 4 –Wireless devices user interface)

and remove. The datalogger

begins sampling according to your settings through your PC.

Through the

WineCapKey

is possible to ask for the status, bring it close to the datalogger for 1 flash (

STATUS

) and remove it.

STAND-ALONE DEVICE - STATUS TABLE Table

FLASH COUNT –STAND ALONE MODE

STATUS

1 green flash 2 seconds long

ACTIVE

2 red flashes 2 seconds long

STANDBY

Sequence of red flashes: short,

2 seconds long, short

FACTORY RESET

INVALID datalogger clock!

PC connection required.

Picture 6 - Status table - Stand-alone mode

WLRD00TH

User Manual

PAGE 7/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

8. Shutting off/Reactivating the device.

If the device is shut off and left unused for a long time, you can issue the STANDBY command

(refer to Picture 4 –Wireless devices user

interface)

. It corresponds to the command number 4 and must be issued twice to confirm the operation.

Position the

WineCapKey

in the spot indicated in (

Picture 5 - WineCapKey positioning

), and wait for four AMBER flashes, then remove the

WineCapKey

from device. Verify that the device asks for confirmation of STANDBY command with alternate GREEN/RED flashing, then position

again the

WineCapKey

and wait for four flashes again. The device will confirm the STANDBY status lighting the RED led for 2 seconds twice. To

reactivate the device the TEST command must be issued.

9. Technical Information.

Power supply

8.5Ah - 3.6V type “C” lithium internal battery (

BAT2

)

Battery life (*)

Up to 12 years

(samples every 10 minutes and radio signal quality at least sufficient)

Measures acquired

(2 input channels)

•Indoor temperature

•Relative humidity

Sampling interval

(*)

Selectable from one minute to 24 hours

(60 minutes default)

Datalogger capacity

128,000 samples (

for each channel

)

Working temperature

•Operative: -30°C ÷ +60°C

•Warehousing: -40°C ÷ +70°C

Radio frequency

ISM 868MHz

Radio coverage

Up to 15Km in line of sight

(can be extended using WLRE battery powered enhancers)

Sealing

IP30

Dimensions

120x80x33.5mm

Weight

224g

Case material

ABS

Mounting

Fix on 2/4 points

Connections

Wireless, USB

Indoor temperature - Transducer type

NTC10KΩ

Indoor temperature - Measure range

-10°C÷+60°C

Indoor temperature - Measure accuracy

±0.2°C in whole range

Indoor temperature - Measure resolution

0.01°C

Relative humidity - Transducer type

CMOSens® Technology

Relative humidity - Measure range

0%÷100%

Relative humidity - Measure accuracy

±2.0% (

typical

) from 0% to 100%

Accuracies are granted between 0°C÷50°C range

Relative humidity - Measure resolution

0.05%RH

* battery life may be influenced by fieldwork conditions, sampling/measuring interval and system configuration.

** radio coverage can be extended using up to 32 enhancers WLRE (maximum 16 for each path) between the device and the gateway.

WLRD00TH

User Manual

PAGE 8/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

10. Mechanical dimensions.

Picture 7 - Mechanical dimensions

11. Disclaimer.

•Specifications are subject to change without notice and should not be interpreted as a commitment on the part of Capetti Elettronica

S.r.l.

•Capetti Elettronica S.r.l. assumes no responsibility for possibly errors that may appear in this document. In no case Capetti Elettronica

S.r.l. will be liable for incidental or consequential damages resulting from the use of this document or the systems described in this

document.

•All Contents published or distributed by Capetti Elettronica S.r.l. are made available for general information purposes.

•It is not permitted to publish or use, in whole or in part, such contents for commercial purposes without the explicit written consent

of Capetti Elettronica S.r.l.

•The reproduction, duplication, modification, sale or resale of this material or part of it is not permitted without the explicit written

consent of Capetti Elettronica S.r.l.

WLRD00TH

User Manual

PAGE 9/9

WA0427_WLRD00TH_User Manual_R01

www.capetti.it

12. Reference standards.

EN 61010 -1

For electromagnetic compatibility

EN 61000 - 3 - 2

EN 61000 - 3 - 3

EN 300 220 -2

EN 301 489 - 03

EN 61000 - 6 -1

This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts

the use of substances in the manufacturing of electronic devices.

The “WEEE” logo on the label indicates that this product is compliant with the "WEEE" EC Directive. This

symbol (valid only in the European Union countries) indicates that the product it is applied to, MUST

NOT be discarded with ordinary household or industrial waste, but must be sent to an authorized

reception point. The end user should contact the device provider, either the manufacturer or the reseller,

to agree a collection and disposal process, after having checked the terms and conditions of sale.

IT1902000001116

Table des matières

Autres manuels Capetti Elettronica Enregistreur de données

Capetti Elettronica

Capetti Elettronica MWDG-GSM Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCapKey WSD02T-KK Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-CO Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-DD Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-VW Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap Lupo WSD15TIIDRO Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD02T-T1K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12-2DI Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD15TIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD15TIIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD15IIDIST Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-IIDR Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD10TII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12-TT1K Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-EVTT Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12-VW Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Wine cap WSD10TGII Manuel utilisateur

Capetti Elettronica

Capetti Elettronica Winecap WSD12-TT10KB1 Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCapKey WSD12T-KK Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WineCap WSD12-4VW Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD00T Manuel utilisateur

Capetti Elettronica

Capetti Elettronica WSD12PS-4AI Manuel utilisateur

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
