Canon TX-5410 Manuel utilisateur

QT6-3970-V01 PRINTED IN XXXXXXXXXXXXXXXX © CANON INC. 2020

Setup Guide

Read this manual before attempting to operate the printer. Keep this manual for future reference.

Furthermore, in order to ensure that this product is used safely, you should always also read the “Quick Guide (separate

manual)”.

ENGLISH

安裝指南

請先閱讀本手冊再嘗試操作印表機。妥善保存本手冊供後續參考之用。

此外，為了確保安全使用本產品，您也應務必閱讀 "快速指南（個別手冊）"。

繁體中文

ค�ำแนะน�ำกำรติดตั้ง





ภำษำไทย

Petunjuk Pengesetan

Bacalah petunjuk ini sebelum mencoba mengoperasikan pencetak. Simpanlah petunjuk ini untuk rujukan di waktu

mendatang. Lebih lanjut, untuk memastikan bahwa produk ini digunakan dengan aman, Anda harus selalu membaca

"Petunjuk Ringkas (petunjuk terpisah)".

BAHASA INDONESIA

설치 가이드

프린터를 조작하기 전에 이설명서를 읽으십시오. 나중에 참조할 수있도록 이설명서를 잘보관해 두십시오.

또한 이제품을 안전하게 사용하려면 "퀵가이드(별도 설명서)"도읽어야 합니다.

한국어

RMC (Regulatory Model Code) : K10537

RMC (Regulatory Model Code) : K10538

RMC (Regulatory Model Code) : K10539

Overview of Setup Confirming the Installation Space

The illustrations in this manual are using the TX-5410 as an example for explanation. Note that your printer may look different from these

illustrations in some cases.

The specifications and appearance of this product are subject to change without notice.

Set up the printer using the following procedure. Note that if an error

message appears during setup or other problems occur, refer to "Responding

to Messages" on p. 13.

Removing the Packaging Material Page 4

Assembling the Printer Stand Page 4

Attaching the Roll Unit Page 4

Assembling the Stacker Page 4

Installing the Printer Page 4

Turning On the Printer Page 5

Installing the Ink Tanks Page 6

Installing the Print Head Page 8

Selecting the Method of Connecting

to Your Computer Page 10

Installing the Software on Your

Computer Page 11

Loading Paper Page 12

Storage Location for Accessories and Consumables Page 12

Printing From a Smartphone or Tablet Page 12

Displaying the Online Manual Page 12

Responding to Messages Page 13

When installing the printer, it is recommended that you secure the following

space around the printer.

Important

●The printer stand, roll unit and stacker may be options depending on

the model you purchased. Please note that the required space differs

depending on whether the options are used or not.

●The space required in front of the printer varies depending on how the

basket is used.

■TX-5410

Required space (W x D x H)

1,993 × 1,684 × 1,560 mm

100 mm

200 mm

600 mm

200 mm

150 mm

■TX-5310

Required space (W x D x H)

1,790 × 1,684 × 1,560 mm

200 mm

100 mm

600 mm

200 mm

150 mm

■TX-5210

Required space* (W x D x H)

1,510 × 1,684 × 1,560 mm

Required space** (W x D x H)

1,510 × 1,434 × 1,020 mm

150 mm

200 mm

100 mm**

100 mm*

600 mm*

600 mm**

* When using the SD-21 printer stand

** When not using the printer stand

ENGLISH

Package Contents

Check that the following included accessories are contained in the package. Note that a cable to connect the printer to a computer is not provided with the

printer.

Note

●Although the included accessories also contain items that are not explained in this manual, you should store them without losing any since they will be

required when using various functions.

●For instructions on the included items not described in this manual, refer to the Online Manual by following the instructions in “Displaying the Online Manual”

on p. 12.

mno

aPrinter

bBasket rod / Basket cloth *2

cSetup Guide (this manual)

dStarter ink tanks

eSet of CD-ROMs

fSet of printer documentation

gPower cord

hRod holder (2 pieces) *2

iPrint head

jStand legs (2 pieces) *1

kStand stay *1

lBasket arm (2 pieces) *2

mBasket locking support (2 pieces) *2

n3-inch paper core attachment (2 pieces)

oPrinter stand mounting bracket set *1

pAccessory pocket *1

qHolder stopper *3

*1 Only included with models where the printer stand is included as

standard. Note that it may be packaged in a separate box depending on

the region where you purchased the printer.

The items included with the printer stand are described in the Printer

Stand Setup Guide.

*2 These items might not be included depending on your region.

*3 This is used when loading roll paper. For details, refer to the Online Manual.

Manuals Included with This Product

Setup Guide (this manual)

Describes how to setup the printer.

Printer Stand Setup Guide

Describes how to assemble the stand. This item might not be included depending on your model.

Quick Guide

Contains information related to warnings for using this product safely and information related to replacing paper, ink tanks, and the print head.

Online Manual (Electronic Manuals)

This manual describes advanced usage of the printer such as paper saving tips, how to print a poster and banner with the supplied software and print quality

adjusting method, in addition to the basic instructions for printing on roll paper or cut sheet.

To view the Online Manual, refer to "Displaying the Online Manual" (p. 12).

■Roll Unit

■Stacker

Provided as an optional accessory.

Refer to the included setup guides for the respective accessories.

Handling Cautions

Moving the Printer

●Have the following number of people grasp

the carrying grips on each side in the base of

the printer. The weight may cause pain such

as back pain.

TX-5410 (Approx. 96 kg) 6 people or more

TX-5310 (Approx. 87 kg) 6 people or more

TX-5210 (Approx. 74 kg) 6 people or more

For the TX-5410

Standing Up the Printer

●When standing the printer up, place

cardboard or other material underneath to

prevent damage and scratching, and make

sure the side with the operation panel is up.

Furthermore, make sure that the weight of the

printer is taken by the corner of the printer. If

the weight is taken by any other part of the

printer, the printer may become damaged.

●When carrying the printer, firmly grasp the

carrying grips on each side in the base (the

area shown shaded in the diagram). Holding

the printer at other positions is dangerous and

may cause injury or damage to the printer if

the printer is dropped.

●Do not hold any position other than the

carrying grips. In particular, do not hold the

plastic parts of the printer rear surface (the

area shown shaded in the diagram).

Other

●Do not put the printer down or carry the

printer with only the center of the printer

supported. This may cause damage to the

printer.

●When setting the printer down temporarily,

make sure to put the printer on a flat, stable

surface.

Installing the Printer

If you are not using the stand, install the printer in a location like the following.

Assembling the Printer Stand

Assemble the stand by referring to the Printer Stand Setup Guide (separate manual). If you are

not using the stand, proceed to "

Installing the Printer".

Attaching the Roll Unit

If you purchased the optional roll unit, attach the roll unit by referring to the Roll Unit Setup

Guide (separate manual). If you are not using the roll unit, proceed to "

Turning On the

Printer".

Assembling the Stacker

If you purchased the optional stacker, attach the stacker by referring to the Stacker Setup Guide

(separate manual). If you are not using the stacker, proceed to "

Turning On the Printer".

Removing the Packaging Material

Lift up the printer.

●For details on how to carry and the number of people, refer to

"Handling Cautions" (p. 3).

Place the printer on a stable flat location.

Remove the packaging material.

Remove all of the tape and other packaging material.

Remove the tape affixed to the roll holder.

Turning On the Printer

Open the top cover.

Pull up and remove the belt stopper.

●Keep the belt stopper for future use. You will need it in case you

move the printer to another location.

Remove the tape and protective material.

●Peel off the tape affixed to the carriage, and then pull the

protective material (the area shown shaded in the diagram)

towards you and remove it. Remove the protective sheet if there

is one attached.

Close the top cover.

Connect the power cord to the printer.

●Insert the power cord into the power connector on the rear of the printer.

For the TX-5210 / TX-5310 For the TX-5410

Plug the power cord into the outlet,

and then turn on the printer.

When the language selection screen

appears on the touch screen, select

and tap a language (lightly with

your finger, and then move your

finger away). Then, if the screen for

selecting a time zone appears, select

and tap your region.

When a message prompting you to

start the setup appears on the touch

screen, tap OK.

Installing the Ink Tanks

Instructions on ink tank installation are shown on the touch screen. Install the ink tanks as instructed. If the ink tank is cold, allow it to adjust to room temperature

before attaching it to the printer.

Open the ink tank cover.

Release the ink tank lock lever of the

color you are installing.

●While pressing the button at the

position (B), lift up the handle part (A)

towards you.

With it in this state, pull the ink tank

lock lever up.

Continue pulling until the entire ink tank lock lever is

tilted towards you.

●Make sure the ink tank lever stays in this position.

Shake each ink tank gently 7 or 8 times before opening its

pouch.

Important

●Failure to shake the ink tanks may

result in reduced print quality

because ink ingredients have settled

on the bottom of the tank.

Open the pouch and remove the ink tank.

Important

●Never touch the ink holes or metal contacts (the area shown shaded in the diagram).

Touching these parts may cause stains, damage the ink tank, and affect print quality.

●Avoid dropping the ink tank after removing it from the pouch.

Otherwise, ink may leak and cause stains.

●Do not remove ink tanks to shake them after they have been mounted.

Doing so may cause ink to spill.

Check that the color of the ink tank is the same as the color displayed on the label in the printer, and insert the ink tank into

the holder in the orientation shown in the diagram.

●Insert with the ink tank label facing up and ensuring that the text on the label is not upside-down.

Match the color of the ink tank label

to the color of the label in the printer

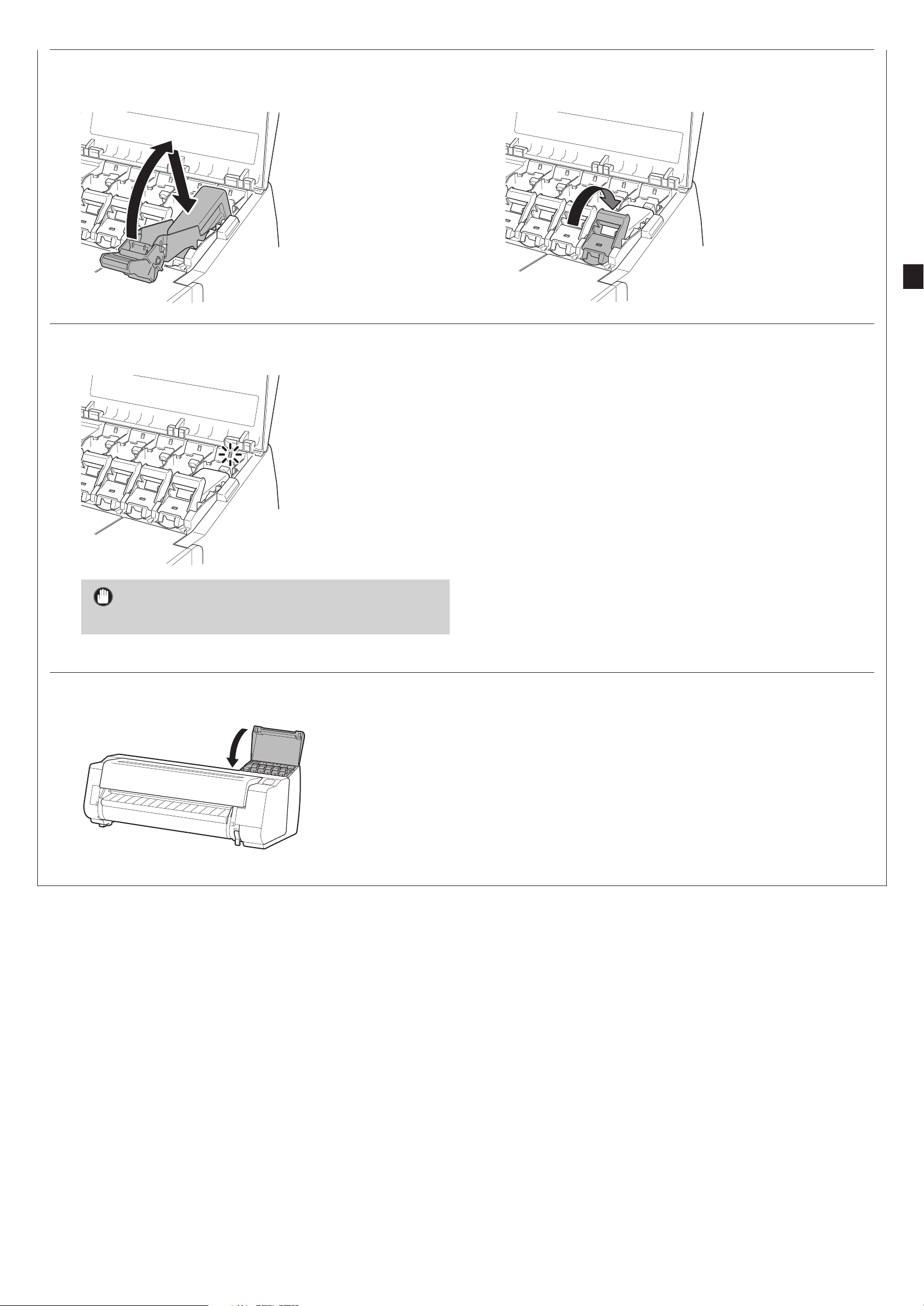

Lift up the ink tank lock lever once and then push it

down.

Firmly push down the handle part of the ink tank lock

lever all the way in.

Make sure the ink lamp lights red.

Important

●If the ink lamp does not light, repeat steps 2 to 4and 8to 9.

Repeat steps 2 to 10 to install each of the ink tanks.

Close the ink tank cover.

Installing the Print Head

Instructions are now shown on the touch screen regarding print head installation. Install the print head by following the instructions.

Open the top cover.

Important

●Do not move the carriage (the area enclosed by a circle in the

diagram). If you accidentally move it, temporarily close the top

cover and it will return to its original position.

Tilt the print head lock lever towards you.

Open the print head locking cover

by following the

instructions on the screen and tap OK. Do not touch the

electrical contacts of the carriage.

Do not touch here

Grasp the print head as shown in the diagram and

remove it from the bag.

Hold here

Remove the orange protective caps in the order shown in the diagram.

Hold here to remove

Important

●Do not touch the part that was being protected by the protective cap (part shown shaded in the diagram) under any

circumstances. Touching it may cause damage to the print head or printing problems.

●The print head is filled with ink. Be careful to avoid getting your clothes and surrounding items dirty when removing the

protective caps. It is recommended that you remove the protective caps above the bag that contained the print head.

●Do not reattach the protective caps after removing them. Furthermore, dispose of them according to local regulations.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Canon Imprimante

Canon

Canon imageRUNNER 3245 Series Manuel utilisateur

Canon

Canon PIXMA TS6050 Guide de configuration

Canon

Canon iPF755 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon imageCLASS LBP6780dn Manuel utilisateur

Canon

Canon TS7450i Series Guide de configuration

Canon

Canon MultiPASS L90 Manuel utilisateur

Canon

Canon iR2020 Series Manuel d'utilisation et d'entretien

Canon

Canon Ivy CLIQ+ Manuel utilisateur

Canon

Canon 2171B002 Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE 8500 Series Manuel utilisateur

Canon

Canon imagePROGRAF GP-4600S Manuel utilisateur

Canon

Canon i550 Manuel utilisateur

Canon

Canon MK5000 Manuel utilisateur

Canon

Canon IB4000 series Guide de configuration

Canon

Canon PIXMA TR8622 Manuel utilisateur

Canon

Canon PIXMA TS5320 Guide de configuration

Canon

Canon imageClass LBP6230dw Manuel utilisateur

Canon

Canon imagePROGRAF TC-20 Guide de configuration

Canon

Canon imagePROGRAF iPF8300S Guide de l'utilisateur

Canon

Canon 2207C004 Manuel utilisateur

Canon

Canon PIXMA MP190 Manuel utilisateur

Canon

Canon iP1700 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon imageprograf IPF785 Manuel utilisateur

Canon

Canon imagePROGRAF W7200 Instructions d'installation et d'entretien

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
