Canon MP490 series Manuel utilisateur

Canon

Photo All-in-One

PI}{MAM

P490

series

Getting

Started

Read

First

1111111111111111111111111111111111111111

Make sure to read this manual before using the machine. Please keep it

hand for future reference. QT 5 2 5 8 9 V 0 I

•

Symbols

Used

This

Document

Instructions including important information. Be sure to read these indications.

Instructions as notes for operation or additional explanations.

Descriptions for operations that take some time to complete.

Indicates operations

Windows.

Indicates operations

Macintosh.

•Microsoft

aregistered trademark

Microsoft Corporation.

•Windows

atrademark

registered trademark

Microsoft Corporation

the U.S and/or other countries.

•Windows Vista

atrademark or registered trademark

Microsoft Corporation

the U.S. and/or other countries.

•Internet Explorer

atrademark or registered trademark

Microsoft Corporation

the U.S. and/or other countries.

•Macintosh and Mac are trademarks

Apple

Inc,

registered

the U.S. and other countries.

Model Number: K10340 (MP490)

After Installing the Machine

6Loading Paper

2Remove the Protective Material

1Preparation

•

Check

the

Included

Items

•Manuals

•Setup CD-ROM (containing the drivers, applications and on-screen manuals)

•Warranty

Before turning on the machine, remove all orange tapes and protective sheets from

the inside and outside

the machine.

Choosing

Location

~-----------

•

not install the machine where

object may fall on

it.

The

object may fall inside the machine, resulting

malfunction.

•

not place any object

top of the machine.

may fall into

the machine when opening covers, resulting

malfunction.

The FINE

Cartridges and

power code are

placed inside

the

Paper Output Tray

(A).

Open the

Paper

Output Tray with your

hands, and take out

the FINE Cartridges

and power code.

power cord

Color Black

FINE Cartridges

• A USB cable (A-B type)

necessary to connect the machine with your computer.

Open the Paper Output

Tray (A). Lift the Scanning Unit (Cover)

(8)

and

fix it with the Scanning Unit Support (C). Pull the orange protective tape

(0)

and remove the protective

material (E).

Lift the Scanning Unit (Cover) slightly and fold

the Scanning Unit Support, then gently close the

Scanning Unit (Cover).

Set

the

ink

cartridge.

Lan

eetl

•If

unintended language

displayed

the LCD. press the

Back

button (F) to return

the

Language

selection

screen.

IMake sure that the above

Iscreen

displayed

and

Igo to the next step.

~-------

IUse the A

or.

button (D)

the Operation

IPanel to select the language for the LCD (E),

Ithen press the OK button.

IOpen the Operation Unit (8)

:and press the ON button (C)

turn

the machine.

Plug the power cord into the left side of

the machine, then connect the other end

to the wall outlet.

•Do NOT connect the USB cable at this stage

•Make sure that the Document Cover (A)

closed.

~---------

Lift the Scanning Unit (Cover) (A) and fix it with the Scanning Unit Support (0).

Close the Document Cover (E) and lift it with the Scanning Unit (Cover).

The FINE Cartridge Holder (F) moves to the installation position.

~--------

•Handle the FINE Cartridges carefully.

not

drop or apply excessive pressure

them.

•

sure

use the supplied FINE Cartridges.

~-------------------

•

the

Scanning

Unit

(Cover)

left

open

for

than

minutest

the

FINE

Cartridge

Holder

moves

the

right.

this

case, close

and

reopen the Scanning Unit (Cover).

the

FINE Cartridge Holder does not move, make sure that the machine

turned

on.

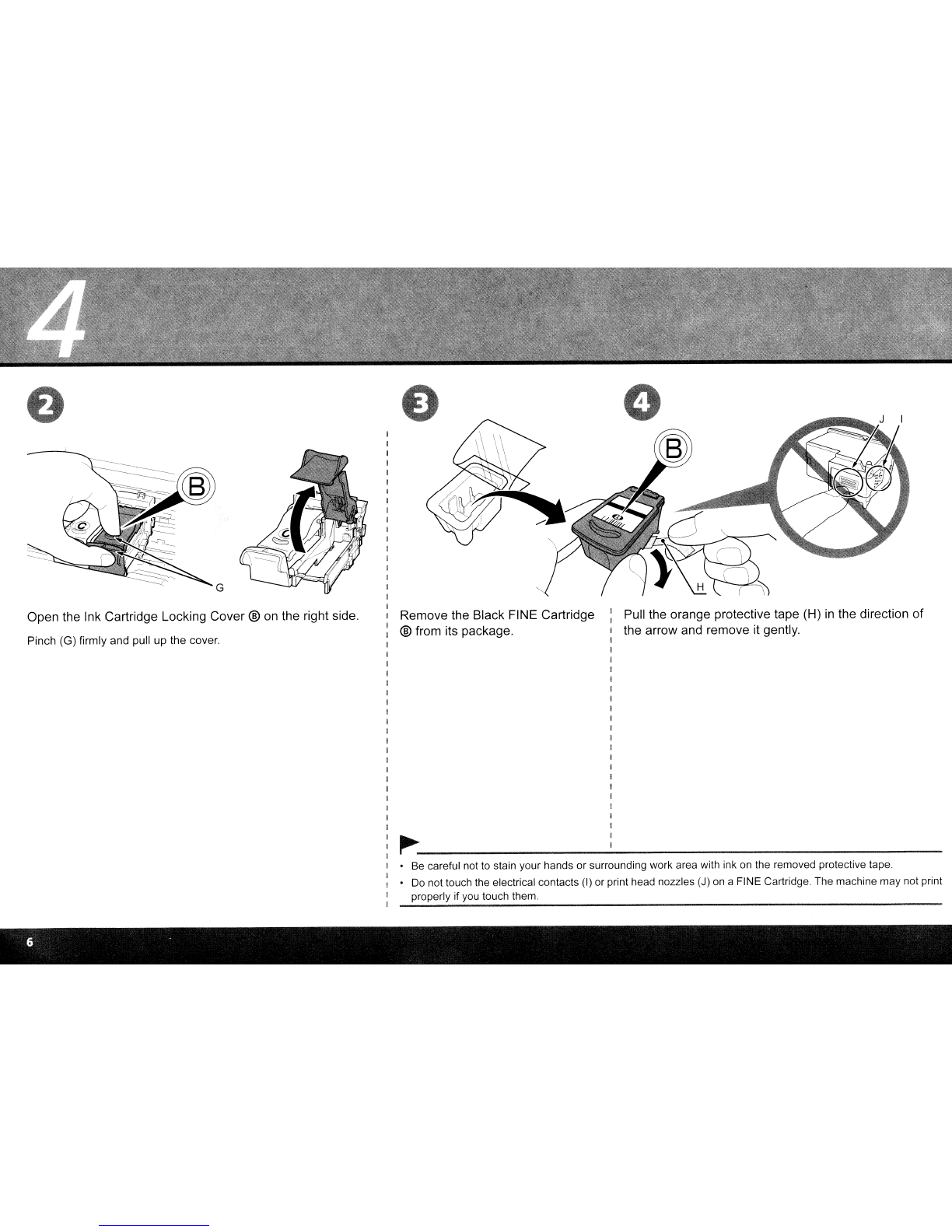

Open the Ink Cartridge Locking Cover ®

the right side.

Pinch (G) firmly and pull up the cover.

Remove the Black FINE Cartridge

®from its package. Pull the orange protective tape (H)

the direction

the arrow and remove it gently.

~-------------------

•Be careful not to stain your hands or surrounding work area with ink

the removed protective tape.

Do not touch the electrical contacts (I) or print head nozzles (J) on aFINE Cartridge. The machine may not print

properly if you touch them.

View the Ink Cartridge Locking Cover ®straight on and check that it is locked

correctly (not at an angle).

Place the Black FINE Cartridge ®into the right slot

®.

~----------------

•

not knock the FINE Cartridge against the sides of the holder.

•Install the Black FINE Cartridge into the right slot, and the Color FINE Cartridge into the left

slot.

IPush down ®

the Ink Cartridge Locking Cover until you hear aclick

Iclose it completely.

Standard

copy

----------

Print settings

Insert the Color FINE Cartridge ©into the left FINE

Cartridge Holder ©

the same way as

Lift the Scanning Unit (Cover) slightly and fold the Scanning Unit Support, then gently close the

Scanning Unit (Cover).

:;r

.-:

~<i

Wait

until

the

LCD

changes

shown

the

illustration

(about

1-2

minutes)

and

the

step.

~---------------------

•Once you have installed the FINE Cartridges, do not remove them unnecessarily.

error message is displayed on the LCD, make sure that the FINE Cartridges are correctly installed.
