Introductory Information

ENG

Setup Guide

QT5-3287-V1 ©CANON INC. 2011 PRINTED IN JAPAN

* Q T 5 3 2 8 7 V 1 *

• Even if you do not use the printer driver, be sure to install Media

Configuration Tool from the provided User Software CD-ROM.

With Media Configuration Tool, the paper types that are available

in your area can be registered to the printer. The Paper Reference

Guide also will be installed. For instructions on installation, refer

to "Install the Software and the Electronic Manuals" on page 6. (In

Windows, select Install Individual Software in the Setup Menu

window to install Media Configuration Tool only.)

Introduction

Overview of Setup

These are the steps in printer installation.

Preparations

Store Printed Manuals in the Pocket

Install the Ink Tanks

Install the Software and the

Electronic Manuals

2

Install the Printheads 2

2

2

2

2

Load Paper to Adjust the Printheads

MEM

• We recommend doing a color calibration after completing the setup

to adjust variations in the colors.

Details for each step are given in this Setup Guide. Simply follow the instructions

to install the printer.

If an error message is displayed during setup or other problems occur, refer to

"Responding to Messages" on page 16.

Space Required for Installation

An area that is larger than the dimensions shown below is needed to install

the printer.

Height

OO

OO

OO

OO*

Width and depth

OO

OO

OOOO OO9

OO

OO&

OO

Caution

• When using the output stacker in the front ejection position, provide at

least 1400 mm (55 inches) of unobstructed space in front of the printer.

The Manuals Supplied with This Printer

After installing the printer as shown in this Setup Guide, refer to the

manuals for instructions on operation and maintenance.

Printed Manuals

Basic Guide

The Basic Guide includes three booklets containing the following

information:

1 Loading paper, Replacing the consumables, Control Panel menus,

and others

2 Troubleshooting tips and Error messages

3 Preparations for transferring the printer and Instructions for installing

the software and the electronic manuals

Electronic Manuals

User's Guide

This guide describes advanced usage of the printer such as paper

saving tips, how to print a poster and banner with the supplied software

and print quality adjusting method, in addition to the basic instructions

for printing on roll paper or cut sheet.

Paper Reference Guide

This guide describes about the types and specifications of the available

media on the printer.

To refer to the electronic manuals

• Windows : Double-click the iPFxxxx Support desktop

icon. (iPFxxxx indicates the printer model.)

• Mac OS X : Click the iPF Support icon in the Dock.

Package Contents

a. Printer

b. Roll holder

c. Set of manuals

d. Allen wrench

e. Set of CD-ROMs

f. Ejection support (x4)

g. Setup Guide (this document)

h. 3-inch paper core attachment #2

i. 3-inch paper core attachment #1

j. Power cord

k. Printhead (x2)

l. Starter ink tanks

BK, MBK, C, M, Y, PM,

PC, GY

m.Sample paper (roll paper)

Other documentation may also be included in the package.

MEM

• Some items are included with the printer but not described in this

manual. Keep these items in a safe place after setup because they are

used in various printing applications.

• For instructions on the included items not described in this manual, refer

to the User's Guide.

• A cable to connect the printer to a computer is not provided with the

printer.

• Canon, the Canon logo, and imagePROGRAF are trademarks or registered trademarks of CANON

INC.

• Microsoft and Windows are trademarks of Microsoft Corporation, registered in the U.S. and other

countries.

• Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

• All other trademarks or registered trademarks described in this Setup Guide are the property of their

respective owners.

Read this manual before attempting to operate the printer.

Keep this manual in a handy location for future reference.

Preparations Prepare the printer for use by installing it and connecting the power cord.

Install the printer.

Assemble the stand and install the printer

referring to the Printer Stand Setup Guide

included with the stand.

Caution

• It weighs approximately 100 kg by itself.

Moving the printer requires at least

six people to lift it from both sides. Be

careful to avoid back strain and other

injuries.

Remove the tape and other packing

materials attached to the printer.

Open the top cover.

Use the Allen wrench to loosen the screw of the belt stopper (a) and then remove the screw

from the belt stopper. Rotate the belt stopper to the left to remove it. Pull the carriage spacer (b)

in the direction indicated by the arrow to remove it.

• The belt stopper, screw, carriage

spacer, and Allen wrench are needed if

the printer is moved to another location.

Keep the belt stopper, screw, carriage

spacer and Allen wrench in a safe

place.

Neglecting to attach the belt stopper

and carriage spacer when moving the

printer to another location can result in

damage to the printer.

Lift the ejection guide.

Attach the four ejection supports (a) to the

back of the ejection guide.

Close the ejection guide and the top

cover.

Plug the power cord into the power supply

connector on the back of the printer and

plug the other end into an electric outlet.

Install both printheads.

Install the Printheads

Press the Power button to turn on the

printer.

When the following screen appears, use

the ▲ and ▼ keys to select a language

and press OK.

㪈㪆㪉

Language

English

ᣣᧄ⺆

Français

Italiano

Deutsch

Select your local time zone and press

OK.

㪈㪆㪌

Time Zone

0:London (GMT)

+1:Paris,Rome

+2:Athens,Cairo

+3:Moscow

+4:Eerevan,Baku

When the display screen shows Open

Upper Cover, open the top cover.

Instructions on printhead installation are

shown on the display screen.

Lift the carriage cover to open it fully.

Pull the printhead fixer lever forward all

the way to open it completely.

Lift the printhead fixer cover to open it

fully.

Hold the printhead by the grips (a) as you

remove it from the pouch.

Remove the orange protective part (a).

Remove the other orange protective part

(b) while holding the grip (c).

• Never touch the parts covered by the

protective parts. Doing so may damage

the printhead and affect printing quality.

• The printhead contains ink, so be

careful not to spill it once the protective

parts are removed.

• Do not reattach the protective parts

after removing them. Dispose of these

materials according to local regulations.

Insert the printhead into the carriage (b)

with the ink holes (a) up and facing the

front of the printer as shown in the figure.

Carefully push the printhead firmly into

the carriage (b), ensuring that the parts

that were covered by the protective parts

do not touch the carriage (b).

Pull the printhead fixer cover down toward

the front to lock the printhead in place.

Push the printhead fixer lever all the way

back.

Repeat steps 6 to 12 to install the second

printhead set.

Pull the carriage cover forward.

Close the top cover.

Install the Ink Tanks Install the eight ink tanks.

Instructions on ink tank installation are

shown on the display screen.

Open the ink tank covers as instructed.

Raise the stopper (a) of the ink tank lock

lever for the color you are loading. After

raising the ink tank lock lever as far as

possible, pull it forward.

• Press down on the ink tank lock lever

until it locks.

• Make sure the ink tank lock lever stays

in the locked position.

Shake each ink tank gently 7 to 8 times

before opening its pouch.

• Failure to shake the ink tanks may

result in reduced print quality because

ink ingredients have settled on the

bottom of the tank.

Open the pouch and remove the ink tank.

• Never touch the ink holes or metal

contacts. Touching these parts may

cause stains, damage the ink tank, and

affect print quality.

• Avoid dropping the ink tank after

removing it from the pouch. Otherwise,

ink may leak and cause stains.

• Do not remove ink tanks to shake them

after they have been installed. Doing so

may cause ink to spill.

Orient the ink tanks and place them in the

holders with ink holes down as shown in

the figure.

• An ink tank cannot be placed in the

holder if it is not oriented correctly for

the color.

• Do not try to force an ink tank into the

holder if it does not go in normally.

Check the color indicated on the label

affixed to the ink tank lock lever and

the ink tank orientation, and then try

placing the tank into the holder again.

After raising the ink tank lock lever as far

as possible, press it back down until it

clicks into place.

Make sure the ink lamp lights red.

• If the ink lamp does not light, repeat

steps 2, 5, and 6.

Repeat steps 2 to 7 to install each of the

ink tanks.

Close the ink tank covers.

After all the ink tanks and printheads have

been installed, the printer automatically

starts charging the system with ink.

Charging the system with ink for the first

time takes about 22 minutes. Install the

software and electronic manuals on your

computer while charging the system

with ink. If you install the software and

electronic manuals later, wait until the

system is charged with ink, and then

proceed to "Load Paper to Adjust the

Printheads" on page 13.

MEM

• During printer installation, ink fills the

system between the ink tanks and

printheads. The ink level quickly falls to

80%. This is normal.

For USB connections

• Use a USB cable that conforms to the

Hi-Speed USB specification.

• Connect the USB cable to the printer

according to the on-screen instructions

during installation of the printer driver.

If you connect the USB cable before

installing the printer driver, the printer

driver may not be installed correctly.

After making sure the printer is not

connected to the computer, turn the

computer on. Insert the provided User

Software CD-ROM for your operating

system in the CD-ROM drive.

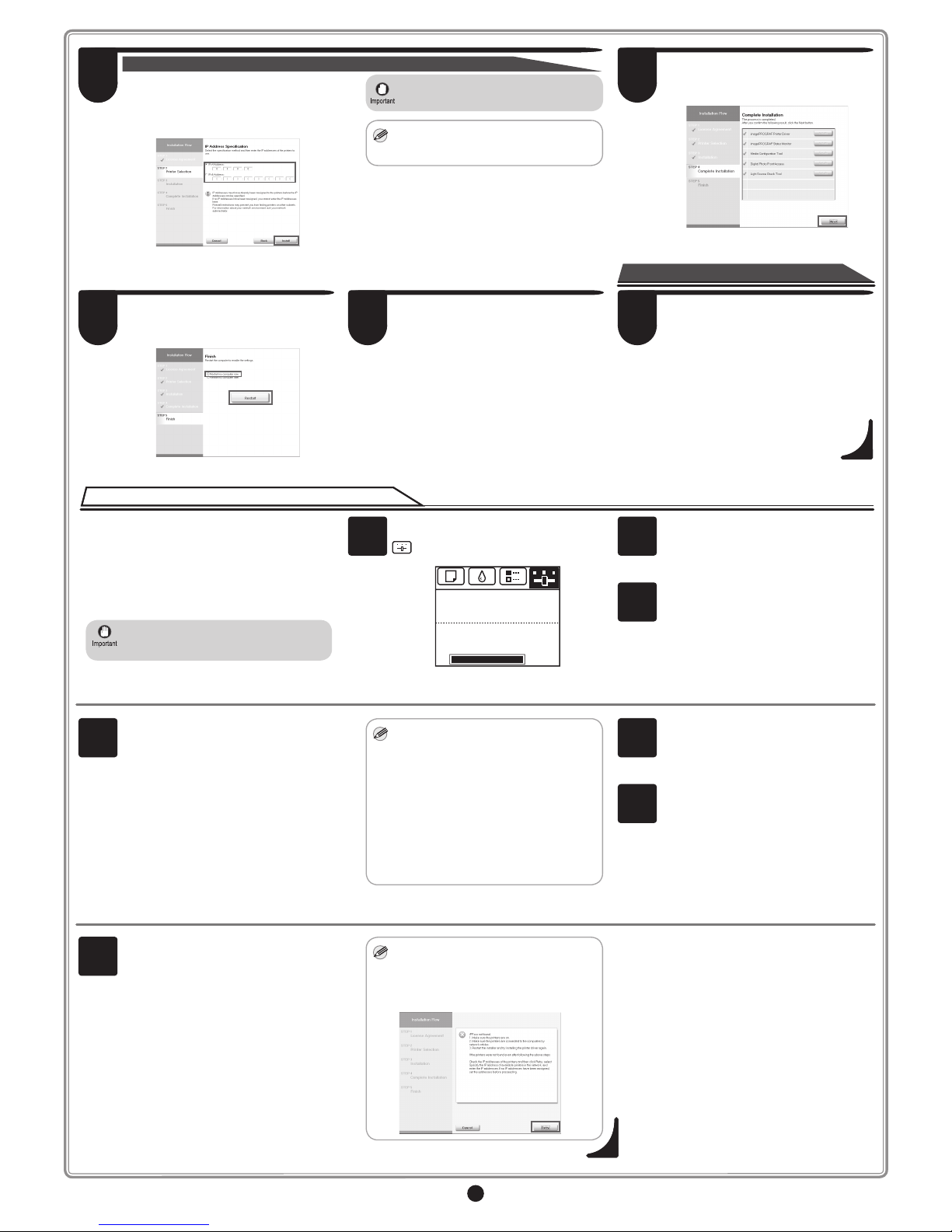

In the Setup Menu window, click Install

Printer Driver.

MEM

• To choose a different language, click

Language.

Select the software to install in the

Installation List window, and then click

Next.

Point the mouse pointer at a software

name to display a summary of the

software.

In the Select Country or Region of Use

window, select the country or region of

use and click Next.

After reading the license agreement, click

Yes.

Install the Software and the Electronic Manuals

Windows

MEM

The following screen may be displayed

during installation depending on the

security settings of your computer.

• Select Deactivate the block and click

Next.

You can print from Windows via USB or TCP/IP (network) connections.

The installation procedure varies depending on how your printer is connected. Install the software and

the electronic manuals by following instructions below.

If you connect the printer with a USB cable, refer to "For USB connections" on page 6.

If you connect the printer with TCP/IP (network), refer to "For TCP/IP (network) connections" on page 8.

• Installation requires administrative rights (such as those of Administrator). Be sure to log on using

an account with administrative rights before installation.

Windows 7, Windows Vista, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003

R2, Windows Server 2003, Windows XP

MEM

• For the Windows OS, use the latest version of Service Pack.

Install the software

If you can agree Extended Survey

Program, click Agree.

If you can respond to the questionnaire,

click Next.

Confirm your questionnaire responses,

and click Next.

Install the electronic manuals

In the Printer Selection window, select

The printer is connected directly to a

computer and click Next.

In the Printer Installation dialog box,

select Install with USB Connection, and

click Next.

When the following dialog box is

displayed, make sure the printer is on and

use the USB cable to connect the printer

to the computer.

MEM

• If a warning message is displayed, click

Retry to try again.

• Be careful not to insert the USB cable

into the Ethernet port.

After reviewing the installation results in

the Complete Installation window, click

Next.

In the Finish window, select Restart my

computer now and click Restart.

When you restart the computer, the

software settings are enabled. The

software installation is now completed.

An iPFxxxx Support desktop icon

is created after installation. (iPFxxxx

represents the printer model.)

Next, install the electronic manuals.

When the Install User Manual dialog

box is displayed, insert the provided User

Manuals CD-ROM in the CD-ROM drive

and click Next.

Click Next.

After reading the software license

agreement, select I accept the terms of

the license agreement, and then click

Next.

Click Install.

The installation process begins.

After installation is completed, click

Finish.

The electronic manuals installation is now

completed.

Double-click the iPFxxxx Support

desktop icon.

When clicking the User's Manual button,

the User's Guide will be opened and

clicking the Paper Reference Guide

button, the Paper Reference Guide will be

opened.

For TCP/IP (network) connections

Install the software

In the Printer Selection window, select

The printer is connected to computers

in a network and click Next.

When searching the available printer on

the network

After reading the precautions in the

Getting Ready window, select Find

available printers in the network and

click Next.

Proceed to step 6.

When entering the printer's IP address

manually

After reading the precautions in the Getting

Ready window, select Specify the IP

address of available printers in the

network and click Next.

Proceed to step 8.

When searching the available printer on the network

Available printers are listed in the Search Results window.

Select a printer from the list on either their IPv4 Devices or IPv6 Devices

tabs and click Next.

Select the printer with the IP Address Status is Available, and then click

Next to start installation.

Proceed to step 9 in this case.

• If the printer is already connected to

the network, confirm the IP address

assigned to the printer. Ask your

network administrator for further

information.

Use the LAN cable to connect the LAN port

on the back of the printer to the hub port.

If the printer is already connected to the

network, proceed to step 2.

MEM

• If the printer is on, the Link indicator

under the LAN port lights.

1000Base-T

connection

The top and bottom LEDs

light.

100Base-TX

connection

The LED on the bottom

lights green.

10Base-T

connection

The LED on the top lights

orange.

Make sure the printer is on.

Turn the computer on and insert the

provided User Software CD-ROM for

your operating system in the CD-ROM

drive.

Perform procedures of steps 2-8 on page

When searching the available printer on the network

In the Method of Configuring IP Addresses window, enter the IP

address in Configure manually, under Method of Configuring IP

Addresses. Click Install to start the installation process. Also enter your

preferred name for the printer in Device Name and the installation location

in Printer Location under Information About Printer to Configure, as

desired.

The installation process begins.

Proceed to step 9.

• If you use a DHCP server for automatic assignment of the printer's

IP address, printing may no longer be possible after the printer is

turned off and on. This is because a different IP address has been

assigned. When using DHCP server functions, consult your network

administrator and configure the settings in one of the following ways:

• Configure the setting for dynamic DNS updating

In the printer menu, either set DNS Dync update to On, or activate

the setting Enable DNS Dynamic Update in RemoteUI.

(→"Menu Settings", User's Guide)

(→"Configuring the Printer's TCP/IP Network Settings", User's

Guide)

• Configure the setting for assignment of the same IP address each

time the printer starts up

MEM

• The IPv6 Devices tab is displayed in Windows 7, Windows Vista,

Windows Server 2008 R2, and Windows Server 2008.

• If the printer you want to use is not displayed in the list on the IPv6

Devices tab, connect via IPv4 instead.

• If the printer you want to use is not displayed in the list of printers on

the IPv4 Devices tab, refer to "When the printer cannot be found on

the network" on page 9 to setup and configure an IP address for the

printer.

When the printer cannot be found on the network

In the Finish window, select Restart my

computer now and click Restart.

When you restart the computer, the

software settings are enabled. The

software installation is now completed.

An iPFxxxx Support desktop icon

is created after installation. (iPFxxxx

represents the printer model.)

Next, follow steps 15-21 on page 7 to

Install the electronic manuals

If your printer cannot be found when connecting to

the network for the first time, setup an IP address

for the printer and then configure it on the printer.

When ink fills the system for the first time, after

printhead adjustment is finished, specify the IP

address on the printer's control panel.

• When ink fills the system for the first

time, do not operate the printer until

printhead adjustment is finished.

On the tab selection screen of the control

panel, press the

▲

and

▲

keys to select

(settings/adj. tab) and press OK.

No Paper Loaded

OK:Setting/Adj. Menu

Remaining Amount

㪈㪇㪇㩼

Maint. cart.

Use the ▲ and ▼ keys to select Interface

Setup and press OK.

Use the ▲ and ▼ keys to select TCP/IP

and press OK.

Enter the IP address. Navigate through

the following menus using the ▲ and ▼

keys on the control panel.

1.Select IPv4 and press OK.

2.Select IPv4 Settings and press OK.

3.Select IP Address and press OK.

4.Enter the IP address.

MEM

How to enter IP addresses

1. Press the

▲

and

▲

keys to select a

field for inputting values.

2. Use the ▲ and ▼ keys to input values.

• Pressing ▲ increases the value by

one.

• Pressing ▼ decreases the value by

one.

• Holding down either the ▲ or ▼ keys

continually increases or decreases

the value.

3. Press OK once you have finished.

Press Menu.

Press OK on the registration confirmation

message that appears.

The IP address is set on the printer.

Next, restart installation of the printer

driver.

When entering the printer's IP address manually

In the IP Address Specification window,

select either IPv4 Address or IPv6

Address to enter the printer's IP address

and click Install.

The installation process begins.

• Ask your network administrator for the

IP address, as needed.

MEM

• IPv6 Address is displayed in Windows

7, Windows Vista, Windows Server

2008 R2, and Windows Server 2008.

After reviewing the installation results in

the Complete Installation window, click

Next.

Install the electronic manuals

In the Search Results window, select

Specify the IP address of available

printers in the network and click Next.

When the IP Address Specifications

window appears, follow the instructions of

"When entering the printer's IP address

manually" in step 8 to 12 on page 9 to

complete the installation of the software

and electronic manuals.

MEM

• If the following screen appears, click

Retry and select Specify the IP

address of available printers in

the network on the next screen that

appears.

Install the software

Macintosh

You can print from Macintosh via USB or network connections such as

Bonjour or IP.

Install the software and electronic manuals depending on your computer

environment.

Mac OS X 10.4.11 or later

• If you install the software, log onto the

computer as an administrator.

After making sure the printer is not

connected to the computer, turn the

computer on. Insert the provided User

Software CD-ROM for your operating

system in the CD-ROM drive.

User Software

On the desktop, double-click the CD-ROM

icon and then the iPF Printer Setup icon.

If the following screen is displayed, enter

the user name and password of a user

with administrative rights and click OK.

Select the software to install, and click

Next.

Select the country or region where the

printer will be used and click Next.

Click Next.

After reading the software license

agreement, click Continue.

Click Agree.

Click Continue.

Exit other applications and click

Continue.

Items selected in step 4 are installed.

If you can agree Extended Survey

Program, click Agree.

If you can respond to the questionnaire,

click Next.

Confirm your questionnaire responses,

and click Next.

Click OK.

Autres manuels pour imagePROGRAF iPF8300S

Table des matières

Autres manuels Canon Imprimante

Canon

Canon Color imageCLASS MF9220Cdn Instructions de montage

Canon

Canon BJC-820 Manuel utilisateur

Canon

Canon PIXMA MG4160 Manuel utilisateur

Canon

Canon imageRUNNER 2545i Manuel utilisateur

Canon

Canon TS7440 Guide de configuration

Canon

Canon I450 - i 450 Color Inkjet Printer Manuel utilisateur

Canon

Canon i850 Manuel utilisateur

Canon

Canon imageRUNNER 2545 Manuel utilisateur

Canon

Canon imagePROGRAF iPF6300S Manuel utilisateur

Canon

Canon imageClass LBP6030w Manuel utilisateur

Canon

Canon iB4100 series Guide de configuration

Canon

Canon i455 Series Manuel utilisateur

Canon

Canon iP6220D - PIXMA Color Inkjet Printer Manuel

Canon

Canon imageRUNNER ADVANCE 6575i Guide d'installation

Canon

Canon CX-G2400 Manuel utilisateur

Canon

Canon Laser Shot LBP-1120 Manuel utilisateur

Canon

Canon CLC 3220 Instructions d'installation et d'entretien

Canon

Canon imagePROGRAF W8400 Manuel d'installation et d'exploitation

Canon

Canon IP2800 series Guide de configuration

Canon

Canon MG5700 Series Manuel utilisateur

Canon

Canon ImagePress C700 Instructions générales

Canon

Canon NP7160 Manuel utilisateur

Canon

Canon MG 2520 Manuel utilisateur

Canon

Canon 820D - S Color Inkjet Printer Guide de l'utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien

Canon imagePROGRAF iPF8300S Manuel utilisateur

Manuels Imprimante populaires d'autres marques
